8-90 — RADIO AND TV (#28853) — 55 parça

62 63 49 48 52 215 49 48 52 68 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU> (A) FRONT	1-84114-050-0	01	1	0105-0308
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU> (A) FRONT	1-84114-073-0	01	1	0309-0801
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0802-0905
48	SPEAKER; AUDIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0802-0905
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV> (B) REAR	1-84114-057-0	02	1	0105-0310
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV> (B) REAR	1-84114-075-1	02	1	0311-
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-050-0	02	1	0105-0308
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-050-0	02	1	0105-0308
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0309-0801
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0309-0801
49	SCREW; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	0105-
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0105-
62	BOX; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73347-749-4	01	1	0105-
62	BOX; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73347-748-4	01	1	0105-
63	SCREW; RR SPEAKER BOX SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	0105-
68	BRACKET; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-786-2	01	1	0105-
68	BRACKET; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-785-2	01	1	0105-
215	SCREW; BRKT,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0105-
215	SCREW; BRKT,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0105-

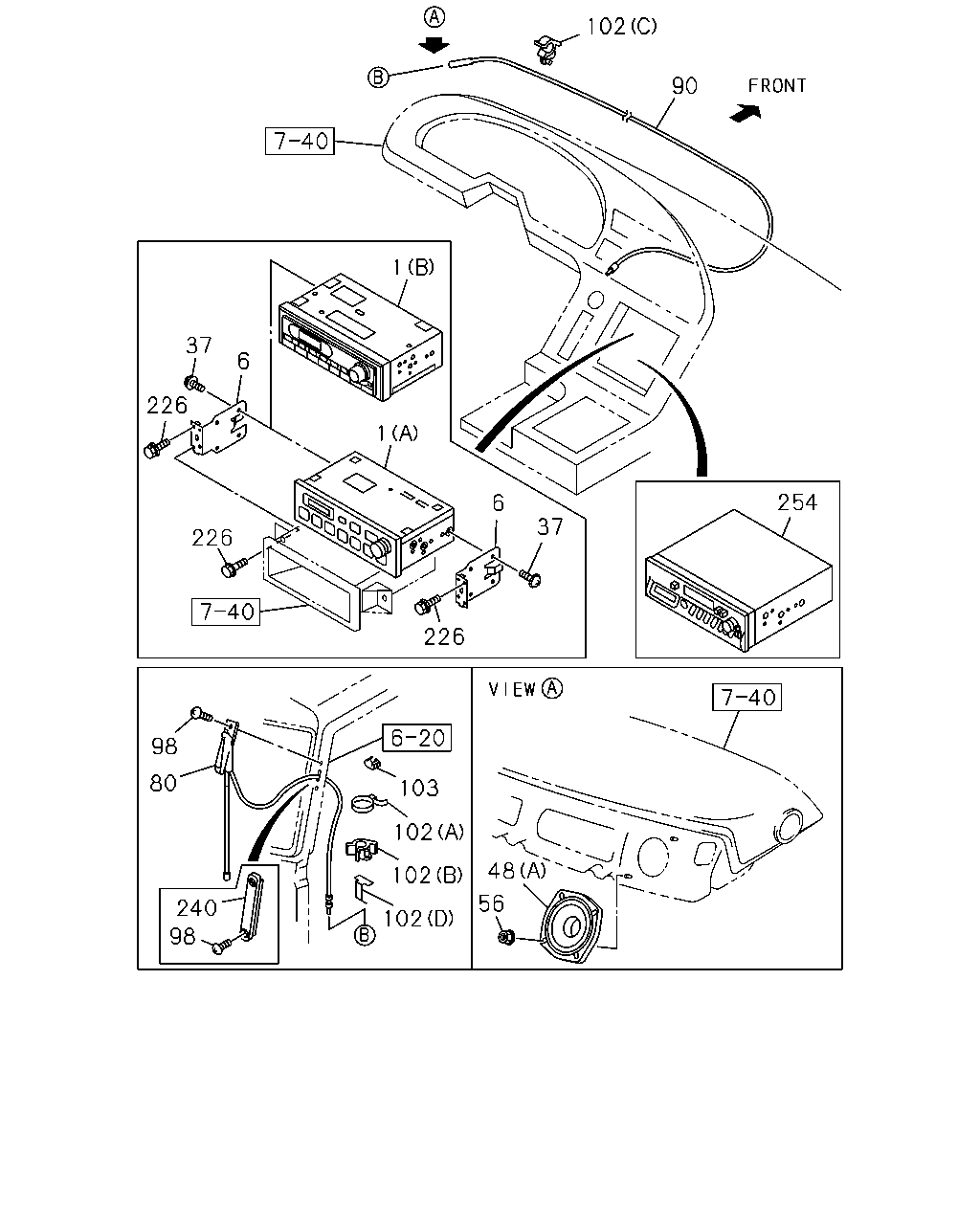

102 90 1 1 37 6 226 226 6 37 226 102 103 102 102 56 48 98 80 240 98 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIO RADIO CLARION(SK2) (A)	1-84112-063-0	01	1	0105-0801
1	RADIO RADIO CLARION(SK2) (B) CLARION AM/FM	8-98029-605-0	01	1	0802-
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	0105-0612
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	0701-
37	SCREW; CASSETTE & RADIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0105-0604
37	SCREW; CASSETTE & RADIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU> (A) FRONT	1-84114-050-0	01	1	0105-0308
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU> (A) FRONT	1-84114-073-0	01	1	0309-0801
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0802-0905
48	SPEAKER; AUDIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0802-0905
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	8-98140-326-1	02	1	0906-
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV> (B) REAR	1-84114-057-0	02	1	0105-0310
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV> (B) REAR	1-84114-075-1	02	1	0311-
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-050-0	02	1	0105-0308
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-050-0	02	1	0105-0308
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0309-0801
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) FRONT	1-84114-073-0	02	1	0309-0801
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	02	1	0105-0801
56	NUT; SPEAKER,RADIO OR STEREO M5 FLANGE	1-09984-170-0	04	1	0802-
56	NUT; SPEAKER,RADIO OR STEREO EXC. SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	04	1	0105-0801
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	0105-1203
80	ANTENNA ANTENNA RADIO<U73>	8-98210-874-1	01	1	1204-
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	0105-
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0105-
102	CLIP; CABLE ANTENNA RADIO<U73> (D) L=20 SET=10 PIECE	1-09987-246-2	01	1	1410-
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/GASKET ID=4.8	1-73907-618-0	05	1	0105-
102	CLIP; CABLE ANTENNA RADIO<U73> (C) WO/GASKET ID=4.8	8-94128-483-0	02	1	0105-
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	0105-
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	0105-
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	0105-
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION	1-84122-032-3	01	1	0105-
