8-60 — HEATER UNIT; FRONT (#28847) — 124 parça

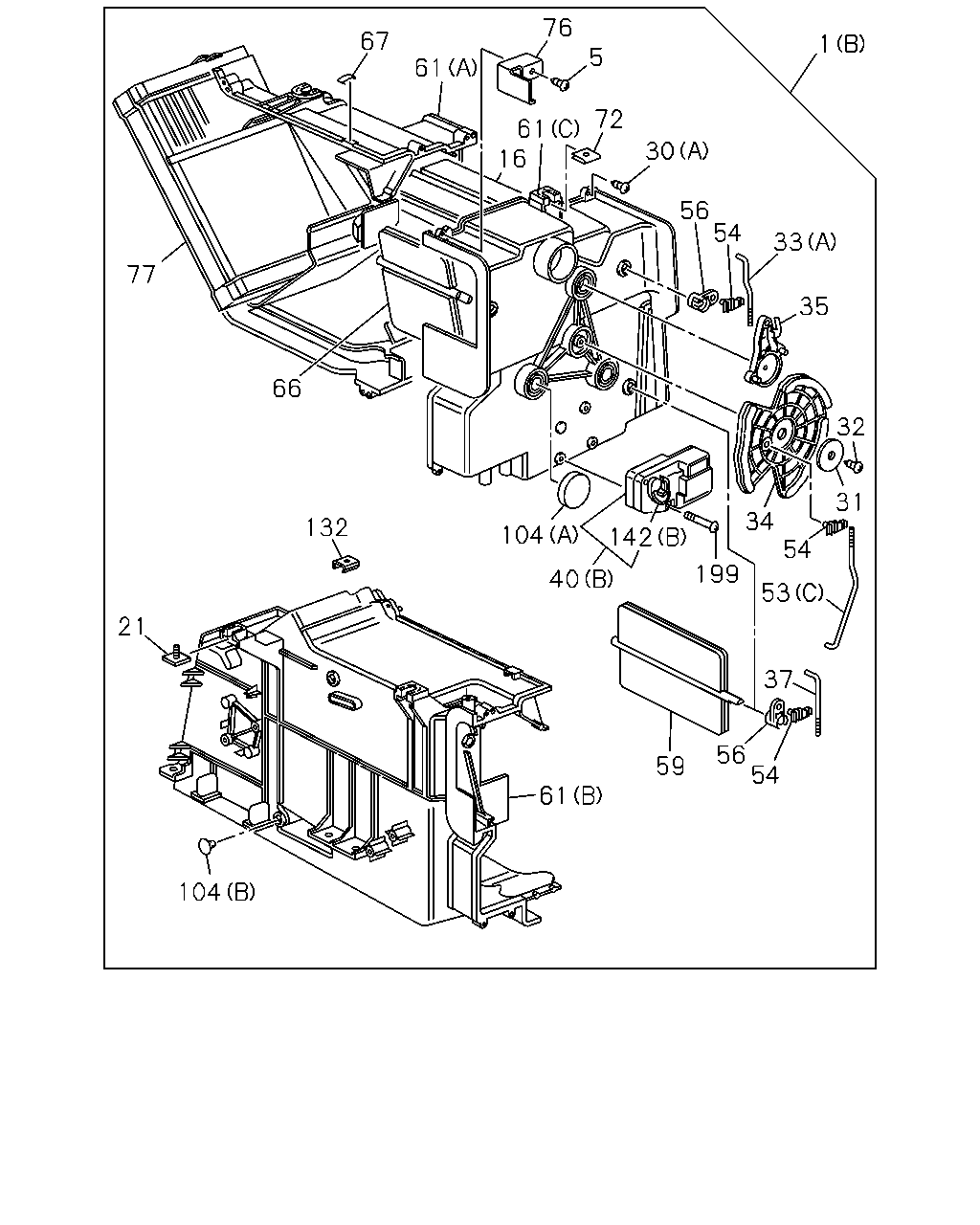

çizim 138599
67 76 61 61 16 72 30 56 54 33 35 104 132 66 77 21 104 61 59 56 54 40 142 199 53 37 34 54 31 32 1 5
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83511-137-3 01 1 0105-0204
1 HEATER UNIT
(A) 		1-83511-137-4 01 1 0205-1409
1 HEATER UNIT
(A) 		8-98238-491-0 01 1 1410-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83511-138-3 01 1 0105-0204
5 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 0105-0204
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 0105-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0105-0204
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0205-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0105-0204
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0205-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 11 1 0105-0204
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0105-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0105-0204
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0204-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 0105-0204
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0105-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0105-0204
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0205-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 0105-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94380-580-0 03 1 0105-0204
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 0205-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94380-580-0 02 1 0105-0204
37 ROD; LEVER 1-83579-620-1 01 1 0105-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-792-1 01 1 0105-0204
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 0205-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-623-0 01 1 0105-0204
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 0205-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-793-0 01 1 0105-0204
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 0205-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0105-0204
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0205-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0105-0204
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0105-0204
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0205-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0105-0204
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 0105-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 0105-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 0105-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 0105-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0105-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0105-
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-194-0 01 1 0105-0204
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97102-661-0 01 1 0105-0204
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94328-657-0 04 1 0105-0204
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-94387-703-0 01 1 0105-0204
132 BRACKET; HTR CORE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-195-0 01 1 0105-0204
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-384-0 01 1 0105-0204
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 0205-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 0105-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0105-0204
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0205-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0105-0204

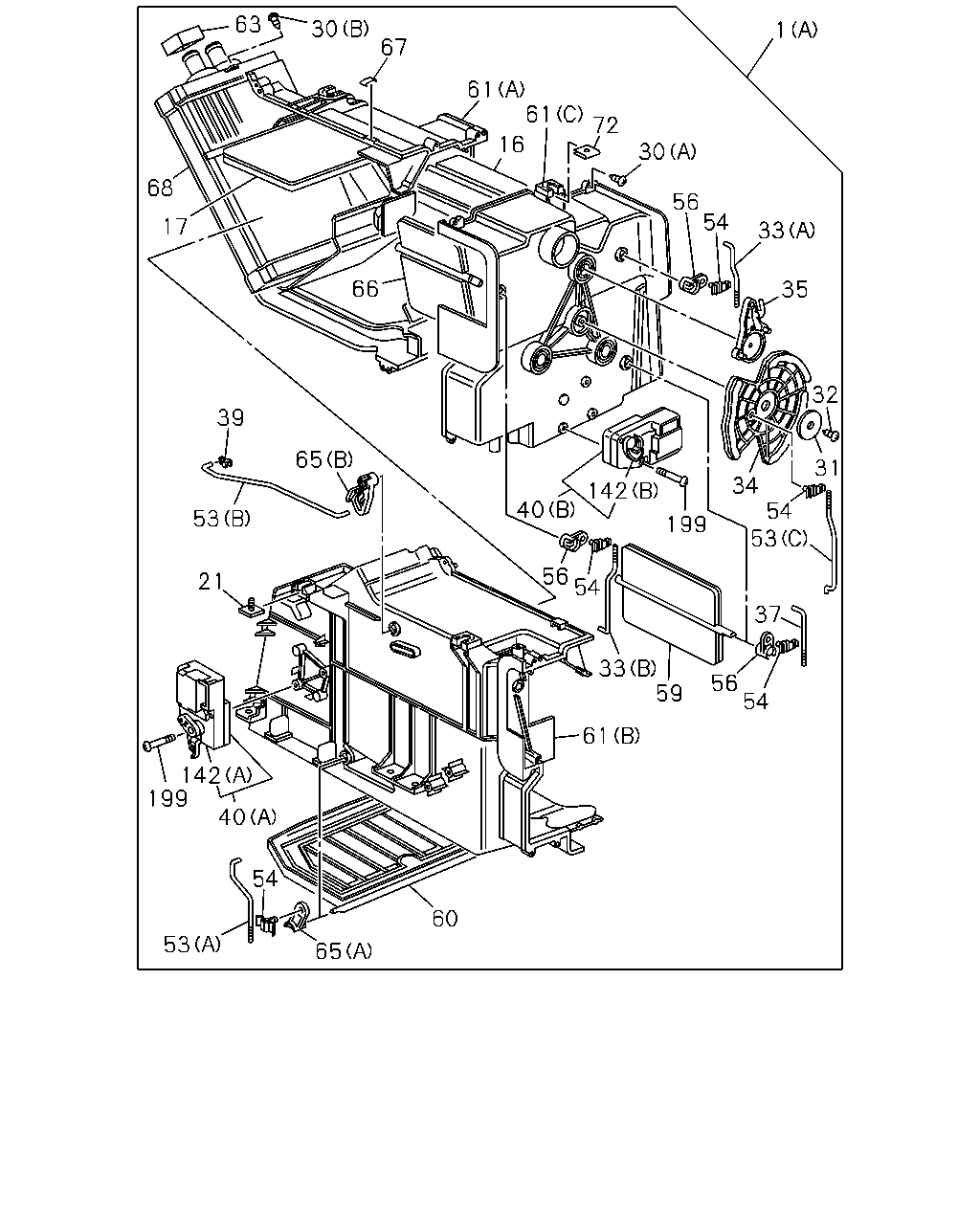

çizim 138608
63 67 30 68 39 53 65 21 142 199 40 54 53 65 60 61 33 59 56 54 37 54 56 40 142 199 53 54 34 31 32 35 33 54 56 30 72 61 16 61 1 17 66
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83511-137-3 01 1 0105-0204
1 HEATER UNIT
(A) 		1-83511-137-4 01 1 0205-1409
1 HEATER UNIT
(A) 		8-98238-491-0 01 1 1410-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83511-138-3 01 1 0105-0204
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 0105-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-787-0 01 1 0105-0204
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 0205-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0105-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0105-0204
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0205-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0105-0204
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0205-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 11 1 0105-0204
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0105-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0105-0204
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0204-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 0105-0204
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0105-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0105-0204
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0205-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 0105-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94380-580-0 03 1 0105-0204
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 0205-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94380-580-0 02 1 0105-0204
37 ROD; LEVER 1-83579-620-1 01 1 0105-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0105-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 0105-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-792-1 01 1 0105-0204
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 0205-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 0105-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-623-0 01 1 0105-0204
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 0205-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-793-0 01 1 0105-0204
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 0205-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0105-0204
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0205-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0105-0204
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0105-0204
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0205-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0105-0204
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 0105-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-788-0 01 1 0105-0204
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 0205-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 0105-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 0105-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 0105-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0105-0204
63 LINING; HTR UNIT 1-83579-557-0 02 1 0205-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-328-1 01 1 0105-0204
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 0205-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-366-0 01 1 0105-0204
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 0205-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 0105-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0105-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0105-0204
68 CORE; HTR UNIT 1-83562-078-1 01 1 0205-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0105-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-384-0 01 1 0105-0204
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 0205-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 0105-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0105-0204
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0205-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0105-0204
