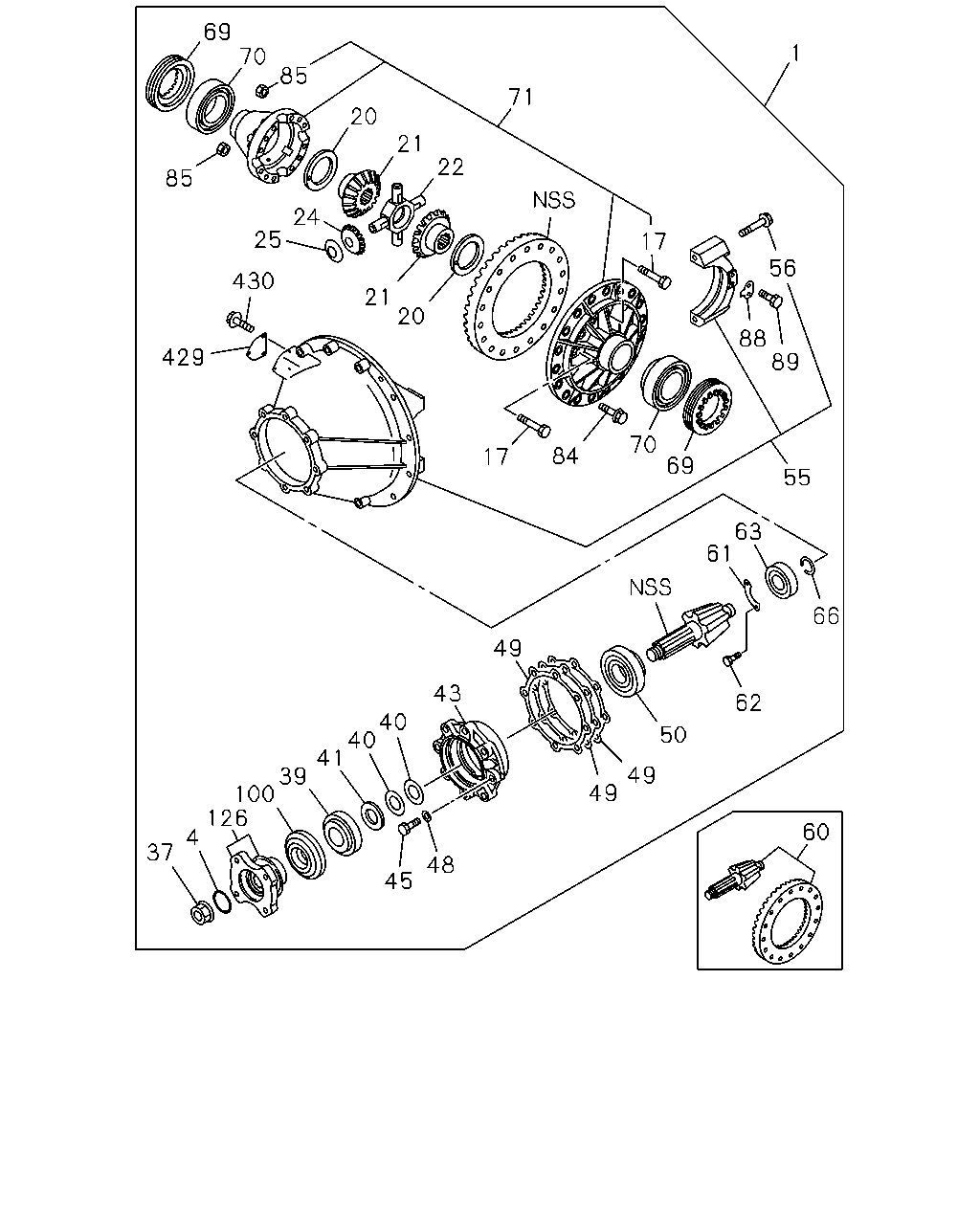

4-25 — REAR FINAL DRIVE (#28843) — 68 parça

69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 89 429 70 84 17 69 55 63 61 66 49 43 62 40 40 41 50 49 39 100 126 4 49 60 37 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR DISC WHEEL STEEL<SDN> 43/11	1-41002-399-0	01	1	0610-
4	GASKET; FLANGE,FINAL PINION DISC WHEEL STEEL<SDN> ID=57	1-09623-386-0	01	1	0610-
17	BOLT; DIFF CAGE SETTING DISC WHEEL STEEL<SDN> M16X141 FLANGE	1-09070-013-0	08	1	0610-
17	BOLT; DIFF CAGE SETTING DISC WHEEL STEEL<SDN> M16X105 FLANGE	1-09070-014-0	04	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=2.8	1-41562-270-1	AR	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=2.9	1-41562-271-1	AR	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=3.0	1-41562-272-1	AR	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=3.1	1-41562-273-1	AR	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=3.2	1-41562-274-1	AR	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=3.3	1-41562-275-1	AR	1	0610-
20	WASHER; THRUST,SIDE GEAR DISC WHEEL STEEL<SDN> T=3.4	1-41562-276-1	AR	1	0610-
21	GEAR; SIDE,DIFF DISC WHEEL STEEL<SDN> Z=16	1-41561-142-0	02	1	0610-0911
21	GEAR; SIDE,DIFF DISC WHEEL STEEL<SDN> Z=16	1-41561-167-0	02	1	0912-
22	SPIDER; DIFF PINION DISC WHEEL STEEL<SDN> OD=35	1-41521-052-0	01	1	0610-
24	GEAR; PINION,DIFF DISC WHEEL STEEL<SDN> Z=10	1-41551-045-0	04	1	0610-0911
24	GEAR; PINION,DIFF DISC WHEEL STEEL<SDN> Z=10	1-41551-054-0	04	1	0912-
25	WASHER; THRUST,PINION DISC WHEEL STEEL<SDN> T=1.6	1-41552-003-0	04	1	0610-
37	NUT; DRIVING PINION DISC WHEEL STEEL<SDN> M46 FLANGE	1-09449-071-0	01	1	0610-
39	BEARING; FINAL PINION DISC WHEEL STEEL<SDN> NSK	1-09812-075-0	01	1	0610-
39	BEARING; FINAL PINION DISC WHEEL STEEL<SDN> JTEKT	1-09812-076-1	01	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.25	1-41229-245-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.26	1-41229-246-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.27	1-41229-247-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.28	1-41229-248-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.29	1-41229-249-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.30	1-41229-250-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.31	1-41229-251-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.32	1-41229-252-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.33	1-41229-253-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.34	1-41229-254-0	AR	1	0610-
40	SHIM; FINAL PINION DISC WHEEL STEEL<SDN> T=3.35	1-41229-255-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=7.60	1-41229-237-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=7.80	1-41229-238-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=8.00	1-41229-239-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=8.20	1-41229-240-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=8.40	1-41229-241-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=8.60	1-41229-242-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=8.80	1-41229-243-0	AR	1	0610-
41	SPACER; FINAL DRIVE PINION BRG DISC WHEEL STEEL<SDN> T=9.00	1-41229-244-0	AR	1	0610-
43	CAGE; FINAL PINION DISC WHEEL STEEL<SDN> T=82	1-41151-057-0	01	1	0610-
45	BOLT; FINAL PINION CAGE DISC WHEEL STEEL<SDN> M16X55	0-16806-655-0	08	1	0610-
48	WASHER; LK,FINAL PINION DISC WHEEL STEEL<SDN> ID=16.2	0-91510-516-0	08	1	0610-
49	SHIM; FINAL PINION CAGE DISC WHEEL STEEL<SDN> T=0.50	1-41154-077-0	AR	1	0610-
49	SHIM; FINAL PINION CAGE DISC WHEEL STEEL<SDN> T=1.000	1-41154-078-0	AR	1	0610-
49	SHIM; FINAL PINION CAGE DISC WHEEL STEEL<SDN> T=0.30	1-41154-079-0	AR	1	0610-
49	SHIM; FINAL PINION CAGE DISC WHEEL STEEL<SDN> T=0.40	1-41154-080-0	AR	1	0610-
50	BEARING; FINAL PINION DISC WHEEL STEEL<SDN> NSK	1-09812-073-1	01	1	0610-
50	BEARING; FINAL PINION DISC WHEEL STEEL<SDN> JTEKT	1-09812-074-3	01	1	0610-
55	CARRIER; DIFF DISC WHEEL STEEL<SDN>	1-41110-117-1	01	1	0610-
56	BOLT; BRG CAP DISC WHEEL STEEL<SDN> M20X125 FLANGE	1-09070-015-0	04	1	0610-
60	GEAR SET; FINAL DRIVE,RR DISC WHEEL STEEL<SDN> 43/11	1-41210-622-0	01	1	0610-
61	RETAINER; PILOT BRG,PINION DISC WHEEL STEEL<SDN> T=3.2	1-41227-008-0	01	1	0610-
62	BOLT; RET DISC WHEEL STEEL<SDN> M8X16	0-20850-816-0	02	1	0610-
63	BEARING; PINION PILOT DISC WHEEL STEEL<SDN> NSK	1-09810-152-0	01	1	0610-
63	BEARING; PINION PILOT DISC WHEEL STEEL<SDN> JTEKT	1-09810-153-0	01	1	0610-
66	RING; SNAP,PILOT BRG DISC WHEEL STEEL<SDN> OD=45.9	1-09588-061-0	01	1	0610-
69	NUT; ADJ,DIFF CAGE DISC WHEEL STEEL<SDN>	1-41121-050-0	01	1	0610-
69	NUT; ADJ,DIFF CAGE DISC WHEEL STEEL<SDN>	1-41121-051-0	01	1	0610-
70	BEARING; DIFF CAGE DISC WHEEL STEEL<SDN> JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0610-
71	CAGE ASM; DIFF,FINAL DRIVE DISC WHEEL STEEL<SDN>	1-41510-253-0	01	1	0610-
84	BOLT; FINAL DRIVE GEAR DISC WHEEL STEEL<SDN> M18X38 FLANGE	1-09009-049-1	18	1	0610-
85	NUT; DIFF CAGE SETTING DISC WHEEL STEEL<SDN> M16	0-91110-516-0	12	1	0610-
88	PLATE; LK,ADJ NUT DISC WHEEL STEEL<SDN> T=3.2	1-41124-026-0	02	1	0610-
89	BOLT; LK PLATE DISC WHEEL STEEL<SDN> M10X20 FLANGE	0-28751-020-0	04	1	0610-
100	SEAL; OIL,FINAL PINION DISC WHEEL STEEL<SDN> NOK	1-09625-322-0	01	1	0610-
126	COUPLING; DRIVING PINION DISC WHEEL STEEL<SDN>	1-37245-343-0	01	1	0610-
429	PLATE; DUMMY DISC WHEEL STEEL<SDN>	1-41279-014-0	01	1	0610-
430	BOLT; PLATE,DUMMY DISC WHEEL STEEL<SDN> M8X20 FLANGE	0-28650-820-0	03	1	0610-
