◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#2884) — 163 parça

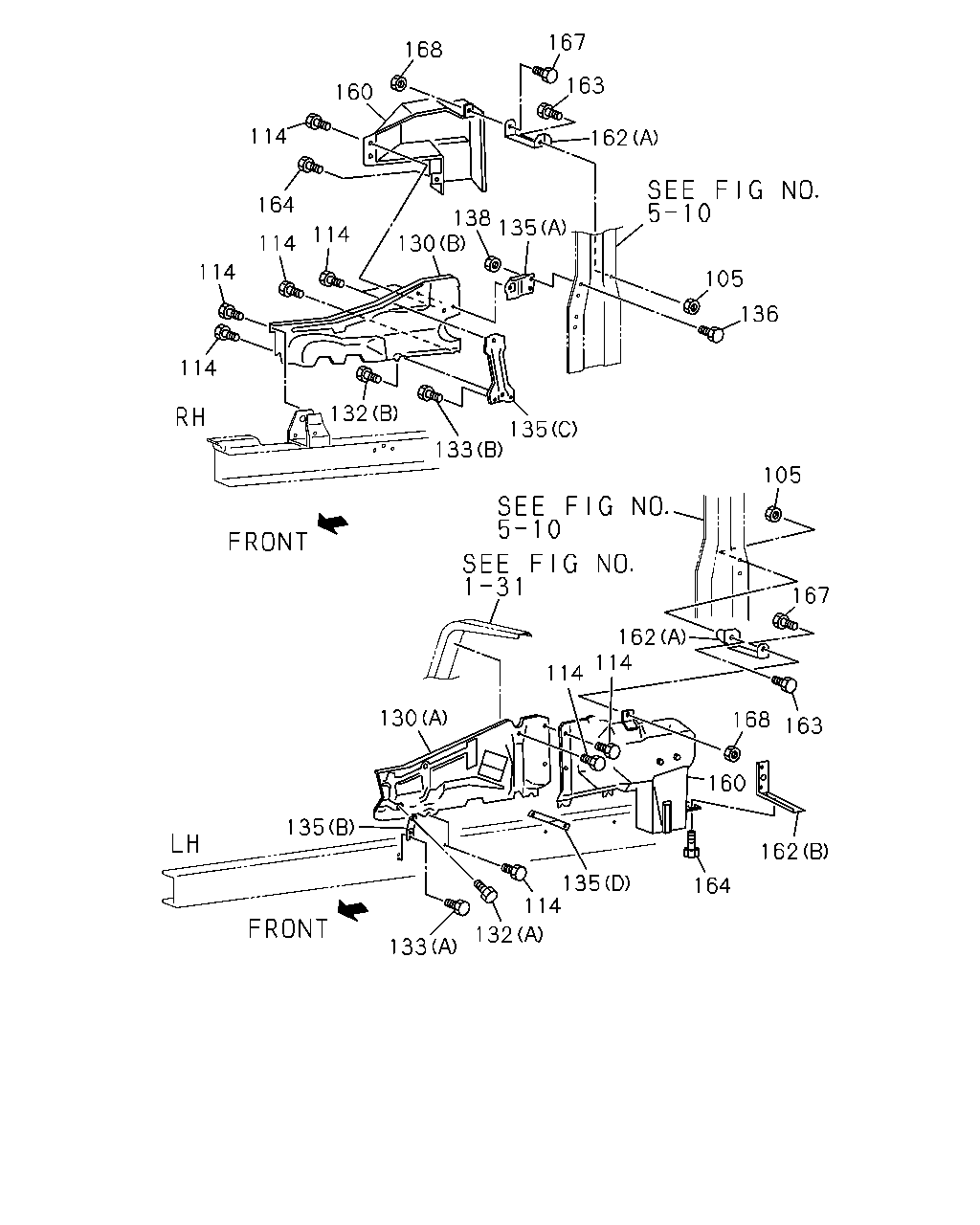

çizim 29051
162 164 135 114 132 133 135 130 114 114 160 162 168 163 167 105 136 105 135 133 132 114 114 114 164 114 114 138 130 135 162 163 167 168 160
BalonParca AdiParca NoAdetTipApplied Date A B
105 NUT; BRKT
ANTI NOISE EQUIPMENT<SV9> M10 		9-09110-510-0 02 1 9411-9502 ●
105 NUT; BRKT
ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9411-9502 ●
105 NUT; BRKT
ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9503- ● ●
105 NUT; BRKT
ANTI NOISE EQUIPMENT<SV9> M8 		9-09110-408-0 03 1 9411- ● ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X14 FLANGE 		0-28080-814-0 01 1 9411- ● ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER 		1-09030-042-0 07 1 9411- ● ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X30 W/LK&PL WASHER 		1-09030-080-0 04 1 9411- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-585-0 01 1 9411- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-333-0 01 1 9411- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-79937-817-3 01 1 9502- ● ●
132 BOLT; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
132 BOLT; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) M8X35 W/LK&PL WASHER 		1-09030-073-0 01 1 9411- ● ●
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> (A) M8X30 FLANGE 		0-28080-830-0 02 1 9411- ● ●
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> (B) M8X30 W/LK&PL WASHER 		1-09030-080-0 02 1 9411- ● ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-503-1 01 1 9501-9502 ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> (B) 		1-53441-503-1 01 1 9503- ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-494-1 01 1 9411- ● ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (D) 		1-53441-555-0 01 1 9411-9412 ● ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> AUTO CAB TILT<WV2> (D) 		1-53441-558-0 01 1 9501-9502 ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> AUTO CAB TILT<WV2> (D) 		1-53441-558-0 01 1 9503- ● ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-491-0 01 1 9411- ● ●
136 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
138 NUT
ANTI NOISE EQUIPMENT<SV9> M8 		9-09110-408-0 06 1 9411- ● ●
160 COVER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-79930-912-2 01 1 9411- ● ●
160 COVER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-79931-081-0 01 1 9411- ● ●
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-488-0 01 1 9411- ● ●
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-487-0 01 1 9411- ● ●
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> (B) 		1-53441-489-0 01 1 9411- ● ●
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M10X35 W/LK WASHER 		0-50041-035-0 02 1 9411- ● ●
164 BOLT; FLEX COVER
ANTI NOISE EQUIPMENT<SV9> M8X18 FLANGE 		0-28080-818-0 03 1 9411- ● ●
164 BOLT; FLEX COVER
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 01 1 9411- ● ●
167 BOLT; EXH COVER
ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 9411- ● ●
168 NUT; EXH COVER
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		5-09440-005-0 02 1 9411- ● ●

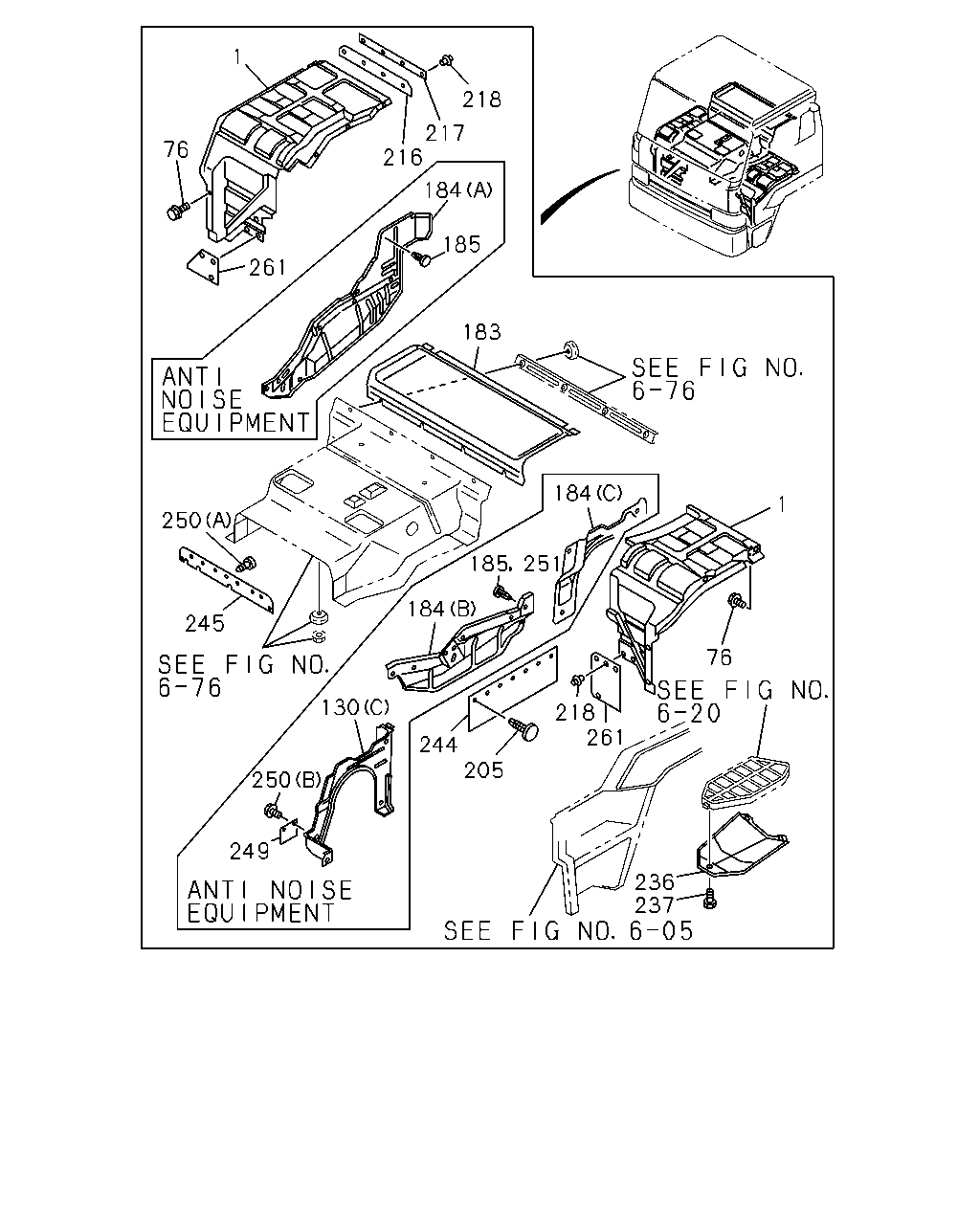

çizim 93854
237 236 261 218 205 244 76 1 184 251 185 184 130 250 249 245 250 183 185 184 216 217 218 1 76 261
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-711-9 01 1 9002-9301 ● ●
1 GUARD; MUD,FRT 1-79937-923-0 01 1 9302- ● ●
1 GUARD; MUD,FRT 1-79937-710-9 01 1 9002- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		9-01911-020-0 08 1 9002-9002 ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9003- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-585-0 01 1 9411- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-333-0 01 1 9411- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-79937-817-3 01 1 9502- ● ●
183 INSULATOR; HEAT,BED PAN
NYLON TUBE AIR PIPING<Z29> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-71997-746-2 01 1 9002- ● ●
183 INSULATOR; HEAT,BED PAN
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NYLON TUBE AIR PIPING<Z29> 		1-71997-486-5 01 1 9002- ● ●
183 INSULATOR; HEAT,BED PAN
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> 		1-71997-499-5 01 1 9002- ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> (C) 		1-71997-896-0 01 1 9502- ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> (B) 		1-71997-970-0 01 1 9502- ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> (A) 		1-71997-748-2 01 1 9502- ● ●
185 CLIP; HEAT INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 17 1 9502- ● ●
205 FASTENER; MUD COVER
L TYPE ENG<90L> D6X23 BLACK 		1-09987-114-0 07 1 9002-9212 ● ●
205 FASTENER; MUD COVER
L TYPE ENG<90L> 		1-09987-189-0 07 1 9301-9502 ● ●
205 FASTENER; MUD COVER
6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP 110MM(W60) 		1-09987-189-0 07 1 9503- ● ●
205 FASTENER; MUD COVER
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> 		1-09987-189-0 06 1 9502- ● ●
216 RUBBER; RR,MUD GUARD FRT 1-79937-716-1 01 1 9002- ● ●
217 RETAINER; RUBBER,MUD GUARD FRT 1-79937-717-1 01 1 9002- ● ●
218 FASTENER; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 05 1 9002- ● ●
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 04 1 9002- ● ●
218 FASTENER; RUBBER 5-09989-002-0 04 1 9002- ● ●
236 GUARD ASM; MUD 1ST STEP 1-79937-744-0 02 1 9002-9405 ● ●
236 GUARD ASM; MUD 1ST STEP
HONG KONG EQUIPMENT(PQ1) 		1-79937-744-0 02 1 9406- ● ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-497-0 06 1 9002-9307 ● ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9308-9405 ● ●
237 BOLT; MUD GUARD
HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9406- ● ●
244 GUARD; MUD,SPLASH
L TYPE ENG<90L> EXC. CAB UP 110MM(W60) 		1-79937-772-1 01 1 9002-9502 ● ●
244 GUARD; MUD,SPLASH
6RB1 STD ENG(07L),6RB1TC ENG(30L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP 110MM(W60) 		1-79937-772-1 01 1 9503- ● ●
244 GUARD; MUD,SPLASH
CAB UP 110MM(W60) 		1-79937-773-1 01 1 9002- ●
245 RUBBER; SHUTTER,RAD 1-79937-709-8 01 1 9002- ● ●
249 RUBBER; SHUTTER
ANTI NOISE EQUIPMENT<SV9> 		1-79937-886-0 01 1 9502- ● ●
250 FASTENER; SHUTTER
(A) 		1-09987-189-0 07 1 9002- ● ●
250 FASTENER; SHUTTER
ANTI NOISE EQUIPMENT<SV9> (B) D6X16 PUSH RIVET 		1-09983-105-0 02 1 9502- ● ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9411-9501 ● ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 9502- ● ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 37 1 9411-9501 ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-774-1 01 1 9002- ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-742-0 01 1 9002- ● ●
261 RUBBER; FRT,MUD GUARD
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-742-0 02 1 9002- ● ●

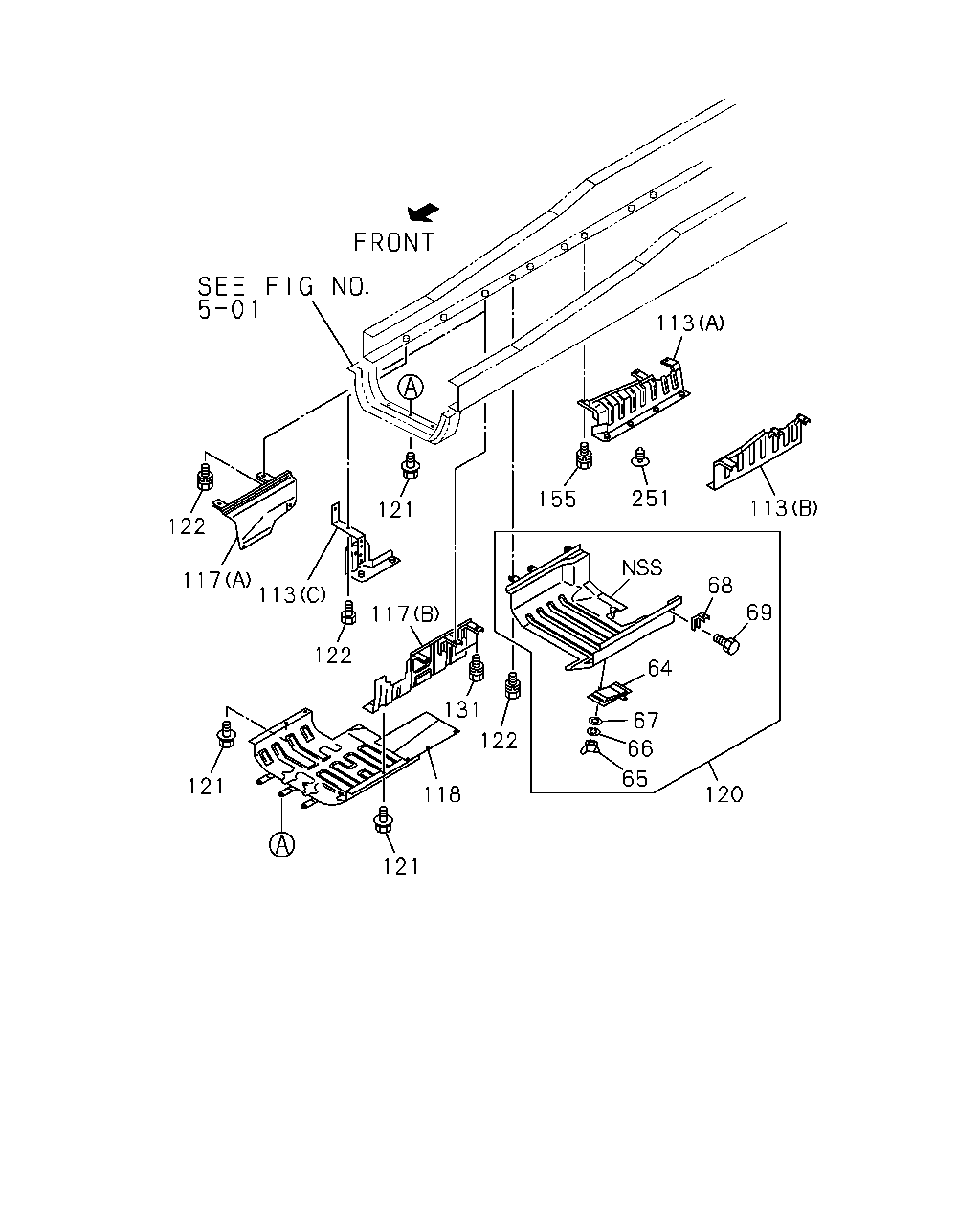

çizim 93881
120 65 66 64 67 69 68 113 251 155 113 121 122 113 117 122 117 131 122 118 121 121
BalonParca AdiParca NoAdetTipApplied Date A B
64 COVER; CHECK HOLE
ANTI NOISE EQUIPMENT<SV9> 		1-53441-421-0 01 1 9411-9501 ● ●
65 NUT; WING
ANTI NOISE EQUIPMENT<SV9> M8 WING NUT 		9-09118-408-0 02 1 9411-9501 ● ●
66 WASHER; LK
ANTI NOISE EQUIPMENT<SV9> ID=8.2 		9-09150-508-0 02 1 9411-9501 ● ●
67 WASHER; PL
ANTI NOISE EQUIPMENT<SV9> ID=8.4 		9-09160-508-0 02 1 9411-9501 ● ●
68 STAY; COVER
ANTI NOISE EQUIPMENT<SV9> 		1-53441-452-0 03 1 9411-9501 ● ●
69 BOLT; COVER TO STAY
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 06 1 9411-9501 ● ●
113 PANEL; SIDE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-53192-872-0 01 1 9411-9501 ● ●
113 PANEL; SIDE
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-372-0 01 1 9411-9501 ● ●
113 PANEL; SIDE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-366-0 01 1 9411-9501 ● ●
117 PANEL; SIDE,B UNDER
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-588-1 01 1 9411-9501 ● ●
117 PANEL; SIDE,B UNDER
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-352-0 01 1 9411-9501 ● ●
118 PANEL ASM; UNDER
ANTI NOISE EQUIPMENT<SV9> 		1-53192-356-1 01 1 9411-9501 ● ●
120 PANEL; UNDER
ANTI NOISE EQUIPMENT<SV9> 		1-53192-358-4 01 1 9411-9501 ● ●
121 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X18 FLANGE 		0-28080-818-0 06 1 9411-9501 ● ●
121 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 03 1 9411-9501 ● ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 06 1 9411-9501 ● ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 02 1 9411-9501 ● ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X35 FLANGE 		0-28080-835-0 02 1 9411-9501 ● ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X18 FLANGE 		0-28080-818-0 02 1 9411-9501 ● ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 03 1 9411-9501 ● ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 04 1 9411-9501 ● ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 02 1 9502- ● ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X35 FLANGE 		0-28080-835-0 02 1 9411-9501 ● ●
155 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X35 FLANGE 		0-28080-835-0 06 1 9411-9501 ● ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9411-9501 ● ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 9502- ● ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 37 1 9411-9501 ● ●

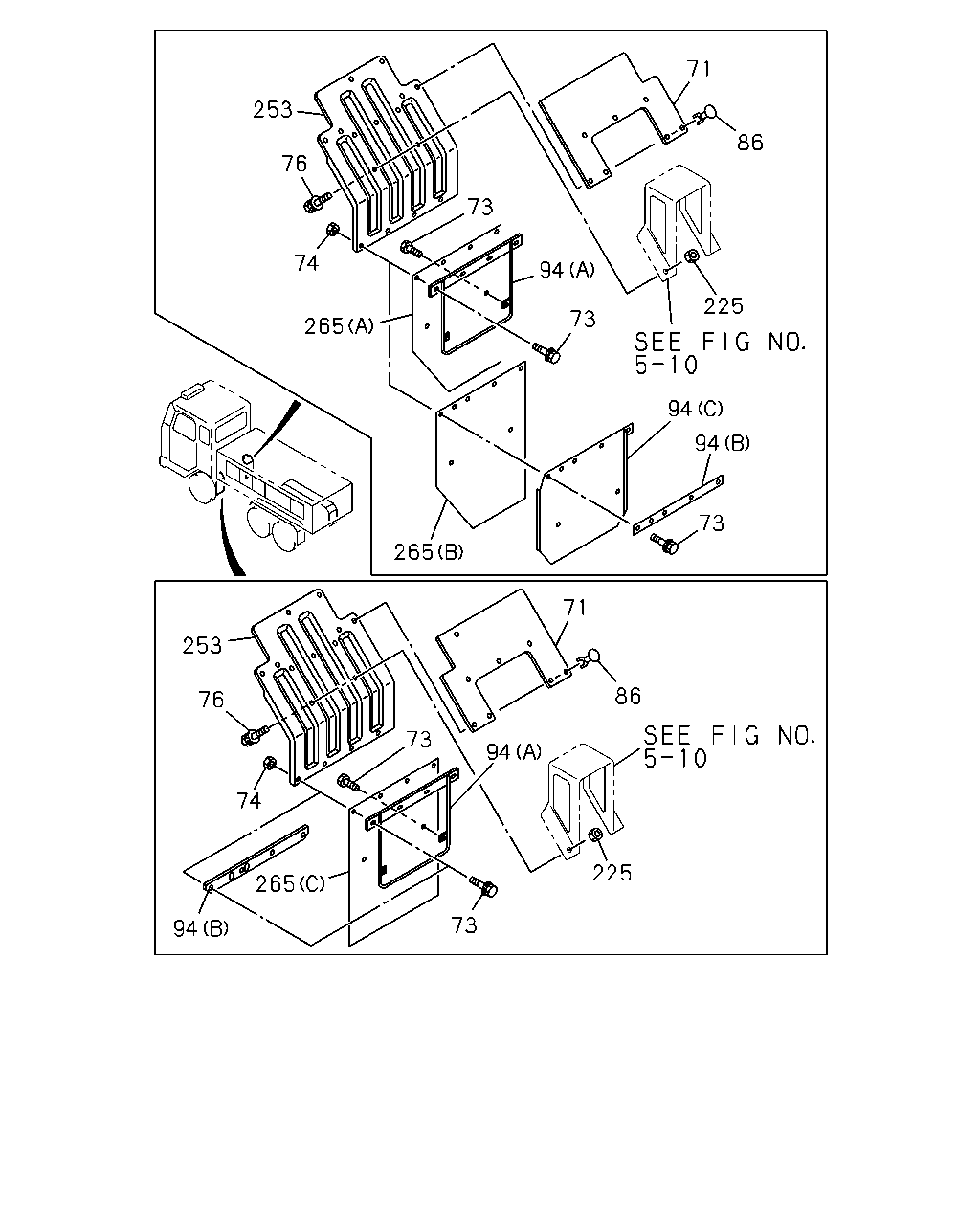

çizim 95577
225 73 265 94 74 76 253 73 94 71 86 265 73 94 94 73 94 265 74 76 253 73 71 86 225
BalonParca AdiParca NoAdetTipApplied Date A B
71 RUBBER; SEAL
HONG KONG EQUIPMENT(PQ1) 470X230 		1-79930-645-1 01 1 9002- ● ●
71 RUBBER; SEAL
CAB UP 110MM(W60) 470X230 		1-79930-645-1 01 1 9002- ●
71 RUBBER; SEAL
HONG KONG EQUIPMENT(PQ1) 470X320 		1-79930-644-1 01 1 9002- ● ●
71 RUBBER; SEAL
CAB UP 110MM(W60) 470X320 		1-79930-644-1 01 1 9002- ●
71 RUBBER; SEAL
EXC. HONG KONG EQUIPMENT(PQ1),CAB UP 110MM(W60) 470X230 		1-79930-589-0 01 1 9002- ● ●
71 RUBBER; SEAL
EXC. HONG KONG EQUIPMENT(PQ1),CAB UP 110MM(W60) 470X320 		1-79930-588-1 01 1 9002- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ●
73 BOLT; MUD COVER BRKT
SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9205 ● ●
73 BOLT; MUD COVER BRKT
SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9205 ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9205 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9206- ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9206- ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9206- ● ●
73 BOLT; MUD COVER BRKT
EXC. SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER 		9-01960-816-0 04 1 9002-9204 ● ●
73 BOLT; MUD COVER BRKT
EXC. SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9205-9205 ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8X16 W/LK&PL WASHER 		9-01960-816-0 05 1 9002-9204 ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8X16 W/LK&PL WASHER 		0-50140-816-0 05 1 9205- ● ●
74 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 04 1 9002-9205 ● ●
74 NUT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8 		9-09110-408-0 04 1 9002-9205 ● ●
74 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 04 1 9206- ● ●
74 NUT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8 		9-09110-408-0 04 1 9206- ● ●
74 NUT
V TYPE ENG<91L> AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8 		9-09110-408-0 04 1 9206- ● ●
74 NUT
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8 		9-09110-408-0 05 1 9002- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		9-01911-020-0 08 1 9002-9002 ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9003- ● ●
86 CLIP; MUD GUARD 5-09987-033-0 07 1 9002- ● ●
94 RETAINER; FLAP RUBBER
L TYPE ENG<90L> (A) 		8-94300-800-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> EXC. AIR DRYER<PS7> (A) 		8-94300-800-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		8-94300-800-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
SUB AIR TANK<SJD> (A) 		1-79930-749-0 01 1 9002-9105 ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-870-1 01 1 9106-9108 ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-888-1 01 1 9109- ● ●
94 RETAINER; FLAP RUBBER
EXC. SUB AIR TANK<SJD> (B) 		1-79930-341-0 01 1 9002-9105 ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (C) 		1-79930-738-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (B) 		1-79930-757-1 01 1 9002-9310 ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-122-0 01 1 9311- ● ●
225 NUT; MUD GUARD
M10 FLANGE 		5-09440-006-0 08 1 9002- ● ●
225 NUT; MUD GUARD
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		5-09440-005-0 02 1 9002- ● ●
253 GUARD; MUD 1-79930-733-0 01 1 9002-9006 ● ●
253 GUARD; MUD 1-79930-851-2 01 1 9007-9106 ● ●
253 GUARD; MUD 1-79930-887-1 01 1 9107- ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-740-0 01 1 9002-9006 ● ●
253 GUARD; MUD
V TYPE ENG<91L> EXC. SILENCER SINGLE VERTICAL<N28> 		1-79930-740-0 01 1 9002-9006 ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-850-2 01 1 9007-9106 ● ●
253 GUARD; MUD
V TYPE ENG<91L> EXC. SILENCER SINGLE VERTICAL<N28> 		1-79930-850-2 01 1 9007-9106 ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-886-1 01 1 9107- ● ●
253 GUARD; MUD
V TYPE ENG<91L> EXC. SILENCER SINGLE VERTICAL<N28> 		1-79930-886-1 01 1 9107- ● ●
253 GUARD; MUD
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> 		1-79930-754-2 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
L TYPE ENG<90L> (A) 		1-79930-544-0 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
V TYPE ENG<91L> EXC. AIR DRYER<PS7> (A) 		1-79930-544-0 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
V TYPE ENG<91L> AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-79930-544-0 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
SUB AIR TANK<SJD> (C) 		1-79930-798-0 01 1 9002-9011 ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-798-0 01 1 9012-9105 ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-869-0 01 1 9106- ● ●
265 RUBBER; FLAP,REAR
EXC. SUB AIR TANK<SJD> (C) 		1-79930-343-1 01 1 9002-9011 ● ●
265 RUBBER; FLAP,REAR
V TYPE ENG<91L> AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (B) 		1-79930-756-1 01 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
