3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#28829) — 35 parça
◀

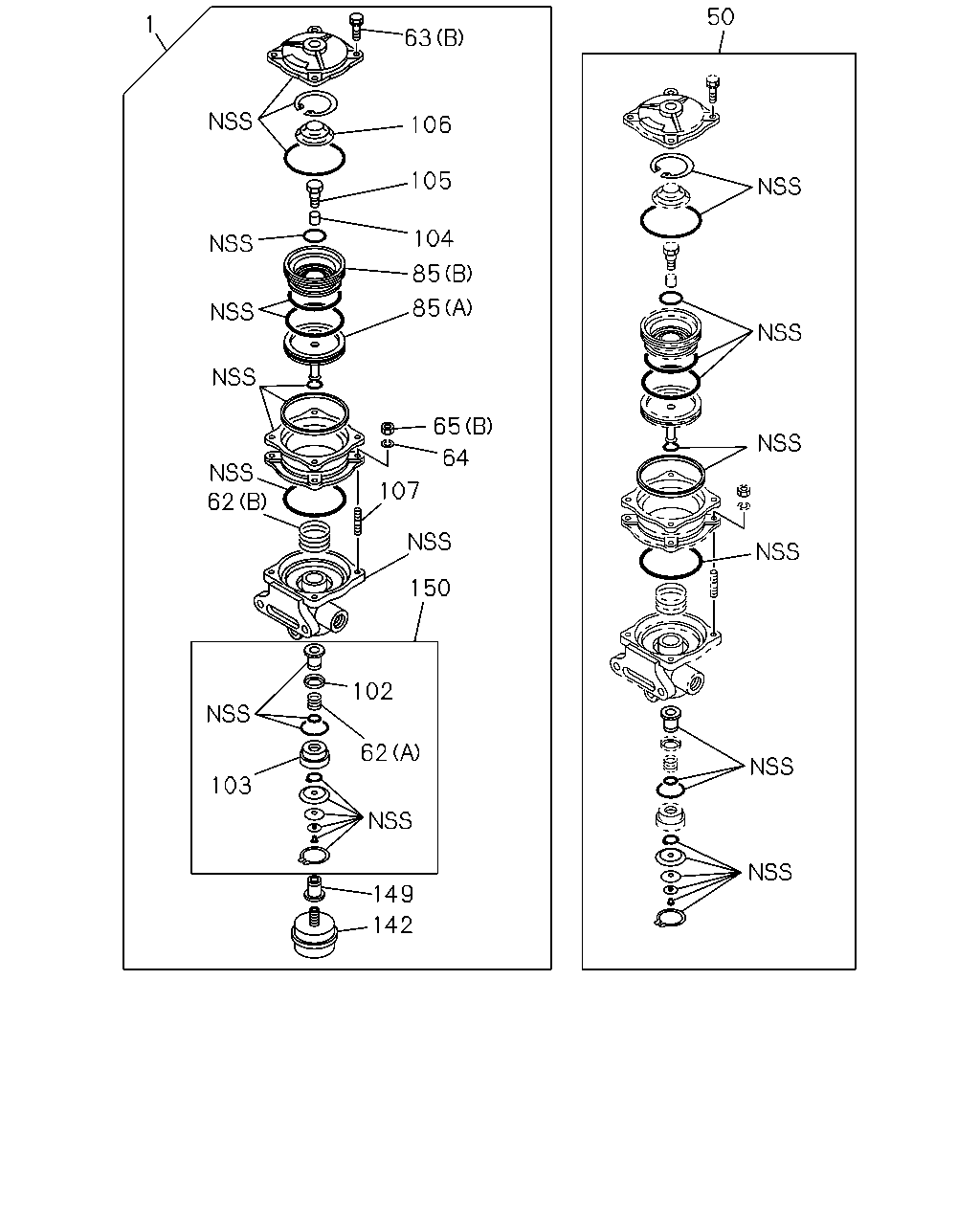

[345A] COMPONENT AND REPAIR KIT (20 parça)

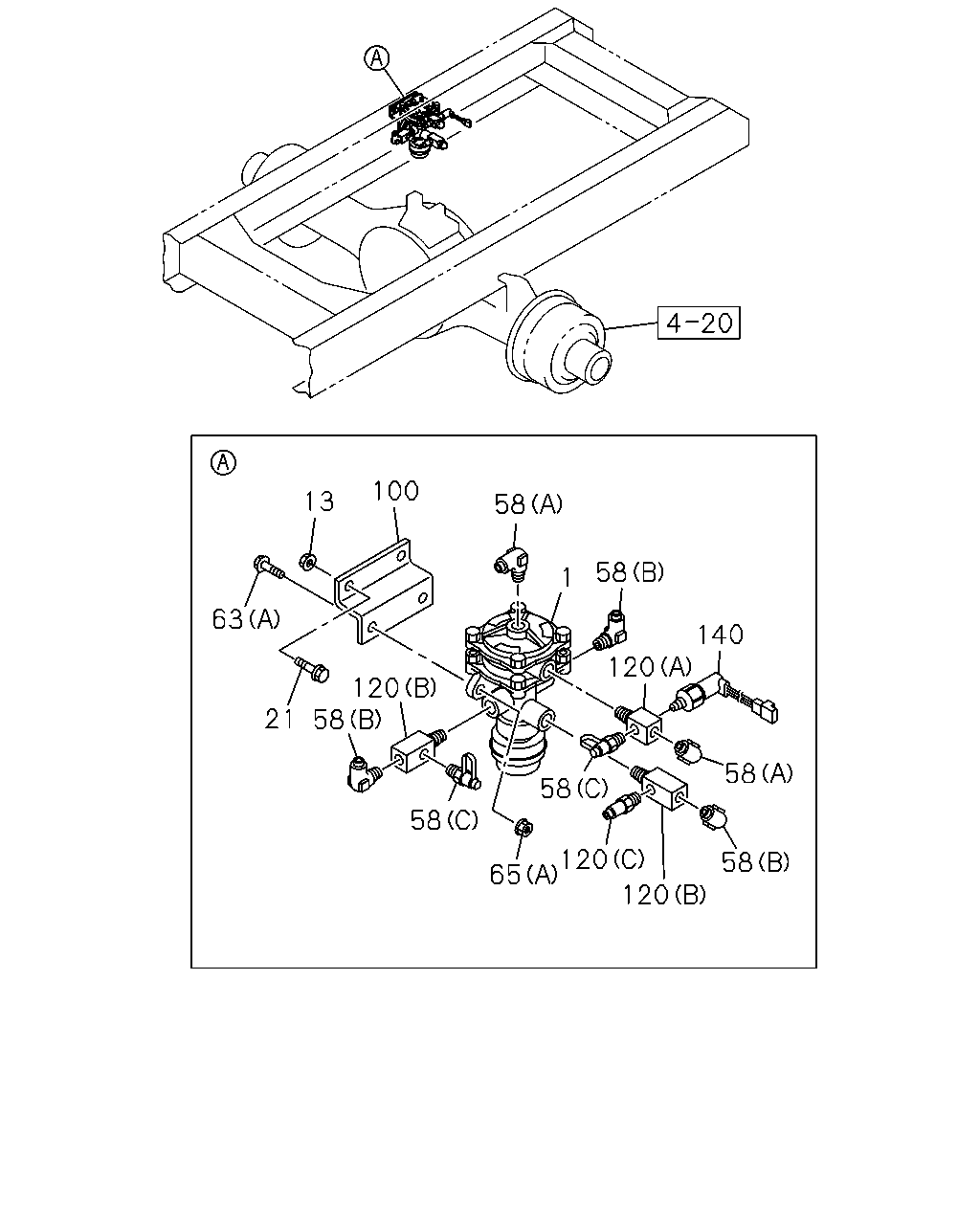

[345A] FIXING (15 parça)
▶
50
1
63
106
105
104
85
85
65
64
62
107
150
102
62
103
149
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-164-0
01
1
0610-
50
REPAIR KIT; LSPV
1-85576-447-0
01
1
0610-
62
SPRING; LSPV
(A)
1-47819-089-0
01
1
0610-
62
SPRING; LSPV
(B)
1-47819-090-0
01
1
0610-
63
BOLT; LSPV
(A) M10X35 FLANGE
0-28651-035-0
02
1
0610-
63
BOLT; LSPV
(B)
1-48219-039-0
04
1
0610-
64
WASHER; LSPV
ID=8.2
1-09985-177-0
04
1
0610-
65
NUT; LSPV
(A) M10 FLANGE
0-91180-210-0
02
1
0610-
65
NUT; LSPV
(B) M8
9-09110-508-0
04
1
0610-
85
PISTON; LSPV
(A)
1-47769-058-0
01
1
0610-
85
PISTON; LSPV
(B)
1-47769-059-0
01
1
0610-
102
RETAINER; VALVE
1-48213-002-0
01
1
0610-
103
GUIDE; VALVE
1-48129-014-0
01
1
0610-
104
COLLAR; LSPV
1-47769-061-0
01
1
0610-
105
BOLT; PISTON
1-47769-062-0
01
1
0610-
106
COVER; PISTON
1-47769-063-0
01
1
0610-
107
STUD; LSPV
1-47769-064-0
04
1
0610-
142
SILENCER; VALVE
1-48219-149-0
01
1
0610-
149
ADAPTER; SILENCER
1-48219-154-0
01
1
0610-
150
VALVE ASM; INLET
1-47842-010-0
01
1
0610-
100
13
58
58
1
63
140
120
120
58
21
58
58
58
120
58
65
120
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-164-0
01
1
0610-
13
NUT; LSPV TO BRKT
M8 FLANGE
0-91180-108-0
02
1
0610-
21
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0610-
58
CONNECTOR; LSPV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0610-
58
CONNECTOR; LSPV
(B) DIN12 & R1/2 ELBOW
1-09660-960-0
03
1
0610-
58
CONNECTOR; LSPV
(C) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
0610-
63
BOLT; LSPV
(A) M10X35 FLANGE
0-28651-035-0
02
1
0610-
63
BOLT; LSPV
(B)
1-48219-039-0
04
1
0610-
65
NUT; LSPV
(A) M10 FLANGE
0-91180-210-0
02
1
0610-
65
NUT; LSPV
(B) M8
9-09110-508-0
04
1
0610-
100
BRACKET; LSPV
8-98036-508-0
01
1
0610-
120
CONNECTOR
(A)
1-09661-515-0
01
1
0610-
120
CONNECTOR
(B) PT1/2
1-09664-041-1
02
1
0610-
120
CONNECTOR
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0610-
140
SWITCH; AIR PRESSURE
8-97383-820-1
01
1
0610-
