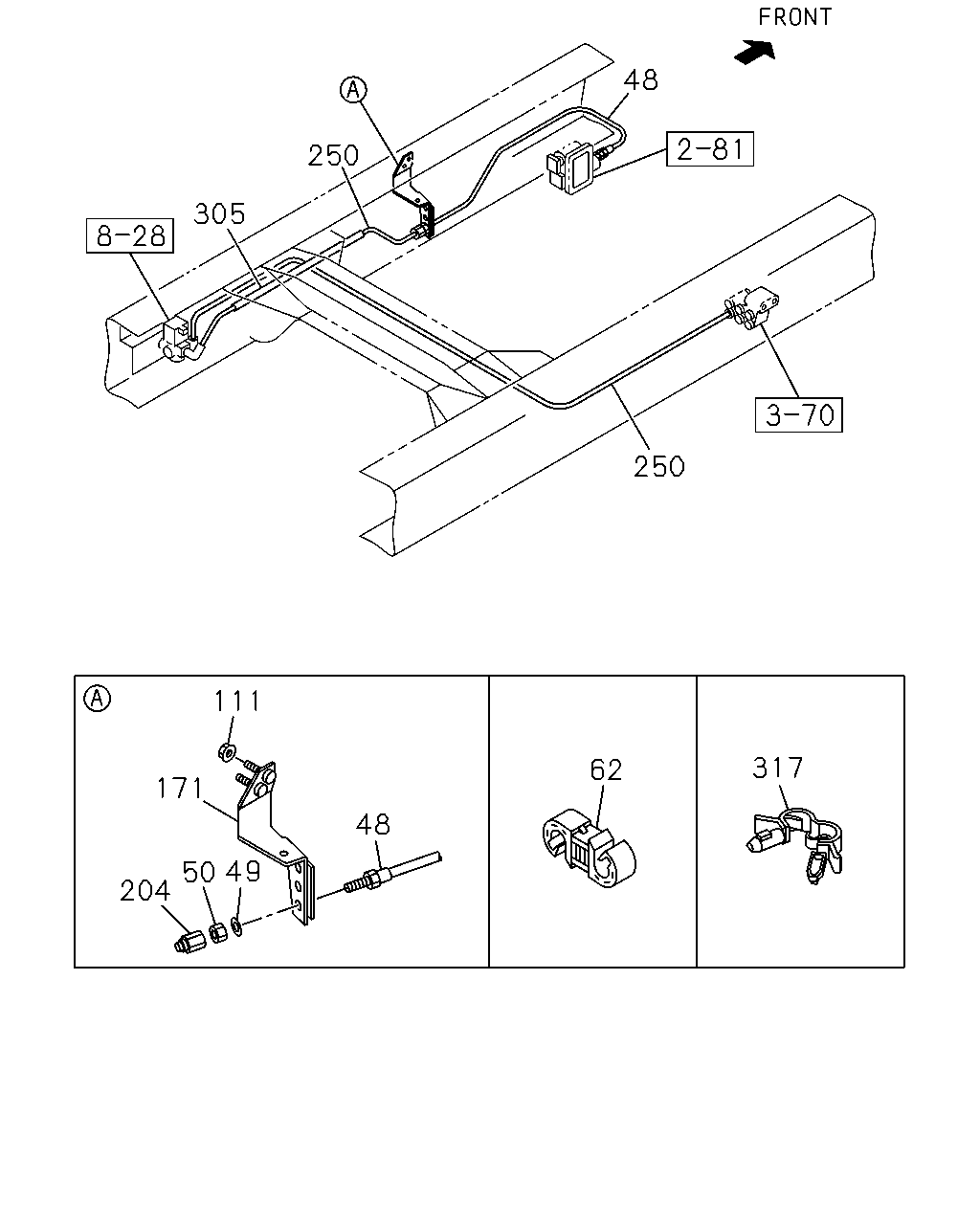

2-85 — POWER TAKE OFF CONTROL (#28817) — 12 parça

48 250 305 250 111 317 62 171 48 204 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=380	1-09363-884-0	01	1	0610-
49	WASHER; LK,FLEX HOSE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2	0-91510-512-0	01	1	0610-
50	NUT; FLEX HOSE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12	9-09840-280-0	01	1	0610-
62	CLIP; PIPE,AIR TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=10 & 10	1-09709-277-1	01	1	0610-
111	NUT; BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0610-
171	BRACKET; FLEX HOSE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2>	8-98061-851-0	01	1	0610-
204	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0610-
250	TUBE; NYLON TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-
250	TUBE; NYLON TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0610-
305	TUBE; CORRUGATE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0610-
317	CLIP; NYLON TUBE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=5-12 L=18	1-09709-287-0	01	1	0610-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	55	GROMMET; CABLE	1-09983-068-0	01	1	0610-
