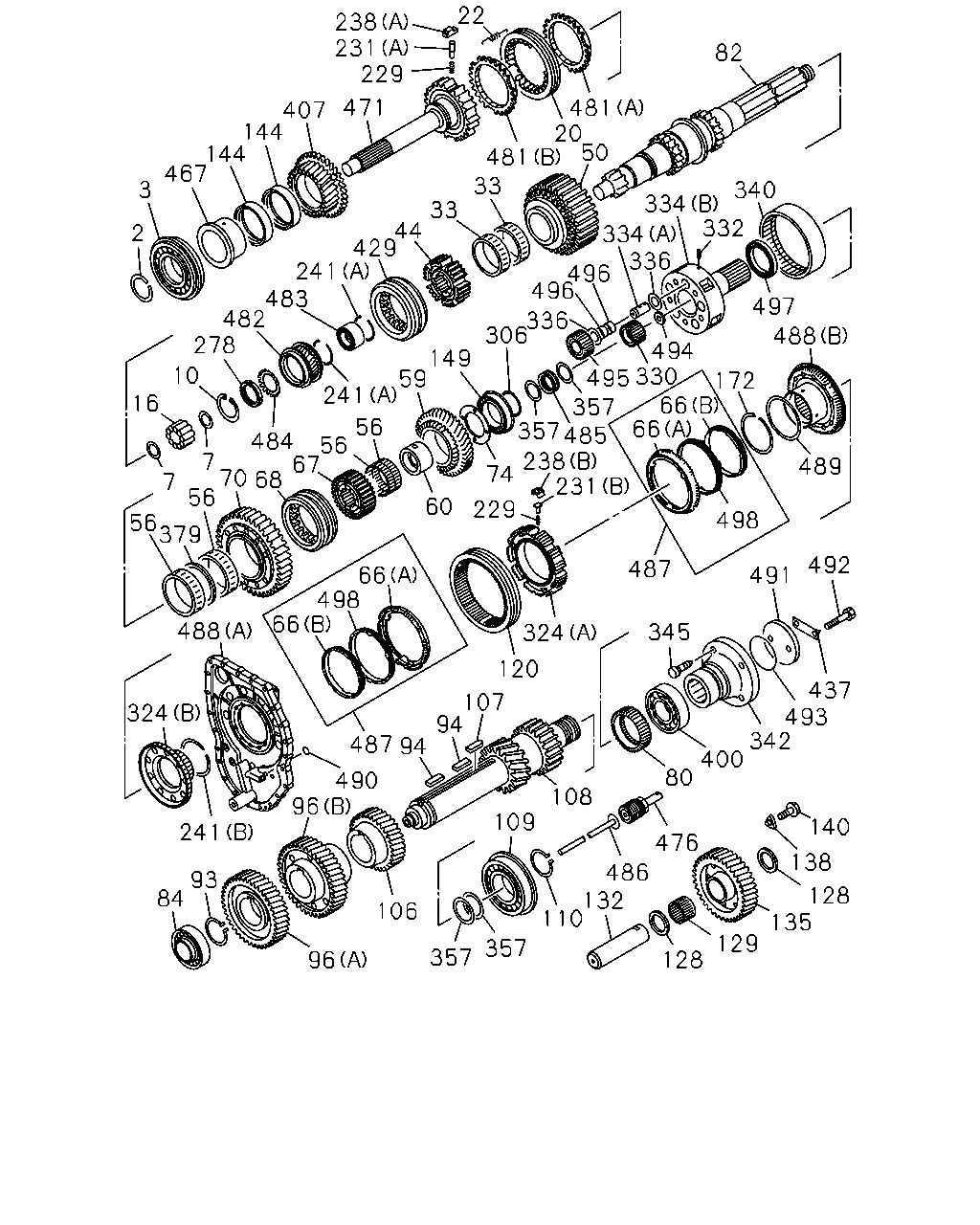

2-26 — MANUAL TRANSMISSION GEAR (#28810) — 252 parça

22 238 231 229 82 471 481 20 50 481 33 407 144 144 467 3 340 334 332 33 44 429 241 483 482 278 2 334 336 496 496 497 336 306 488 494 357 357 485 238 74 231 149 59 10 172 66 66 241 16 56 484 56 67 7 56 489 7 60 229 498 56 379 492 487 491 66 498 66 488 345 324 120 437 493 342 400 80 324 107 94 490 96 108 109 140 241 476 138 486 132 110 93 84 128 135 106 129 357 357 128 96 70 68 487 94 330 495

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0610-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0610-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0610-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0610-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0610-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0610-
20	SLEEVE	1-33262-216-1	01	1	0610-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0610-
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-378-0	02	1	0610-1308
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-379-0	02	1	0610-
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-278-1	01	1	0610-
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-423-0	01	1	0610-
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-436-0	04	1	0610-
59	GEAR; REV MAINSHAFT Z=42	1-33257-090-0	01	1	0610-
60	COLLAR; REV MAIN	1-33234-098-1	01	1	0610-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	0610-1312
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	0610-1307
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-
67	HUB; CLU,1ST TO REV	1-33261-285-0	01	1	0610-
68	SLEEVE; 1ST TO REV	1-33262-232-0	01	1	0610-
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-079-0	01	1	0610-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0610-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0610-
82	SHAFT; MAIN,TRANS Z=37-40-19	1-33231-331-1	01	1	0610-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0610-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0610-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0610-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0610-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0610-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0610-
106	GEAR; 2ND,COUNTER Z=35	1-33338-391-1	01	1	0610-
107	KEY; FEATHER,2ND COUNTER L=75.3	1-09735-042-0	01	1	0610-
108	SHAFT; COUNTER Z=23-23	1-33311-329-0	01	1	0610-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	0610-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	0610-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0610-
120	SLEEVE	1-33262-229-0	01	1	0610-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0610-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0610-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0610-
132	SHAFT; REV	1-33351-035-1	01	1	0610-
135	GEAR; REV IDLER Z=30	1-33361-089-0	01	1	0610-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0610-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0610-
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-436-0	02	1	0610-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	0610-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	0610-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0610-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0610-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER (A)	1-33263-033-0	06	1	0610-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-1	09	1	0610-
238	INSERT (A)	1-33263-036-0	06	1	0610-
238	INSERT (B)	1-33263-039-0	09	1	0610-
241	RING; SNAP (A)	1-09587-023-0	02	1	0610-
241	RING; SNAP (B)	1-09587-104-0	01	1	0610-
278	NUT; BRG	1-09449-080-0	01	1	0610-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0610-
324	HUB; CLU (A)	1-34231-015-0	01	1	0610-
324	HUB; CLU (B)	1-34371-017-0	01	1	0610-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0610-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0610-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0610-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0610-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0610-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0610-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0610-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0610-
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-400-2	01	1	0610-
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0610-
357	RING	1-31349-044-0	04	1	0610-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	01	1	0610-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0610-0910
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0610-0910
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0610-
429	SLEEVE; 2ND & 3RD	1-33262-222-0	01	1	0610-
437	PLATE; LOCK	1-34252-032-0	01	1	0610-
467	COLLAR; SHAFT	1-33234-091-1	01	1	0610-
471	SHAFT; INPUT	1-33215-019-0	01	1	0610-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0610-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0610-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0610-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	0610-
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0610-1007
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	0610-
485	PIECE; GUIDE	1-33363-040-1	01	1	0610-
486	NOZZLE; CONT SHAFT	1-33219-271-1	01	1	0610-0907
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0908-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0610-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0610-0703
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0610-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	0610-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0610-
491	PLATE; OUTPUT SHAFT	1-34252-035-1	01	1	0610-
492	BOLT; PLATE	1-09000-750-0	02	1	0610-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0610-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0610-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0610-
496	BEARING; PLANETARY	1-09811-437-0	10	1	0610-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0610-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0610-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN	1-33265-617-0	02	1	0610-1312
498	CONE; SYN	8-98239-910-0	02	1	1401-

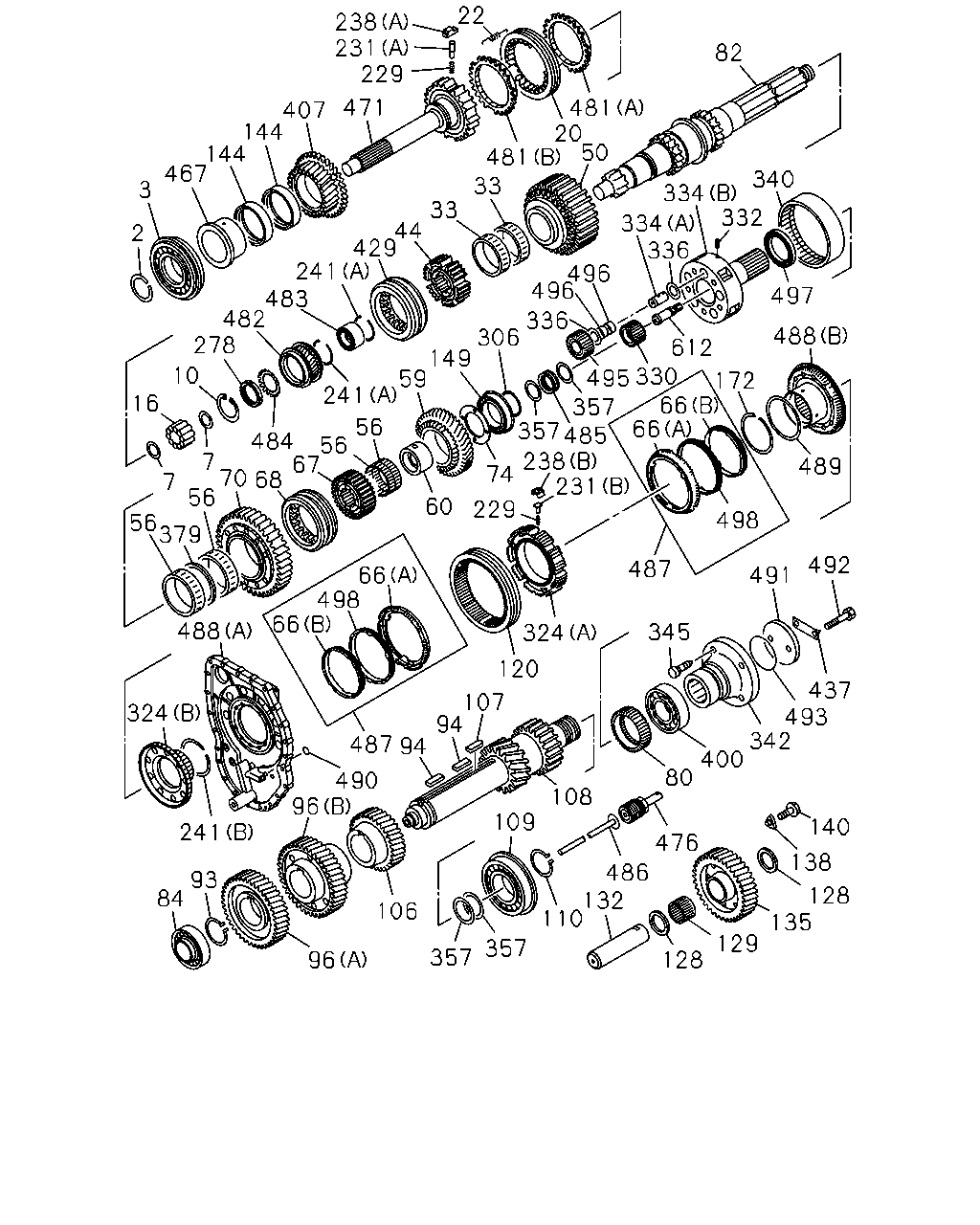

22 238 231 229 471 407 144 144 467 3 2 16 10 278 482 483 241 429 44 33 33 481 20 481 50 82 7 7 484 241 56 379 56 70 68 67 56 56 59 149 306 336 496 496 336 334 334 332 340 497 612 330 495 357 357 74 60 324 488 66 498 66 229 238 485 231 66 66 172 488 489 498 487 324 120 107 94 94 487 490 96 241 93 84 96 106 109 108 80 400 342 493 437 476 486 132 110 357 357 128 129 135 128 138 140 345 491 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0610-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0610-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0610-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0610-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0610-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0610-
20	SLEEVE	1-33262-216-1	01	1	0610-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0610-
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-378-0	02	1	0610-1308
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-379-0	02	1	0610-
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-278-1	01	1	0610-
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-423-0	01	1	0610-
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-436-0	04	1	0610-
59	GEAR; REV MAINSHAFT Z=42	1-33257-090-0	01	1	0610-
60	COLLAR; REV MAIN	1-33234-098-1	01	1	0610-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	0610-1312
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	0610-1307
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-
67	HUB; CLU,1ST TO REV	1-33261-285-0	01	1	0610-
68	SLEEVE; 1ST TO REV	1-33262-232-0	01	1	0610-
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-079-0	01	1	0610-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0610-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0610-
82	SHAFT; MAIN,TRANS Z=37-40-19	1-33231-331-1	01	1	0610-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0610-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0610-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0610-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0610-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0610-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0610-
106	GEAR; 2ND,COUNTER Z=35	1-33338-391-1	01	1	0610-
107	KEY; FEATHER,2ND COUNTER L=75.3	1-09735-042-0	01	1	0610-
108	SHAFT; COUNTER Z=23-23	1-33311-329-0	01	1	0610-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	0610-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	0610-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0610-
120	SLEEVE	1-33262-229-0	01	1	0610-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0610-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0610-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0610-
132	SHAFT; REV	1-33351-035-1	01	1	0610-
135	GEAR; REV IDLER Z=30	1-33361-089-0	01	1	0610-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0610-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0610-
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-436-0	02	1	0610-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	0610-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	0610-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0610-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0610-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER (A)	1-33263-033-0	06	1	0610-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-1	09	1	0610-
238	INSERT (A)	1-33263-036-0	06	1	0610-
238	INSERT (B)	1-33263-039-0	09	1	0610-
241	RING; SNAP (A)	1-09587-023-0	02	1	0610-
241	RING; SNAP (B)	1-09587-104-0	01	1	0610-
278	NUT; BRG	1-09449-080-0	01	1	0610-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0610-
324	HUB; CLU (A)	1-34231-015-0	01	1	0610-
324	HUB; CLU (B)	1-34371-017-0	01	1	0610-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0610-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0610-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0610-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0610-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0610-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0610-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0610-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0610-
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-400-2	01	1	0610-
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0610-
357	RING	1-31349-044-0	04	1	0610-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	01	1	0610-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0610-0910
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0610-0910
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0610-
429	SLEEVE; 2ND & 3RD	1-33262-222-0	01	1	0610-
437	PLATE; LOCK	1-34252-032-0	01	1	0610-
467	COLLAR; SHAFT	1-33234-091-1	01	1	0610-
471	SHAFT; INPUT	1-33215-019-0	01	1	0610-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0610-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0610-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0610-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	0610-
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0610-1007
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	0610-
485	PIECE; GUIDE	1-33363-040-1	01	1	0610-
486	NOZZLE; CONT SHAFT	1-33219-271-1	01	1	0610-0907
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0908-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0610-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0610-0703
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0610-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	0610-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0610-
491	PLATE; OUTPUT SHAFT	1-34252-035-1	01	1	0610-
492	BOLT; PLATE	1-09000-750-0	02	1	0610-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0610-
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0610-
496	BEARING; PLANETARY	1-09811-437-0	10	1	0610-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0610-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0610-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN	1-33265-617-0	02	1	0610-1312
498	CONE; SYN	8-98239-910-0	02	1	1401-
612	GALLERY; OIL	8-98239-463-0	01	1	1308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
