6-35 — FRONT DOOR TRIM (#2881) — 121 parça

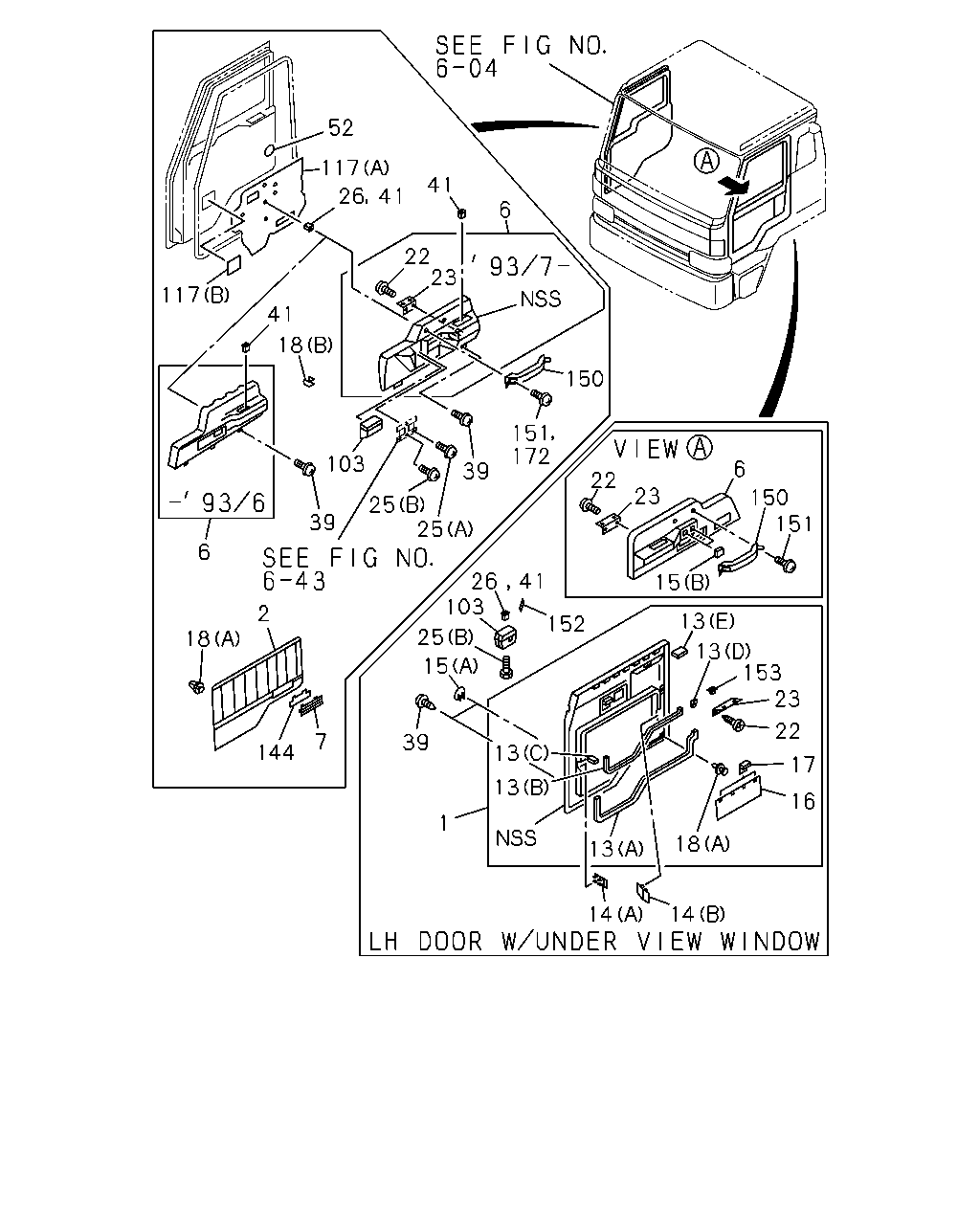

14 14 13 18 16 17 23 22 13 13 153 151 150 6 15 23 22 152 41 26 103 25 15 13 13 1 39 144 7 18 2 6 39 103 25 25 39 172 151 150 23 22 6 41 41 26 52 117 117 41 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-352-3	01	1	9002-9306	●	●
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-435-2	01	1	9307-	●	●
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-466-0	01	1	9205-9306	●	●
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-446-0	01	1	9307-	●	●
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-429-0	01	1	9205-9306	●	●
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-445-0	01	1	9307-	●	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-347-0	01	1	9002-9306	●	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-468-0	01	1	9307-	●	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-310-0	01	1	9002-9306	●	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-344-0	01	1	9307-	●	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-464-3	01	1	9205-9306	●	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-462-1	01	1	9307-	●	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-373-5	01	1	9205-9306	●	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-423-3	01	1	9307-	●	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-314-0	01	1	9002-9306	●	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73337-432-1	01	1	9307-	●	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-309-0	01	1	9002-9306	●	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-467-2	01	1	9307-	●	●
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-310-0	01	1	9002-9306	●	●
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	01	1	9307-	●	●
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-310-0	02	1	9002-9306	●	●
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	02	1	9307-	●	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=935	1-73337-353-4	01	1	9002-	●	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=90	1-73337-354-3	01	1	9002-	●	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=180	1-73337-355-3	01	1	9002-	●	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (E) L=85	1-73337-356-4	01	1	9002-	●	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1125	1-73337-358-3	01	1	9002-	●	●
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-308-0	01	1	9002-	●	●
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-309-0	01	1	9002-	●	●
15	COVER; HOLE,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-307-0	02	1	9002-	●	●
15	COVER; HOLE,DOOR TRIM POWER WINDOW<A30> (B)	1-73337-471-2	01	1	9304-	●	●
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-471-2	02	1	9307-	●	●
16	RUBBER; SHUTTER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-254-2	01	1	9002-	●	●
17	HOLDER; SHUTTER RUBBER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-281-0	02	1	9002-	●	●
18	CLIP; DOOR PAD (A)	1-09987-119-1	11	1	9002-	●	●
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	11	1	9002-	●	●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	05	1	9002-	●	●
18	CLIP; DOOR PAD POWER WINDOW<A30> (B)	1-73337-276-0	02	1	9002-9306	●	●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9002-9306	●	●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	01	1	9307-	●	●
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	04	1	9002-9306	●	●
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9307-	●	●
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9002-9306	●	●
22	SCREW; DOOR TRIM BRKT POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	04	1	9205-	●	●
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9307-	●	●
22	SCREW; DOOR TRIM BRKT EXC. POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	02	1	9307-	●	●
23	BRACKET; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-237-1	01	1	9002-	●	●
23	BRACKET; DOOR TRIM POWER WINDOW<A30>	1-73337-311-1	02	1	9205-	●	●
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-311-1	01	1	9002-	●	●
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>	1-73337-311-1	01	1	9002-	●	●
25	SCREW; ASH TRAY,DOOR (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9002-9205	●	●
25	SCREW; ASH TRAY,DOOR (B) M6X16 TAPPING	0-71180-616-0	03	1	9206-	●	●
25	SCREW; ASH TRAY,DOOR (A) M6X30	0-74110-630-0	01	1	9206-	●	●
25	SCREW; ASH TRAY,DOOR EXC. POWER WINDOW<A30> (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306	●	●
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	04	1	9002-9205	●	●
26	GROMMET; SCREW,ASH TRAY DOOR POWER WINDOW<A30>	1-09983-061-0	03	1	9206-9306	●	●
26	GROMMET; SCREW,ASH TRAY DOOR EXC. POWER WINDOW<A30>	1-09983-061-0	04	1	9206-9306	●	●
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	03	1	9307-	●	●
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-	●	●
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	04	1	9002-	●	●
39	SCREW; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-	●	●
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	06	1	9002-	●	●
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	08	1	9002-	●	●
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	03	1	9002-9205	●	●
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	03	1	9206-9306	●	●
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9307-	●	●
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	05	1	9206-9306	●	●
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	04	1	9307-	●	●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	9002-9205	●	●
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30> BLACK	1-76457-036-2	01	1	9206-9306	●	●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	01	1	9307-	●	●
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30>	1-76457-047-1	01	1	9206-9306	●	●
103	TRAY ASM; ASH,DOOR	1-76457-046-1	01	1	9307-	●	●
103	TRAY ASM; ASH,DOOR EXC. POWER WINDOW<A30> BLACK	1-76457-036-2	02	1	9206-9306	●	●
117	SEAL ASM; WATER DOOR (B)	1-76797-023-0	01	1	9204-	●	●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76797-023-0	01	1	9204-	●	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-110-0	01	1	9205-	●	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-106-0	01	1	9205-	●	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-090-0	01	1	9002-9210	●	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9211-	●	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-1	01	1	9002-9210	●	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9211-	●	●
144	SHUTTER; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	01	1	9002-	●	●
144	SHUTTER; DOOR TRIM EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	02	1	9002-	●	●
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-057-0	01	1	9002-9306	●	●
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-167-0	01	1	9205-9306	●	●
150	GRIP; ASSIST,DOOR TRIM	1-73618-161-0	01	1	9307-	●	●
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73618-161-0	01	1	9307-	●	●
151	SCREW; ASSIST GRIP,DOOR TRIM M6X20	1-09980-550-0	02	1	9307-	●	●
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X20 W/LK&PL WASHER	1-09981-374-0	02	1	9002-9306	●	●
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X30 W/PL WASHER	1-09981-495-0	02	1	9307-	●	●
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X30 W/PL WASHER	1-09981-495-0	02	1	9205-9208	●	●
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-038-0	02	1	9002-9306	●	●
153	GROMMET; SCREW,TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	9002-	●	●
172	BOLT; ASSIST GRIP POWER WINDOW<A30> M6X20	1-09980-550-0	02	1	9209-9306	●	●

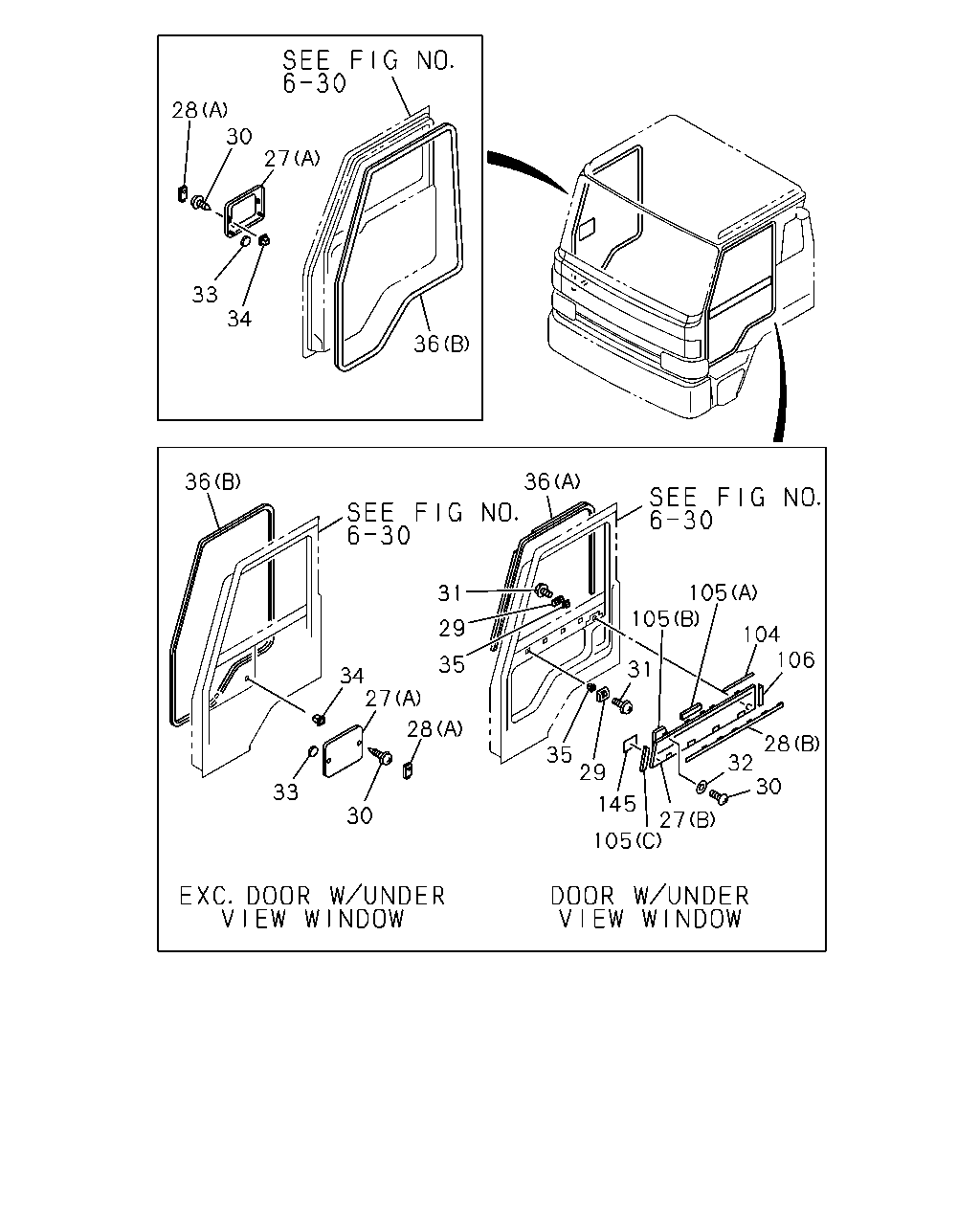

105 29 35 145 27 28 32 30 106 104 105 105 31 36 31 29 35 28 27 34 30 33 36 34 33 36 27 30 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PANEL; ORNAMENT,DOOR (A)	1-71997-510-0	01	1	9002-	●	●
27	PANEL; ORNAMENT,DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-512-2	01	1	9002-	●	●
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-511-0	01	1	9002-	●	●
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-530-1	01	1	9002-	●	●
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	02	1	9002-	●	●
28	MOLDING; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	04	1	9002-	●	●
29	HOLDER; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-523-0	04	1	9002-	●	●
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16	1-09981-453-0	04	1	9002-	●	●
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-	●	●
30	SCREW; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9002-	●	●
31	SCREW; HOLDER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M5X20	1-09981-454-0	04	1	9002-	●	●
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	04	1	9002-	●	●
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=7X14	1-71997-541-0	04	1	9002-	●	●
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	02	1	9002-	●	●
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	04	1	9002-	●	●
34	GROMMET; SCREW,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	9002-	●	●
34	GROMMET; SCREW,DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	04	1	9002-	●	●
35	GROMMET; SCREW,DOOR ORNAMENT HOLDER DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-081-0	04	1	9002-	●	●
36	SEAL; DOOR,MAIN,CAB SIDE (B) L=3060	1-76717-063-4	02	1	9002-	●	●
36	SEAL; DOOR,MAIN,CAB SIDE DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1830	1-76737-112-6	01	1	9002-	●	●
104	SEAL; DOOR ORNAMENT,UPR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76777-059-4	01	1	9002-	●	●
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (C)	1-71997-602-1	01	1	9002-	●	●
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=121	1-71997-972-0	01	1	9002-	●	●
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-973-0	01	1	9002-	●	●
106	SEAL; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-603-0	01	1	9002-	●	●
145	CUSHION; BASE TO ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-74617-030-0	01	1	9002-	●	●
