◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11038 - EXD RHD EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#28808) — 139 parça

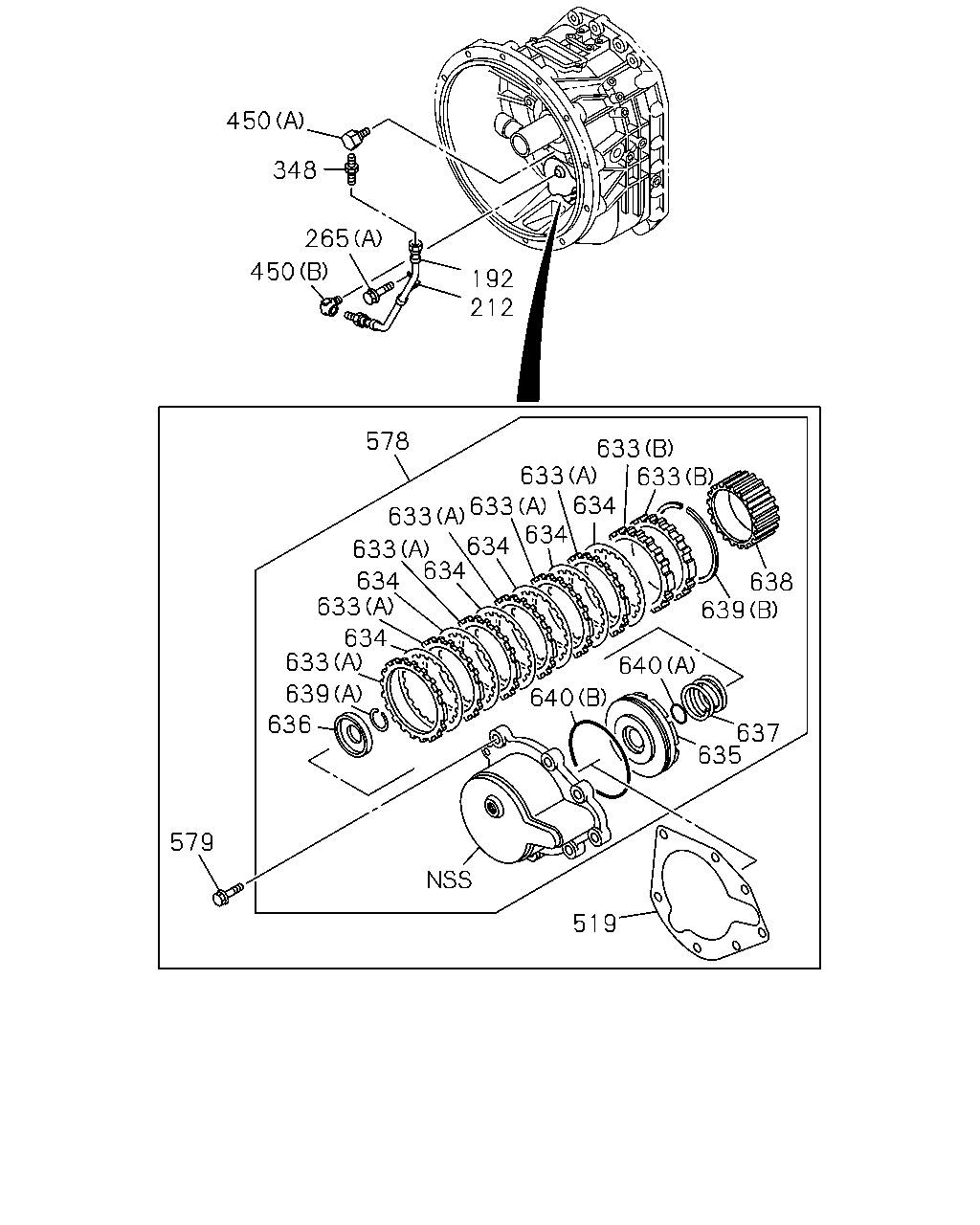

çizim 140242
450 348 265 450 192 212 578 633 633 633 633 634 634 634 634 633 633 634 633 638 639 634 633 640 639 640 636 637 635 579 519
BalonParca AdiParca NoAdetTipApplied Date
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 0610-
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 0610-
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0610-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0610-
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 0610-
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 0610-
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0610-
519 GASKET; SHAFT 1-34142-034-0 01 1 0610-
578 BRAKE; COUNTER SHAFT 1-33316-006-1 01 1 0610-
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 0610-
633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 0610-
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 01 1 0610-
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 01 1 0610-
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 01 1 0610-
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 01 1 0610-
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 0610-
635 PISTON; BRAKE
T=4.80 		1-33319-231-0 01 1 0610-
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 0610-
637 SPRING; BRAKE 1-33319-215-0 01 1 0610-
638 HUB; BRAKE 1-33319-220-0 01 1 0610-
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 0610-
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 0610-
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 0610-
640 GASKET; BRAKE
(B) 		1-33319-225-0 01 1 0610-
çizim 140243
520 520 522 271 526 520 236 353 439 265
BalonParca AdiParca NoAdetTipApplied Date
236 BOLT; VALVE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0610-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0610-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0610-
353 CLIP; NYLON TUBE
(D) ID=20 H=23 L=27 		1-09700-861-0 03 1 0610-
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0610-
353 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 0610-
353 CLIP; NYLON TUBE
(C) ID=21 L=24 		8-94176-807-1 01 1 0610-
439 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 02 1 0610-
439 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
520 CONNECTOR
(A) R1/4 & M16 		0-92306-008-0 02 1 0610-
520 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0610-
522 VALVE ASM; REDUCING 1-48410-531-1 01 1 0610-
526 BRACKET; VALVE 1-47479-582-0 01 1 0610-

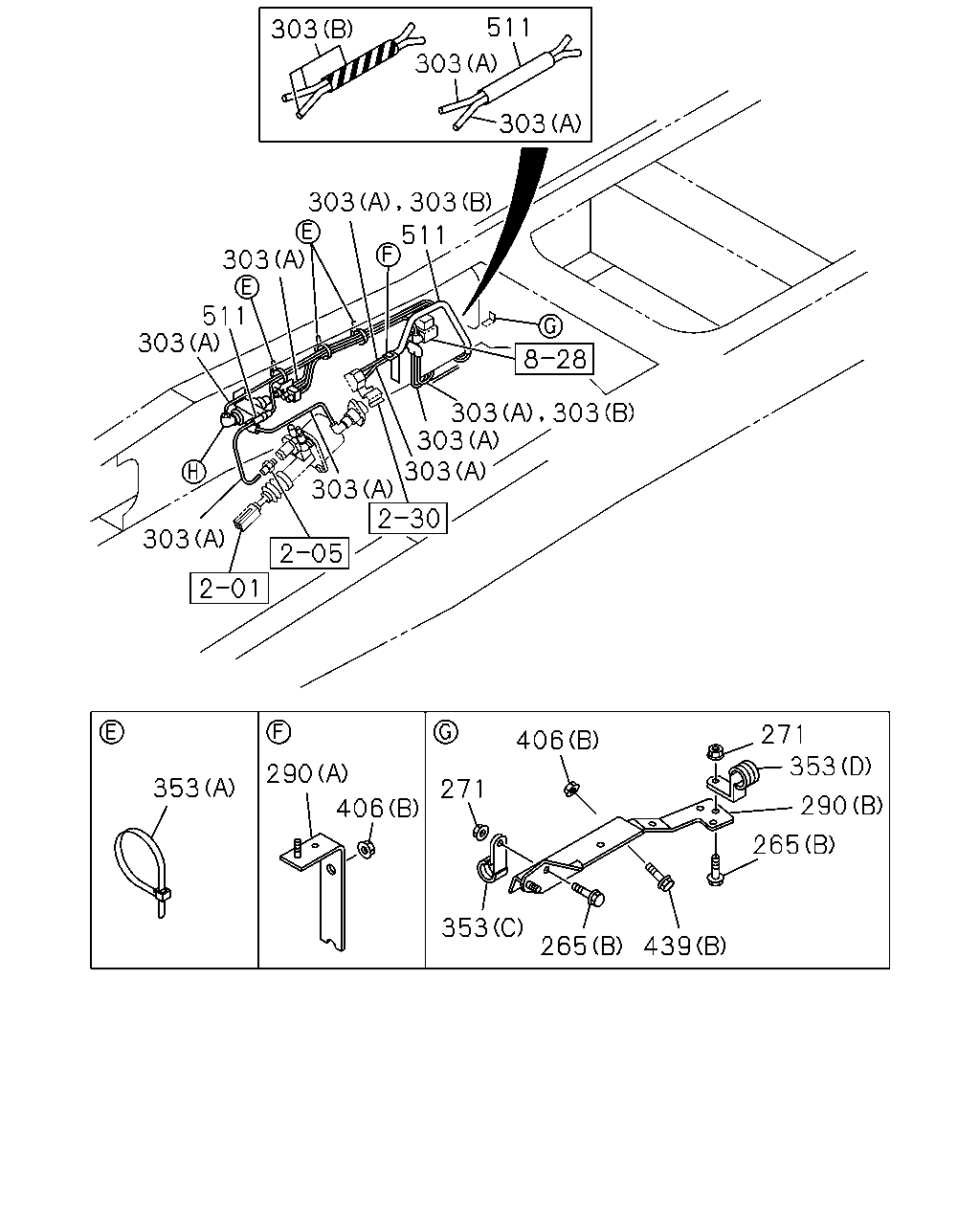

çizim 140245
511 303 303 303 303 511 303 511 303 303 303 303 303 303 271 353 406 290 353 271 290 406 265 353 265 439 303 303
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0610-
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0610-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0610-
290 BRACKET; CLIP
(A) 		8-97611-316-1 01 1 0610-
290 BRACKET; CLIP
(B) 		8-98052-228-0 01 1 0610-
303 TUBE; NYLON
(B) 		1-49222-415-0 01 1 0610-
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0610-
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0610-
303 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0610-
353 CLIP; NYLON TUBE
(D) ID=20 H=23 L=27 		1-09700-861-0 03 1 0610-
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0610-
353 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 0610-
353 CLIP; NYLON TUBE
(C) ID=21 L=24 		8-94176-807-1 01 1 0610-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0610-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0610-
406 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0610-
439 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 02 1 0610-
439 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0610-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0610-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0610-

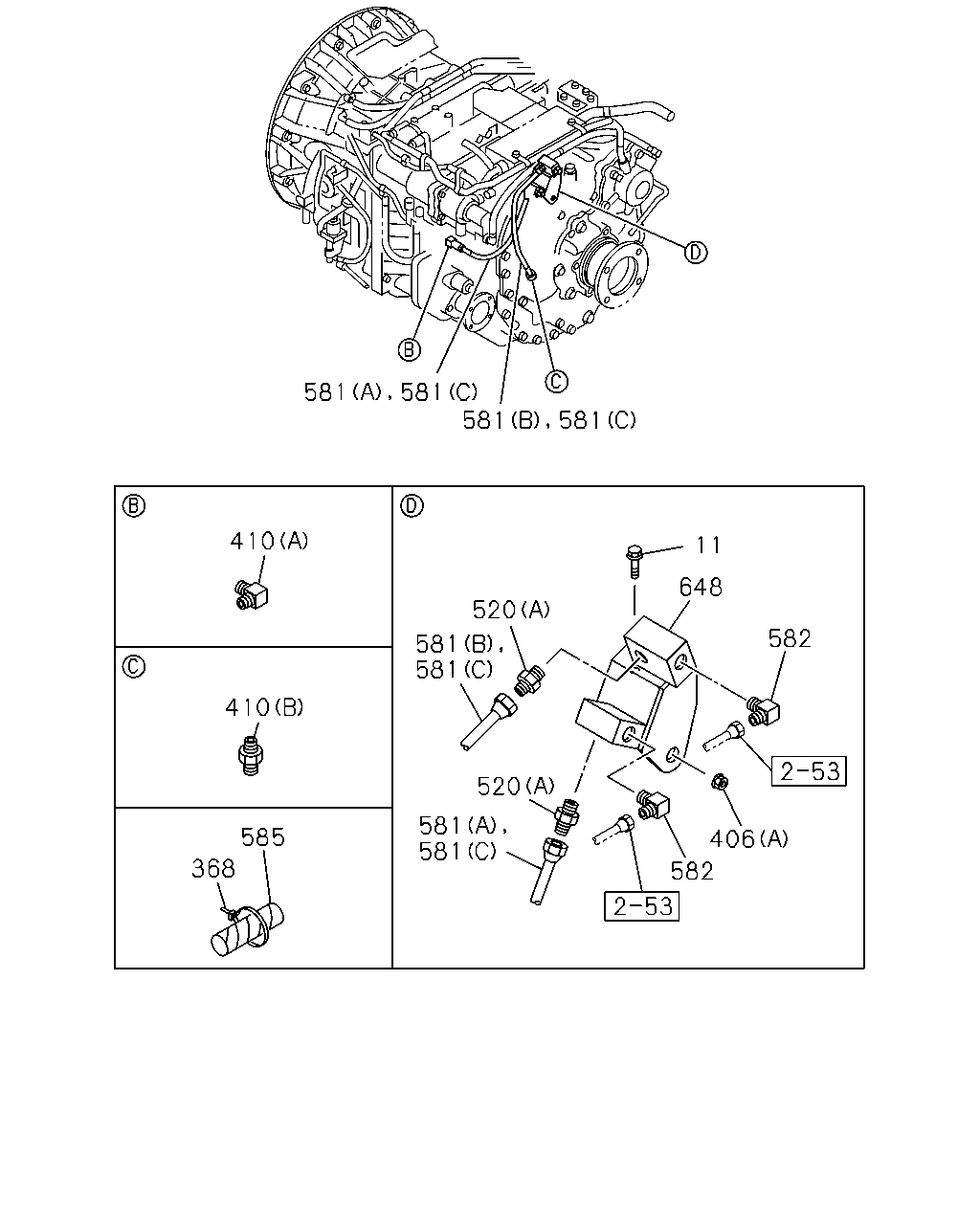

çizim 140248
581 410 11 648 520 582 581 581 410 520 581 581 585 406 368 582 581 581 581
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 01 1 0610-
368 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 0703-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0610-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0610-
406 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0610-
410 UNION; OIL PIPE
(B) R1/4 & M16 		0-92306-008-0 01 1 0610-
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 01 1 0610-
520 CONNECTOR
(A) R1/4 & M16 		0-92306-008-0 02 1 0610-
520 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0610-
581 HOSE; OIL COOLER
(A) L=320 		1-09365-233-0 01 1 0610-0702
581 HOSE; OIL COOLER
(C) L=370 		8-98065-298-0 02 1 0703-
581 HOSE; OIL COOLER
(B) L=360 		1-09365-234-0 01 1 0610-0702
582 NIPPLE; ELBOW
R3/8 & M22 ELBOW 		1-09660-612-1 02 1 0610-
585 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0703-
648 UNION ASM 1-47470-670-0 01 1 0610-

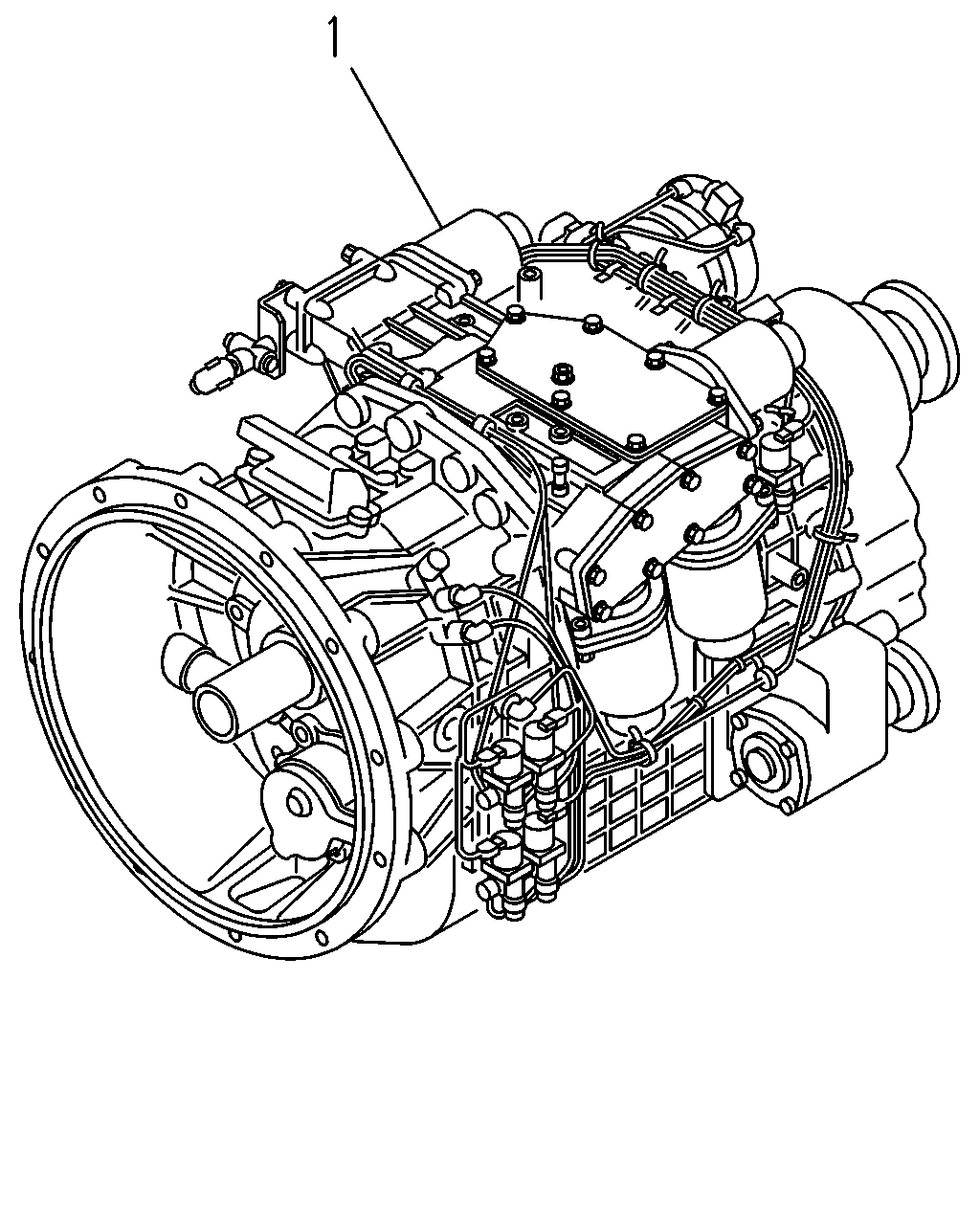

çizim 140252
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> 		1-33044-060-0 01 1 0610-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33044-058-0 01 1 0610-
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33044-060-0 01 1 0610-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> 		1-33044-058-0 01 1 0610-

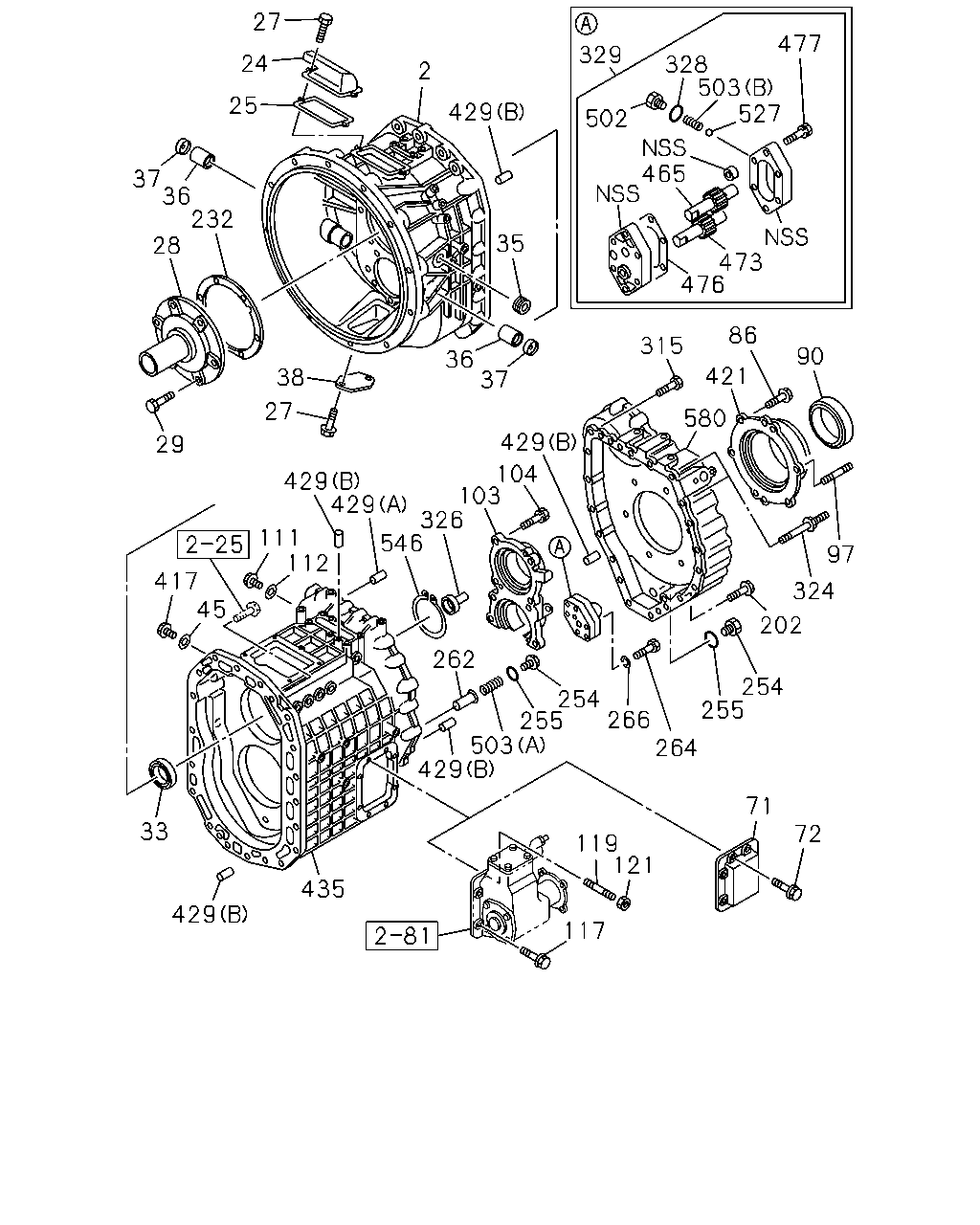

çizim 140256
27 477 329 24 328 503 527 2 25 429 502 465 37 36 232 473 476 35 28 86 315 90 36 37 421 38 27 580 429 29 104 103 326 546 429 429 111 112 97 417 45 324 202 262 254 255 254 255 266 503 264 429 71 33 72 119 121 435 429 117
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 8-98052-279-0 01 1 0610-1003
2 HOUSING; CLU 8-98168-736-0 01 1 1004-
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 0610-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 0610-1406
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1407-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0610-
28 COVER; FRT,TRANS CASE 1-33121-158-3 01 1 0610-
29 BOLT; FRT COVER
M10X40 FLANGE 		0-28161-040-0 06 1 0610-1211
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1212-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-562-0 01 1 0610-
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 0610-
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 0610-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 0610-
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 0610-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0610-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33141-066-0 01 1 0610-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X35 FLANGE 		0-28751-035-0 08 1 0610-
86 BOLT; RR COVER
M17X35 		1-09044-076-0 06 1 0610-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 0610-
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> M16X45 L=69 		9-04411-645-0 04 1 0610-
103 RETAINER; BRG 1-33151-060-1 01 1 0610-
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 0610-
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 02 1 0610-
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0610-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE 		0-28181-028-0 02 1 0610-0805
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE 		8-98044-944-0 02 1 0806-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40 		0-44011-025-0 06 1 0610-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE 		0-91180-210-0 06 1 0610-
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 0610-
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 0610-
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 0610-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0610-
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 0610-
264 BOLT; OIL PUMP
M8X65 		0-10805-865-0 02 1 0610-
264 BOLT; OIL PUMP
M8X50 		0-10855-850-0 02 1 0610-
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 0610-
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 0610-
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 0610-
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 0610-
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 0610-
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 0610-
328 GASKET; PLUG 1-34159-100-0 01 1 0610-
329 PUMP ASM; OIL 1-34150-117-0 01 1 0610-1408
329 PUMP ASM; OIL 8-98283-996-0 01 1 1409-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0610-
421 COVER; RR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33131-256-0 01 1 0610-
421 COVER; RR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33131-238-0 01 1 0610-
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 0610-
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 0610-
435 CASE; TRANS 1-33111-351-1 01 1 0610-1502
435 CASE; TRANS 8-98249-273-0 01 1 1503-
465 GEAR; IDLE,OIL PUMP 1-34151-013-0 01 1 0610-1408
473 GEAR; OUTPUT,OIL PUMP 1-34151-012-0 01 1 0610-1408
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 0610-
477 BOLT; OIL PUMP
M8X32 W/LK WASHER 		9-01900-832-0 02 1 0610-1408
502 PLUG; OIL PUMP 1-34159-101-0 01 1 0610-
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 0610-
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 0610-
527 BALL; OIL PUMP 9-00097-531-0 01 1 0610-
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 0610-
580 CASE; RANGE 1-33115-052-0 01 1 0610-
