2-05 — CLUTCH PIPING (#28804) — 89 parça
çizim 140227
24 153 167 56 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 0610-0703
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 0704-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0610-
56 BRACKET; FLEX HOSE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98151-406-1 01 1 0907-
56 BRACKET; FLEX HOSE 1-47471-200-0 01 1 0610-0906
56 BRACKET; FLEX HOSE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-47471-200-0 01 1 0907-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1418 SERVICED BY L=1550 		1-47428-766-0 01 1 0610-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0610-0702
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=534 		1-49166-190-0 01 1 0703-0705
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 0706-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 0610-
167 BRACKET; UNION 1-71117-183-3 01 1 0610-

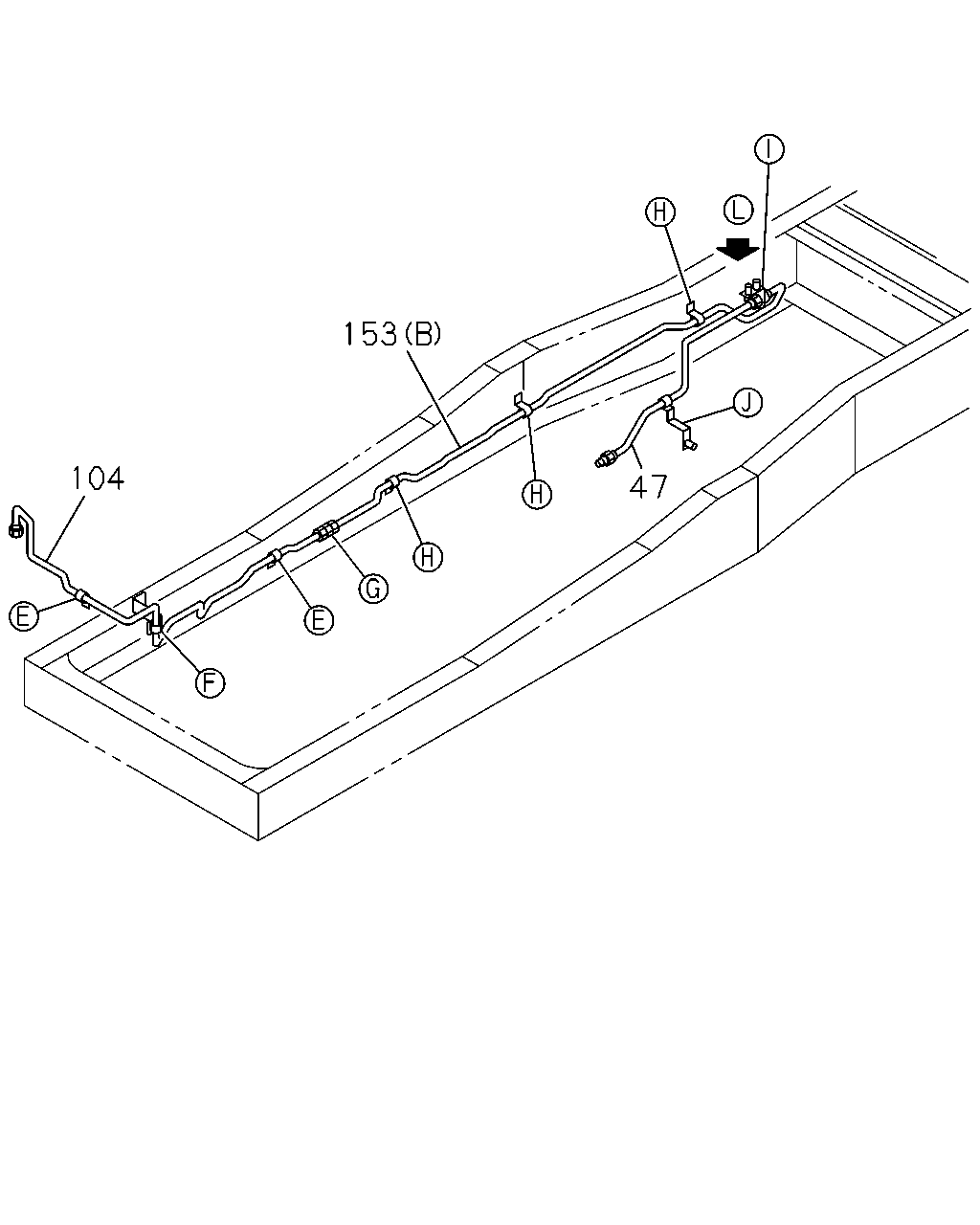

çizim 140232
153 104 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 0610-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1418 SERVICED BY L=1550 		1-47428-766-0 01 1 0610-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0610-0702
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=534 		1-49166-190-0 01 1 0703-0705
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 0706-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 0610-

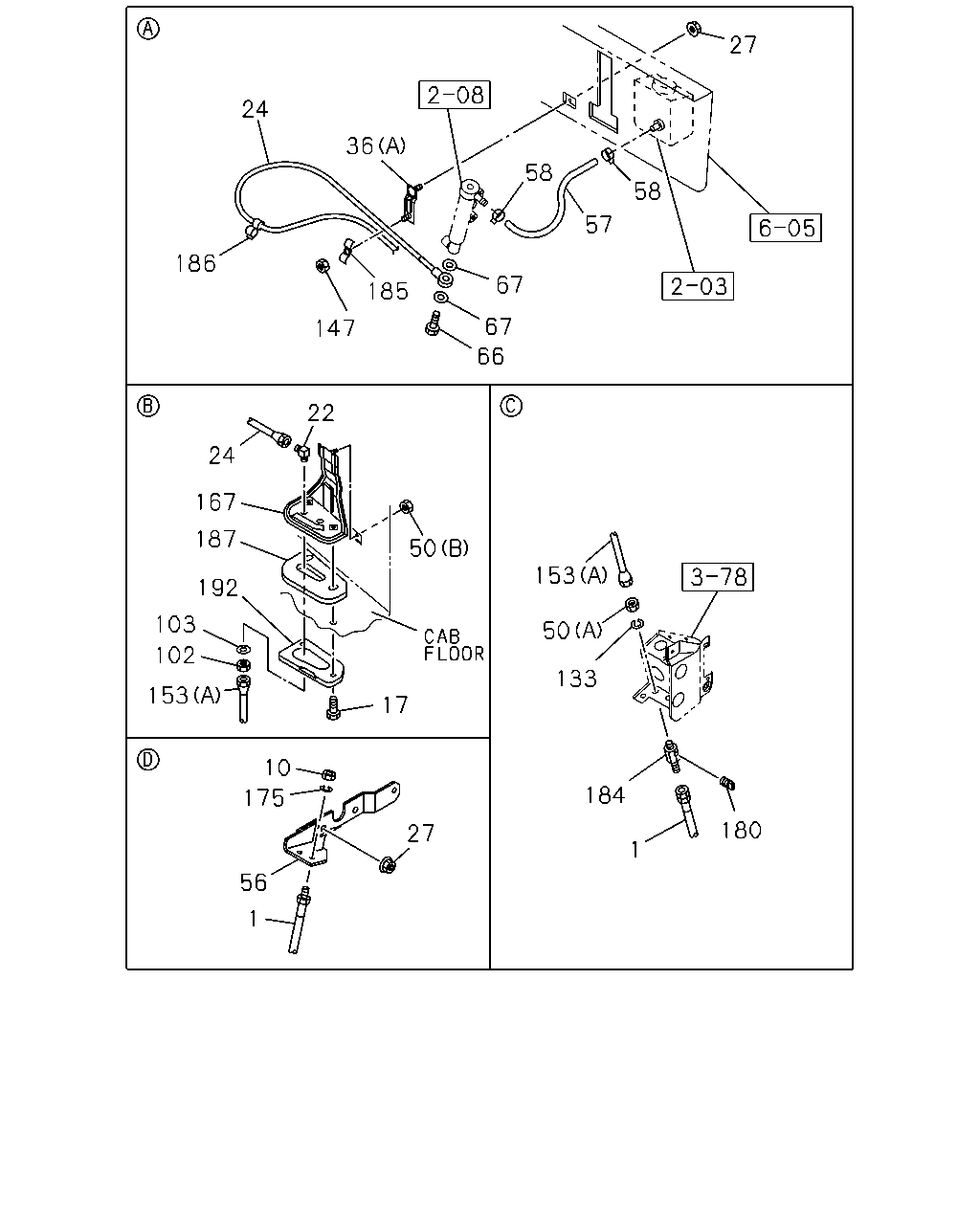

çizim 140234
27 24 36 58 58 57 186 67 185 67 147 66 22 24 167 187 50 153 192 103 50 102 133 153 17 10 184 175 180 27 1 56 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 0610-0703
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 0704-
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0610-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 0610-
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 0610-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0610-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0610-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0610-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0610-
36 BRACKET; CLIP
(B) 		8-97610-103-0 01 1 0610-
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0610-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0610-
56 BRACKET; FLEX HOSE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98151-406-1 01 1 0907-
56 BRACKET; FLEX HOSE 1-47471-200-0 01 1 0610-0906
56 BRACKET; FLEX HOSE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-47471-200-0 01 1 0907-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 0610-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0610-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0610-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0610-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0610-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0610-0711
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0610-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0610-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0610-0702
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=534 		1-49166-190-0 01 1 0703-0705
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 0706-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 0610-
167 BRACKET; UNION 1-71117-183-3 01 1 0610-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0610-
180 PLUG; PIPE 9-09204-510-0 01 1 0610-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 0610-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 0610-
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 0610-
187 SEAL; BRKT 1-71117-222-0 01 1 0610-
192 PLATE 1-71117-221-0 01 1 0610-
çizim 140235
27 29 30 106 28 29 26 25 28 117 44 4 42 34 36 33 35 115 116 37 43
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25 		1-09701-162-0 01 1 0610-
25 BRACKET; OIL PIPE 1-46147-101-0 01 1 0610-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0610-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0610-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0610-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 0610-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0610-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0610-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0610-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 04 1 0610-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0610-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0610-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0610-
36 BRACKET; CLIP
(B) 		8-97610-103-0 01 1 0610-
37 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0610-
42 BRACKET; FLEX HOSE,CLU CONT 1-47479-650-0 01 1 0610-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0610-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0610-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 0610-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0610-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0610-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0610-

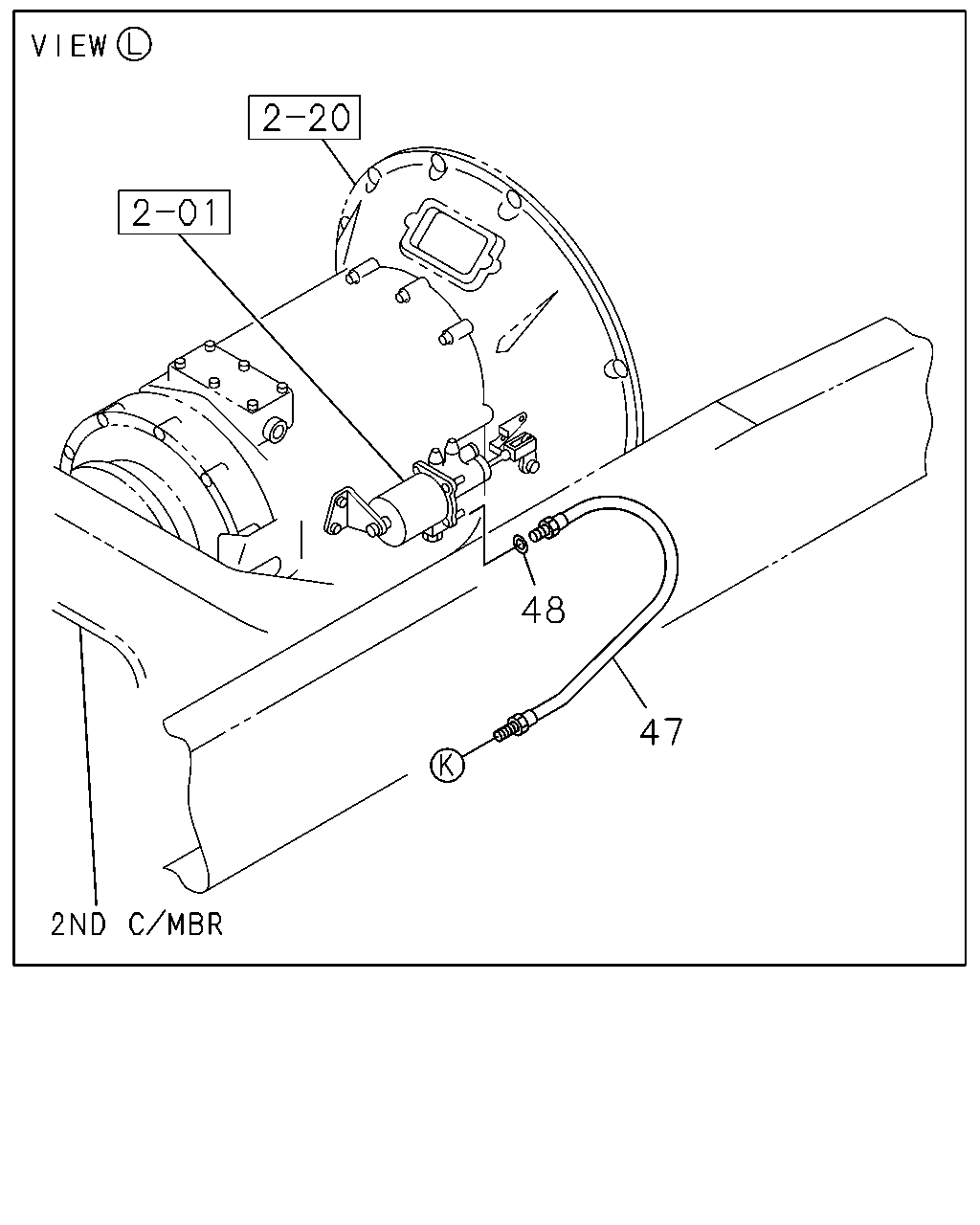

çizim 140236
48 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 0610-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0610-

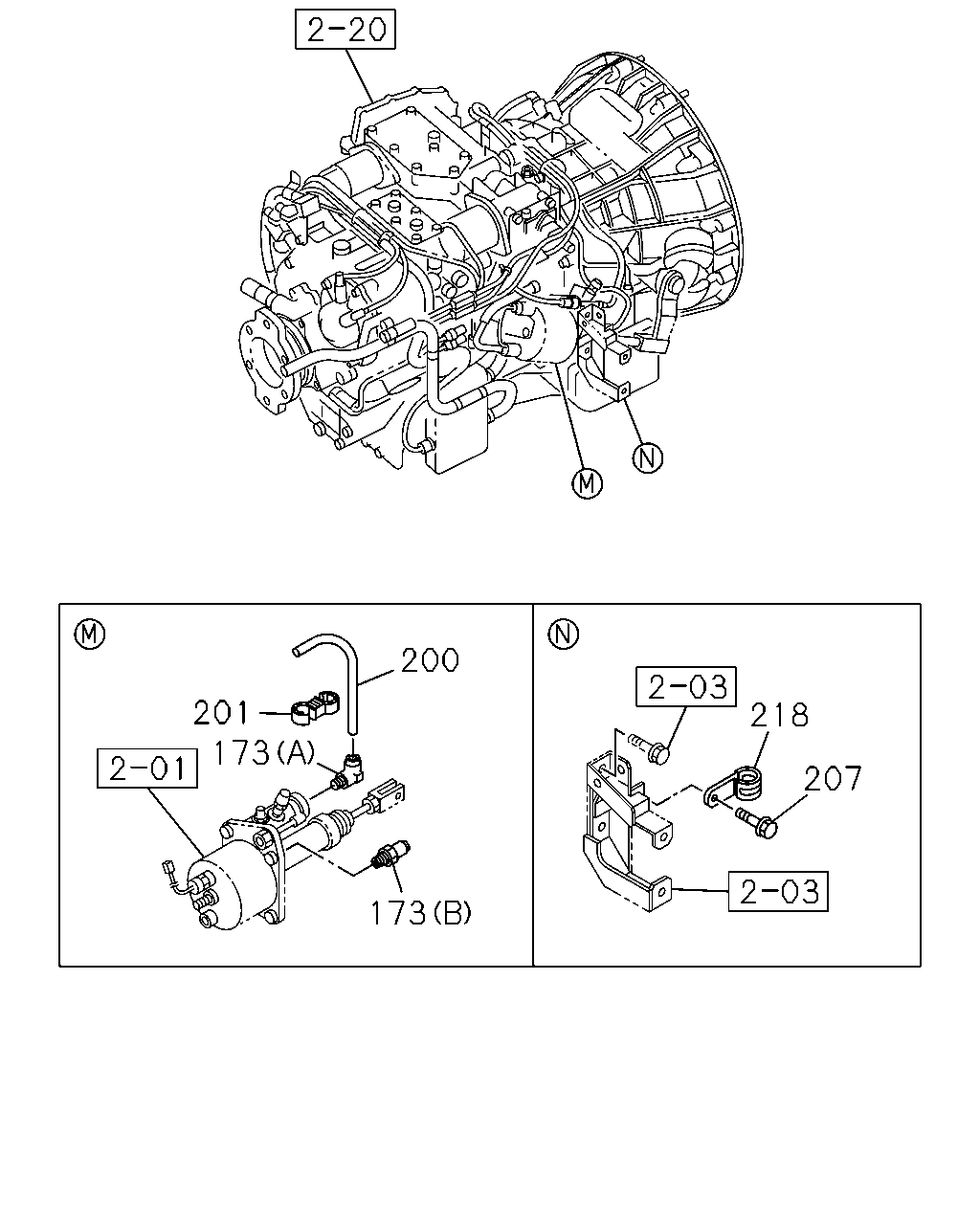

çizim 140239
200 201 173 218 207 173
BalonParca AdiParca NoAdetTipApplied Date
173 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0610-
173 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0610-
200 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0610-
201 CLIP; NYLON TUBE
ID=6.35 & 12 		1-09709-275-1 01 1 0610-
207 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0610-
218 CLIP
ID=11 L=20 		0-95235-035-0 01 1 0610-
