0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#28785) — 111 parça
◀

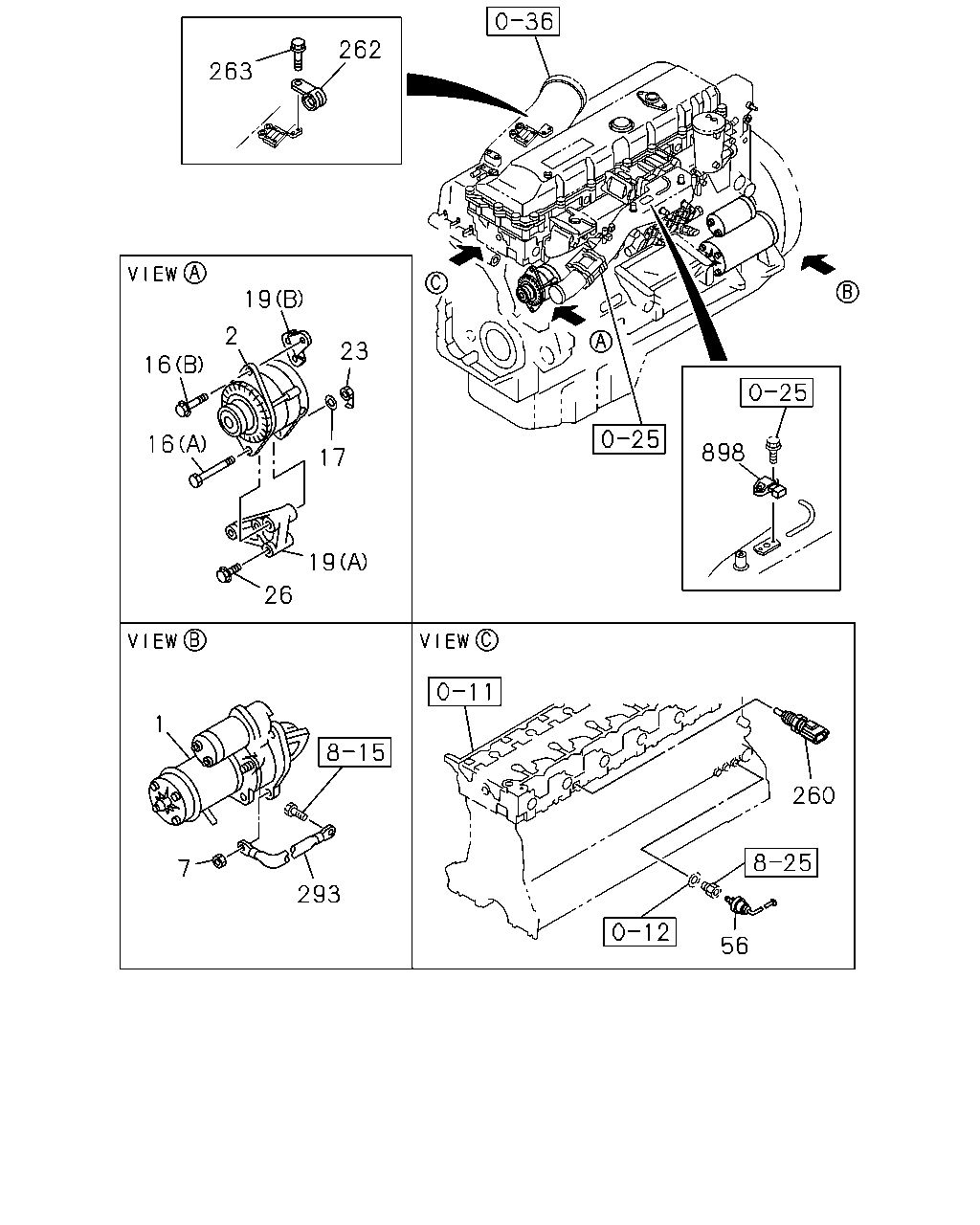

[060A] STARTER,GENERATOR AND SENSOR (20 parça)
[060A] CAB FRONT SIDE (27 parça)

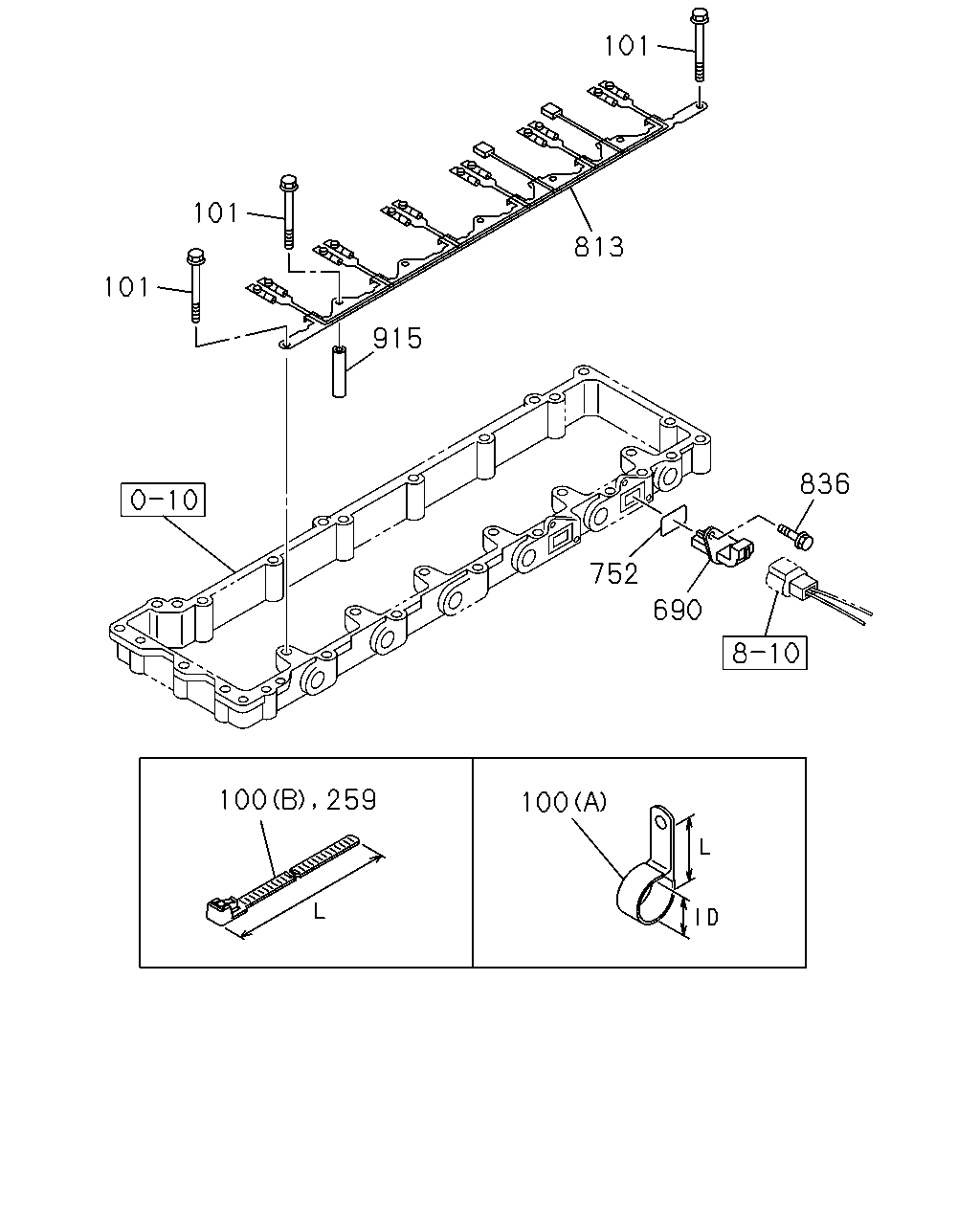

[060A] CYLINDER HEAD SIDE (13 parça)

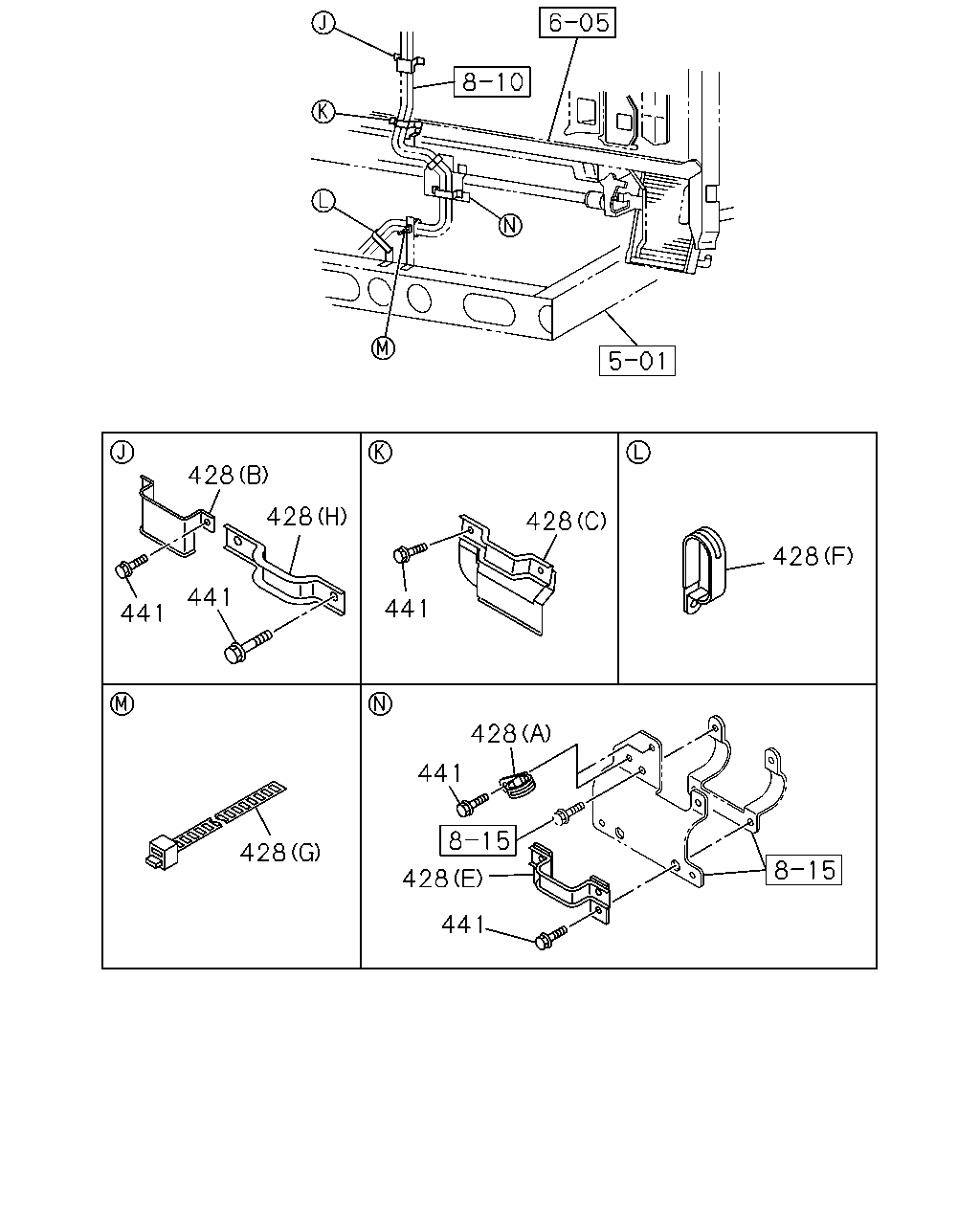

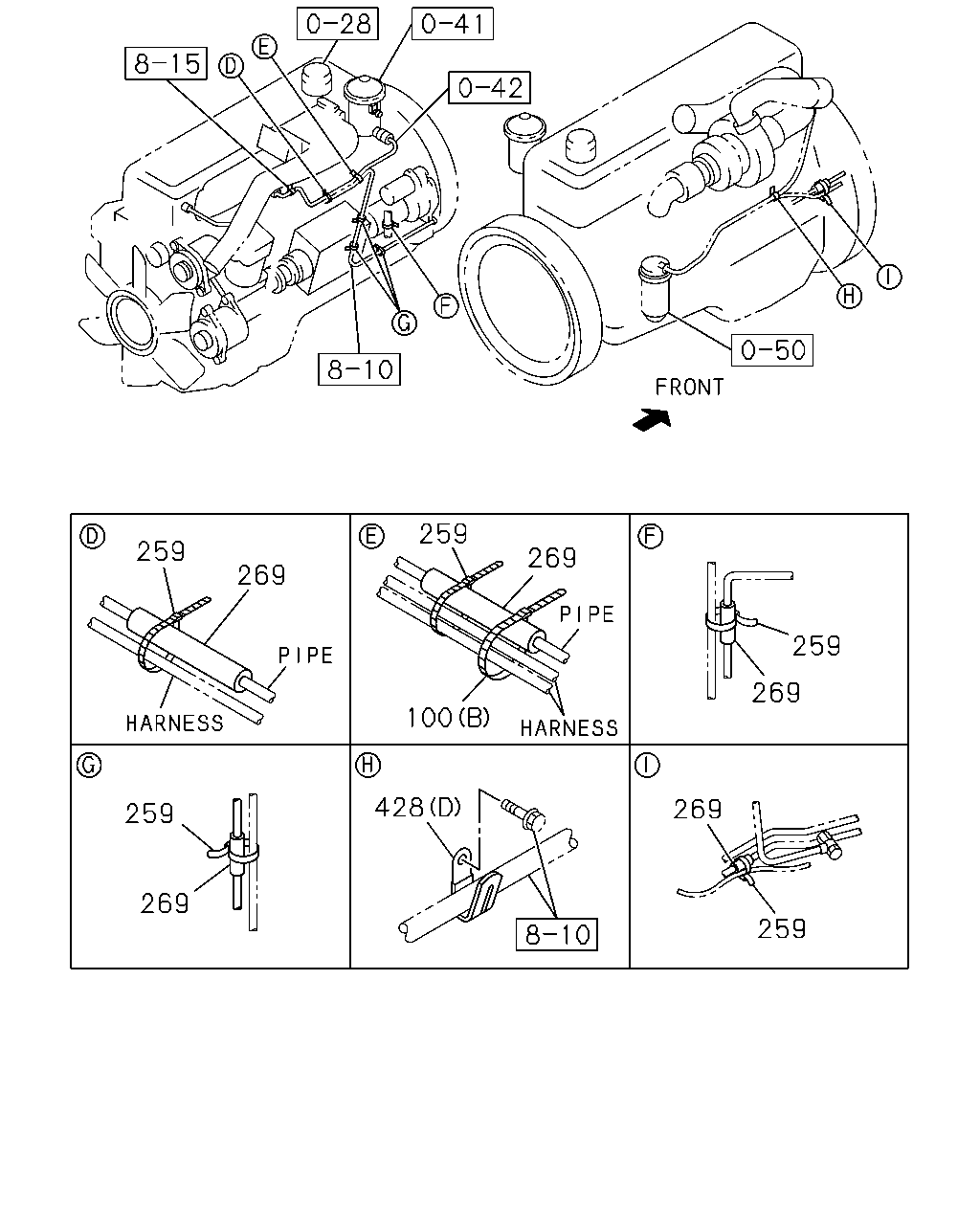

[060A] FIXING;ENG HARNESS (25 parça)

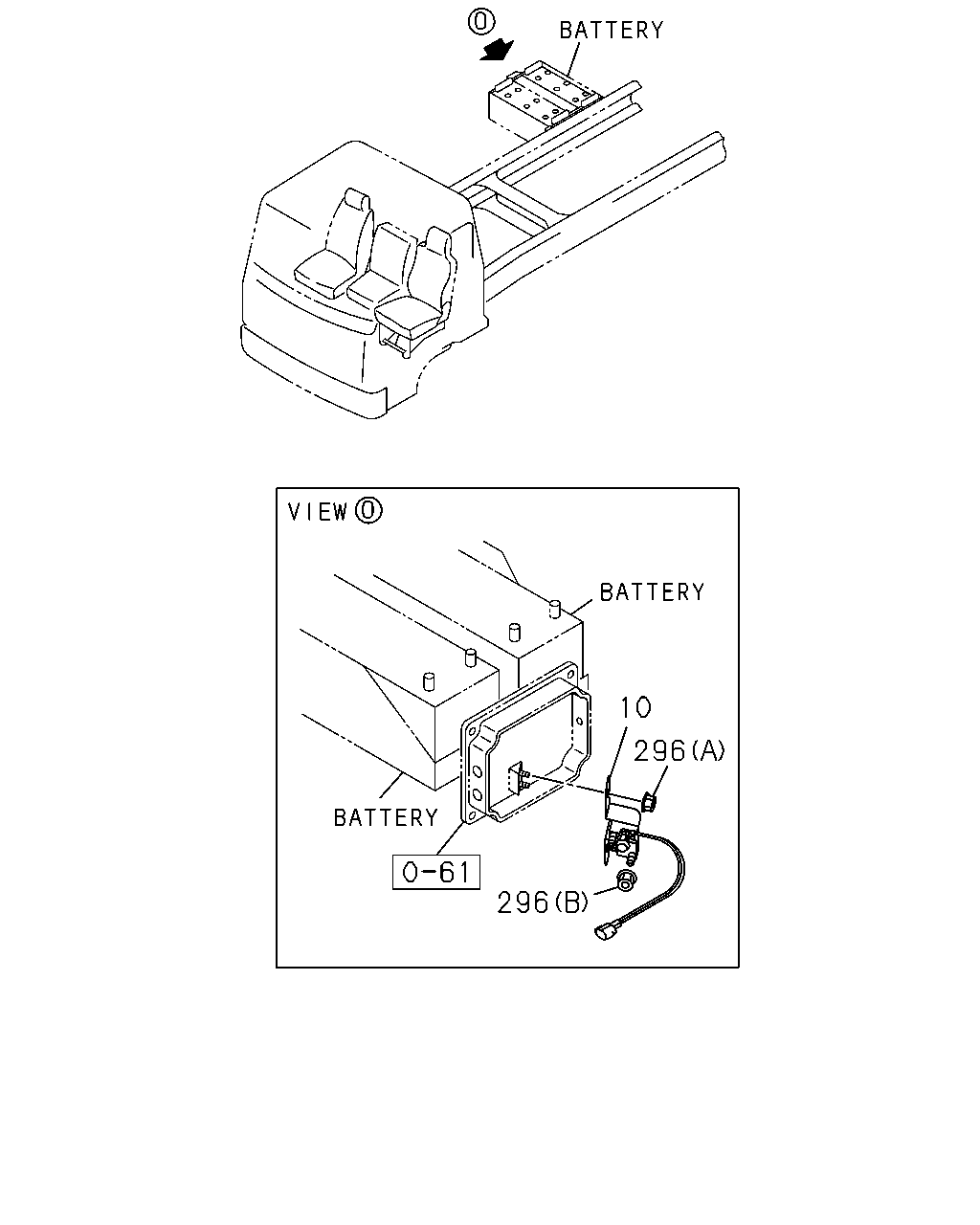

[060A] CHASSIS SIDE;STARTER RELAY (3 parça)

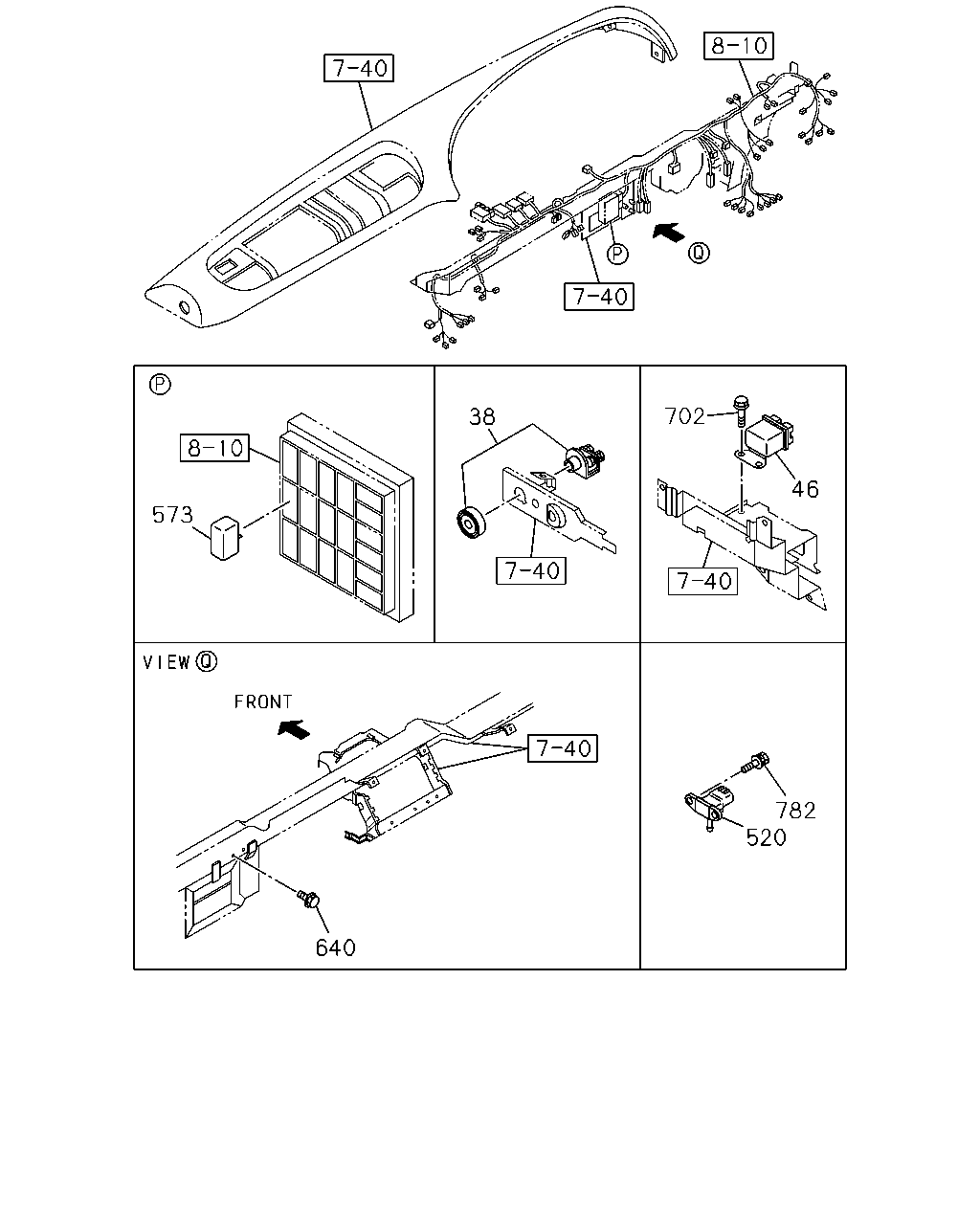

[060A] FACIA HARNESS RELAY (7 parça)

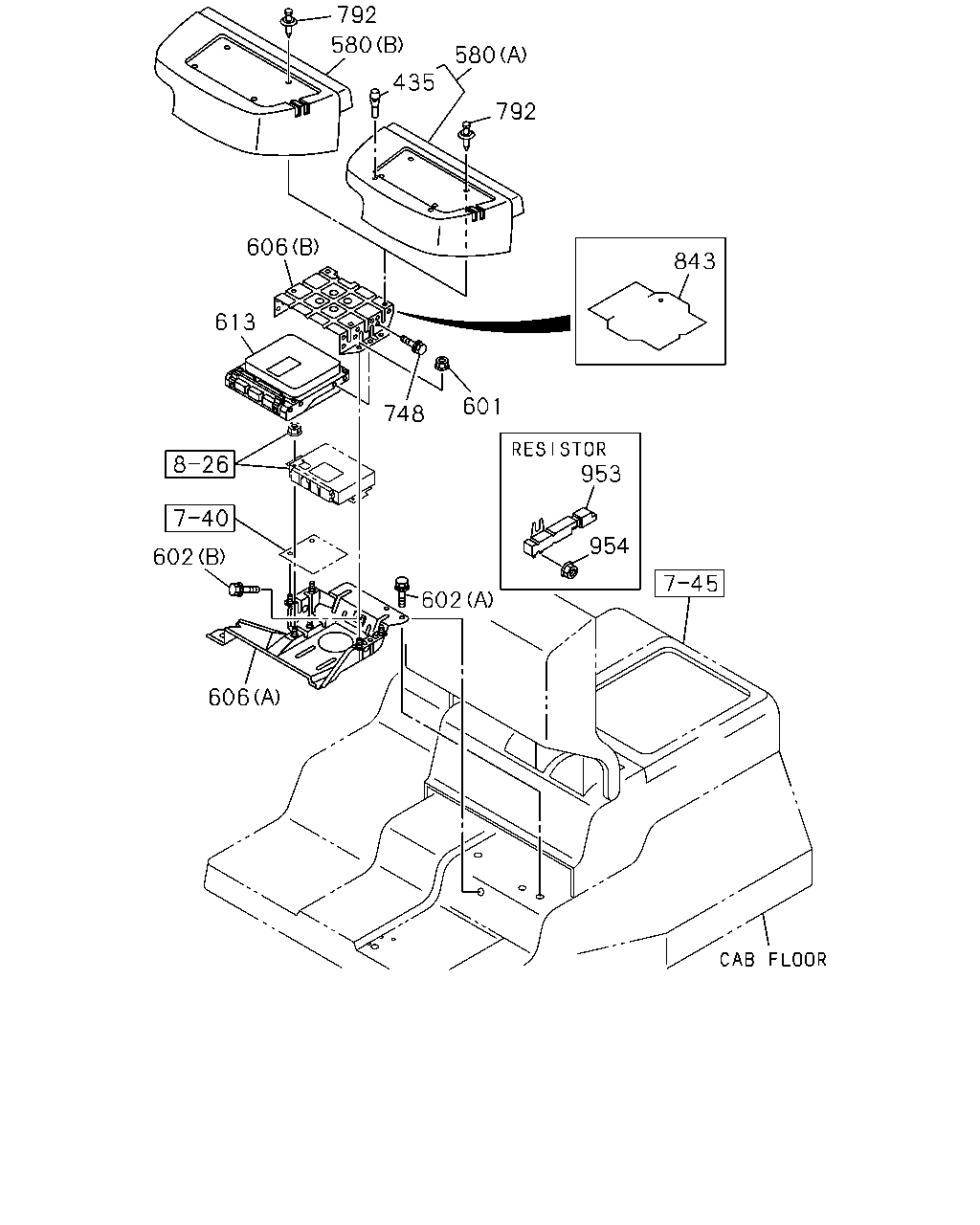

[060A] FIXING;BRKT AND COVER (16 parça)
▶
262
263
19
2
23
16
16
898
17
19
26
1
260
7
293
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
8-97380-508-4
01
1
0610-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
1-81200-484-8
01
1
0610-1112
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
8-98200-154-0
01
1
1201-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0610-
16
BOLT; GEN
(B) M12X40 FLANGE
0-28051-240-0
01
1
0610-
16
BOLT; GEN
(A) M14X123
1-09040-105-0
01
1
0610-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0610-
19
BRACKET; GEN
(B)
8-97606-317-0
01
1
0610-
19
BRACKET; GEN
(A)
8-97607-133-0
01
1
0610-
23
NUT; GEN
M14 W/BRKT
1-19711-029-0
01
1
0610-0910
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0911-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28151-060-0
02
1
0610-
56
SWITCH; OIL PRESSURE WARNING
1-82410-163-1
01
1
0610-
260
SENSOR; WATER TEMP
MITSUBISHI
8-98023-883-0
01
1
0610-1406
260
SENSOR; WATER TEMP
NISHIDA
8-98260-257-0
01
1
1407-
262
CLIP; HARNESS
ID=16 L=40
0-95235-576-0
01
1
0610-0610
262
CLIP; HARNESS
ID=17 L=20
8-97619-251-0
01
1
0611-
263
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0610-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0610-
898
SENSOR; BOOST
8-98009-418-0
01
1
0610-
428
428
428
428
441
441
441
428
441
428
428
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
FACE LIFT<6NL> (F) ID=30X2 L=28
1-09701-266-0
01
1
0806-
428
CLIP; HARNESS
FACE LIFT<6NL> (H)
1-82699-911-0
01
1
0806-
428
CLIP; HARNESS
FACE LIFT<6NL> (G) L=250
5-09707-030-1
03
1
0806-
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (F) ID=35X2 L=32
1-09701-314-0
01
1
0806-
428
CLIP; HARNESS
(D) L=36
8-94224-891-1
01
1
0610-
428
CLIP; HARNESS
(A) ID=39 H=28 L=32
1-09701-263-0
02
1
0610-0805
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (A) ID=39 H=28 L=32
1-09701-263-0
02
1
0806-
428
CLIP; HARNESS
(F) ID=35X2 L=32
1-09701-314-0
01
1
0610-0805
428
CLIP; HARNESS
FACE LIFT<6NL> (F) ID=35X2 L=32
1-09701-314-0
03
1
0806-
428
CLIP; HARNESS
(G) L=350
1-09707-183-0
01
1
0610-
428
CLIP; HARNESS
(C)
1-82698-375-1
01
1
0610-0805
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (C)
1-82698-375-1
01
1
0806-
428
CLIP; HARNESS
(E)
1-82698-555-0
01
1
0610-0805
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (E)
1-82698-555-0
01
1
0806-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0610-
441
BOLT; HARNESS TO FRAME
EXC. FACE LIFT<6NL> M8X20 FLANGE
0-28650-820-0
03
1
0806-
441
BOLT; HARNESS TO FRAME
EXC. FACE LIFT<6NL> M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0806-0809
441
BOLT; HARNESS TO FRAME
EXC. FACE LIFT<6NL> M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0810-0904
441
BOLT; HARNESS TO FRAME
EXC. FACE LIFT<6NL> M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
441
BOLT; HARNESS TO FRAME
M8X20 FLANGE
0-28650-820-0
03
1
0610-0805
441
BOLT; HARNESS TO FRAME
FACE LIFT<6NL> M8X20 FLANGE
0-28650-820-0
02
1
0806-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28650-825-0
02
1
0610-0805
441
BOLT; HARNESS TO FRAME
EXC. FACE LIFT<6NL> M8X25 FLANGE
0-28650-825-0
02
1
0806-
441
BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0610-0805
441
BOLT; HARNESS TO FRAME
FACE LIFT<6NL> M8X24.5 W/LK&PL WASHER
8-94279-208-0
05
1
0806-0809
441
BOLT; HARNESS TO FRAME
FACE LIFT<6NL> M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0810-0904
441
BOLT; HARNESS TO FRAME
FACE LIFT<6NL> M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
101
101
813
101
915
836
752
690
100
100
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(A) ID=11 L=20
0-95235-035-0
01
1
0610-
100
CLIP; HARNESS
(B) L=140
5-09707-031-1
02
1
0610-1205
100
CLIP; HARNESS
(B) L=140
8-98216-431-0
02
1
1206-
101
BOLT; HARNESS
M8X70 FLANGE
0-28050-870-0
07
1
0610-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=251
8-97619-917-0
01
1
0702-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
06
1
0610-0701
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
05
1
0702-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
8-98216-431-0
05
1
1206-
690
CONNECTOR
8-94390-858-1
02
1
0610-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
0610-
813
HARNESS; INJECTOR
1-82641-338-1
01
1
0610-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
04
1
0610-
915
SPACER; HARNESS
L=51
1-11369-157-0
05
1
0610-
259
259
269
269
259
269
100
428
269
259
269
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(A) ID=11 L=20
0-95235-035-0
01
1
0610-
100
CLIP; HARNESS
(B) L=140
5-09707-031-1
02
1
0610-1205
100
CLIP; HARNESS
(B) L=140
8-98216-431-0
02
1
1206-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=251
8-97619-917-0
01
1
0702-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
06
1
0610-0701
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
5-09707-031-1
05
1
0702-1205
259
CLIP; BAND,HARNESS TO OIL PIPE
L=140
8-98216-431-0
05
1
1206-
269
SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30
9-09956-682-0
08
1
0610-0701
269
SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30
9-09956-682-0
04
1
0702-0704
269
SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30
9-09956-682-0
03
1
0705-
428
CLIP; HARNESS
FACE LIFT<6NL> (F) ID=30X2 L=28
1-09701-266-0
01
1
0806-
428
CLIP; HARNESS
FACE LIFT<6NL> (H)
1-82699-911-0
01
1
0806-
428
CLIP; HARNESS
FACE LIFT<6NL> (G) L=250
5-09707-030-1
03
1
0806-
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (F) ID=35X2 L=32
1-09701-314-0
01
1
0806-
428
CLIP; HARNESS
(D) L=36
8-94224-891-1
01
1
0610-
428
CLIP; HARNESS
(A) ID=39 H=28 L=32
1-09701-263-0
02
1
0610-0805
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (A) ID=39 H=28 L=32
1-09701-263-0
02
1
0806-
428
CLIP; HARNESS
(F) ID=35X2 L=32
1-09701-314-0
01
1
0610-0805
428
CLIP; HARNESS
FACE LIFT<6NL> (F) ID=35X2 L=32
1-09701-314-0
03
1
0806-
428
CLIP; HARNESS
(G) L=350
1-09707-183-0
01
1
0610-
428
CLIP; HARNESS
(C)
1-82698-375-1
01
1
0610-0805
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (C)
1-82698-375-1
01
1
0806-
428
CLIP; HARNESS
(E)
1-82698-555-0
01
1
0610-0805
428
CLIP; HARNESS
EXC. FACE LIFT<6NL> (E)
1-82698-555-0
01
1
0806-
428
CLIP; HARNESS
(B)
1-82699-993-1
01
1
0610-
10
296
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
1-81171-100-1
01
1
0610-
296
NUT; RELAY,STARTER
(A) M8 FLANGE
0-91180-108-0
02
1
0610-
296
NUT; RELAY,STARTER
(B) M6 FLANGE
0-91180-206-0
02
1
0610-
702
38
46
573
782
520
640
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
RESISTOR; CONT,GLOW PLUG
GLOW PLUG<KM5>
1-81402-008-0
01
1
0610-
46
RELAY; GLOW PLUG
GLOW PLUG<KM5>
8-94258-014-0
01
1
0610-
520
SENSOR; PRESSURE
8-98020-514-0
01
1
0610-
573
RELAY; ELEC GOV
24V 10A PANASONIC
8-97173-035-1
01
1
0610-
640
BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0610-
702
BOLT; RELAY
GLOW PLUG<KM5> M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0610-
782
BOLT; SENSOR
M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
0610-
792
580
580
435
792
606
843
613
601
748
953
954
602
602
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
435
RUBBER; CUSHION
CENTER SEAT DELETE(SP9)
1-72537-138-0
02
1
0610-
580
COVER; CONT UNIT
CENTER SEAT DELETE(SP9) (A)
1-72537-279-2
01
1
0610-
580
COVER; CONT UNIT
EXC. CENTER SEAT DELETE(SP9) (B)
1-72537-273-1
01
1
0610-
601
NUT; UNIT
M6 FLANGE
0-91180-106-0
04
1
0610-
602
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0610-
602
BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0610-
606
BRACKET; CONT UNIT
(B)
1-72537-228-0
01
1
0610-0704
606
BRACKET; CONT UNIT
(B)
1-72537-333-0
01
1
0705-
606
BRACKET; CONT UNIT
(A)
1-72537-230-1
01
1
0610-
613
CONTROL UNIT; ENG
8-98038-099-5
01
1
0610-
748
BOLT; CONT UNIT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0610-
792
FASTENER
D8X13.5
1-09987-270-0
04
1
0610-
843
SEAL; BRKT
1-76770-009-2
01
1
0610-1101
843
SEAL; BRKT
8-98119-974-0
01
1
1102-
953
RESISTOR; CONT UNIT
8-97357-613-0
01
1
0610-
954
NUT; RESISTOR
M6 FLANGE
0-91180-106-0
02
1
0610-
