◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#2878) — 18 parça

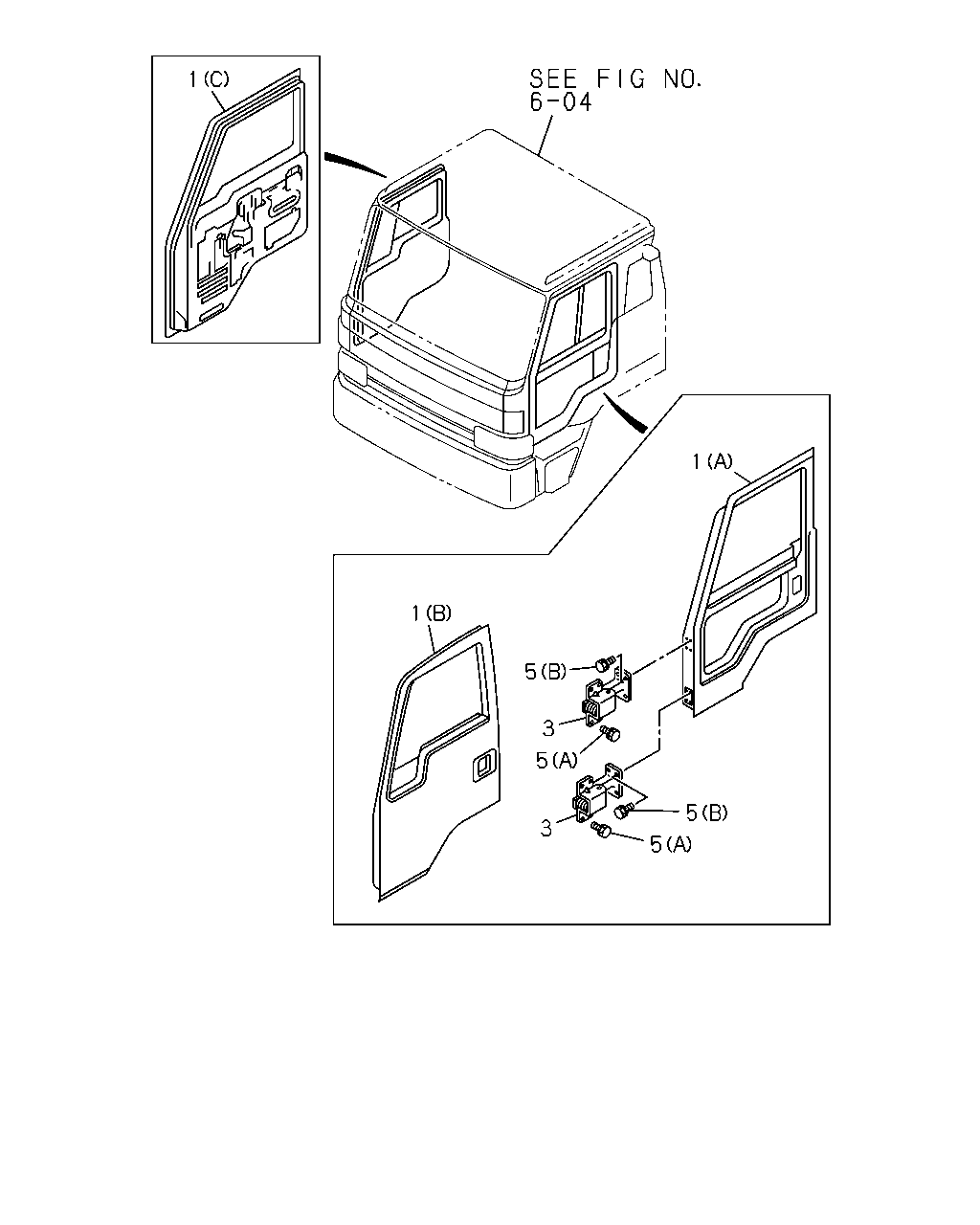

çizim 94799
5 3 5 5 3 5 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-64080-255-1 01 1 9002-9101 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-64070-211-1 01 1 9102- ● ●
1 DOOR ASM; FRT,WO/TRIM
POWER WINDOW<A30> (B) 		1-64070-240-0 01 1 9205-9205 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-64070-240-1 01 1 9206-9306 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-64070-236-2 01 1 9307- ● ●
1 DOOR ASM; FRT,WO/TRIM
POWER WINDOW<A30> (C) 		1-64070-234-1 01 1 9205-9205 ● ●
1 DOOR ASM; FRT,WO/TRIM
(C) 		1-64070-234-3 01 1 9206- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. POWER WINDOW<A30> (C) 		1-64070-197-2 01 1 9002-9205 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-64080-251-2 01 1 9002-9205 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64770-038-4 02 1 9002-9002 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64770-044-0 02 1 9003-9306 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64770-041-1 02 1 9307- ● ●
3 HINGE; DOOR FRT
L0WER 		1-64770-039-5 02 1 9002-9002 ● ●
3 HINGE; DOOR FRT
L0WER 		1-64770-045-0 02 1 9003-9306 ● ●
3 HINGE; DOOR FRT
L0WER 		1-64770-042-2 02 1 9307- ● ●
5 BOLT; HINGE
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 16 1 9002-9306 ● ●
5 BOLT; HINGE
(B) M8X25 W/LK&PL WASHER 		9-01970-825-0 16 1 9002-9005 ● ●
5 BOLT; HINGE
(B) M8X25 W/LK&PL WASHER 		0-50140-825-0 16 1 9006- ● ●
