6-20 — SIDE PANEL AND STEP (#2877) — 72 parça

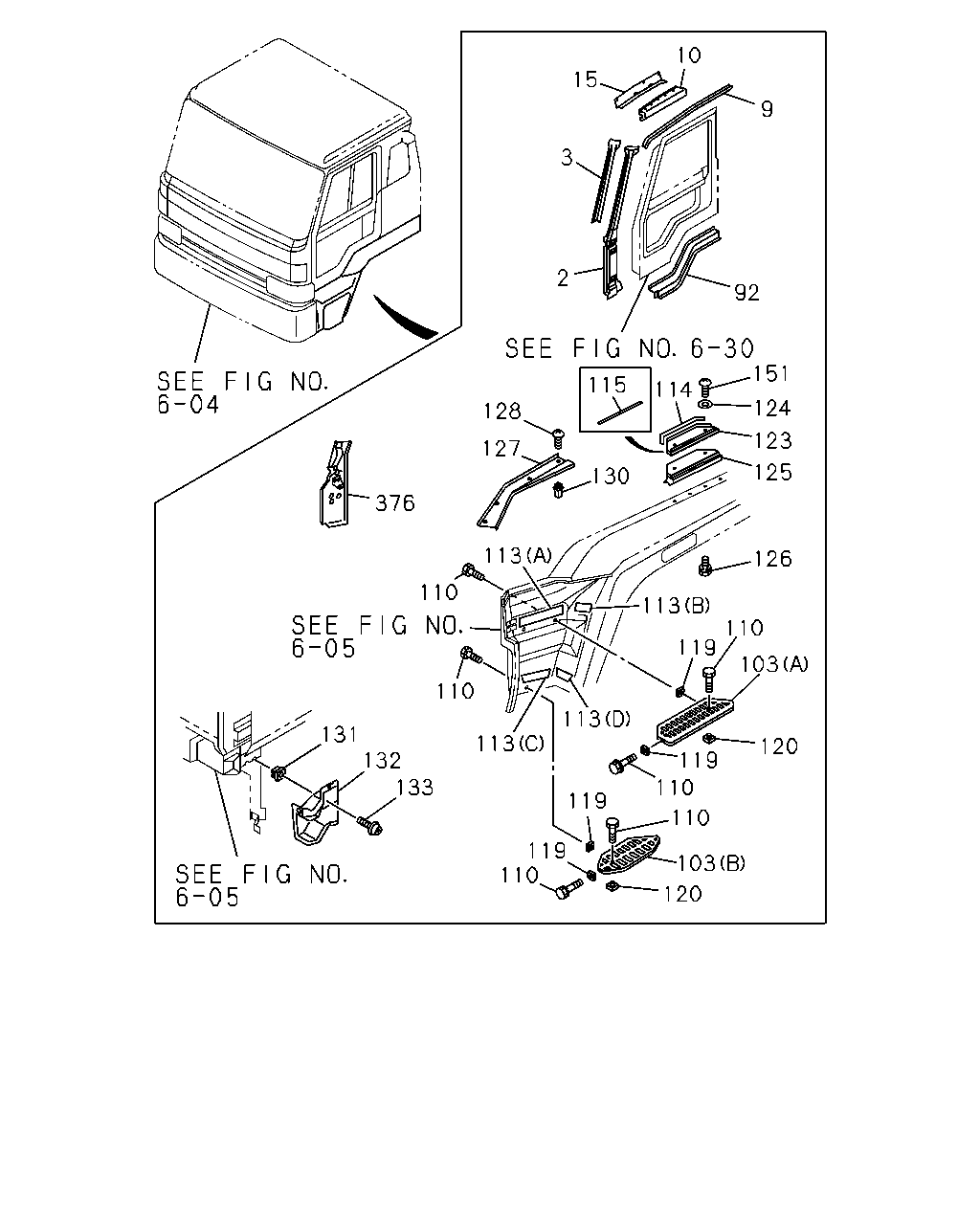

çizim 28775
120 103 110 110 119 120 103 113 126 110 119 125 123 124 151 92 9 10 15 3 2 114 115 130 113 127 128 376 110 110 113 113 119 119 110 133 132 131
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61270-647-0 01 1 9002-9103 ● ●
2 PILLAR; FRT 1-61270-756-1 01 1 9104- ● ●
2 PILLAR; FRT 1-61270-645-0 01 1 9002- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61270-541-5 01 1 9002- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61270-540-5 01 1 9002- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9002- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9002- ● ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9002- ● ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9002- ● ●
15 PANEL; CANT RAIL SIDE 1-61270-557-8 01 1 9002- ● ●
15 PANEL; CANT RAIL SIDE 1-61270-556-8 01 1 9002- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-561-4 01 1 9002- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-560-4 01 1 9002- ● ●
103 PLATE; STEP
(A) 		1-53414-034-0 02 1 9002- ● ●
103 PLATE; STEP
(B) 		1-53414-035-0 02 1 9002- ● ●
110 BOLT; 1ST STEP PLATE
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ●
110 BOLT; 1ST STEP PLATE
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(C) L=289 		1-71267-132-0 02 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(A) L=333.5 		1-71267-129-0 01 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(B) L=177 		1-71267-131-0 01 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(D) L=154 		1-71267-134-0 01 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(A) L=333.5 		1-71267-128-0 01 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(B) L=177 		1-71267-130-0 01 1 9002- ● ●
113 PROTECTOR; 1ST STEP
(D) L=154 		1-71267-133-0 01 1 9002- ● ●
114 PROTECTOR; FENDER RR STEP
GRIP OUT SIDE<W52> 		1-71267-127-0 02 1 9002- ● ●
115 PROTECTOR; STAND STEP
GRIP OUT SIDE<W52> 		1-71267-138-0 02 1 9002- ● ●
119 CAP; STEP 1-65570-180-0 16 1 9002- ● ●
120 SPACER; 1ST STEP 1-65570-170-1 04 1 9002- ● ●
123 STEP; FENDER REAR TRAVERSE
GRIP OUT SIDE<W52> 		1-71997-441-3 02 1 9002-9202 ● ●
123 STEP; FENDER REAR TRAVERSE
GRIP OUT SIDE<W52> 		1-71907-022-1 02 1 9203- ● ●
124 WASHER; PL,STEP,FENDER RR
GRIP OUT SIDE<W52> ID=5.3 OD=16 T=1.2 		1-09985-154-0 04 1 9002-9202 ● ●
124 WASHER; PL,STEP,FENDER RR
GRIP OUT SIDE<W52> ID=5.3 OD=16 T=1.2 		1-09985-154-0 06 1 9203- ● ●
125 STAND; STEP,FENDER RR
GRIP OUT SIDE<W52> 		1-71997-714-2 02 1 9002- ● ●
126 BOLT; STEP STAND
GRIP OUT SIDE<W52> M6X20 		1-09980-279-0 06 1 9002- ● ●
127 PROTECTOR; FENDER 1-71267-125-1 01 1 9002- ● ●
127 PROTECTOR; FENDER 1-71267-124-1 01 1 9002- ● ●
128 SCREW; PROTECTOR,FENDER
M5X16 TAPPING 		0-71090-516-0 08 1 9002- ● ●
130 GROMMET; SCREW,PROTECTOR 8-94279-039-0 08 1 9002- ● ●
131 GROMMET; SCREW,AIR GUIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-09983-081-0 06 1 9307- ● ●
131 GROMMET; SCREW,AIR GUIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-09983-081-0 04 1 9002- ● ●
132 GUIDE ASM; AIR FENDER STEP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71907-127-1 01 1 9307- ● ●
132 GUIDE ASM; AIR FENDER STEP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71907-126-1 01 1 9307- ● ●
132 GUIDE ASM; AIR FENDER STEP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71997-744-0 01 1 9002- ● ●
132 GUIDE ASM; AIR FENDER STEP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71997-743-0 01 1 9002- ● ●
133 SCREW; AIR GUIDE
M5X16 		1-09981-465-0 06 1 9002- ● ●
151 SCREW; STEP,FENDER RR
GRIP OUT SIDE<W52> M5X16 TAPPING 		0-71090-516-0 04 1 9002-9202 ● ●
151 SCREW; STEP,FENDER RR
GRIP OUT SIDE<W52> M5X16 TAPPING 		0-71090-516-0 06 1 9203- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-586-4 01 1 9002- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9002- ● ●

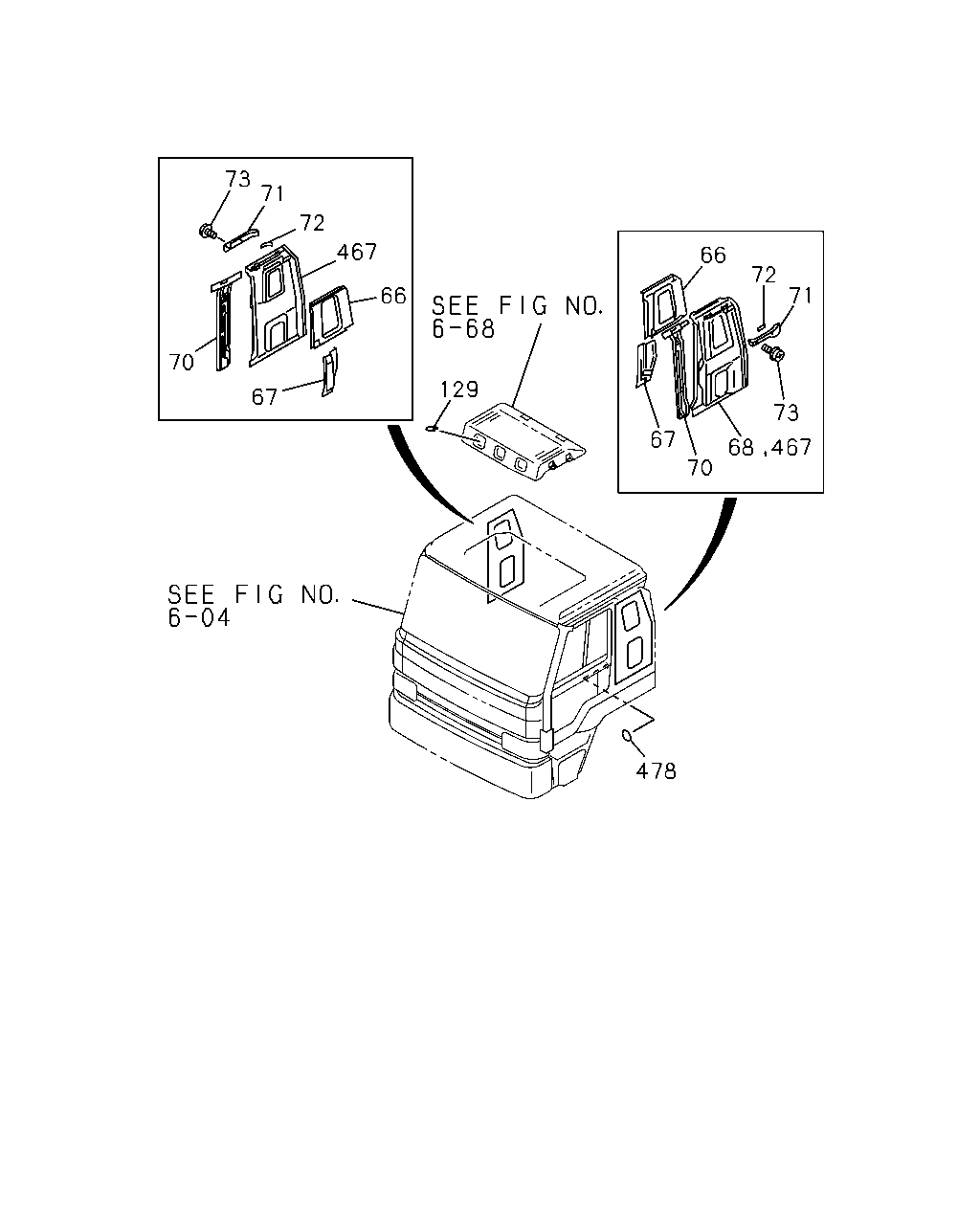

çizim 93821
478 70 67 73 467 68 71 72 66 129 66 467 72 71 73 70 67
BalonParca AdiParca NoAdetTipApplied Date A B
66 PANEL; BACK SIDE INNER 1-61270-666-1 01 1 9002- ● ●
66 PANEL; BACK SIDE INNER 1-61270-665-0 01 1 9002-9103 ● ●
66 PANEL; BACK SIDE INNER
W/SHEET BELT ANCH NUT 		1-61270-741-0 01 1 9104- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-678-3 01 1 9002-9008 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-750-0 01 1 9009-9103 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9104- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61270-675-4 01 1 9002-9501 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9502- ● ●
68 PANEL; BACK SIDE OUTER 1-61270-547-9 01 1 9002-9103 ● ●
68 PANEL; BACK SIDE OUTER 1-61270-727-1 01 1 9104-9306 ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-672-5 01 1 9002-9103 ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9104- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-671-5 01 1 9002-9103 ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-745-0 01 1 9104- ● ●
71 COVER; SIDE PANEL UPR 1-65471-051-0 01 1 9002- ● ●
71 COVER; SIDE PANEL UPR 1-65471-050-0 01 1 9002- ● ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9002- ● ●
73 SCREW; SIDE PANEL COVER
M8X25 		1-09981-429-0 04 1 9002- ● ●
129 NUT; SPIRE,SPD INDICATOR
LAMPS FOUR ROOF MARKER<PJ5> 		1-09984-101-0 04 1 9002- ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-625-0 01 1 9002- ● ●
467 PANEL; OUTER,BACK CORNER 1-61270-727-1 01 1 9307- ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 02 1 9002-9302 ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9303- ● ●
