Isuzu WW
▶
TRUCKS
▶
EXD
▶
11038 - EXD RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#28762) — 30 parça
◀

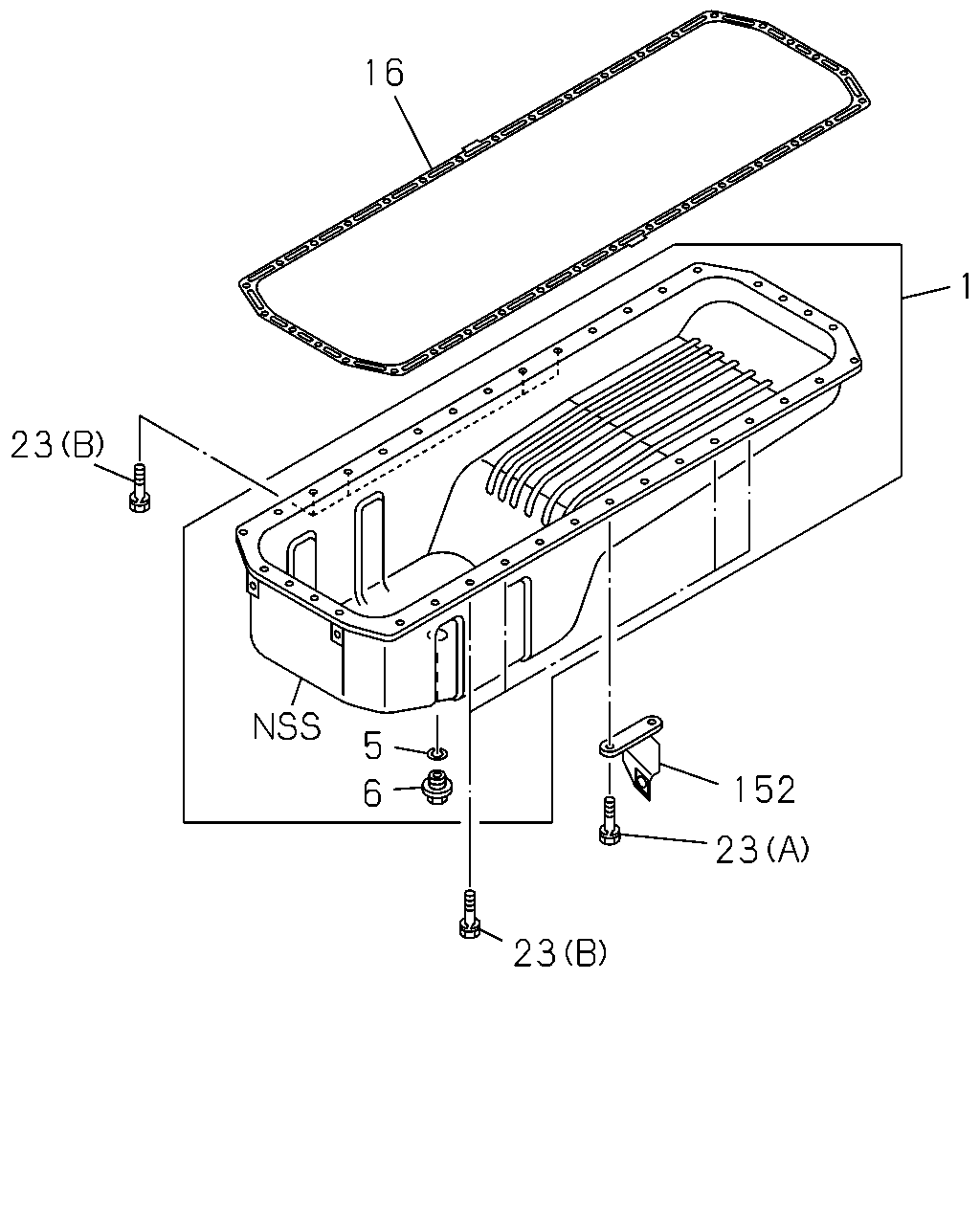

[013A] OIL PAN AND GASKET (12 parça)

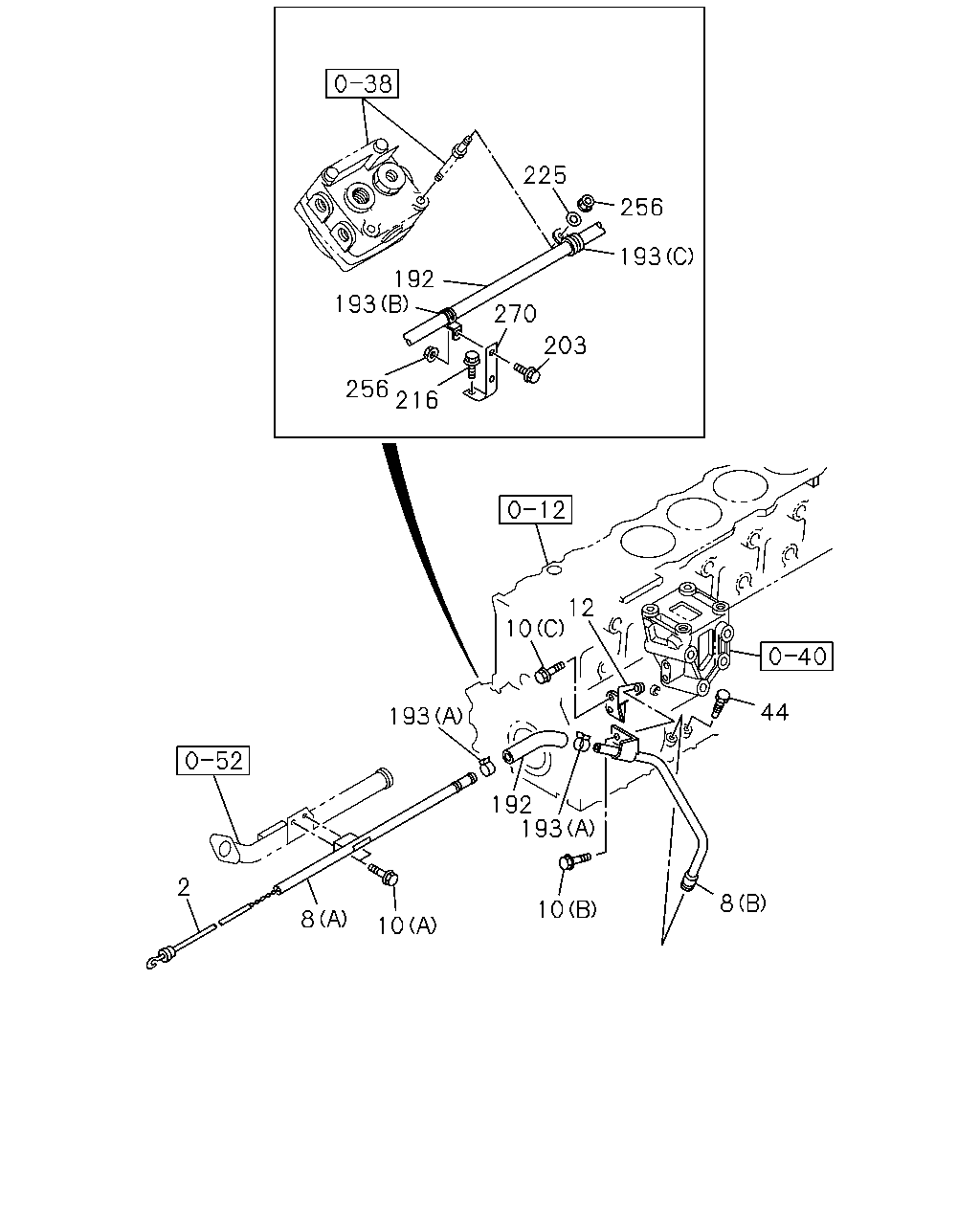

[013A] OIL LEVEL GAUGE (18 parça)
▶
16
1
23
5
152
6
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-912-0
01
1
0610-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0610-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0610-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0610-
23
BOLT; OIL PAN
(A) M10X30 FLANGE
0-28151-030-0
02
1
1001-
23
BOLT; OIL PAN
(A) M10X28 W/LK&PL WASHER
0-50151-028-0
28
1
0610-0809
23
BOLT; OIL PAN
(A) M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0810-0906
23
BOLT; OIL PAN
(A) M10X28 W/LK&PL WASHER
0-50651-028-0
36
1
0907-0909
23
BOLT; OIL PAN
(A) M10X20 FLANGE
0-28151-020-0
36
1
0910-0912
23
BOLT; OIL PAN
(A) M10X20 FLANGE
0-28151-020-0
34
1
1001-
23
BOLT; OIL PAN
(B) M10X32 W/LK&PL WASHER
0-50151-032-0
08
1
0610-0809
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0610-
225
256
193
192
193
270
203
256
216
12
10
44
193
192
193
2
8
10
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
1-11760-442-0
01
1
0610-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-97607-366-0
01
1
0610-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-97616-230-0
01
1
0610-
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28051-020-0
01
1
0610-
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28151-020-0
02
1
0610-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
02
1
0610-
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-204-1
01
1
0610-
44
PLUG
M22X41
1-09604-098-0
01
1
0610-
192
HOSE; GUIDE TUBE
L=620 SERVICED BY L=3000
0-02361-300-0
01
1
0610-
193
CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28
0-95235-856-0
01
1
0610-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=39 H=21
1-09700-972-1
01
1
0610-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=17
1-09707-158-0
02
1
0610-
203
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0610-
216
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0610-
225
WASHER; PL
ID=8.4 OD=22
0-91610-708-0
01
1
0610-
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0610-
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0610-
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47479-855-0
01
1
0610-
