Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#2875) — 240 parça

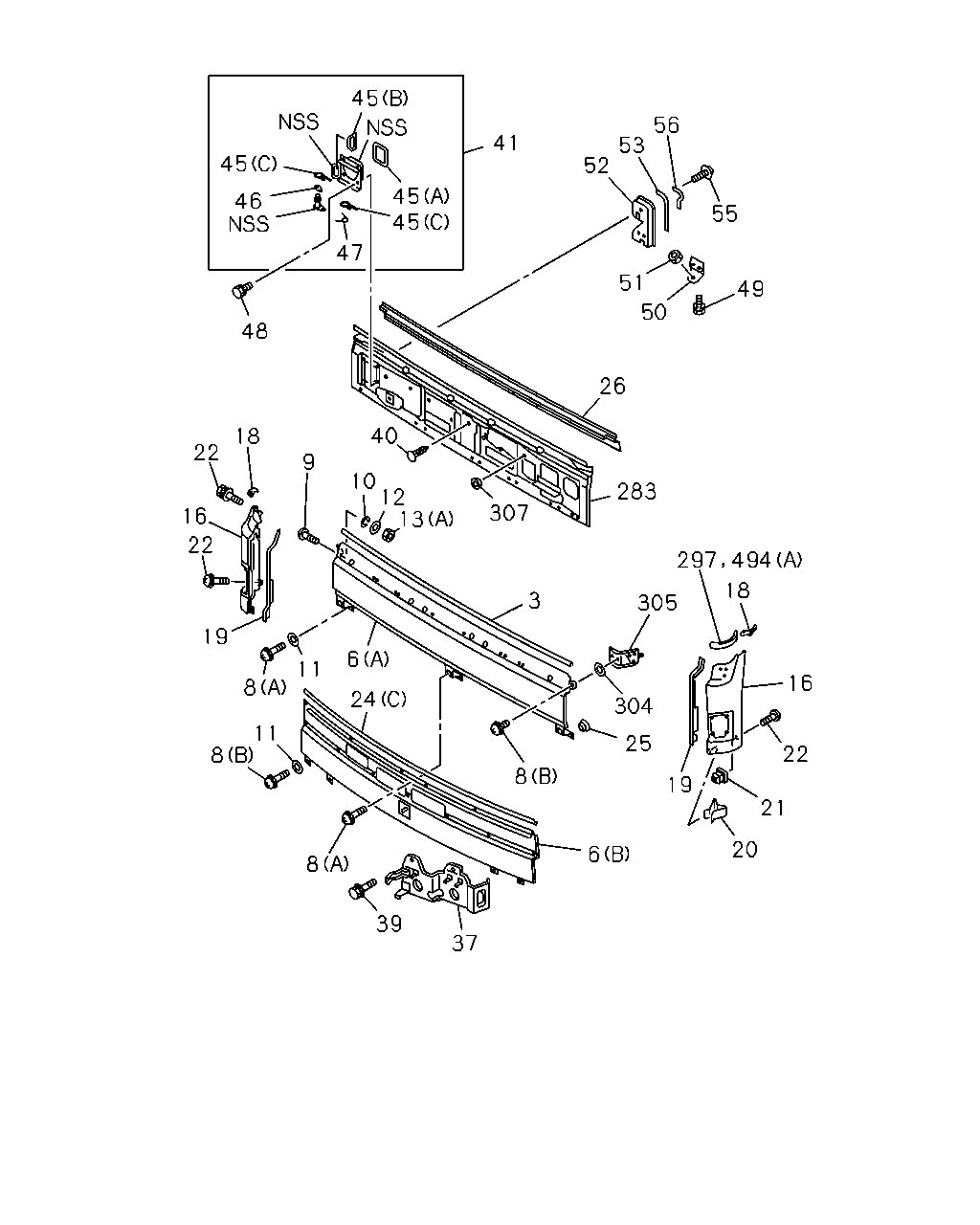

20 21 22 16 18 494 297 305 304 25 19 6 8 3 283 26 50 51 49 55 56 53 52 41 45 45 47 45 45 46 48 22 18 40 9 10 307 13 12 16 19 22 6 24 11 8 11 8 8 39 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	FINISHER; FRT PANEL UPR L=2040	1-71997-513-1	01	1	9002-9008	●	●
3	FINISHER; FRT PANEL UPR L=2040	1-71907-013-0	01	1	9009-9012	●	●
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9101-	●	●
6	PANEL; FRONT (A)	1-65470-915-1	01	1	9002-9101	●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-493-1	01	1	9102-	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-708-0	01	1	9307-	●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-382-0	01	1	9002-	●	●
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-453-2	01	1	9307-	●	●
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	9002-	●	●
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9002-	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-	●	●
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-	●	●
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-	●	●
11	WASHER; NYLON,FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	9002-	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-	●	●
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 M6 CAP NUT FLANGE	1-65471-734-0	02	1	9307-	●	●
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	02	1	9002-	●	●
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
16	PANEL; FRONT,SIDE	1-65470-940-3	01	1	9002-9306	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-	●	●
16	PANEL; FRONT,SIDE	1-65471-473-0	01	1	9002-9306	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32>	1-65471-643-4	01	1	9502-	●	●
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-	●	●
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65471-498-0	01	1	9307-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9002-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9002-	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9002-	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9002-	●	●
20	CLIP; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-71997-793-1	04	1	9002-9306	●	●
21	GROMMET; SCREW,FRT SIDE PANEL D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=8 M6	1-09983-119-0	02	1	9002-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-	●	●
22	SCREW; FRT PANEL SIDE TAPPING SCREW M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9002-9306	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> TAPPING SCREW M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> TAPPING SCREW M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> SET SCREW M6X12 W/PL WASHER	1-09981-380-0	04	1	9307-	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> SET SCREW M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> TAPPING SCREW M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-	●	●
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (C)	1-65570-159-0	01	1	9002-	●	●
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-	●	●
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-569-1	01	1	9002-	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-595-0	01	1	9310-	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-594-0	01	1	9310-	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-004-4	01	1	9002-	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-003-4	01	1	9002-	●	●
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-372-8	01	1	9307-	●	●
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-371-8	01	1	9307-	●	●
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9307-9307	●	●
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	04	1	9308-	●	●
39	BOLT; PNL,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9002-	●	●
40	PLUG; FRT PANEL OD=15 L=14.5	1-76378-157-0	01	1	9002-	●	●
41	VENTILATOR ASM; DASH	1-76337-255-6	01	1	9002-	●	●
45	SEAL; VENT (A)	1-76337-260-1	01	1	9002-	●	●
45	SEAL; VENT (B)	1-76337-261-0	01	1	9002-	●	●
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-	●	●
46	CLIP; VENT	1-76337-243-0	02	1	9002-	●	●
47	SPRING; VENT	1-76337-244-0	01	1	9002-	●	●
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-	●	●
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-	●	●
50	BRACKET; CABLE,DASH VENT	1-76337-292-1	01	1	9002-	●	●
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-	●	●
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-450-0	01	1	9307-	●	●
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-264-2	01	1	9002-	●	●
53	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=640	1-76337-452-1	01	1	9307-	●	●
53	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=730	1-76337-235-2	01	1	9002-	●	●
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=340	1-76337-453-1	01	1	9307-	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=70	1-76337-455-1	01	1	9307-	●	●
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9002-	●	●
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-694-1	01	1	9307-	●	●
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-653-2	01	1	9002-	●	●
297	FINISHER; SIDE PANEL,CAB L=190 SERVICED BY L=2040	1-71907-013-0	02	1	9009-9012	●	●
297	FINISHER; SIDE PANEL,CAB SERVICED BY L=190	1-71998-300-0	02	1	9101-9205	●	●
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=170	1-71907-124-1	02	1	9206-	●	●
304	SPACER; FRT PANEL	1-09985-144-0	01	1	9002-	●	●
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-145-1	01	1	9002-	●	●
307	GROMMET; FRT PANEL OD=20.0	5-09983-020-0	02	1	9002-9210	●	●
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-	●	●
494	FINISHER; FENDER (A) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9002-	●	●
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-	●	●

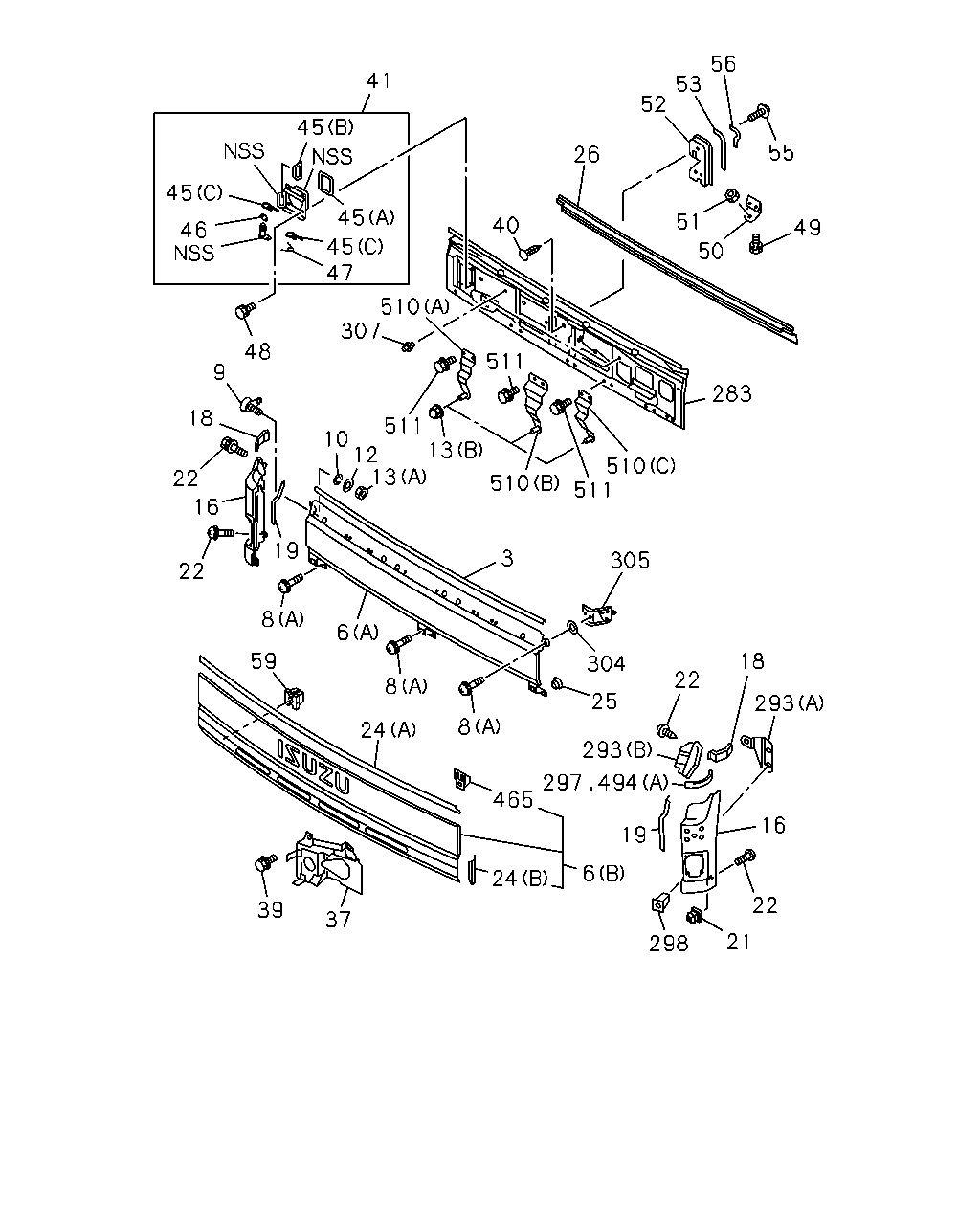

21 16 22 298 19 6 24 465 297 494 293 293 304 25 22 18 305 510 511 510 13 511 511 283 49 51 50 55 56 53 52 26 40 510 307 13 12 10 48 9 18 3 19 6 8 8 8 24 37 39 59 22 16 22 46 45 45 41 45 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	FINISHER; FRT PANEL UPR L=2040	1-71997-513-1	01	1	9002-9008	●	●
3	FINISHER; FRT PANEL UPR L=2040	1-71907-013-0	01	1	9009-9012	●	●
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9101-	●	●
6	PANEL; FRONT (A)	1-65470-915-1	01	1	9002-9101	●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-493-1	01	1	9102-	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-	●	●
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-708-0	01	1	9307-	●	●
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-382-0	01	1	9002-	●	●
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-453-2	01	1	9307-	●	●
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	9002-	●	●
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9002-	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-	●	●
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-	●	●
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-	●	●
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 M6 CAP NUT FLANGE	1-65471-734-0	02	1	9307-	●	●
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	02	1	9002-	●	●
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
16	PANEL; FRONT,SIDE	1-65470-940-3	01	1	9002-9306	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-	●	●
16	PANEL; FRONT,SIDE	1-65471-473-0	01	1	9002-9306	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-	●	●
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32>	1-65471-643-4	01	1	9502-	●	●
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-	●	●
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-	●	●
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65471-498-0	01	1	9307-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9002-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9002-	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-	●	●
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9002-	●	●
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9002-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=8 M6	1-09983-119-0	02	1	9002-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403	●	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-	●	●
22	SCREW; FRT PANEL SIDE TAPPING SCREW M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9002-9306	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> TAPPING SCREW M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> TAPPING SCREW M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-	●	●
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> SET SCREW M6X12 W/PL WASHER	1-09981-380-0	04	1	9307-	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> SET SCREW M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-	●	●
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> TAPPING SCREW M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-	●	●
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-	●	●
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (C)	1-65570-159-0	01	1	9002-	●	●
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-	●	●
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-569-1	01	1	9002-	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-595-0	01	1	9310-	●	●
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-594-0	01	1	9310-	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-004-4	01	1	9002-	●	●
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-003-4	01	1	9002-	●	●
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-372-8	01	1	9307-	●	●
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-371-8	01	1	9307-	●	●
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9307-9307	●	●
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	04	1	9308-	●	●
39	BOLT; PNL,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9002-	●	●
40	PLUG; FRT PANEL OD=15 L=14.5	1-76378-157-0	01	1	9002-	●	●
41	VENTILATOR ASM; DASH	1-76337-255-6	01	1	9002-	●	●
45	SEAL; VENT (A)	1-76337-260-1	01	1	9002-	●	●
45	SEAL; VENT (B)	1-76337-261-0	01	1	9002-	●	●
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-	●	●
46	CLIP; VENT	1-76337-243-0	02	1	9002-	●	●
47	SPRING; VENT	1-76337-244-0	01	1	9002-	●	●
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-	●	●
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-	●	●
50	BRACKET; CABLE,DASH VENT	1-76337-292-1	01	1	9002-	●	●
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-	●	●
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-450-0	01	1	9307-	●	●
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-264-2	01	1	9002-	●	●
53	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=640	1-76337-452-1	01	1	9307-	●	●
53	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=730	1-76337-235-2	01	1	9002-	●	●
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=340	1-76337-453-1	01	1	9307-	●	●
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=70	1-76337-455-1	01	1	9307-	●	●
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9002-	●	●
59	GROMMET; SCREW DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9307-	●	●
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-694-1	01	1	9307-	●	●
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-653-2	01	1	9002-	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-689-2	01	1	9307-	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-043-3	01	1	9307-	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-688-2	01	1	9307-	●	●
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-042-3	01	1	9307-	●	●
297	FINISHER; SIDE PANEL,CAB L=190 SERVICED BY L=2040	1-71907-013-0	02	1	9009-9012	●	●
297	FINISHER; SIDE PANEL,CAB SERVICED BY L=190	1-71998-300-0	02	1	9101-9205	●	●
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=170	1-71907-124-1	02	1	9206-	●	●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	08	1	9307-	●	●
304	SPACER; FRT PANEL	1-09985-144-0	01	1	9002-	●	●
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-145-1	01	1	9002-	●	●
307	GROMMET; FRT PANEL OD=20.0	5-09983-020-0	02	1	9002-9210	●	●
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-	●	●
465	CLIP; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM>	1-65471-500-0	07	1	9307-	●	●
494	FINISHER; FENDER (A) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9002-	●	●
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-	●	●
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-728-0	01	1	9307-	●	●
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-729-1	01	1	9307-	●	●
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (C)	1-65471-730-0	01	1	9307-	●	●
511	BOLT; SET,BRKT DECAL ISUZU FRONT PANEL<TAM> M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9307-	●	●

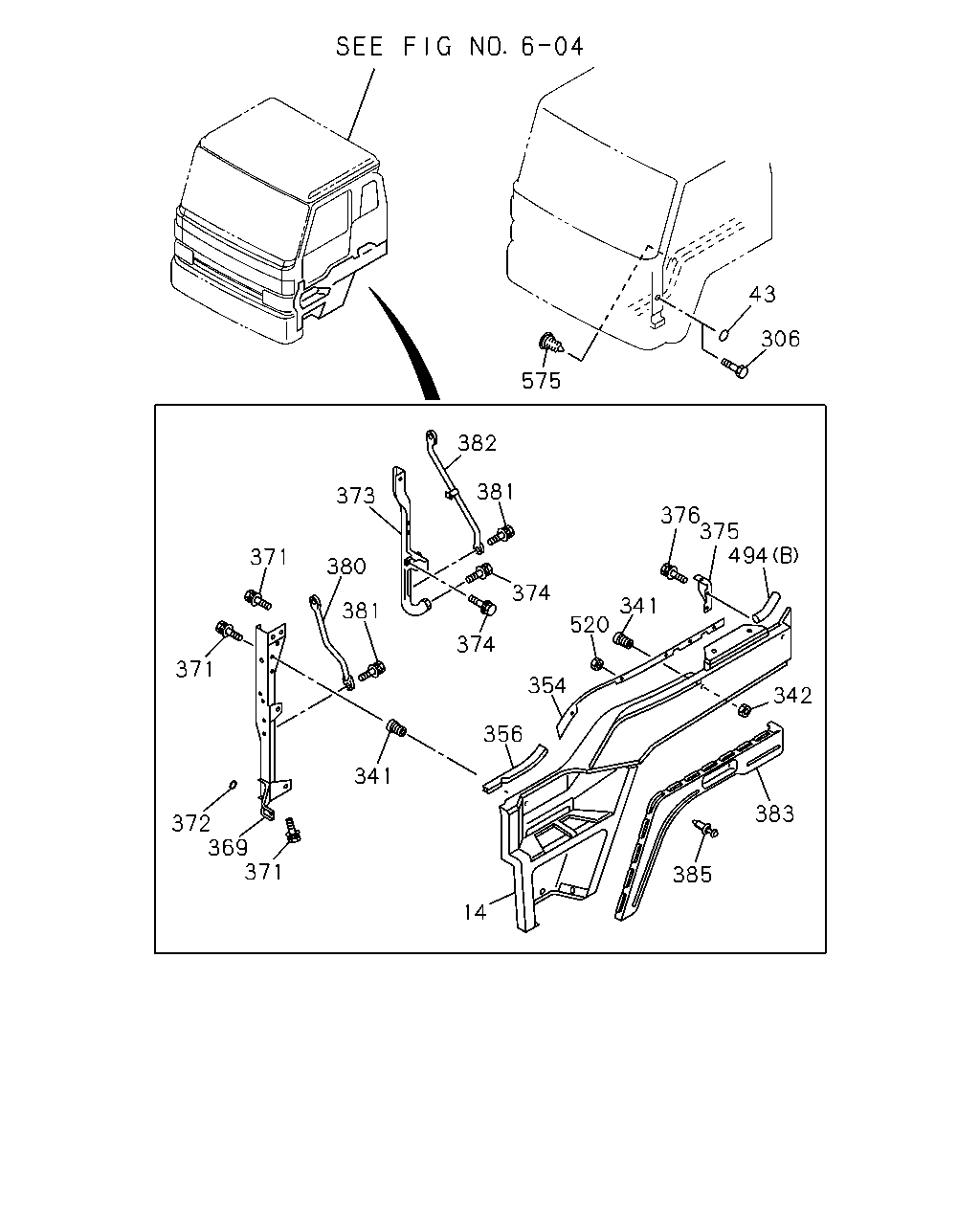

383 385 14 341 356 354 374 374 341 520 342 494 375 376 381 382 575 43 306 373 380 381 371 371 372 369 371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-171-0	01	1	9002-9307	●	●
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-170-0	01	1	9002-9307	●	●
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-169-0	01	1	9002-9307	●	●
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-168-0	01	1	9002-9307	●	●
43	GROMMET; LOCATION HOLE,A-POST OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9002-	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9209	●	●
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9210-	●	●
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	15	1	9002-	●	●
342	NUT; FENDER TO COWL M6 FLANGE	1-09984-141-0	02	1	9002-	●	●
354	SEAL; FENDER SIDE	1-76777-080-1	01	1	9002-	●	●
354	SEAL; FENDER SIDE	1-76777-079-1	01	1	9002-	●	●
356	FINISHER; STEP CLOSING,FENDER	1-76777-074-0	01	1	9002-	●	●
356	FINISHER; STEP CLOSING,FENDER	1-76777-071-2	01	1	9002-	●	●
369	SUPPORT; FENDER STEP FRT	1-65670-834-0	01	1	9002-	●	●
369	SUPPORT; FENDER STEP FRT	1-65670-833-0	01	1	9002-	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X25	1-09980-491-0	05	1	9002-9201	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-	●	●
372	SEAL; SUPPORT OD=20	1-76797-006-0	04	1	9002-9508	●	●
373	SUPPORT; FENDER STEP REAR	1-65670-842-2	01	1	9002-	●	●
373	SUPPORT; FENDER STEP REAR	1-65670-841-2	01	1	9002-	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X25	1-09980-491-0	04	1	9002-9201	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-9301	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9302-	●	●
375	SUPPORT; FENDER REAR	1-65670-627-2	02	1	9002-	●	●
376	BOLT; SUPPORT,FENDER RR M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-	●	●
380	STAY ASM; FENDER STEP FRT	1-65670-716-2	01	1	9002-	●	●
380	STAY ASM; FENDER STEP FRT	1-65670-715-2	01	1	9002-	●	●
381	BOLT; STAY,FENDER STEP M8X25	1-09980-491-0	08	1	9002-9301	●	●
381	BOLT; STAY,FENDER STEP M8X20 W/LK&PL WASHER	1-09980-512-0	08	1	9302-	●	●
382	STAY ASM; FENDER STEP RR	1-65670-641-6	01	1	9002-	●	●
382	STAY ASM; FENDER STEP RR	1-65670-640-6	01	1	9002-	●	●
383	GUARD; MUD,FENDER LWR HONG KONG EQUIPMENT(PQ1)	1-71997-638-1	01	1	9002-	●	●
383	GUARD; MUD,FENDER LWR CAB UP 110MM(W60)	1-71997-638-1	01	1	9002-		●
383	GUARD; MUD,FENDER LWR HONG KONG EQUIPMENT(PQ1)	1-71997-637-1	01	1	9002-	●	●
383	GUARD; MUD,FENDER LWR CAB UP 110MM(W60)	1-71997-637-1	01	1	9002-		●
385	SCREW; FENDER LWR HONG KONG EQUIPMENT(PQ1) D6X16 PUSH RIVET	1-09983-105-0	24	1	9002-	●	●
385	SCREW; FENDER LWR CAB UP 110MM(W60) D6X16 PUSH RIVET	1-09983-105-0	24	1	9002-		●
494	FINISHER; FENDER (A) L=73 SERVICED BY L=190	1-71998-300-0	02	1	9002-	●	●
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-	●	●
520	NUT; FENDER M6	9-09114-046-0	08	1	9307-	●	●
575	PLUG; STAY OD=15 L=14.5	1-76378-157-0	04	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
