Isuzu WW
▶
TRUCKS
▶
EXR
▶
11037 - EXR RHD EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

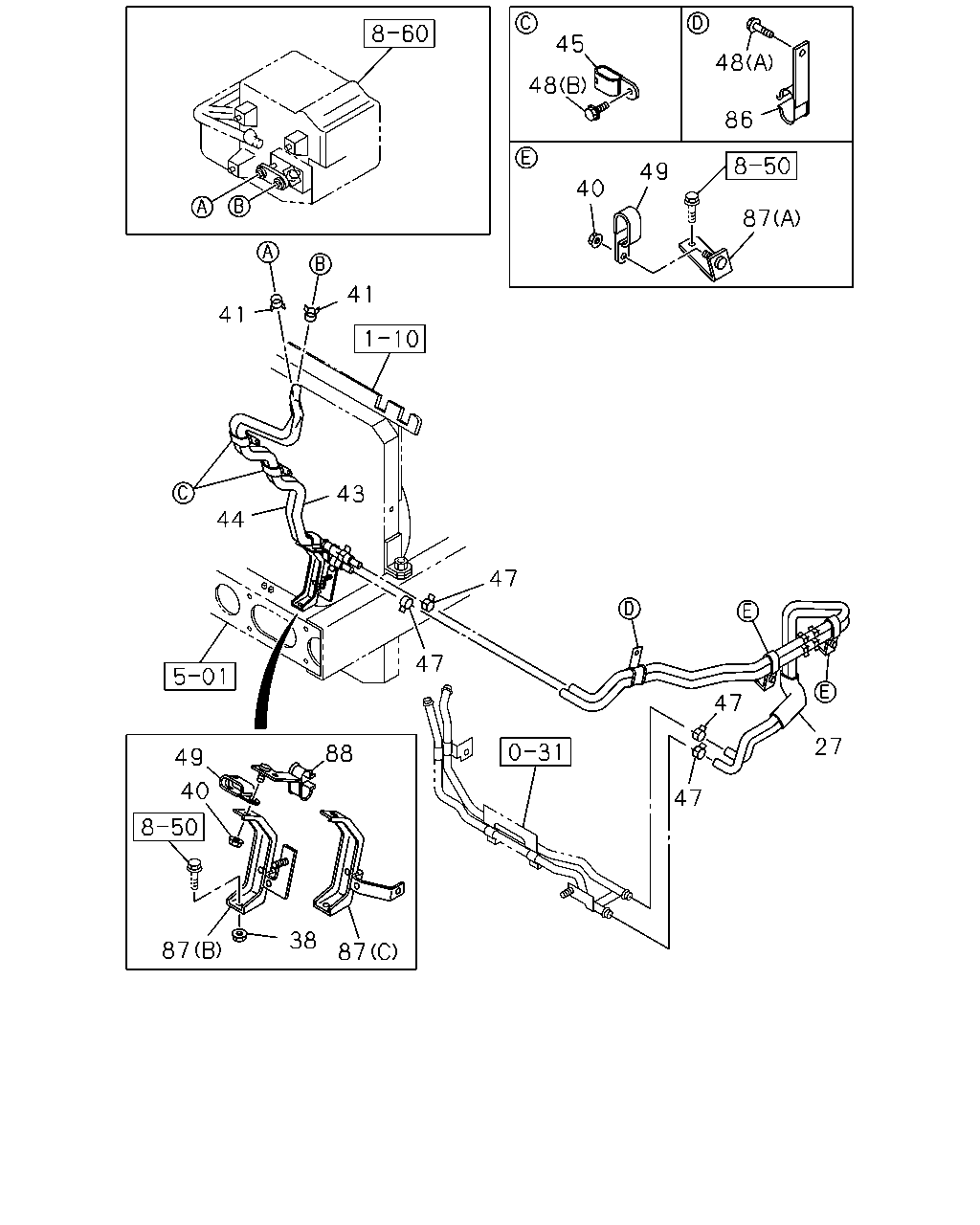

8-45 — HEATER PIPING
(#28746) — 23 parça
45
48
48
86
49
40
87
41
41
43
44
47
47
47
27
88
49
40
47
38
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-839-1
01
1
0610-
38
NUT; BRKT
FACE LIFT<6NL> M8 FLANGE
0-91180-108-0
01
1
0806-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0610-0610
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0610-
41
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-94382-401-0
02
1
0610-0611
41
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
02
1
0612-
43
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83565-828-1
01
1
0610-
44
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83565-826-1
01
1
0610-
45
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-09701-238-0
02
1
0610-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0610-0611
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0610-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
0610-0610
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
02
1
0611-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
0610-0610
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE
0-28650-825-0
02
1
0611-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0610-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
0610-
87
BRACKET; HTR HOSE CLIP
FACE LIFT<6NL> (C)
8-98066-735-0
01
1
0806-
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
02
1
0610-
87
BRACKET; HTR HOSE CLIP
(B)
1-83573-316-0
01
1
0610-0805
87
BRACKET; HTR HOSE CLIP
EXC. FACE LIFT<6NL> (B)
1-83573-316-0
01
1
0806-
88
STAY; WATER HOSE
1-83573-291-1
01
1
0610-
