Isuzu WW
▶
TRUCKS
▶
EXR
▶
11037 - EXR RHD EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-20 - METER CABLE
▶
8-20 — METER CABLE
(#28739) — 16 parça
◀

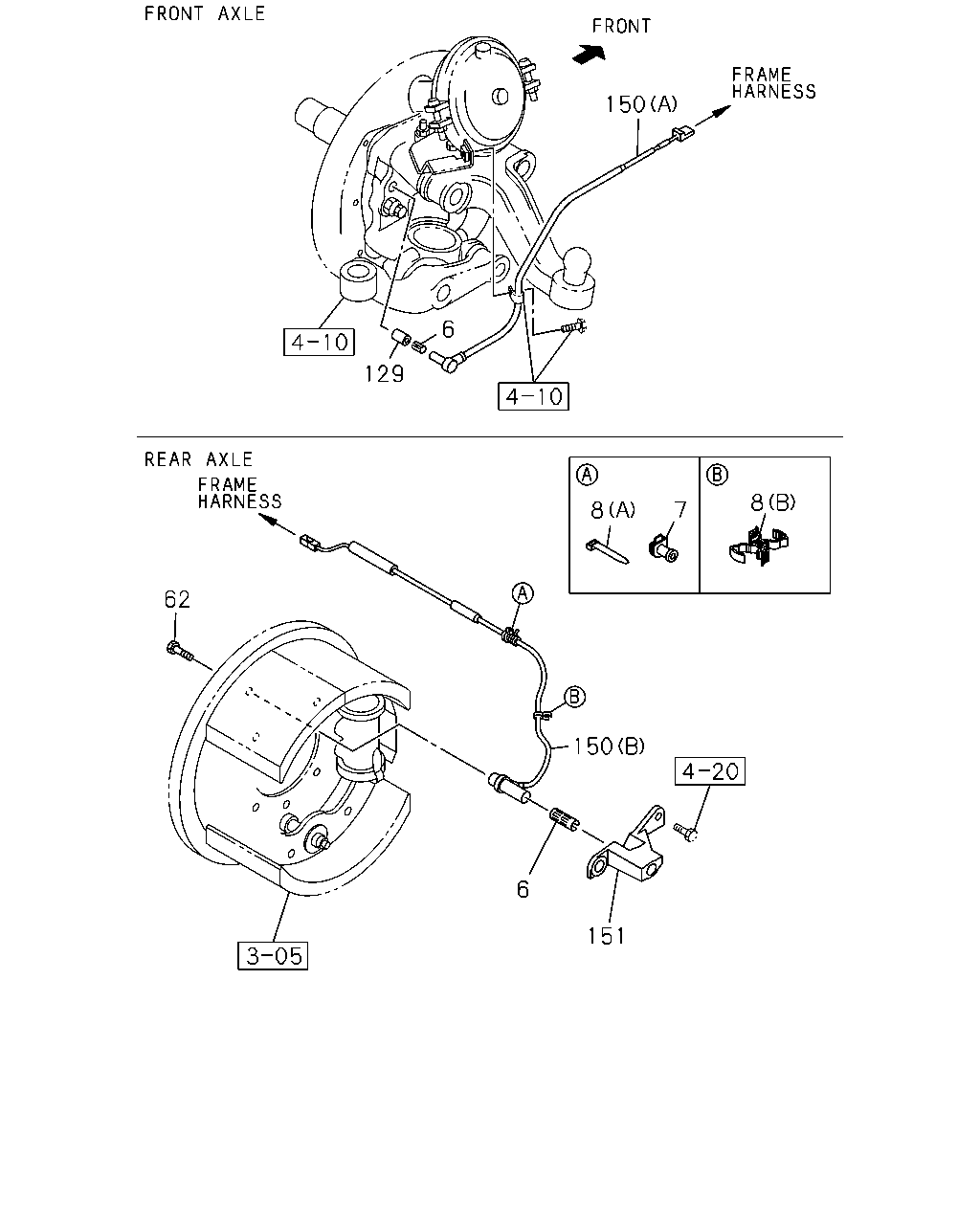

[820A] AXLE SIDE (14 parça)

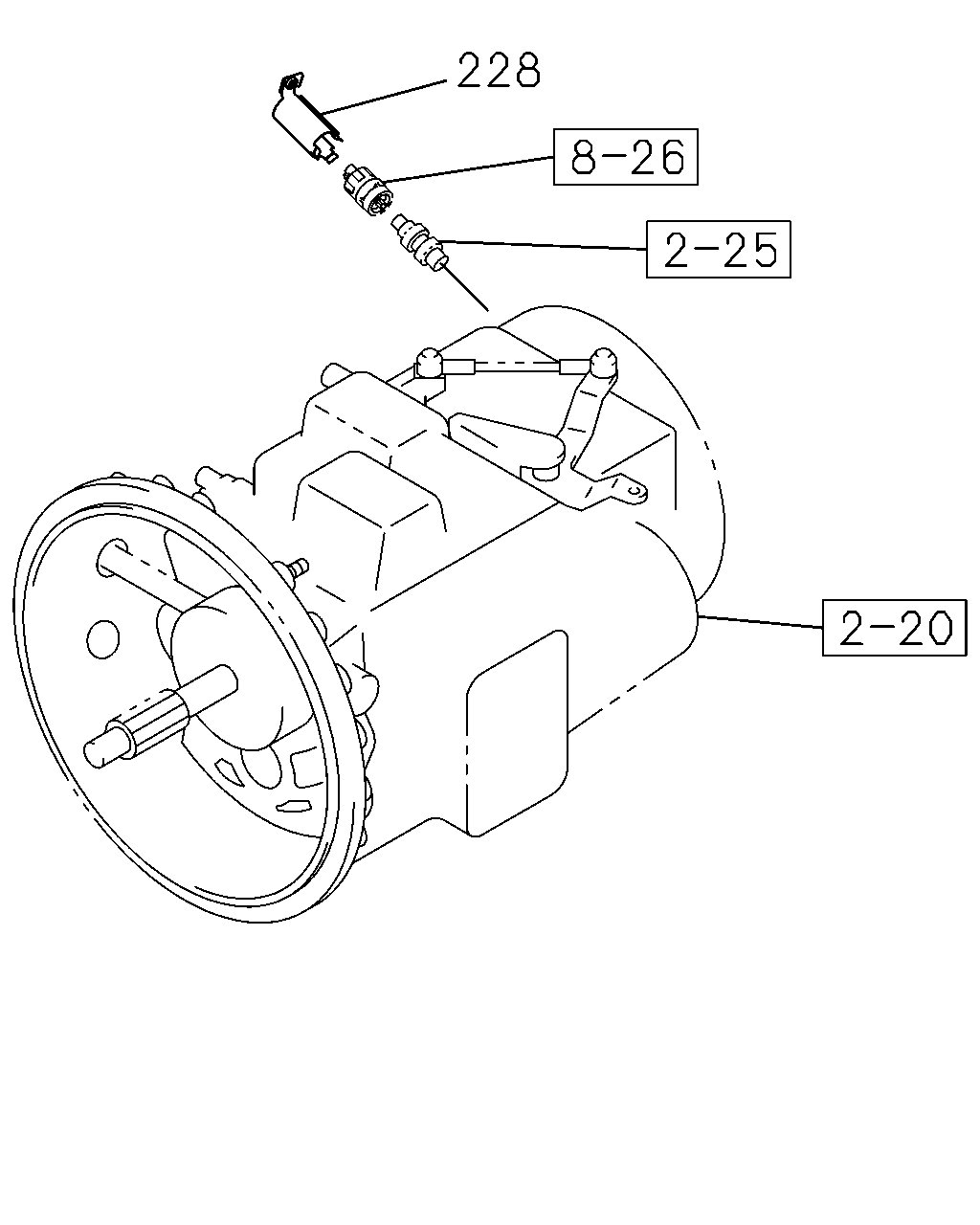

[820A] TRANSMISSION SIDE (2 parça)
▶
150
6
129
8
8
7
62
150
6
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
0610-
7
GROMMET; SPD SENSOR
ID=8
1-82699-740-1
01
1
0610-
8
CLIP; HARNESS
(B) ID=6-10 & 6-10
1-09709-192-1
01
1
0610-
8
CLIP; HARNESS
(A) L=140
5-09707-031-1
01
1
0610-
62
BOLT; SENSOR
M8X16
9-05820-816-0
02
1
0610-1506
62
BOLT; SENSOR
M8X16 HEX SOCKET
0-58330-816-0
02
1
1507-
129
COLLAR
1-83129-471-0
02
1
0610-
150
SENSOR; SPEED,ABS
(A) FRONT
1-83127-961-1
02
1
0610-
150
SENSOR; SPEED,ABS
(B) REAR
1-83127-937-1
01
1
0610-
150
SENSOR; SPEED,ABS
(B) REAR
1-83127-938-1
01
1
0610-
151
BRACKET; SPD SENSOR
1-83129-405-0
01
1
0610-1504
151
BRACKET; SPD SENSOR
8-98299-398-0
01
1
1505-
151
BRACKET; SPD SENSOR
1-83129-406-0
01
1
0610-1504
151
BRACKET; SPD SENSOR
8-98299-399-0
01
1
1505-
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
228
PROTECTOR; SENSOR
8-97168-308-0
01
1
0610-0808
228
PROTECTOR; SENSOR
8-98119-901-0
01
1
0809-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
