Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#28738) — 538 parça

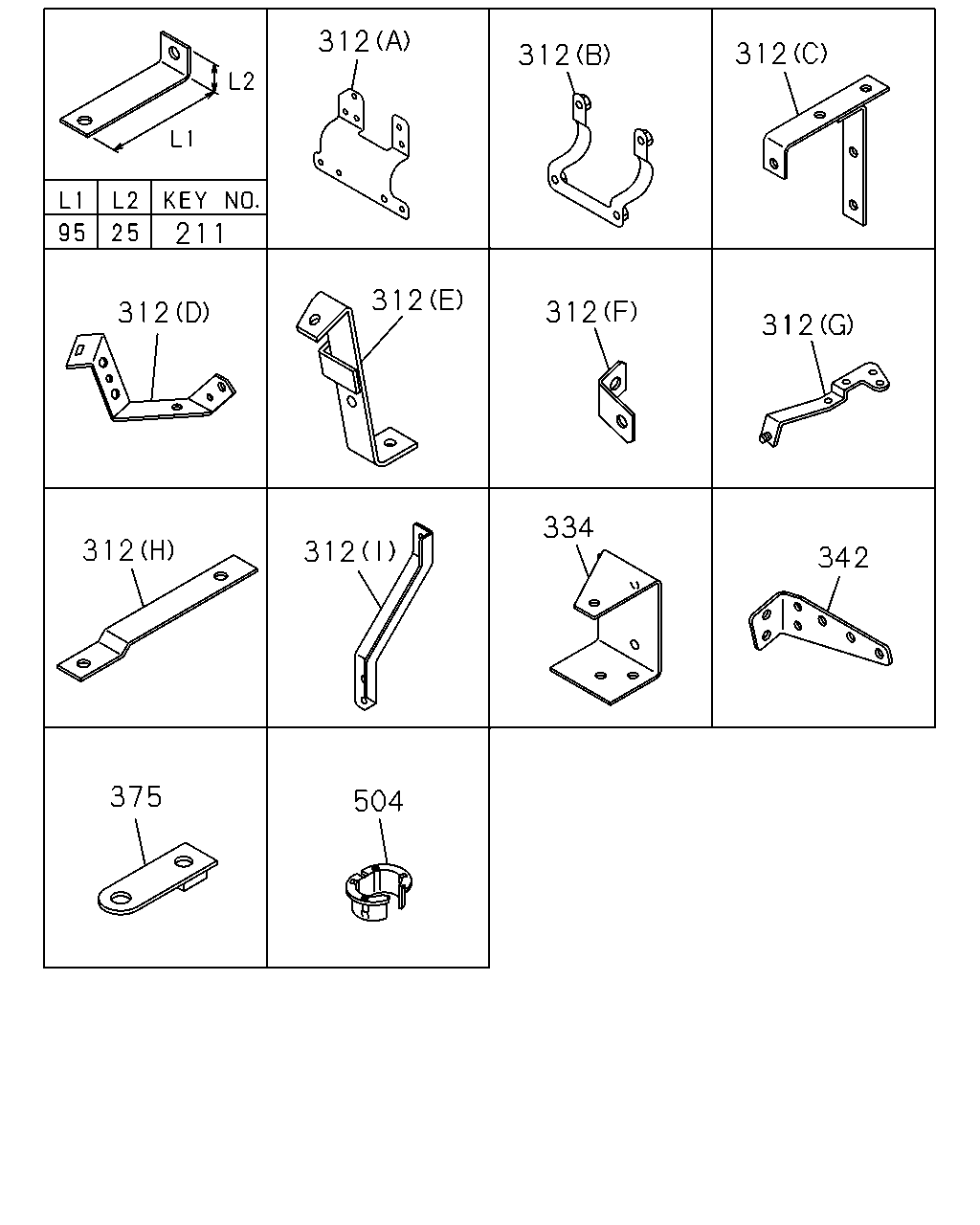

312 312 312 211 312 312 312 312 334 312 312 342 375 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) L=95	1-82699-085-0	02	1	0610-
312	BRACKET; CLIP HARNESS FACE LIFT<6NL> (H)	8-98035-927-1	01	1	0806-
312	BRACKET; CLIP HARNESS FACE LIFT<6NL> (I)	8-98052-591-0	01	1	0806-
312	BRACKET; CLIP HARNESS (C)	1-82698-479-0	01	1	0611-
312	BRACKET; CLIP HARNESS (C)	1-82698-479-0	01	1	0610-0610
312	BRACKET; CLIP HARNESS (A)	1-82698-474-1	01	1	0610-0805
312	BRACKET; CLIP HARNESS EXC. FACE LIFT<6NL> (A)	1-82698-474-1	01	1	0806-
312	BRACKET; CLIP HARNESS (B)	1-82698-476-0	01	1	0610-0805
312	BRACKET; CLIP HARNESS EXC. FACE LIFT<6NL> (B)	1-82698-476-0	01	1	0806-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0610-
312	BRACKET; CLIP HARNESS (D)	1-82698-556-0	01	1	0610-
312	BRACKET; CLIP HARNESS (F)	1-82699-199-0	01	1	0610-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G)	1-82698-443-0	01	1	0610-
334	BRACKET	1-53457-153-2	01	1	0610-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0610-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0610-
504	PROTECTOR; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-82698-391-0	02	1	0806-

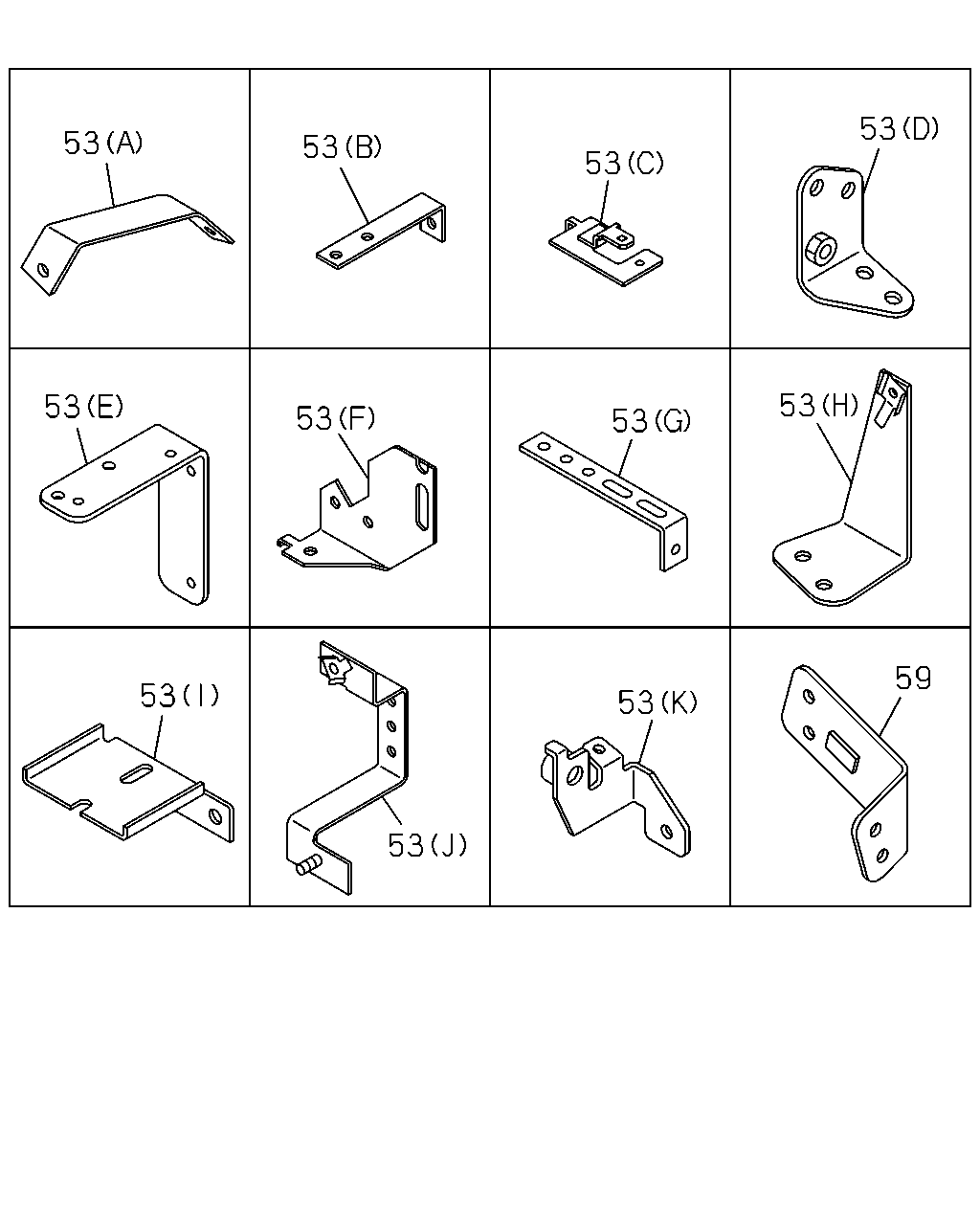

53 53 53 53 53 53 53 53 59 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (K)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-98124-778-0	01	1	0908-
53	BRACKET; HARNESS FACE LIFT<6NL> (I)	8-98032-696-0	01	1	0806-
53	BRACKET; HARNESS FACE LIFT<6NL> (J)	8-98050-989-0	01	1	0806-
53	BRACKET; HARNESS FACE LIFT<6NL> (H)	8-98052-592-0	01	1	0806-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	0610-
53	BRACKET; HARNESS (E)	8-97610-340-1	01	1	0610-
53	BRACKET; HARNESS (G) L=160 H=30	1-47479-759-0	01	1	0610-
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0610-0907
53	BRACKET; HARNESS EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-82698-382-0	01	1	0908-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	0610-
53	BRACKET; HARNESS (F)	8-97610-991-0	01	1	0610-0805
53	BRACKET; HARNESS EXC. FACE LIFT<6NL> (F)	8-97610-991-0	01	1	0806-
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0610-
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0610-
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0610-

119 524 219 294 340 515 552 423 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	0610-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0610-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0610-
219	NUT M8 FLANGE	0-91180-108-0	07	1	0610-0806
219	NUT M8 FLANGE	0-91180-108-0	09	1	0807-
219	NUT M8 FLANGE	0-91180-108-0	10	1	0610-0806
219	NUT M8 FLANGE	0-91180-108-0	11	1	0807-
294	NUT M8 FLANGE	0-91180-108-0	08	1	0610-
340	NUT; HARNESS CAB TO FRAME EXC. FACE LIFT<6NL> (A) M8 FLANGE	0-91180-108-0	01	1	0806-
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	01	1	0610-0805
340	NUT; HARNESS CAB TO FRAME FACE LIFT<6NL> (A) M8 FLANGE	0-91180-108-0	05	1	0806-0811
340	NUT; HARNESS CAB TO FRAME FACE LIFT<6NL> (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0812-
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	02	1	0610-0610
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0610-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	0610-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0610-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0610-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0610-

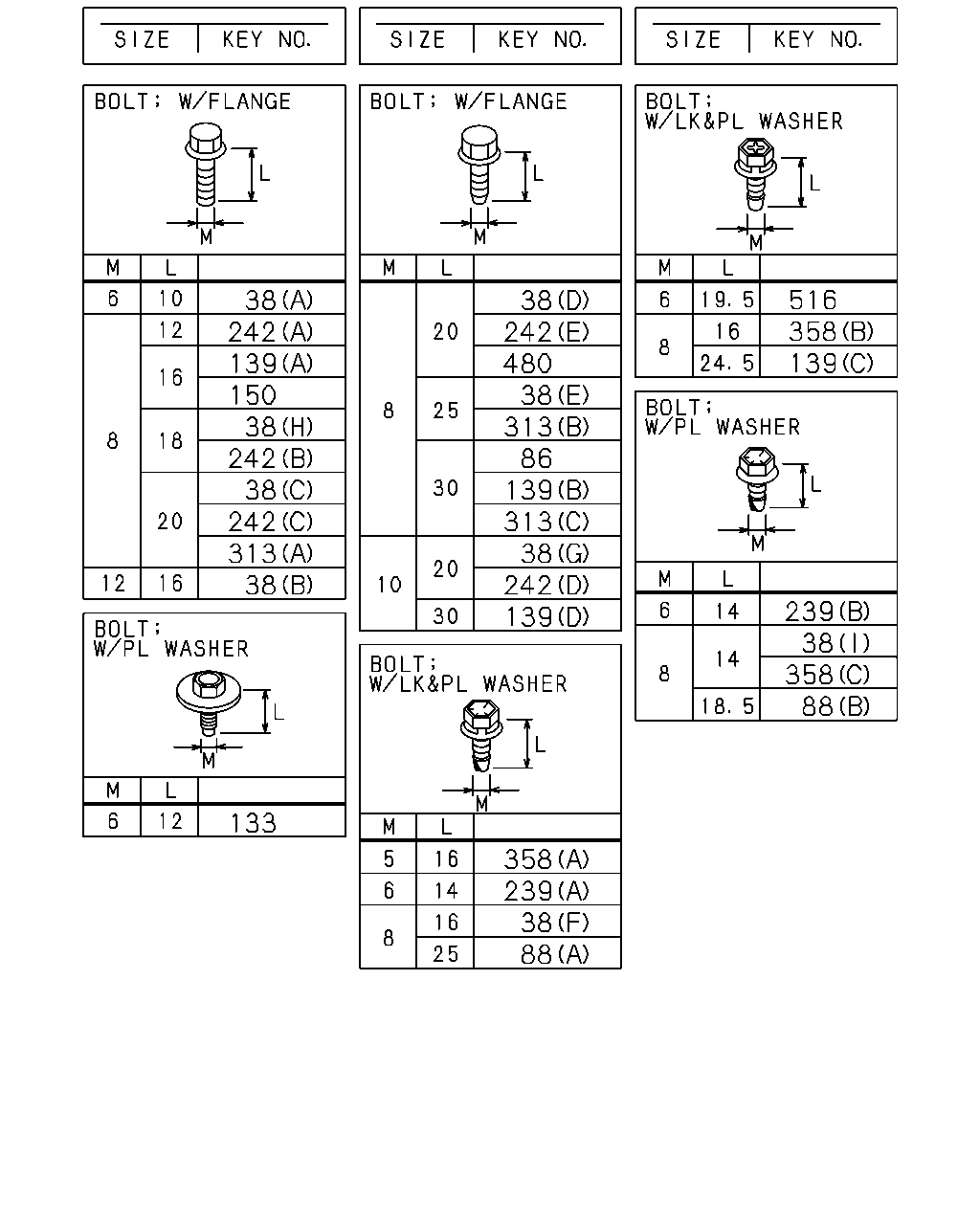

516 358 139 38 242 139 150 38 242 38 242 313 38 38 242 480 38 313 86 139 313 38 242 139 239 38 358 88 133 358 239 38 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	1002-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0610-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0610-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	0610-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0610-0806
38	BOLT; CLIP,HARNESS (H) M8X18 FLANGE	0-28080-818-0	04	1	0807-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	0610-0806
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0807-1001
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0807-1001
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	1002-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0610-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	0610-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	0610-
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	1-09044-079-0	01	1	0610-1105
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (F) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0610-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0610-1007
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0610-1007
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0610-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28650-830-0	02	1	0610-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0610-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0610-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0610-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0610-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0610-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS FACE LIFT<6NL> (C) M8X20 FLANGE	0-28050-820-0	04	1	0806-
242	BOLT; BRKT,HARNESS FACE LIFT<6NL> (D) M10X20 FLANGE	0-28651-020-0	02	1	0806-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-
242	BOLT; BRKT,HARNESS (B) M8X18 FLANGE	0-28080-818-0	01	1	0610-0805
242	BOLT; BRKT,HARNESS EXC. FACE LIFT<6NL> (B) M8X18 FLANGE	0-28080-818-0	01	1	0806-
242	BOLT; BRKT,HARNESS (E) M8X20 FLANGE	0-28650-820-0	02	1	0610-
242	BOLT; BRKT,HARNESS (E) M8X20 FLANGE	0-28650-820-0	03	1	0610-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0610-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	09	1	0610-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0610-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0610-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0610-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-

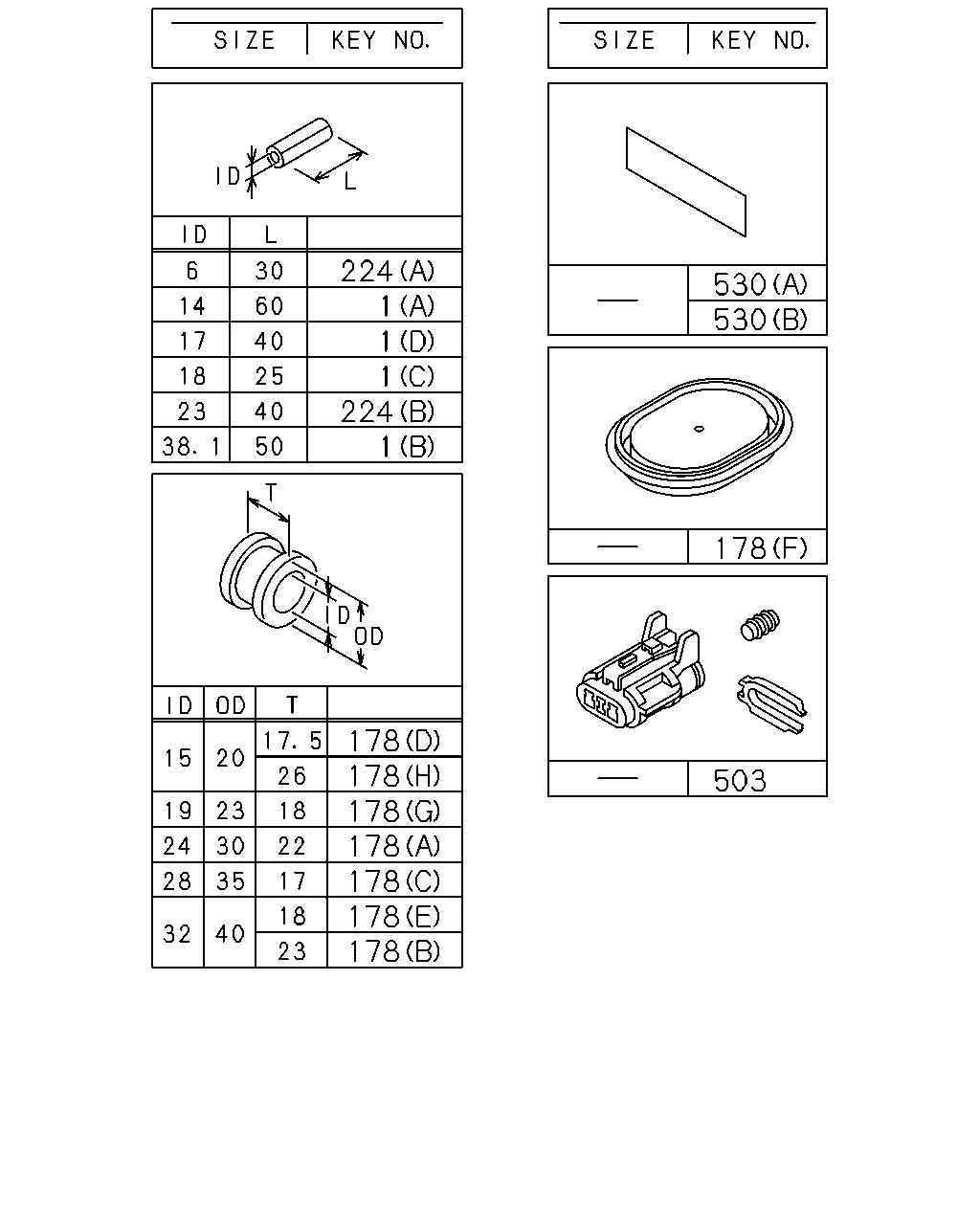

503 178 530 530 224 1 1 1 224 1 178 178 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER SINGAPORE EQUIPMENT(WQ3) (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	1210-
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0610-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0610-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50	5-09360-835-0	01	1	0610-1209
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (B) ID=38.1 L=50	5-09360-835-0	01	1	1210-
1	SLEEVE; RUBBER SINGAPORE EQUIPMENT(WQ3) (B) ID=38.1 L=50	5-09360-835-0	01	1	1210-
1	SLEEVE; RUBBER (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0610-0610
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	0610-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	0610-
178	GROMMET; HARNESS HONG KONG EQUIPMENT(PQ1) (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	0610-
178	GROMMET; HARNESS INSPECTION LAMP<T95> (G) ID=19 OD=23 T=18	9-09956-130-1	01	1	0610-
178	GROMMET; HARNESS SINGAPORE EQUIPMENT(WQ3) (A) ID=24 OD=30 T=22	1-09332-104-0	02	1	0610-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0610-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	0610-
178	GROMMET; HARNESS (F)	1-82698-551-0	01	1	0610-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0610-0610
178	GROMMET; HARNESS (H) ID=15 OD=20 T=26	1-09332-132-0	01	1	0610-
224	SLEEVE; RUBBER,HARNESS SINGAPORE EQUIPMENT(WQ3) (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	1210-
224	SLEEVE; RUBBER,HARNESS (A) ID=6 L=30	5-09360-352-0	01	1	0610-0904
503	CONNECTOR	1-82690-666-0	01	1	0610-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	0610-
530	SEAL; HARNESS (B) 100X40	1-72498-022-1	01	1	0610-

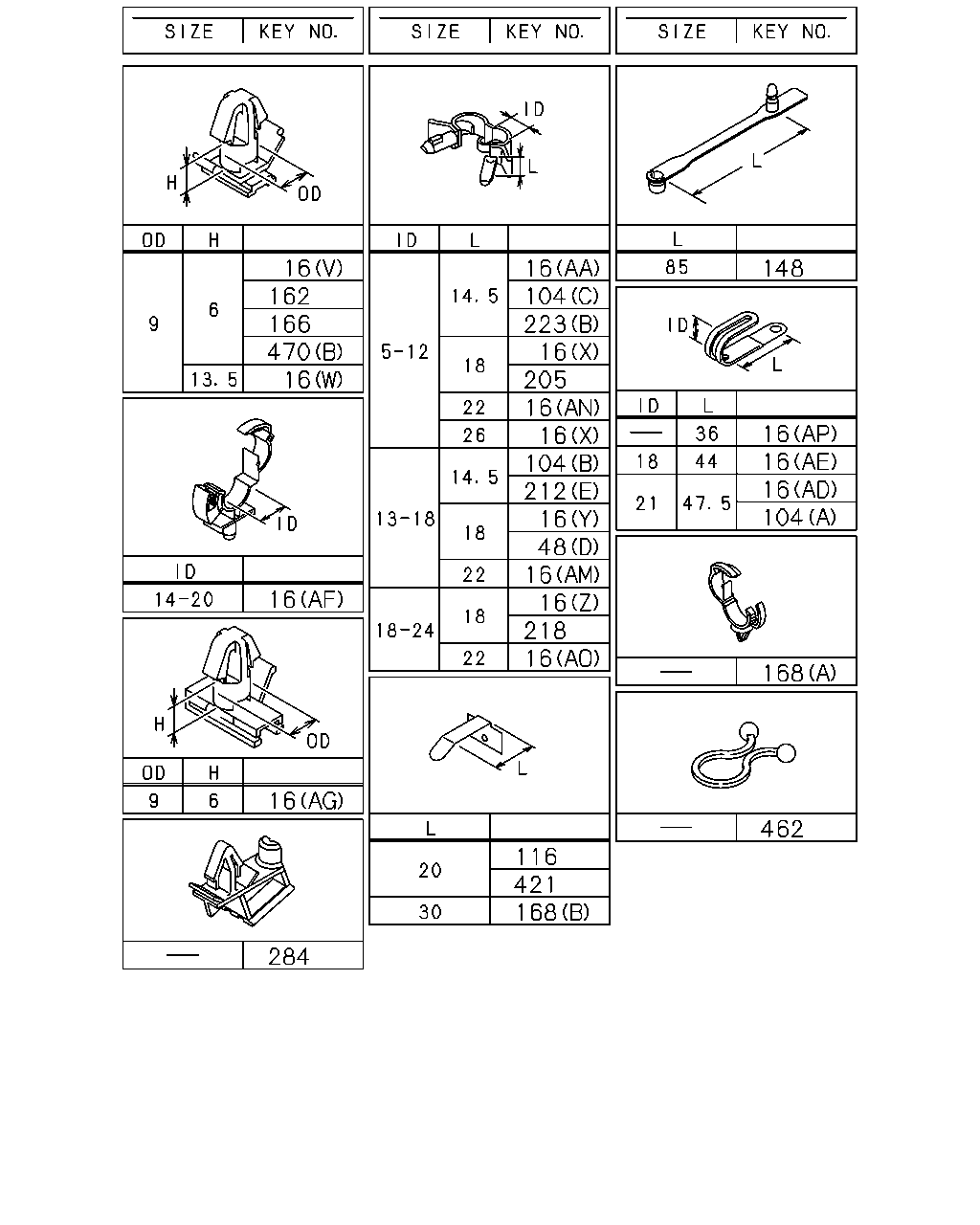

16 162 166 470 148 16 16 16 104 168 462 116 421 168 284 16 16 104 223 16 205 16 16 104 212 16 48 16 16 218 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AR) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	0905-1409
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS FACE LIFT<6NL> (AQ) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS (AP) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (AK) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) L=140	5-09707-031-1	05	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (AI) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (AE) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (AE) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS INSPECTION LAMP<T95> (H) ID=11 L=41	1-09700-403-0	01	1	0610-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0610-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0610-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0610-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0610-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (E) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	0610-
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0610-0610
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0611-0702
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	14	1	0703-0806
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	16	1	0807-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0610-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	04	1	0610-1409
16	CLIP; HARNESS (O) ID=18 L=28	1-09701-067-0	01	1	0610-1409
16	CLIP; HARNESS (P) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (P) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0610-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	10	1	0610-0610
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	0610-1409
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0610-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	0610-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	0610-1409
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	05	1	0610-1409
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	0610-
16	CLIP; HARNESS (X) ID=5-12 L=18	1-09709-287-0	01	1	0610-0610
16	CLIP; HARNESS (AM) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0610-0610
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (Z) ID=18-24 L=18	1-09709-294-0	04	1	0610-0610
16	CLIP; HARNESS (AO) ID=18-24 L=22	1-09709-295-0	01	1	0611-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-0702
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	0610-0702
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	0610-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	03	1	0610-
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	06	1	0610-0610
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	01	1	0611-
16	CLIP; HARNESS (AF) ID=14-20	8-97061-603-0	03	1	0610-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	01	1	0610-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	03	1	0610-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0610-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	05	1	0610-0610
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	10	1	0611-0702
16	CLIP; HARNESS (AI) ID=20 L=50	9-09917-430-0	10	1	0610-1409
16	CLIP; HARNESS (AI) ID=20 L=50	9-09917-430-0	02	1	1410-
16	CLIP; HARNESS (AJ) ID=22 L=52	9-09917-431-0	01	1	0610-1409
16	CLIP; HARNESS (AJ) ID=22 L=52	9-09917-431-0	03	1	1410-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	12	1	0610-0610
48	CLIP; FRAME HARNESS (D) ID=13-18 L=18	1-09709-291-0	07	1	0610-0610
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0610-0610
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	02	1	0610-0610
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	0610-0610
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5	1-09709-290-0	06	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=250	5-09707-030-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) L=140	5-09707-031-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS (A) ID=21 L=47.5	8-94178-108-0	02	1	0610-0710
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0610-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	0610-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0610-
166	CLIP; HARNESS CLU SW OD=9 H=6	1-09709-178-0	01	1	0610-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	06	1	0610-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0610-
205	CLIP; BACK LAMP HARNESS ID=5-12 L=18	1-09709-287-0	01	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	02	1	0610-
212	CLIP; HORN HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (F) L=250	5-09707-030-1	02	1	0610-
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	01	1	0610-0904
218	CLIP; BAND,RR COMB ID=18-24 L=18	1-09709-294-0	04	1	0610-0610
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0610-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0610-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
284	CLIP; HARNESS,GLOW PLUG SINGAPORE EQUIPMENT(WQ3)	1-82699-327-0	01	1	1210-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0610-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	02	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

14 470 16 380 212 171 111 48 369 305 16 305 194 142 104 212 206 194 171 104 81 51 16 14 212 194 171 102 48 16 14 194 16 51 142 194 208 16 142 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	03	1	0610-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0610-
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	01	1	0610-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	0610-
16	CLIP; HARNESS (AR) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	0905-1409
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS FACE LIFT<6NL> (AQ) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS (AP) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (AK) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) L=140	5-09707-031-1	05	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (AI) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (AE) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (AE) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS INSPECTION LAMP<T95> (H) ID=11 L=41	1-09700-403-0	01	1	0610-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0610-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0610-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0610-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0610-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (E) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	0610-
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0610-0610
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0611-0702
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	14	1	0703-0806
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	16	1	0807-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0610-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	04	1	0610-1409
16	CLIP; HARNESS (O) ID=18 L=28	1-09701-067-0	01	1	0610-1409
16	CLIP; HARNESS (P) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (P) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0610-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	10	1	0610-0610
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	0610-1409
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0610-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	0610-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	0610-1409
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	05	1	0610-1409
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	0610-
16	CLIP; HARNESS (X) ID=5-12 L=18	1-09709-287-0	01	1	0610-0610
16	CLIP; HARNESS (AM) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0610-0610
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (Z) ID=18-24 L=18	1-09709-294-0	04	1	0610-0610
16	CLIP; HARNESS (AO) ID=18-24 L=22	1-09709-295-0	01	1	0611-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-0702
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	0610-0702
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	0610-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	03	1	0610-
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	06	1	0610-0610
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	01	1	0611-
16	CLIP; HARNESS (AF) ID=14-20	8-97061-603-0	03	1	0610-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	01	1	0610-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	03	1	0610-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0610-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	05	1	0610-0610
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	10	1	0611-0702
16	CLIP; HARNESS (AI) ID=20 L=50	9-09917-430-0	10	1	0610-1409
16	CLIP; HARNESS (AI) ID=20 L=50	9-09917-430-0	02	1	1410-
16	CLIP; HARNESS (AJ) ID=22 L=52	9-09917-431-0	01	1	0610-1409
16	CLIP; HARNESS (AJ) ID=22 L=52	9-09917-431-0	03	1	1410-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	12	1	0610-0610
48	CLIP; FRAME HARNESS (D) ID=13-18 L=18	1-09709-291-0	07	1	0610-0610
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0610-0610
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	02	1	0610-0610
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0610-1209
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (A) L=180	1-09707-162-1	01	1	1210-
51	CLIP; COOLER CMPR SINGAPORE EQUIPMENT(WQ3) (A) L=180	1-09707-162-1	01	1	1210-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0610-1209
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (B) L=140	5-09707-031-1	01	1	1210-
51	CLIP; COOLER CMPR SINGAPORE EQUIPMENT(WQ3) (B) L=140	5-09707-031-1	01	1	1210-
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	0610-
102	CLIP; BAND SINGAPORE EQUIPMENT(WQ3) L=350	1-09707-183-0	01	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	0610-0610
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5	1-09709-290-0	06	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=250	5-09707-030-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) L=140	5-09707-031-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS (A) ID=21 L=47.5	8-94178-108-0	02	1	0610-0710
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	0610-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0610-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0610-1205
142	CLIP; HARNESS,ENG (C) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS FACE LIFT<6NL> (C) L=350	1-09707-183-0	02	1	0806-
171	CLIP; STARTER HARNESS EXC. FACE LIFT<6NL> (A) L=250	5-09707-030-1	05	1	0806-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	05	1	0610-0805
171	CLIP; STARTER HARNESS FACE LIFT<6NL> (A) L=250	5-09707-030-1	04	1	0806-
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	08	1	0610-0805
171	CLIP; STARTER HARNESS EXC. FACE LIFT<6NL> (B) L=140	5-09707-031-1	08	1	0806-
194	CLIP; BAND ANTILOCK BRAKE SYSTEM(BFA) (E) L=250	5-09707-030-1	05	1	0610-0610
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0610-
194	CLIP; BAND (B) L=180	1-09707-162-1	01	1	0610-1001
194	CLIP; BAND (C) L=350	1-09707-183-0	03	1	0610-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	04	1	1203-
194	CLIP; BAND (D) L=140	5-09707-031-1	01	1	0610-0610
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0610-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	02	1	0610-
212	CLIP; HORN HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (F) L=250	5-09707-030-1	02	1	0610-
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	01	1	0610-0904
305	CLIP; ENG HARNESS SINGAPORE EQUIPMENT(WQ3) (C) L=382	1-09707-196-0	01	1	1210-
305	CLIP; ENG HARNESS SINGAPORE EQUIPMENT(WQ3) (B) L=250	5-09707-030-1	01	1	1210-
305	CLIP; ENG HARNESS SINGAPORE EQUIPMENT(WQ3) (A) L=140	5-09707-031-1	01	1	1210-
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	03	1	0610-
369	CLIP; BAND EDS HARNESS L=140	5-09707-031-1	01	1	1410-
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	01	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	02	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

128 16 212 16 48 16 16 16 16 16 223 16 212 16 212 309 470 16 16 48 263 16 16 16 235 223 16 16 16 16 128 16 16 16 16 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AR) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	0905-1409
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS FACE LIFT<6NL> (AQ) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS (AP) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (AK) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) L=140	5-09707-031-1	05	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (V) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (AI) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (AD) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (AE) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (AE) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS (N) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (AB) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS INSPECTION LAMP<T95> (H) ID=11 L=41	1-09700-403-0	01	1	0610-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0610-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0610-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0610-
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0610-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (E) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	0610-
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0610-0610
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0611-0702
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	14	1	0703-0806
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	16	1	0807-
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (K) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0610-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	04	1	0610-1409
16	CLIP; HARNESS (O) ID=18 L=28	1-09701-067-0	01	1	0610-1409
16	CLIP; HARNESS (P) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (P) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0610-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	10	1	0610-0610
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	0610-1409
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0610-
16	CLIP; HARNESS (U) W/SPONGE RUBBER	1-09709-150-0	01	1	0610-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	0610-1409
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	05	1	0610-1409
16	CLIP; HARNESS (W) OD=9 H=13.5	1-09709-180-0	01	1	0610-
16	CLIP; HARNESS (X) ID=5-12 L=18	1-09709-287-0	01	1	0610-0610
16	CLIP; HARNESS (AM) ID=13-18 L=22	1-09709-292-0	01	1	0611-
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0610-0610
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (Z) ID=18-24 L=18	1-09709-294-0	04	1	0610-0610
16	CLIP; HARNESS (AO) ID=18-24 L=22	1-09709-295-0	01	1	0611-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-0702
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	0610-0702
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	0610-
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	03	1	0610-
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	06	1	0610-0610
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	01	1	0611-
16	CLIP; HARNESS (AF) ID=14-20	8-97061-603-0	03	1	0610-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	01	1	0610-
16	CLIP; HARNESS (AG) OD=9 H=6	8-97368-793-0	03	1	0610-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	03	1	0610-
16	CLIP; HARNESS (AH) ID=14 L=44	9-09917-427-0	05	1	0610-0610
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	10	1	0611-0702
16	CLIP; HARNESS (AI) ID=20 L=50	9-09917-430-0	10	1	0610-1409
16	CLIP; HARNESS (AI) ID=20 L=50	9-09917-430-0	02	1	1410-
16	CLIP; HARNESS (AJ) ID=22 L=52	9-09917-431-0	01	1	0610-1409
16	CLIP; HARNESS (AJ) ID=22 L=52	9-09917-431-0	03	1	1410-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
16	CLIP; HARNESS (I) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	12	1	0610-0610
48	CLIP; FRAME HARNESS (D) ID=13-18 L=18	1-09709-291-0	07	1	0610-0610
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0610-0610
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	02	1	0610-0610
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0610-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	02	1	0610-
212	CLIP; HORN HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (F) L=250	5-09707-030-1	02	1	0610-
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	01	1	0610-0904
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0610-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0610-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0610-
309	CLIP; HARNESS,HAND BRAKE CABLE ID=11 L=41	1-09700-403-0	02	1	0611-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	02	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
