◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11037 - EXR RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#28737) — 162 parça

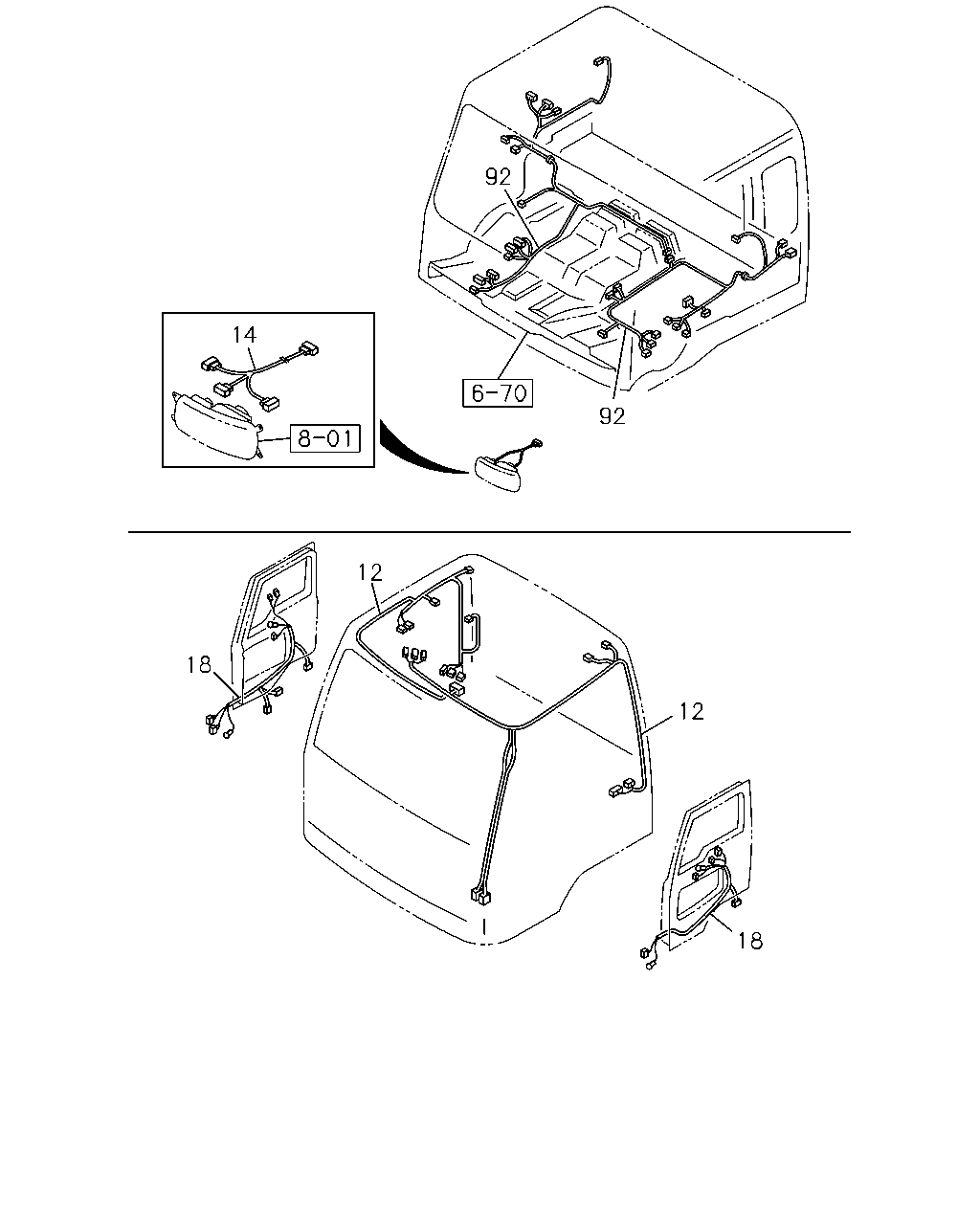

çizim 90824
92 14 92 12 18 12 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
PASSENGER SIDE 		8-97611-861-1 01 1 0610-
12 HARNESS; ROOF
DRIVER SIDE 		8-97611-862-0 01 1 0610-
14 HARNESS; HEADLAMP 1-82678-323-0 02 1 0610-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-97631-060-0 01 1 0906-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-97631-061-0 01 1 0906-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-582-0 01 1 0610-0905
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-82628-582-0 01 1 0906-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-588-0 01 1 0610-0905
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-82628-588-0 01 1 0906-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-032-0 01 1 0610-
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-871-1 01 1 0610-
92 HARNESS; FLOOR 8-97611-874-1 01 1 0610-
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-870-1 01 1 0610-

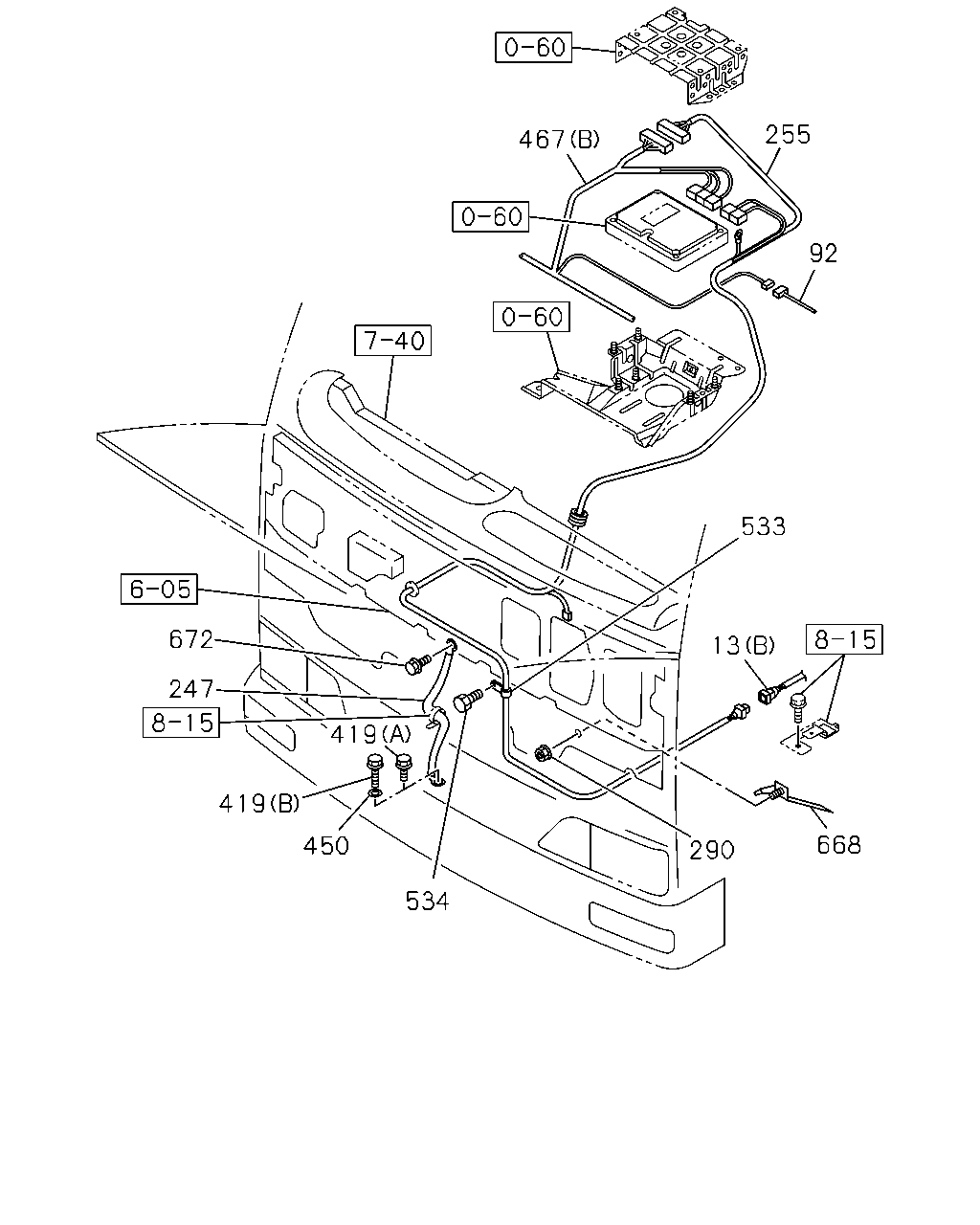

çizim 90831
533 13 290 668 92 255 467 672 419 450 534 419 247
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0610-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0610-0703
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0704-
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-871-1 01 1 0610-
92 HARNESS; FLOOR 8-97611-874-1 01 1 0610-
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-870-1 01 1 0610-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0610-
255 HARNESS; ELEC GOV 8-97610-589-0 01 1 0610-1210
255 HARNESS; ELEC GOV 8-98229-087-0 01 1 1211-
290 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610-
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0610-1201
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0806-0809
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0610-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-0805
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0806-1201
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0610-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-856-1 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98122-453-0 01 1 0806-0905
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98122-453-0 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) FACE LIFT<6NL> EXC. AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) (B) 		8-97613-942-2 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97613-942-2 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806-
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610-
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 0610-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0610-
668 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82698-415-1 01 1 0610-
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0610-1309
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-

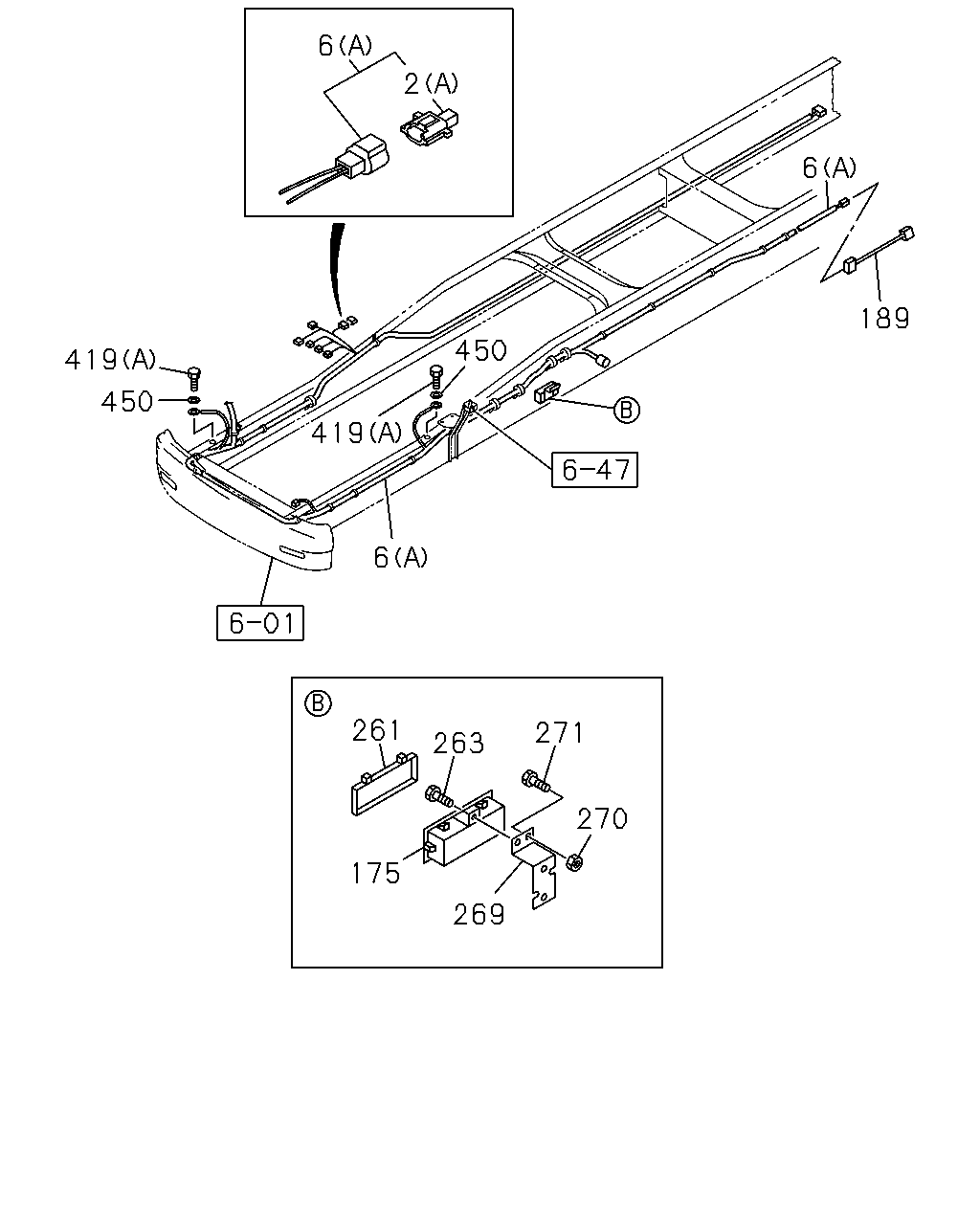

çizim 90846
189 6 450 419 6 2 419 450 261 263 270 271 269 175 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0610-
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0610-
6 HARNESS; FRAME
FACE LIFT<6NL> (A) 		8-97628-306-1 01 1 0806-
6 HARNESS; FRAME
(A) 		8-97613-287-3 01 1 0610-0805
6 HARNESS; FRAME
EXC. FACE LIFT<6NL> (A) 		8-97613-287-3 01 1 0806-
6 HARNESS; FRAME
(B) 		8-97614-331-1 01 1 0610-0806
6 HARNESS; FRAME
(B) 		8-98122-930-0 01 1 0807-
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-467-0 01 1 0610-
189 HARNESS; EXT
SINGAPORE EQUIPMENT(WQ3) 		8-97614-251-0 01 1 0610-
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 01 1 0610-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0610-
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 01 1 0610-
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0610-
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0610-1201
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0806-0809
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0610-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-0805
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0806-1201
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0610-

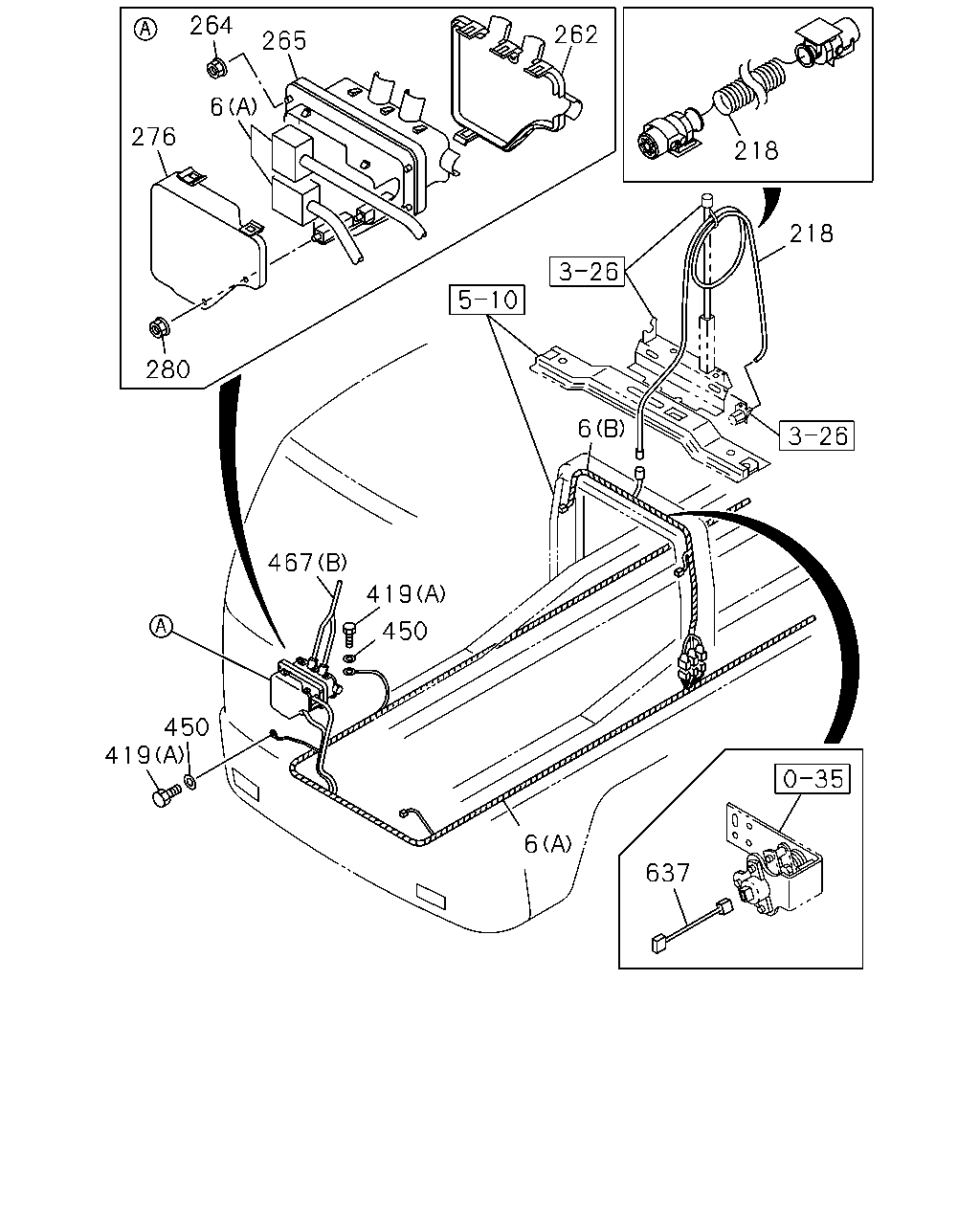

çizim 90857
264 262 265 6 276 218 218 280 6 467 419 450 450 419 6 637
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FACE LIFT<6NL> (A) 		8-97628-306-1 01 1 0806-
6 HARNESS; FRAME
(A) 		8-97613-287-3 01 1 0610-0805
6 HARNESS; FRAME
EXC. FACE LIFT<6NL> (A) 		8-97613-287-3 01 1 0806-
6 HARNESS; FRAME
(B) 		8-97614-331-1 01 1 0610-0806
6 HARNESS; FRAME
(B) 		8-98122-930-0 01 1 0807-
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=4000 		1-82659-187-3 01 1 0610-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0610-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0610-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0610-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 0610-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0610-
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0610-1201
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0806-0809
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0610-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-0805
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0806-1201
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0610-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-856-1 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98122-453-0 01 1 0806-0905
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98122-453-0 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) FACE LIFT<6NL> EXC. AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) (B) 		8-97613-942-2 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97613-942-2 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806-
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0610-

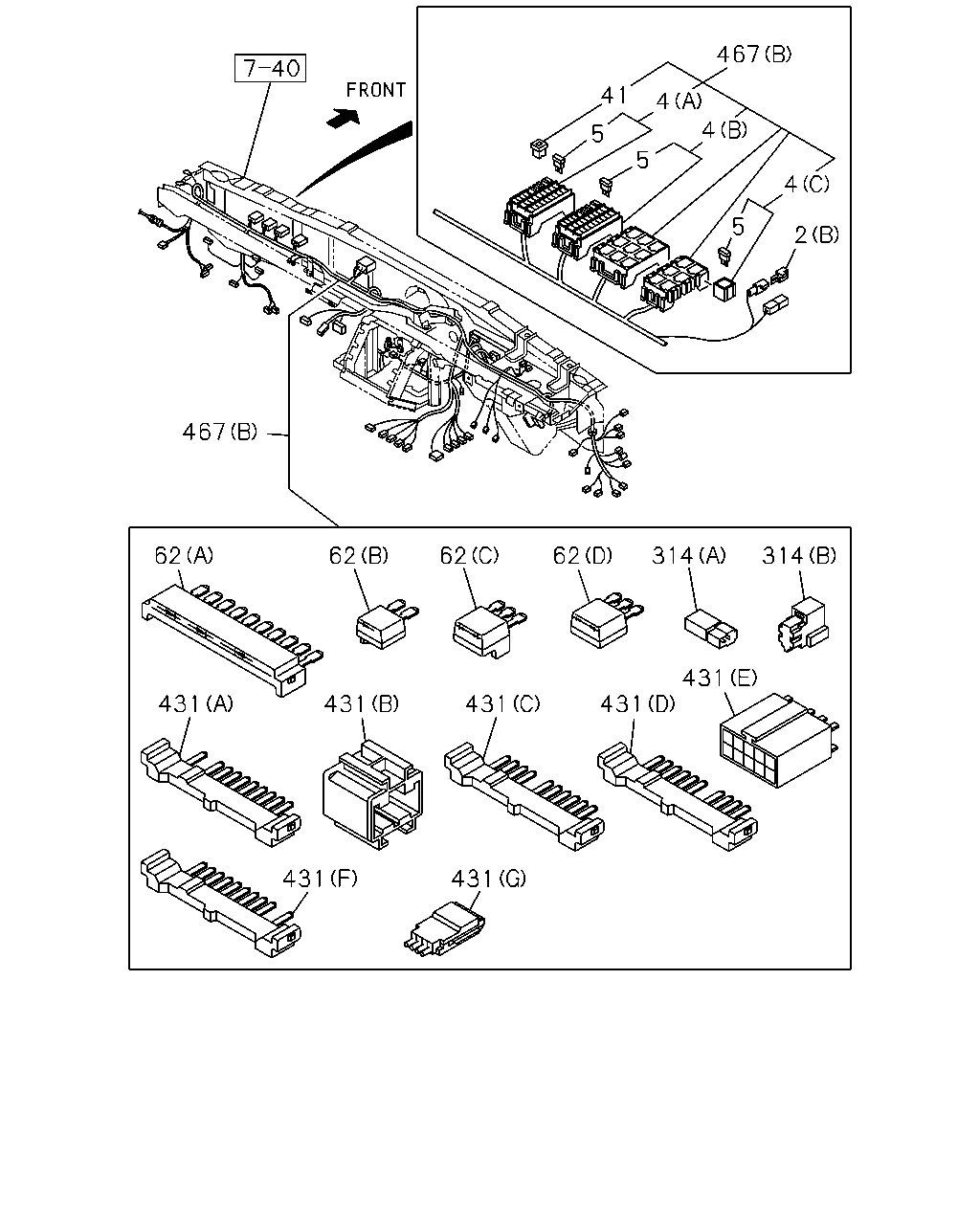

çizim 90867
467 41 4 4 5 5 4 5 2 467 62 62 314 314 62 62 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0610-
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0610-
4 BOX ASM; FUSE,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0610-
4 BOX ASM; FUSE,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 15AX25 25AX2 		1-82510-602-0 01 1 0610-
4 BOX ASM; FUSE,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) 15AX3 		1-82510-638-0 01 1 0610-
5 FUSE; FACIA HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 10A RED 		5-82516-002-0 04 1 0610-
5 FUSE; FACIA HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 15A BLUE 		5-82516-003-0 28 1 0610-
5 FUSE; FACIA HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 25A CLEAR 		5-82516-005-0 02 1 0610-
5 FUSE; FACIA HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 7.5A BROWN 		8-94159-007-0 22 1 0610-
41 PULLER; FUSE
ANTILOCK BRAKE SYSTEM(BFA) L=25.3 B=11.5 		8-94121-482-0 01 1 0610-
62 DIODE; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) BLACK 10P 		1-82699-703-0 03 1 0610-
62 DIODE; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0610-
62 DIODE; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 2P-1.5A 		8-94422-639-1 08 1 0610-
62 DIODE; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0610-0712
62 DIODE; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) BLACK 3P-1.5A 		8-94422-640-1 02 1 0801-
314 RESISTOR; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0610-
314 RESISTOR; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) BLUE 		1-82691-204-0 02 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (B) 6P 		1-82691-206-0 01 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (F) 10P GREEN 		1-82698-579-0 03 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE 		1-82699-598-0 13 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (D) 10P GREEN 		1-82699-599-0 03 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (A) 10P BROWN 		1-82699-601-0 08 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (E) 10P 		8-97077-943-0 01 1 0610-
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) (G) 4P 		8-97376-776-0 15 1 0610-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-856-1 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98122-453-0 01 1 0806-0905
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98122-453-0 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) FACE LIFT<6NL> EXC. AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) (B) 		8-97613-942-2 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97613-942-2 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806-
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610-

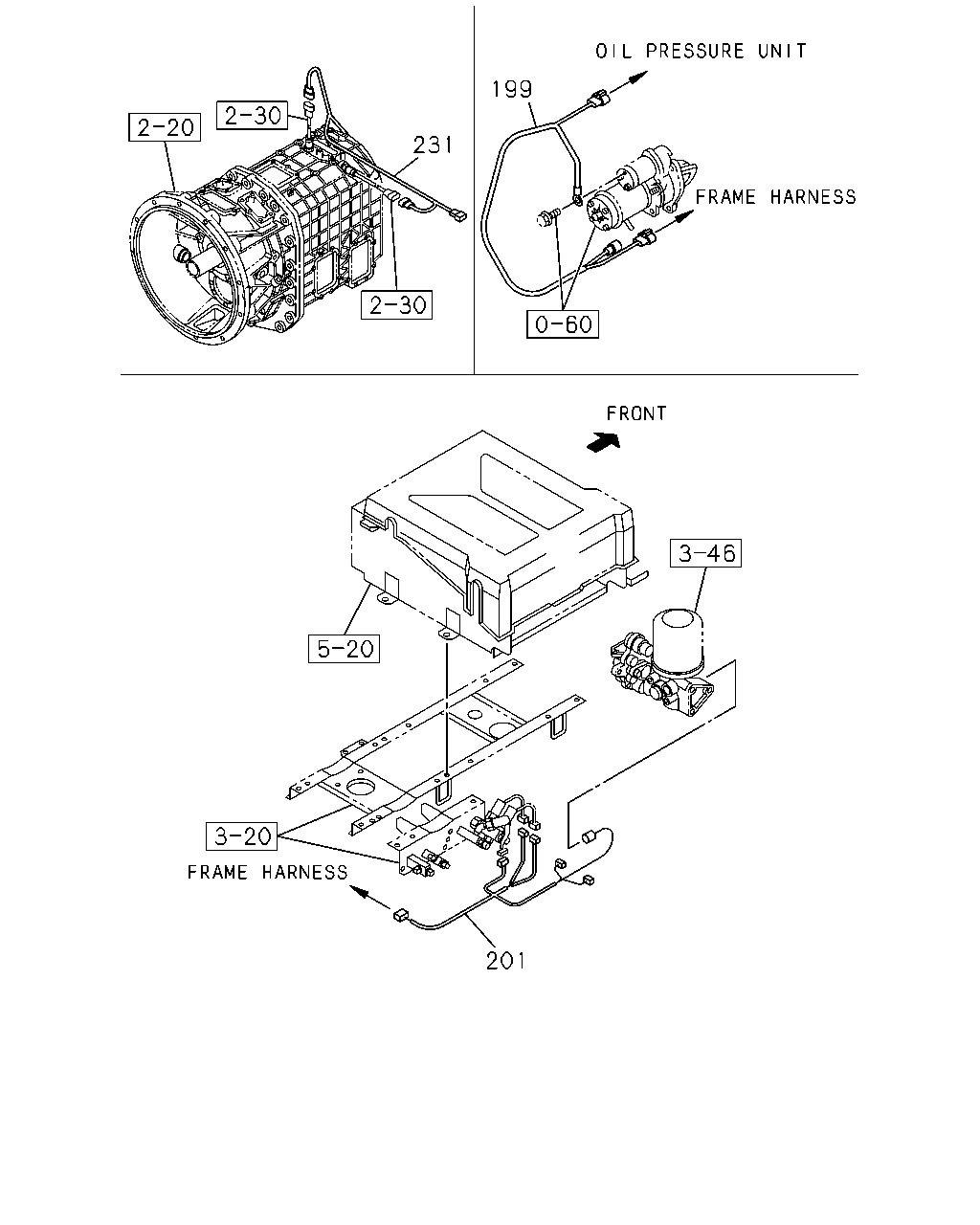

çizim 90969
199 231 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 0610-
201 HARNESS; AIR TANK 8-97616-655-1 01 1 0610-
231 HARNESS; TRANS 1-82676-366-4 01 1 0610-0610
231 HARNESS; TRANS 8-97615-725-1 01 1 0610-

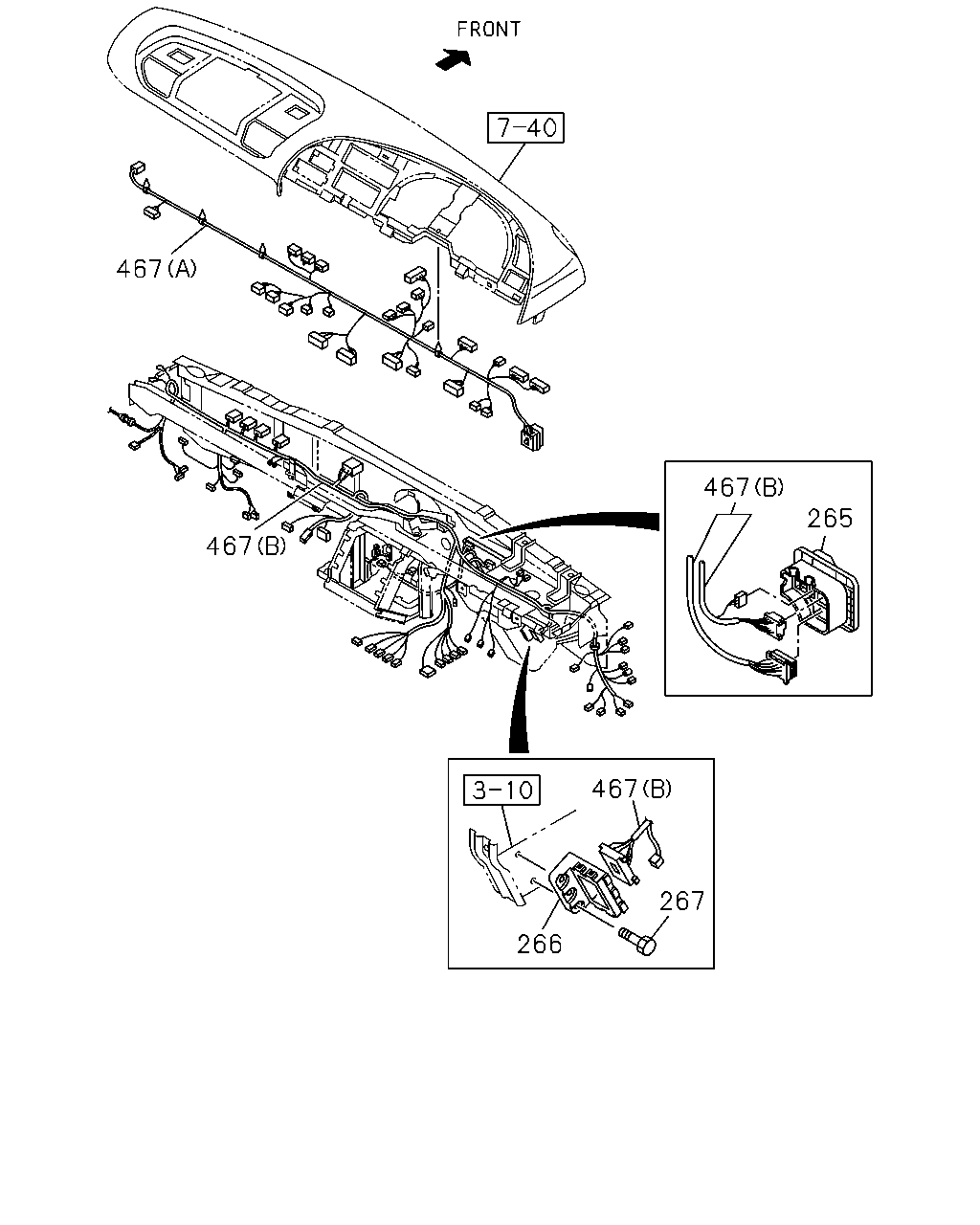

çizim 105917
467 467 265 467 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0610-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0610-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0610-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-856-1 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98122-453-0 01 1 0806-0905
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98122-453-0 01 1 0906-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) FACE LIFT<6NL> EXC. AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) (B) 		8-97613-942-2 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97613-942-2 01 1 0806-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806-
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610-

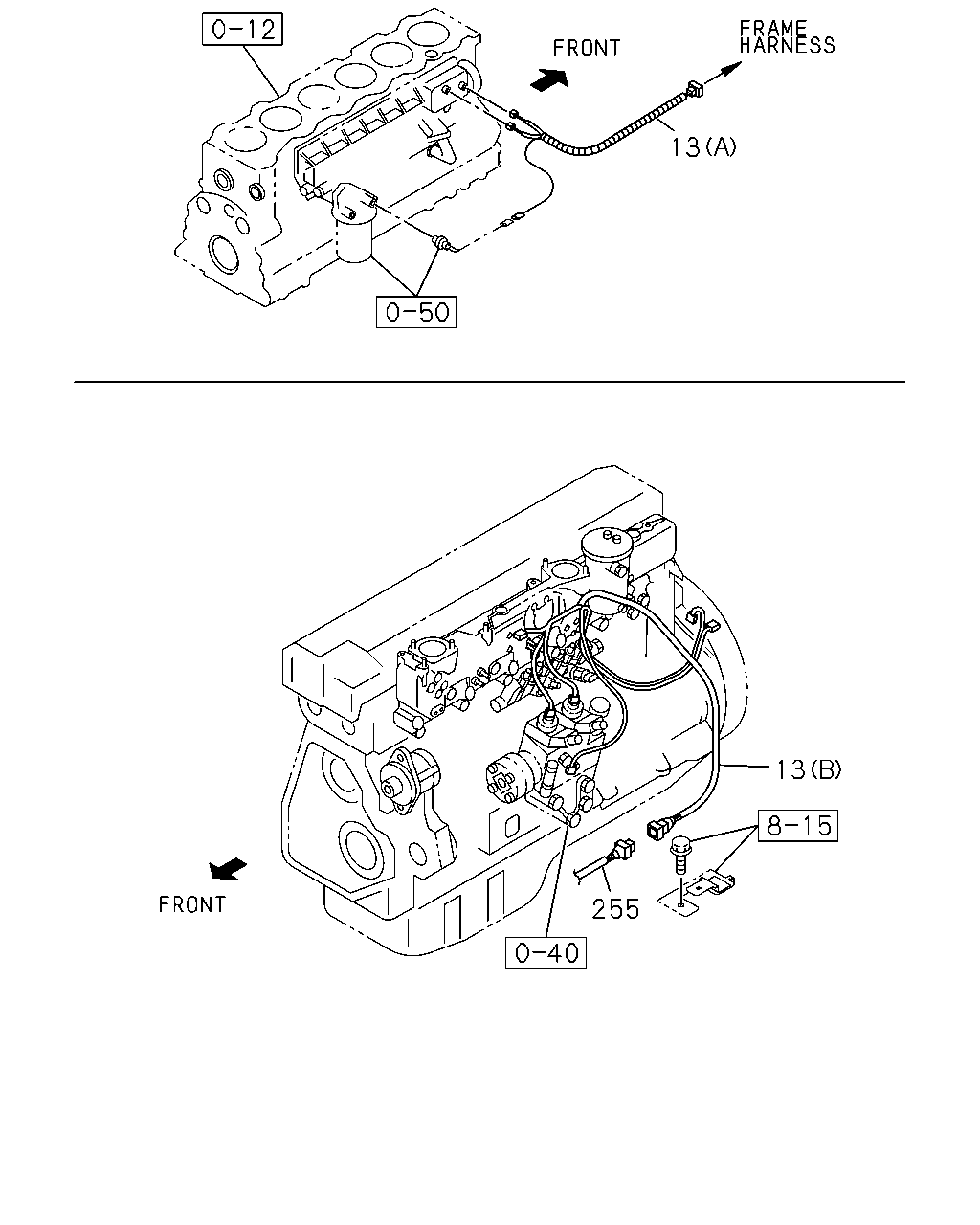

çizim 105919
13 13 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0610-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0610-0703
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0704-
255 HARNESS; ELEC GOV 8-97610-589-0 01 1 0610-1210
255 HARNESS; ELEC GOV 8-98229-087-0 01 1 1211-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
