◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11037 - EXR RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#28735) — 70 parça

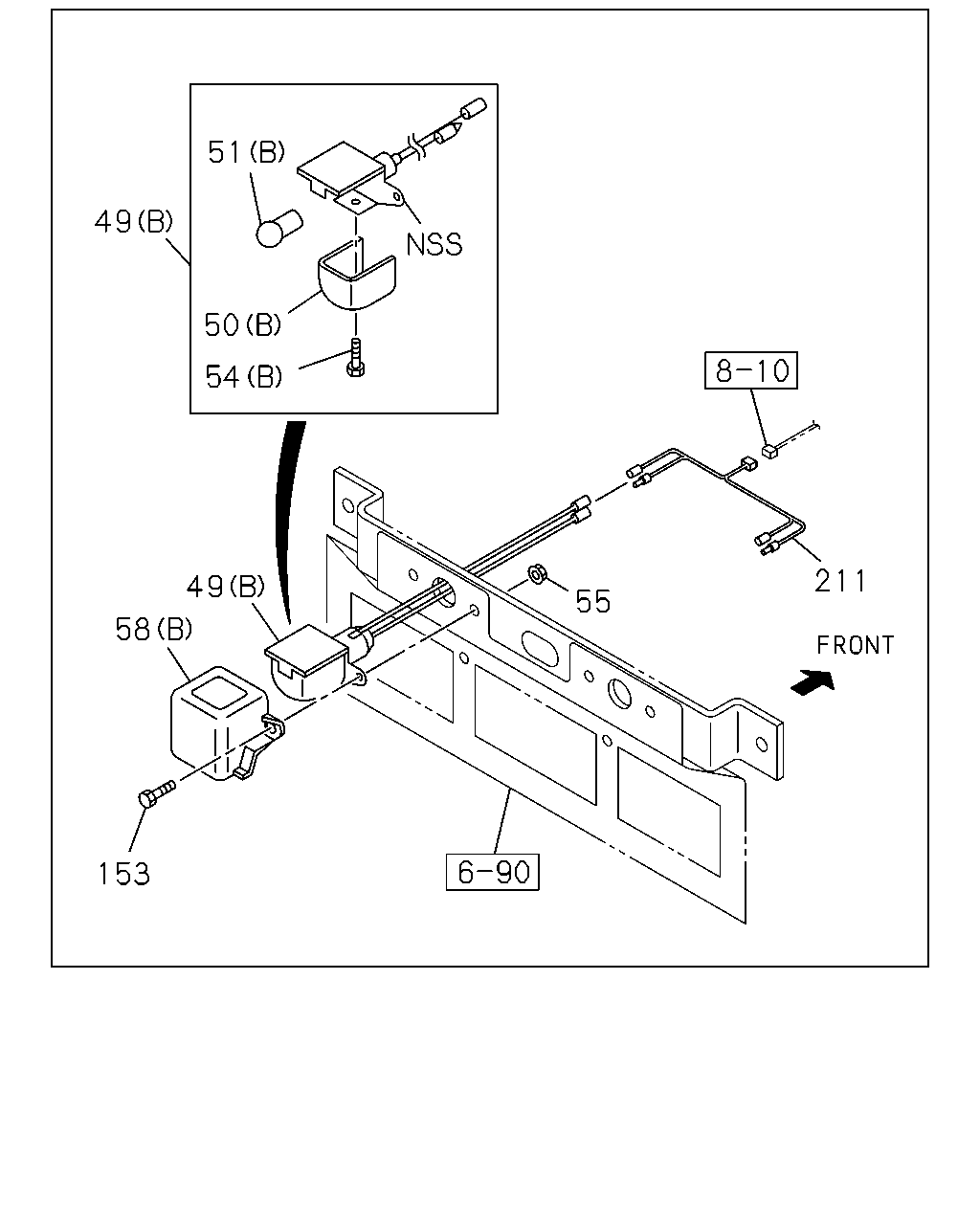

çizim 90665
51 49 50 54 211 49 55 58 153
BalonParca AdiParca NoAdetTipApplied Date
49 LAMP; LICENSE PLATE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W 		8-97105-380-0 02 1 0906-1509
49 LAMP; LICENSE PLATE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W 		8-98329-430-0 02 1 1510-
49 LAMP; LICENSE PLATE
(A) 		1-82120-020-1 01 1 0610-0905
49 LAMP; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-82120-020-1 01 1 0906-
50 LENS; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-97108-212-0 02 1 0906-
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0610-0905
50 LENS; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-82235-006-0 01 1 0906-
51 BULB; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W 		1-82194-039-0 02 1 0906-
51 BULB; LICENSE PLATE LAMP
(A) 24V 12W 		1-82194-030-0 01 1 0610-0905
51 BULB; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 12W 		1-82194-030-0 01 1 0906-
54 SCREW; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M4X8 		8-94419-312-0 02 1 0906-
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0610-0905
54 SCREW; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M5X20 		1-82129-007-0 02 1 0906-
55 NUT; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5 FLANGE 		8-94153-039-0 04 1 0906-1111
58 COVER; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-97076-590-1 02 1 0906-
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0610-0905
58 COVER; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-82129-005-0 01 1 0906-
153 BOLT; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5X20 		9-93490-520-0 04 1 0906-
211 HARNESS; EXT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98131-066-0 01 1 0906-

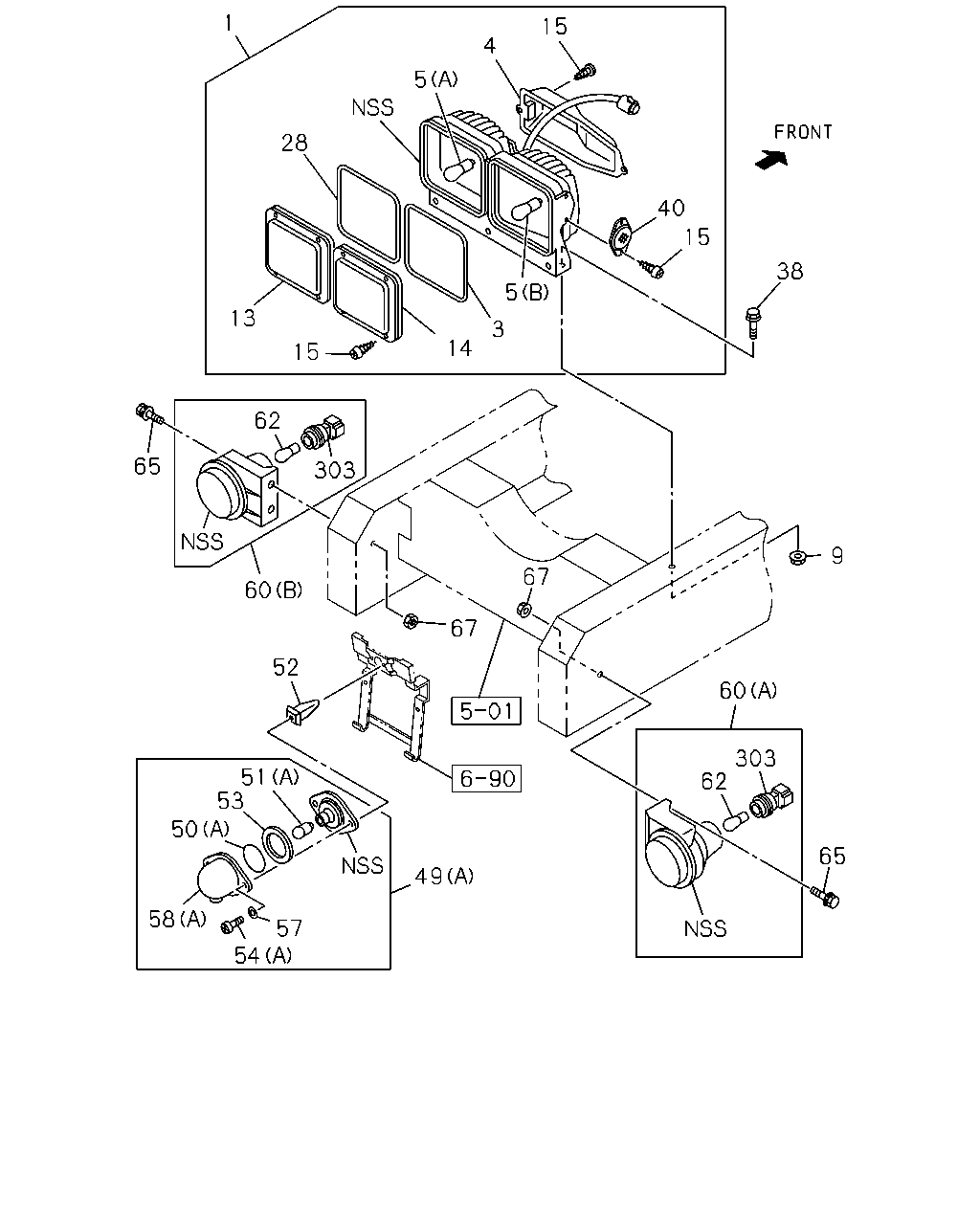

çizim 91909
9 60 62 65 38 15 40 15 4 5 28 13 62 303 65 60 52 49 54 58 50 53 51 303 3 14 15 57 5 1 67 67
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS<TR1> 		1-82230-203-6 01 1 0610-
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS<TR1> 		1-82230-204-5 01 1 0610-
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS<TR1> 		1-82236-008-0 02 1 0610-
4 COVER; RR,RR COMB LAMP
TAIL & STOP LAMPS<TR1> 		1-82239-011-0 02 1 0610-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS<TR1> (A) 24V 21W 		1-82194-108-0 02 1 0610-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS<TR1> (B) 24V 21/5W 		1-82194-109-0 02 1 0610-
9 NUT; LAMP,RR COMB
TAIL & STOP LAMPS<TR1> M8 FLANGE 		0-91180-108-0 02 1 0610-
13 LENS; TURN SIGNAL
TAIL & STOP LAMPS<TR1> 		1-82235-036-0 02 1 0610-
14 LENS; TAIL & STOP,RR COMB LAMP
TAIL & STOP LAMPS<TR1> 		1-82235-035-0 02 1 0610-
15 SCREW; RR COMB LAMP
TAIL & STOP LAMPS<TR1> 		1-82239-012-0 26 1 0610-
28 GASKET; TURN,LAMP
TAIL & STOP LAMPS<TR1> 		1-82236-008-0 02 1 0610-
38 BOLT; LAMP,RR COMB
TAIL & STOP LAMPS<TR1> M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 0610-
40 REFLECTOR; REFLEX
TAIL & STOP LAMPS<TR1> 		8-97608-772-0 02 1 0610-
49 LAMP; LICENSE PLATE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W 		8-97105-380-0 02 1 0906-1509
49 LAMP; LICENSE PLATE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W 		8-98329-430-0 02 1 1510-
49 LAMP; LICENSE PLATE
(A) 		1-82120-020-1 01 1 0610-0905
49 LAMP; LICENSE PLATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-82120-020-1 01 1 0906-
50 LENS; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-97108-212-0 02 1 0906-
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0610-0905
50 LENS; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-82235-006-0 01 1 0906-
51 BULB; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W 		1-82194-039-0 02 1 0906-
51 BULB; LICENSE PLATE LAMP
(A) 24V 12W 		1-82194-030-0 01 1 0610-0905
51 BULB; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 12W 		1-82194-030-0 01 1 0906-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0610-0905
52 GROMMET; SCREW,LICENSE PLATE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0906-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0610-0905
53 GASKET; LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-82126-005-0 01 1 0906-
54 SCREW; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M4X8 		8-94419-312-0 02 1 0906-
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0610-0905
54 SCREW; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M5X20 		1-82129-007-0 02 1 0906-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0610-0905
57 WASHER; PL,LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-82129-008-0 02 1 0906-
58 COVER; LICENSE PLATE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-97076-590-1 02 1 0906-
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0610-0905
58 COVER; LICENSE PLATE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-82129-005-0 01 1 0906-
60 LAMP; BACKUP
TAIL & STOP LAMPS<TR1> (A) 		1-82130-025-0 01 1 0610-
60 LAMP; BACKUP
TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) (B) 		1-82130-026-0 01 1 0610-
62 BULB; BACKUP LAMP
TAIL & STOP LAMPS<TR1> 24V 21W 		1-82194-104-0 01 1 0610-
62 BULB; BACKUP LAMP
TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) 24V 21W 		1-82194-104-0 01 1 0610-
65 BOLT; LAMP,BACKUP
TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) M10X35 W/LK&PL WASHER 		0-50641-035-0 04 1 0610-
65 BOLT; LAMP,BACKUP
TAIL & STOP LAMPS<TR1> EXC. SINGAPORE EQUIPMENT(WQ3) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0610-
67 NUT; FLANGE
TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) M10 FLANGE 		0-91180-210-0 04 1 0610-
67 NUT; FLANGE
TAIL & STOP LAMPS<TR1> EXC. SINGAPORE EQUIPMENT(WQ3) M10 FLANGE 		0-91180-210-0 02 1 0610-
303 SOCKET ASM; BACKUP LAMP
TAIL & STOP LAMPS<TR1> 		1-82135-006-0 01 1 0610-
303 SOCKET ASM; BACKUP LAMP
TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) 		1-82135-006-0 01 1 0610-
çizim 106322
250 253 255 254 256 257
BalonParca AdiParca NoAdetTipApplied Date
250 LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82180-012-0 01 1 0610-
253 BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82691-605-0 01 1 0610-
254 LENS; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-207-0 01 1 0610-
255 GASKET; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-706-0 01 1 0610-
256 RIM; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-402-0 01 1 0610-
257 NUT; SEARCH LIGHT
INSPECTION LAMP<T95> M10 FLANGE 		0-91180-110-0 01 1 0610-
