7-43 — SUN VISOR AND ASSIST GRIP (#28729) — 106 parça

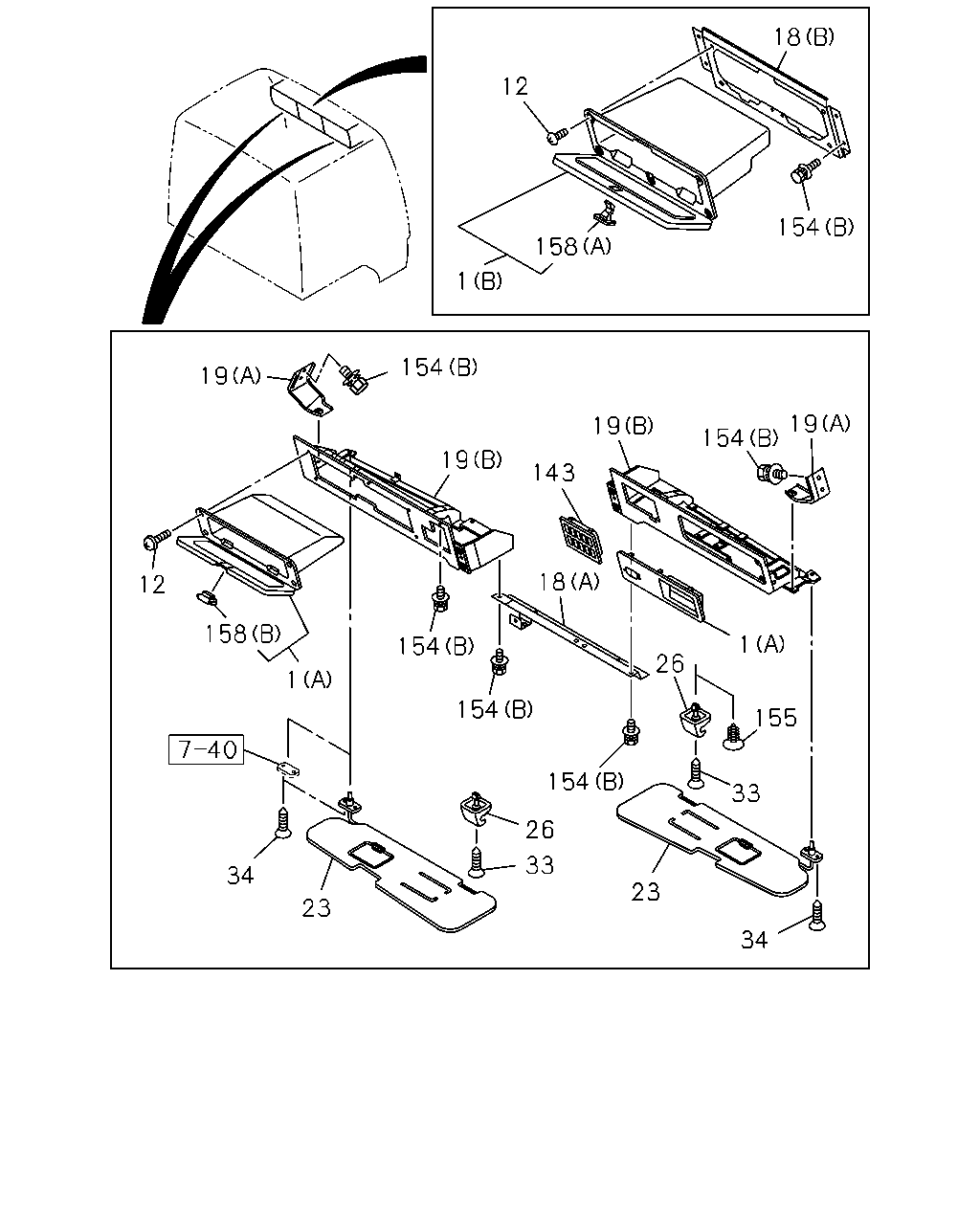

18 12 154 158 1 154 19 19 19 154 19 143 18 12 158 1 154 26 1 154 155 154 33 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-760-4	01	1	0705-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0610-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0610-0704
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> (A)	1-72447-876-4	01	1	0705-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0610-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0610-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0610-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0610-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0610-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0610-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0610-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0610-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0610-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0610-
23	SUN VISOR	1-73138-156-1	01	1	0610-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0610-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0610-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0610-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0610-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0610-
143	BEZEL	1-72447-768-2	01	1	0610-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0610-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0610-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0610-
155	FASTENER; HOLDER SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0610-1009
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1010-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0610-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0610-

64 64 64 62 64 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0610-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0610-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0610-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0610-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0610-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0610-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0610-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0610-0907
59	COVER; ASSIST GRIP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	1-73617-565-0	02	1	0908-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0610-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0610-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0610-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0610-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0610-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0610-0907
69	BRACKET; ASSIST GRIP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-73618-178-2	01	1	0908-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0610-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0610-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0610-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0610-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0610-

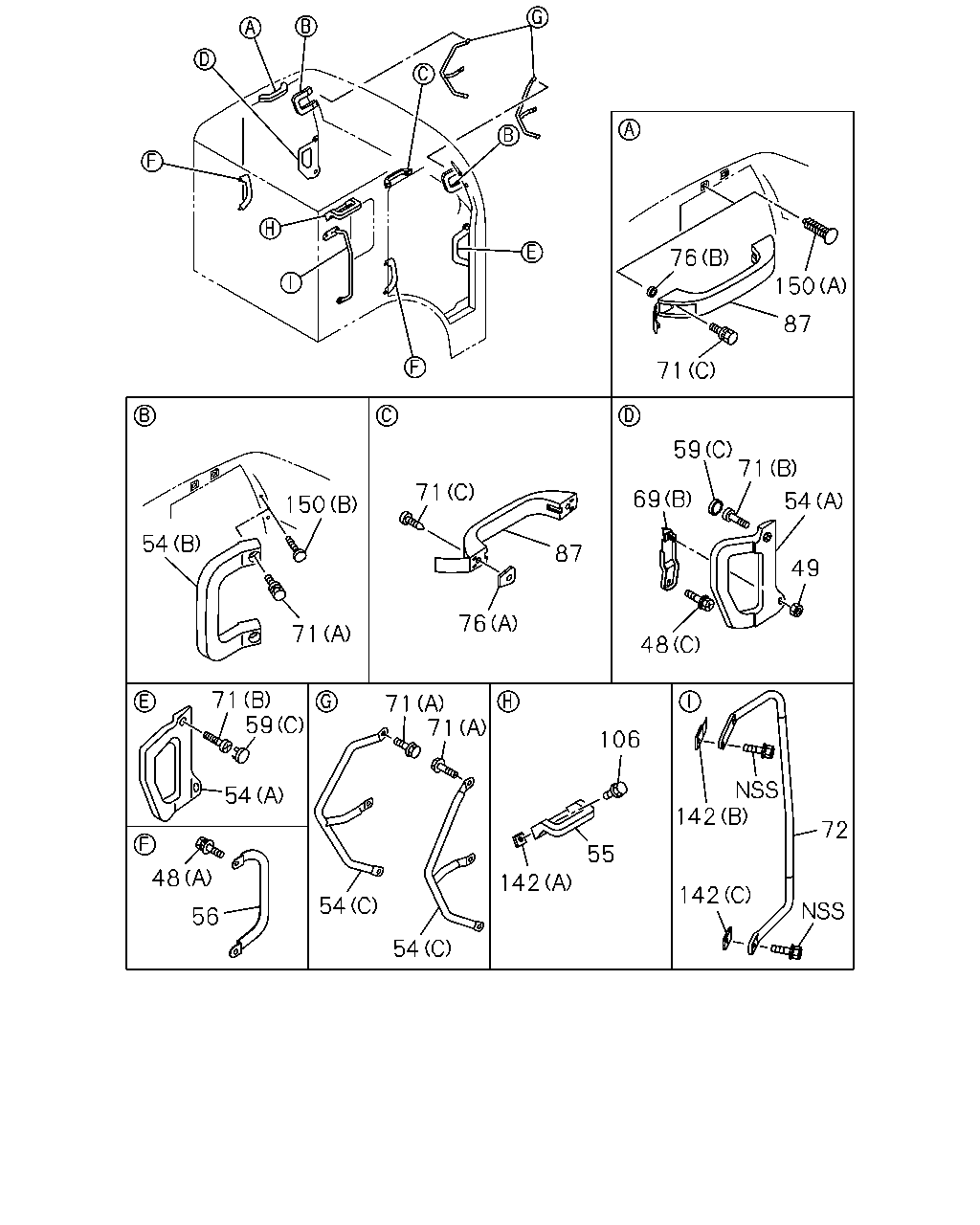

76 150 87 71 59 71 71 69 54 150 54 87 49 76 71 48 71 59 71 71 106 142 54 72 55 48 142 142 54 56 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0610-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0610-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0610-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0610-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0610-
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0610-0907
49	NUT; ASSIST GRIP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6 FLANGE	0-91180-106-0	01	1	0908-
54	GRIP; ASSIST,QUARTER SIDE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	8-98139-071-2	01	1	0908-
54	GRIP; ASSIST,QUARTER SIDE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	8-98153-870-1	01	1	0908-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0610-0907
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-73618-185-1	02	1	0908-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0610-0907
54	GRIP; ASSIST,QUARTER SIDE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-73617-563-1	01	1	0908-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0610-0907
54	GRIP; ASSIST,QUARTER SIDE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-73617-564-1	01	1	0908-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0610-0907
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-73618-185-1	01	1	0908-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0610-
56	GRIP; ASSIST,SIDE SILL ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98139-072-1	01	1	0906-
56	GRIP; ASSIST,SIDE SILL ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98139-073-1	01	1	0906-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0610-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-0905
56	GRIP; ASSIST,SIDE SILL EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98081-700-0	02	1	0906-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0610-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0610-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0610-0907
59	COVER; ASSIST GRIP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	1-73617-565-0	02	1	0908-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0610-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0610-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0610-0907
69	BRACKET; ASSIST GRIP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-73618-178-2	01	1	0908-
71	SCREW EXC. ASSIST GRIP A POST<NBK>,ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0908-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0610-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0610-0907
71	SCREW ASSIST GRIP A POST<NBK> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0908-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0610-0907
71	SCREW EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0908-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0610-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0610-0907
71	SCREW ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	0908-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-608-1	01	1	0610-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	0610-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	0610-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0610-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0610-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0610-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71907-604-0	01	1	0610-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0610-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0610-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0610-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0610-0909
150	CLIP; ASSIST GRIP HOLE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0910-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0910-
