◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11037 - EXR RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#28728) — 108 parça

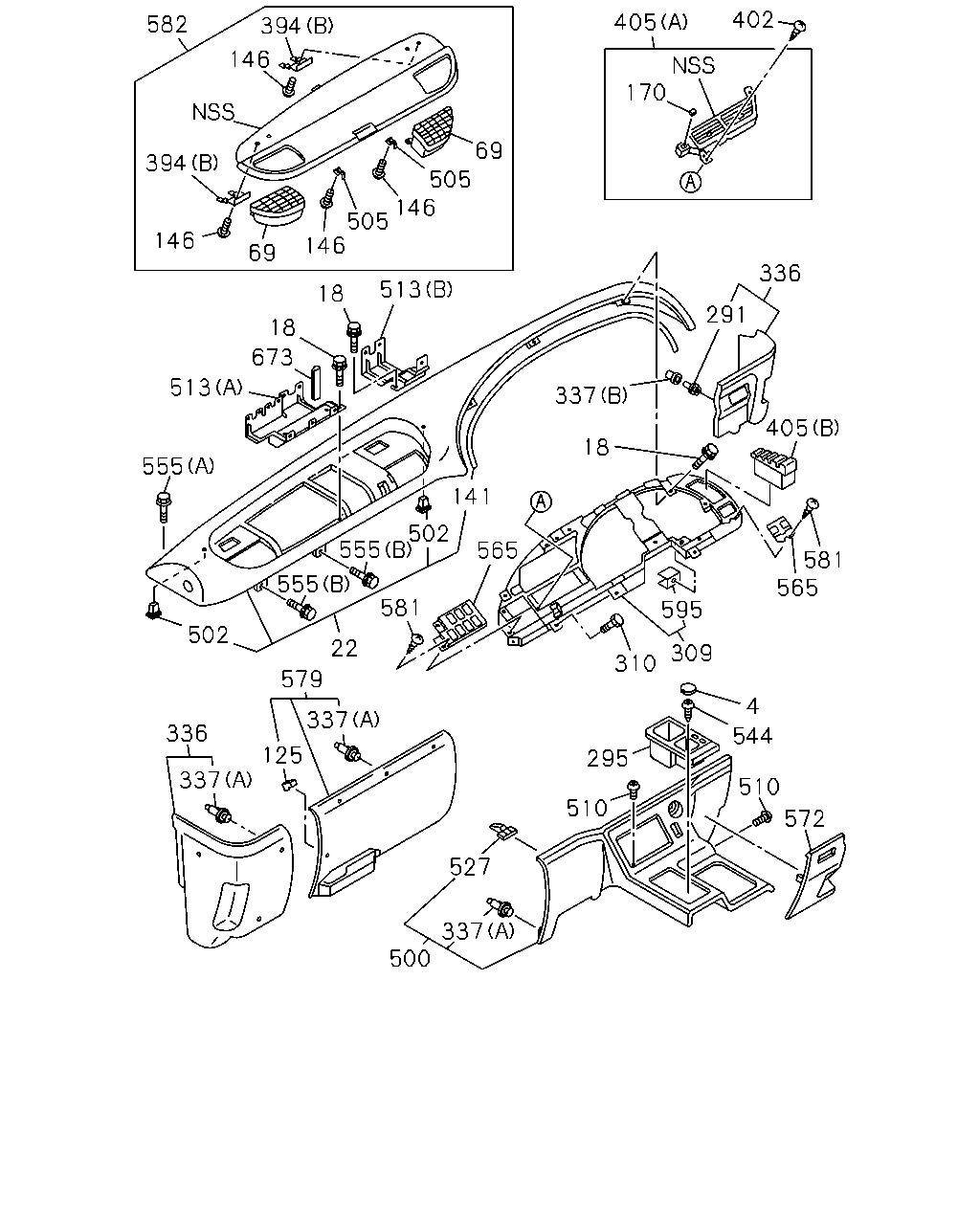

çizim 105833
402 405 582 394 146 170 69 394 505 146 505 146 146 69 336 513 18 291 18 673 513 337 405 18 555 141 502 555 565 581 565 555 581 595 502 22 309 310 579 4 337 336 544 125 295 337 510 510 572 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0610-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0610-
18 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610-
22 PAD; INST 1-72317-347-2 01 1 0610-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0610-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0610-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0610-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0610-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0610-
170 COVER; HOLE 1-76367-068-0 01 1 0610-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0610-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0610-
309 PANEL; SW,INST 1-72418-009-6 01 1 0610-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0610-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0610-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0610-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0610-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0610-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0610-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0610-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0610-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0610-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0610-
500 CLUSTER; INST CENTER 1-72437-653-0 01 1 0610-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0610-
505 LOCK; LID 1-72558-024-2 02 1 0610-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0610-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0710-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0610-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0610-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0610-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0610-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0610-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0610-
572 COVER; INSPECTION 1-72437-634-0 01 1 0610-
579 COVER; INST PNL 1-72437-626-0 01 1 0610-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0610-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0610-
595 NUT; HOOK 1-72418-013-0 11 1 0610-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0610-

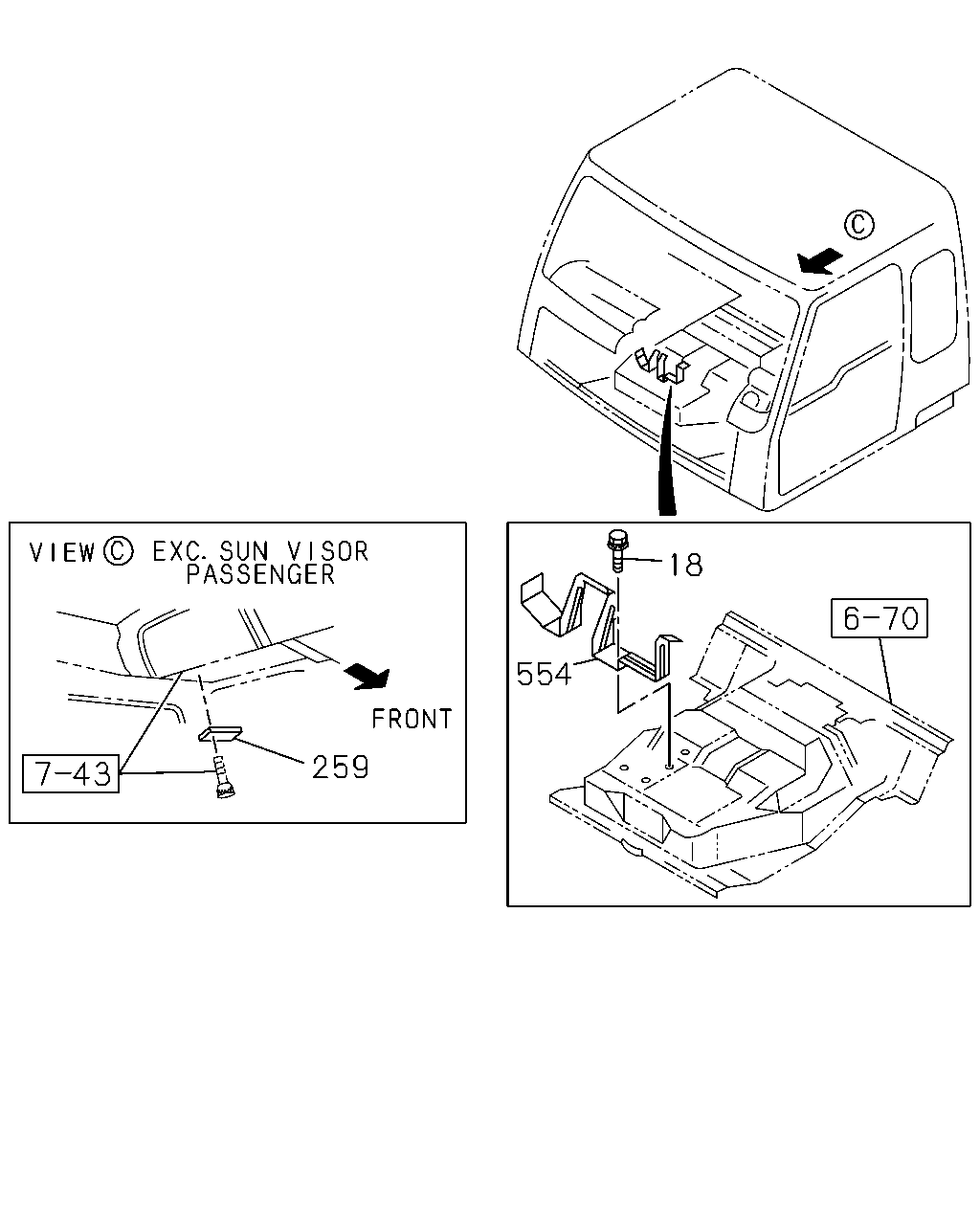

çizim 105834
18 554 259
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0610-
18 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0610-
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0610-

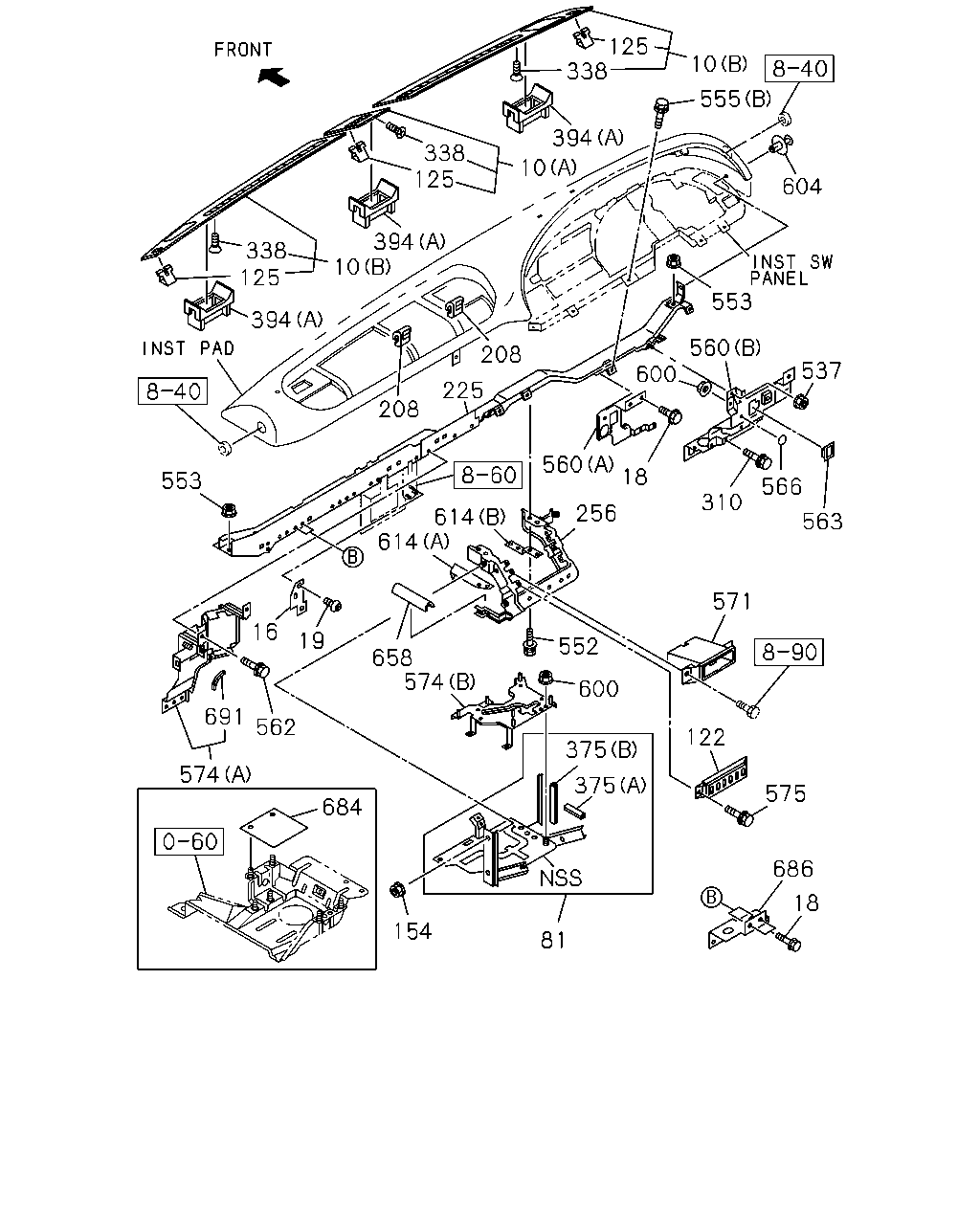

çizim 105835
125 338 10 555 394 338 125 10 604 394 10 338 125 553 394 560 208 600 537 225 208 560 614 614 18 553 566 310 256 563 571 16 19 552 658 574 600 691 562 122 375 574 375 575 684 686 18 154 81
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0610-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0610-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0610-
16 BRACKET; INST PNL 1-73908-023-2 01 1 0610-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710-
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0610-
18 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0610-
81 BRACKET; ELEC CONT UNIT 1-73907-726-0 01 1 0610-0702
81 BRACKET; ELEC CONT UNIT 1-73907-739-0 01 1 0703-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0610-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0610-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0610-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0610-
225 FRAME; FACIA 1-65671-725-8 01 1 0610-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0610-0710
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0801
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0802-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0610-0801
338 SCREW; COVER
M5X14 		8-94279-325-0 17 1 0802-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0610-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0610-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0610-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0610-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0610-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0610-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0610-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0610-
560 BRACKET
(B) 		1-65671-760-4 01 1 0610-
560 BRACKET
(A) 		1-65681-197-2 01 1 0610-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610-
563 BEZEL; BRKT 1-72448-410-3 01 1 0610-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0610-
571 BEZEL; POCKET 1-72438-151-3 01 1 0610-0805
571 BEZEL; POCKET 1-72438-151-3 01 1 0610-0805
571 BEZEL; POCKET 1-72438-151-3 01 1 0806-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 0806-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0610-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 0610-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0610-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0610-
604 CLIP; INST PAD 1-09983-123-0 01 1 0610-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0610-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0610-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0807-
684 RUBBER; HARNESS 1-82698-417-1 01 1 0610-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 0610-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006-
