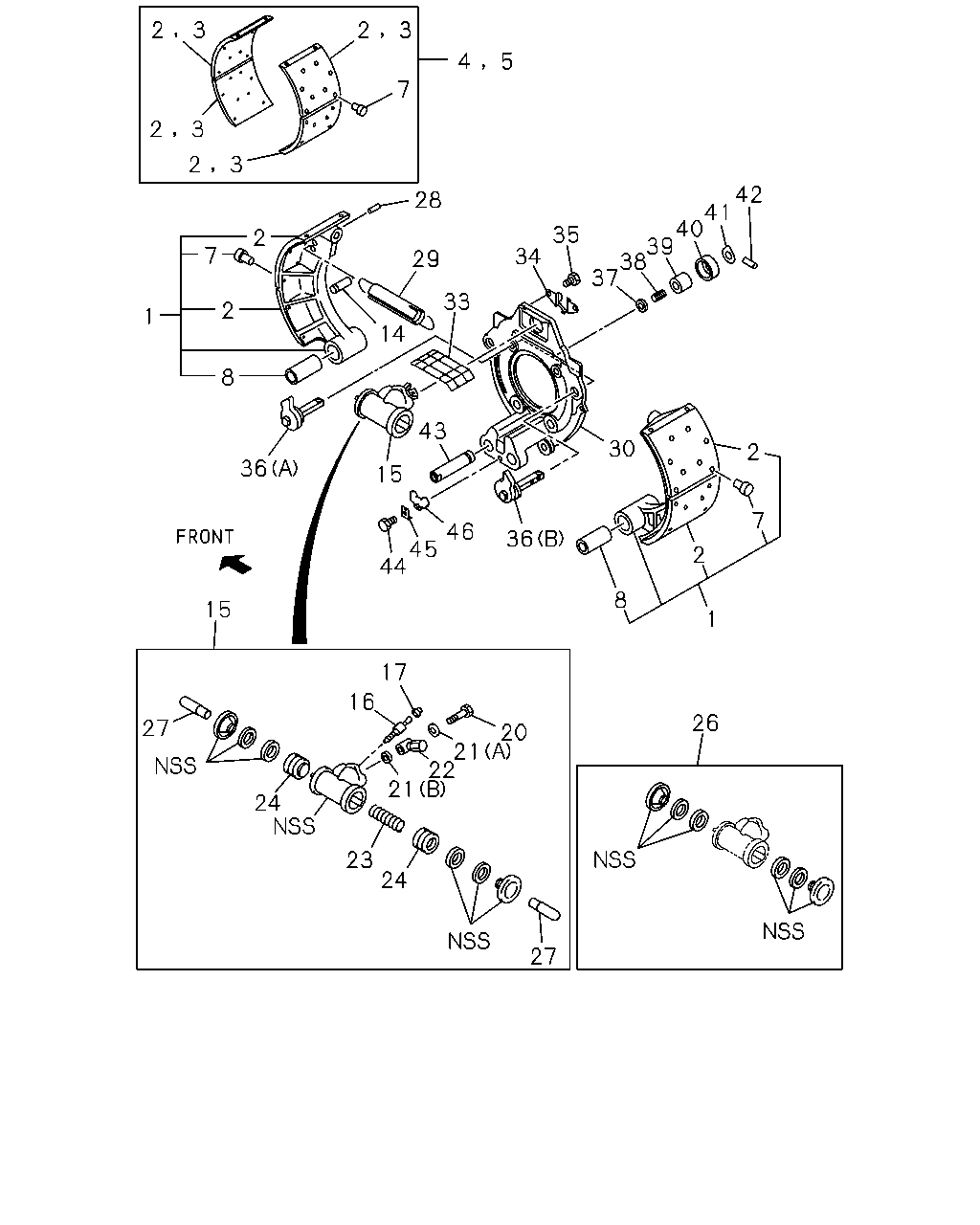

3-01 — FRONT WHEEL BRAKE (#28725) — 45 parça
çizim 24721
2 3 2 3 5 4 7 2 3 2 3 42 41 40 39 38 37 28 35 2 7 34 29 33 2 1 14 8 43 30 2 36 15 7 46 45 44 36 2 8 15 1 17 16 26 27 20 21 22 21 24 23 24 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
THA 		1-47120-325-0 04 1 0407-0603 ● ●
1 SHOE; BRK,FRT 1-47170-441-0 04 1 0604- ● ●
2 LINING; FRT BRK SHOE,STANDARD
THA 		1-47125-418-0 08 1 0407-0603 ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-758-0 08 1 0604- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
THA 		1-47125-419-0 08 1 0407-0603 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-759-0 08 1 0604- ● ●
4 LINING SET; FRT BRK,STANDARD
THA 		1-88310-299-0 02 1 0407-0603 ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-353-1 02 1 0604- ● ●
4 LINING SET; FRT BRK,STANDARD
BESTFIX 		1-86750-470-0 02 1 0604- ● ●
5 LINING SET; FRT BRK,OVER SIZE
THA 		1-88310-300-0 02 1 0407-0603 ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-354-0 02 1 0604- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 THA 		1-09732-034-0 80 1 0407- ● ●
8 BUSHING; BRK SHOE
THA 		1-47112-011-0 04 1 0407- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 THA 		1-47119-017-1 04 1 0407- ● ●
15 CYLINDER; WHEEL,FRT BRK
THA 		1-47600-674-0 01 1 0407- ● ●
15 CYLINDER; WHEEL,FRT BRK
THA 		1-47600-675-0 01 1 0407- ● ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 THA 		1-47615-005-0 02 1 0407- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0407- ● ●
20 BOLT; JOINT
THA 		1-47634-006-0 02 1 0407- ● ●
21 GASKET; UNION BOLT
(A) ID=15.2 THA 		1-09630-019-0 02 1 0407- ● ●
21 GASKET; UNION BOLT
(B) ID=12.2 THA 		1-09630-020-0 02 1 0407- ● ●
22 JOINT; PIPE
THA 		1-47631-057-1 02 1 0407- ● ●
23 SPRING; COIL
THA 		9-09940-435-0 02 1 0407- ● ●
24 PISTON; FRT WHEEL CYL
THA 		9-47624-210-0 04 1 0407- ● ●
26 CUP SET; FRT WHEEL CYL
ID=47.5 THA 		1-87830-521-0 02 1 0407- ● ●
27 ROD; PUSH
THA 		1-47621-009-0 04 1 0407- ● ●
28 PIN; SHOE ADJ CAM GUIDE
THA 		1-47116-002-0 04 1 0407- ● ●
29 SPRING; RETURN,FRT BRK SHOE
THA 		1-09583-269-1 02 1 0407- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-435-0 02 1 0407- ● ●
33 COVER; WHEEL CYL
THA 		1-47159-080-0 02 1 0407- ● ●
34 PLATE; DIRECTION,FRT
THA 		1-47159-094-0 02 1 0407- ● ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50051-235-0 04 1 0407- ● ●
36 CAM ASM; ADJ
(A) THA 		1-47165-058-1 02 1 0407- ● ●
36 CAM ASM; ADJ
(B) THA 		1-47165-059-1 02 1 0407- ● ●
37 WASHER; ADJ CAM
THA 		1-47169-033-0 04 1 0407- ● ●
38 SPRING; ADJ CAM
THA 		1-47169-046-0 04 1 0407- ● ●
39 BOOT; ADJ CAM
THA 		1-47169-034-0 04 1 0407- ● ●
40 COVER; BOOT,ADJ CAM
THA 		1-47169-031-0 04 1 0407- ● ●
41 INDICATOR
THA 		1-47169-032-1 04 1 0407- ● ●
42 PIN; SPINDLE
THA 		1-47169-030-0 04 1 0407- ● ●
43 PIN; ANCHOR
L=106.5 THA 		1-47131-038-0 04 1 0407- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 0407-0512 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0601- ● ●
45 WASHER; LK
THA 		1-47133-011-0 02 1 0407- ● ●
46 PLATE; LOCK
THA 		1-47133-005-0 02 1 0407- ● ●
