◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-82B - POWER TAKE OFF; TRANSMISSION REAR ▶
2-82B — POWER TAKE OFF; TRANSMISSION REAR (#28722) — 141 parça

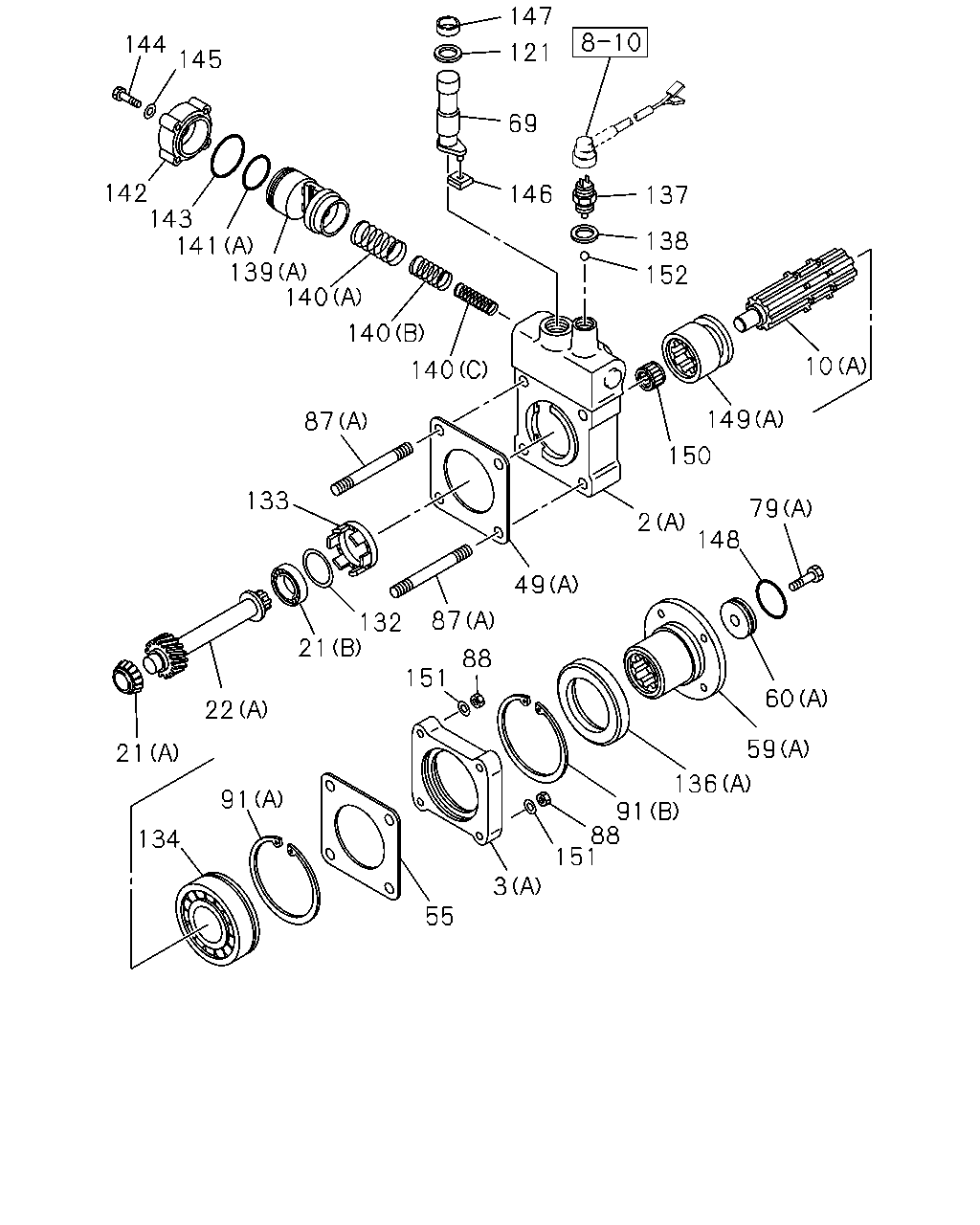

çizim 23715
147 144 121 145 69 142 143 141 139 140 146 137 138 152 140 10 140 149 87 150 133 79 2 148 49 87 132 21 88 151 60 22 59 21 136 91 88 151 91 134 3 55
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; GEAR,TRANS RR PTO
(A) 		1-38111-076-0 01 1 0407-0407
2 CASE; GEAR,TRANS RR PTO
(B) 		1-38111-116-0 01 1 0407-
3 COVER; GEAR CASE,TRANS RR PTO
(A) 		1-38159-002-0 01 1 0407-0407
3 COVER; GEAR CASE,TRANS RR PTO
(B) 		1-38159-008-0 01 1 0407-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
(A) 		1-38221-047-0 01 1 0407-0407
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
(B) 		1-38221-064-0 01 1 0407-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
(A) 		1-33389-054-0 01 1 0407-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
(B) 		1-33389-068-0 01 1 0407-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
(A) 		1-33381-012-0 01 1 0407-0407
22 SHAFT; MAIN DRIVE,TRANS RR PTO
(B) 		1-33381-014-0 01 1 0407-
49 GASKET; PTO GEAR CASE TO TRANS
(A) 		1-33132-054-0 01 1 0407-0407
49 GASKET; PTO GEAR CASE TO TRANS
(B) 		1-33132-084-0 02 1 0407-
55 GASKET; BRG COVER,TRANS RR PTO 1-33132-054-0 01 1 0407-0407
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
(A) 		1-38519-012-0 01 1 0407-0407
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
(B) 		1-38229-020-0 01 1 0407-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
(A) 		1-38519-013-0 01 1 0407-0407
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
(B) 		1-38519-021-0 01 1 0407-
69 LEVER; PTO CONT,TRANS RR PTO 1-38361-032-0 01 1 0407-0407
79 BOLT
(A) 		1-37249-074-0 01 1 0407-0407
79 BOLT
(B) 		1-37249-184-0 01 1 0407-
87 STUD; GEAR CASE
(A) 		1-38119-034-0 04 1 0407-0407
87 STUD; GEAR CASE
(B) 		1-38119-093-0 04 1 0407-
88 NUT; COVER 1-38119-027-0 04 1 0407-
91 RING; SNAP
(B) 		1-38219-016-0 01 1 0407-0407
91 RING; SNAP
(C) 		1-38219-037-0 01 1 0407-
91 RING; SNAP
(A) 		1-38219-017-0 01 1 0407-
91 RING; SNAP
(D) 		1-38219-038-0 01 1 0407-
121 RING; SNAP,SHIFT LEVER 1-38369-004-0 01 1 0407-0407
132 SHIM; BRG
T=1.60 		1-33389-047-0 01 1 0407-
132 SHIM; BRG
T=1.55 		1-33389-048-0 01 1 0407-
132 SHIM; BRG
T=1.50 		1-33389-049-0 01 1 0407-
132 SHIM; BRG
T=1.45 		1-33389-050-0 01 1 0407-
132 SHIM; BRG
T=1.40 		1-33389-051-0 01 1 0407-
132 SHIM; BRG
T=1.35 		1-33389-052-0 01 1 0407-
132 SHIM; BRG
T=1.30 		1-33389-053-0 01 1 0407-
132 SHIM; BRG
T=1.25 		1-33389-055-0 01 1 0407-
132 SHIM; BRG
T=1.20 		1-33389-056-0 01 1 0407-
132 SHIM; BRG
T=1.15 		1-33389-057-0 01 1 0407-
132 SHIM; BRG
T=1.10 		1-33389-058-0 01 1 0407-
132 SHIM; BRG
T=1.05 		1-33389-059-0 01 1 0407-
132 SHIM; BRG
T=1.00 		1-33389-060-0 01 1 0407-
132 SHIM; BRG
T=0.95 		1-33389-061-0 01 1 0407-
132 SHIM; BRG
T=0.90 		1-33389-062-0 01 1 0407-
132 SHIM; BRG
T=0.85 		1-33389-063-0 01 1 0407-
132 SHIM; BRG
T=0.80 		1-33389-064-0 01 1 0407-
132 SHIM; BRG
T=0.75 		1-33389-065-0 01 1 0407-
132 SHIM; BRG
T=0.70 		1-33389-066-0 01 1 0407-
132 SHIM; BRG
T=0.65 		1-33389-067-0 01 1 0407-
133 BUSHING; SHAFT 1-33389-046-0 01 1 0407-
134 BEARING; OUTPUT SHAFT 1-38219-015-0 01 1 0407-
136 SEAL; SHAFT
(A) 		1-38519-010-0 01 1 0407-0407
136 SEAL; SHAFT
(B) 		1-38519-026-0 01 1 0407-
137 SWITCH; RR PTO 1-82440-080-1 01 1 0407-0407
138 GASKET; SW 1-33119-249-0 01 1 0407-0407
139 PISTON; RR PTO
(A) 		1-38129-016-0 01 1 0407-0407
139 PISTON; RR PTO
(B) 		1-38129-033-0 01 1 0407-
140 SPRING; PISTON,RR PTO
(A) 		1-38129-013-0 01 1 0407-0407
140 SPRING; PISTON,RR PTO
(D) 		1-38129-032-0 01 1 0407-
140 SPRING; PISTON,RR PTO
(B) 		1-38129-014-0 01 1 0407-0407
140 SPRING; PISTON,RR PTO
(C) 		1-38129-015-0 01 1 0407-0407
141 GASKET; PISTON,RR PTO
(A) 		1-38129-023-0 01 1 0407-0407
141 GASKET; PISTON,RR PTO
(B) 		1-38129-035-0 01 1 0407-
142 CYLINDER; RR PTO 1-38159-003-0 01 1 0407-0407
143 GASKET; CYL 1-38129-018-0 01 1 0407-0407
144 BOLT; CYL 1-38129-024-0 04 1 0407-0407
145 WASHER; LK,CYL 1-38129-025-0 04 1 0407-0407
146 PAD; CONT LEVER 1-38369-009-0 01 1 0407-0407
147 CUP; SEALING 1-38369-006-0 01 1 0407-0407
148 GASKET; YOKE 1-38519-014-0 01 1 0407-
149 SLEEVE; SLIDING
(A) 		1-38229-008-0 01 1 0407-0407
149 SLEEVE; SLIDING
(B) 		1-38229-059-0 01 1 0407-
150 BEARING; OUTPUT SHAFT 1-38249-018-0 01 1 0407-
151 WASHER; PL,COVER 1-38119-028-0 04 1 0407-
152 BALL; SW 1-38119-032-0 01 1 0407-0407
çizim 82276
88 151 87 79 3 49 136 60 148 91 59 134 10 164 131 139 173 91 131 141 91 174 140 149 2 150 133 132 21 49 22 21
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; GEAR,TRANS RR PTO
(A) 		1-38111-076-0 01 1 0407-0407
2 CASE; GEAR,TRANS RR PTO
(B) 		1-38111-116-0 01 1 0407-
3 COVER; GEAR CASE,TRANS RR PTO
(A) 		1-38159-002-0 01 1 0407-0407
3 COVER; GEAR CASE,TRANS RR PTO
(B) 		1-38159-008-0 01 1 0407-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
(A) 		1-38221-047-0 01 1 0407-0407
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
(B) 		1-38221-064-0 01 1 0407-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
(A) 		1-33389-054-0 01 1 0407-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
(B) 		1-33389-068-0 01 1 0407-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
(A) 		1-33381-012-0 01 1 0407-0407
22 SHAFT; MAIN DRIVE,TRANS RR PTO
(B) 		1-33381-014-0 01 1 0407-
49 GASKET; PTO GEAR CASE TO TRANS
(A) 		1-33132-054-0 01 1 0407-0407
49 GASKET; PTO GEAR CASE TO TRANS
(B) 		1-33132-084-0 02 1 0407-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
(A) 		1-38519-012-0 01 1 0407-0407
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
(B) 		1-38229-020-0 01 1 0407-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
(A) 		1-38519-013-0 01 1 0407-0407
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
(B) 		1-38519-021-0 01 1 0407-
79 BOLT
(A) 		1-37249-074-0 01 1 0407-0407
79 BOLT
(B) 		1-37249-184-0 01 1 0407-
87 STUD; GEAR CASE
(A) 		1-38119-034-0 04 1 0407-0407
87 STUD; GEAR CASE
(B) 		1-38119-093-0 04 1 0407-
88 NUT; COVER 1-38119-027-0 04 1 0407-
91 RING; SNAP
(B) 		1-38219-016-0 01 1 0407-0407
91 RING; SNAP
(C) 		1-38219-037-0 01 1 0407-
91 RING; SNAP
(A) 		1-38219-017-0 01 1 0407-
91 RING; SNAP
(D) 		1-38219-038-0 01 1 0407-
131 GASKET; OUTPUT SHAFT
(A) 		1-38129-035-0 01 1 0407-
131 GASKET; OUTPUT SHAFT
(B) 		1-38129-036-0 01 1 0407-
132 SHIM; BRG
T=1.60 		1-33389-047-0 01 1 0407-
132 SHIM; BRG
T=1.55 		1-33389-048-0 01 1 0407-
132 SHIM; BRG
T=1.50 		1-33389-049-0 01 1 0407-
132 SHIM; BRG
T=1.45 		1-33389-050-0 01 1 0407-
132 SHIM; BRG
T=1.40 		1-33389-051-0 01 1 0407-
132 SHIM; BRG
T=1.35 		1-33389-052-0 01 1 0407-
132 SHIM; BRG
T=1.30 		1-33389-053-0 01 1 0407-
132 SHIM; BRG
T=1.25 		1-33389-055-0 01 1 0407-
132 SHIM; BRG
T=1.20 		1-33389-056-0 01 1 0407-
132 SHIM; BRG
T=1.15 		1-33389-057-0 01 1 0407-
132 SHIM; BRG
T=1.10 		1-33389-058-0 01 1 0407-
132 SHIM; BRG
T=1.05 		1-33389-059-0 01 1 0407-
132 SHIM; BRG
T=1.00 		1-33389-060-0 01 1 0407-
132 SHIM; BRG
T=0.95 		1-33389-061-0 01 1 0407-
132 SHIM; BRG
T=0.90 		1-33389-062-0 01 1 0407-
132 SHIM; BRG
T=0.85 		1-33389-063-0 01 1 0407-
132 SHIM; BRG
T=0.80 		1-33389-064-0 01 1 0407-
132 SHIM; BRG
T=0.75 		1-33389-065-0 01 1 0407-
132 SHIM; BRG
T=0.70 		1-33389-066-0 01 1 0407-
132 SHIM; BRG
T=0.65 		1-33389-067-0 01 1 0407-
133 BUSHING; SHAFT 1-33389-046-0 01 1 0407-
134 BEARING; OUTPUT SHAFT 1-38219-015-0 01 1 0407-
136 SEAL; SHAFT
(A) 		1-38519-010-0 01 1 0407-0407
136 SEAL; SHAFT
(B) 		1-38519-026-0 01 1 0407-
139 PISTON; RR PTO
(A) 		1-38129-016-0 01 1 0407-0407
139 PISTON; RR PTO
(B) 		1-38129-033-0 01 1 0407-
140 SPRING; PISTON,RR PTO
(A) 		1-38129-013-0 01 1 0407-0407
140 SPRING; PISTON,RR PTO
(D) 		1-38129-032-0 01 1 0407-
140 SPRING; PISTON,RR PTO
(B) 		1-38129-014-0 01 1 0407-0407
140 SPRING; PISTON,RR PTO
(C) 		1-38129-015-0 01 1 0407-0407
141 GASKET; PISTON,RR PTO
(A) 		1-38129-023-0 01 1 0407-0407
141 GASKET; PISTON,RR PTO
(B) 		1-38129-035-0 01 1 0407-
148 GASKET; YOKE 1-38519-014-0 01 1 0407-
149 SLEEVE; SLIDING
(A) 		1-38229-008-0 01 1 0407-0407
149 SLEEVE; SLIDING
(B) 		1-38229-059-0 01 1 0407-
150 BEARING; OUTPUT SHAFT 1-38249-018-0 01 1 0407-
151 WASHER; PL,COVER 1-38119-028-0 04 1 0407-
164 RING; CENTERING,PTO 1-38129-038-0 01 1 0407-
173 RING; MAGNET 1-38129-034-0 01 1 0407-
174 DISK; PRESSURE 1-38129-037-0 01 1 0407-
