Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#2872) — 268 parça

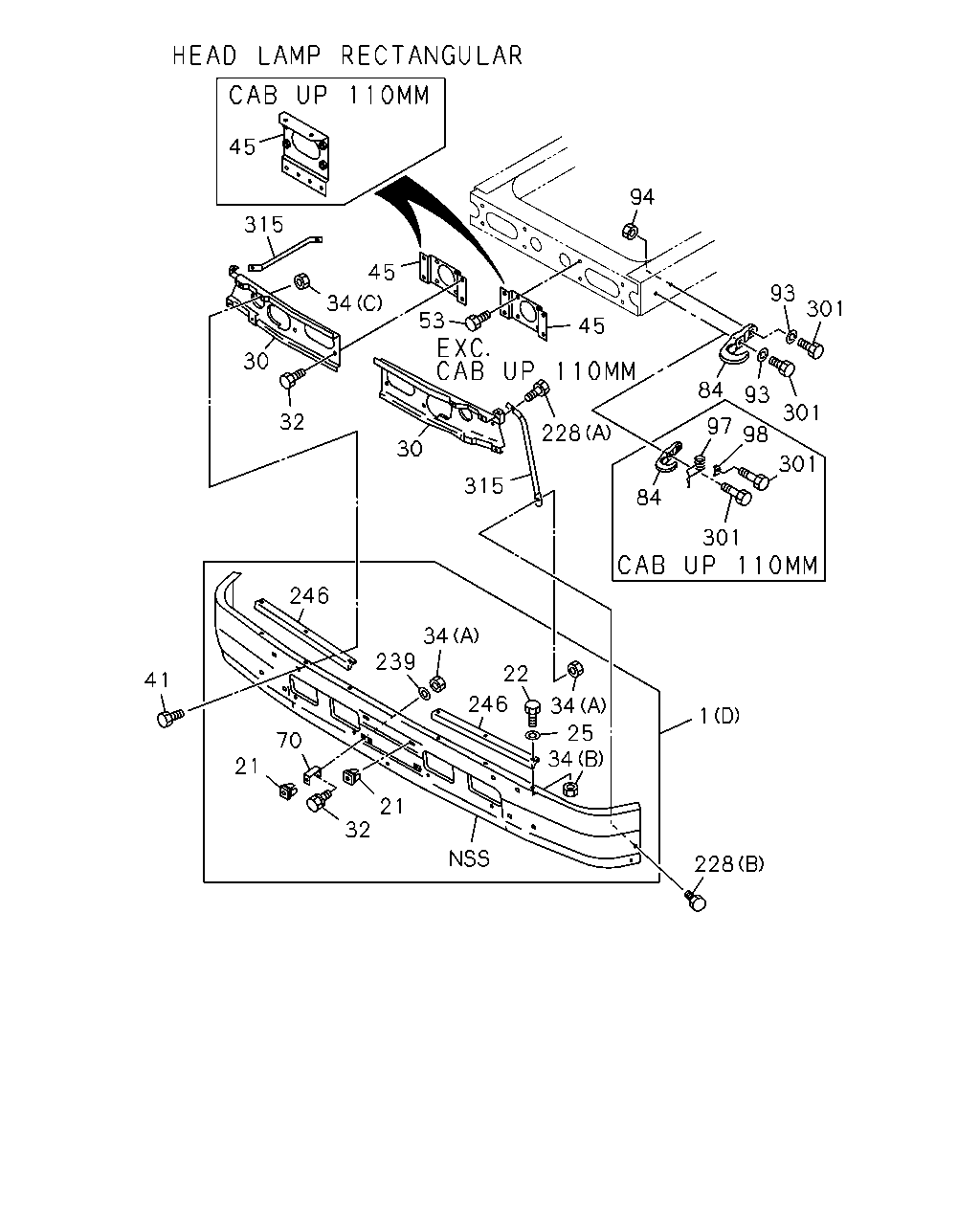

228 1 301 84 301 98 97 84 93 301 301 93 94 45 53 45 45 315 34 30 32 30 315 228 34 239 246 41 70 21 32 21 246 34 22 25 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-9502	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9503-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9503-	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9502	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-09164-018-0	10	1	9503-	●	●
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9503-	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9502	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-53497-260-0	10	1	9503-	●	●
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9503-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-169-0	01	1	9004-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-150-1	01	1	9002-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-151-1	01	1	9002-		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9502	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	9002-9002	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-	●	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 110MM(W60)	1-71210-538-1	02	1	9307-	●	●
45	BRACKET; BRKT TO BUMPER CAB UP 110MM(W60) EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9002-		●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP 110MM(W60)	1-71210-545-0	02	1	9002-		●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M10X25	9-01911-025-0	04	1	9002-9002	●	●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●	●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M12X40	9-01911-240-0	04	1	9002-9005	●	●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●	●
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 110MM(W60) M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-	●	●
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-	●	●
84	HOOK CAB UP 110MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 110MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 110MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
97	SPRING; FRT HOOK CAB UP 110MM(W60)	9-53519-003-0	01	1	9002-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP 110MM(W60)	9-53519-006-0	01	1	9002-	●	●
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M8X30	1-09164-023-0	02	1	9307-	●	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	9-09160-708-0	02	1	9307-	●	●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-	●	●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X60	0-20801-660-0	01	1	9307-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●
315	STAY; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-307-0	02	1	9307-	●	●

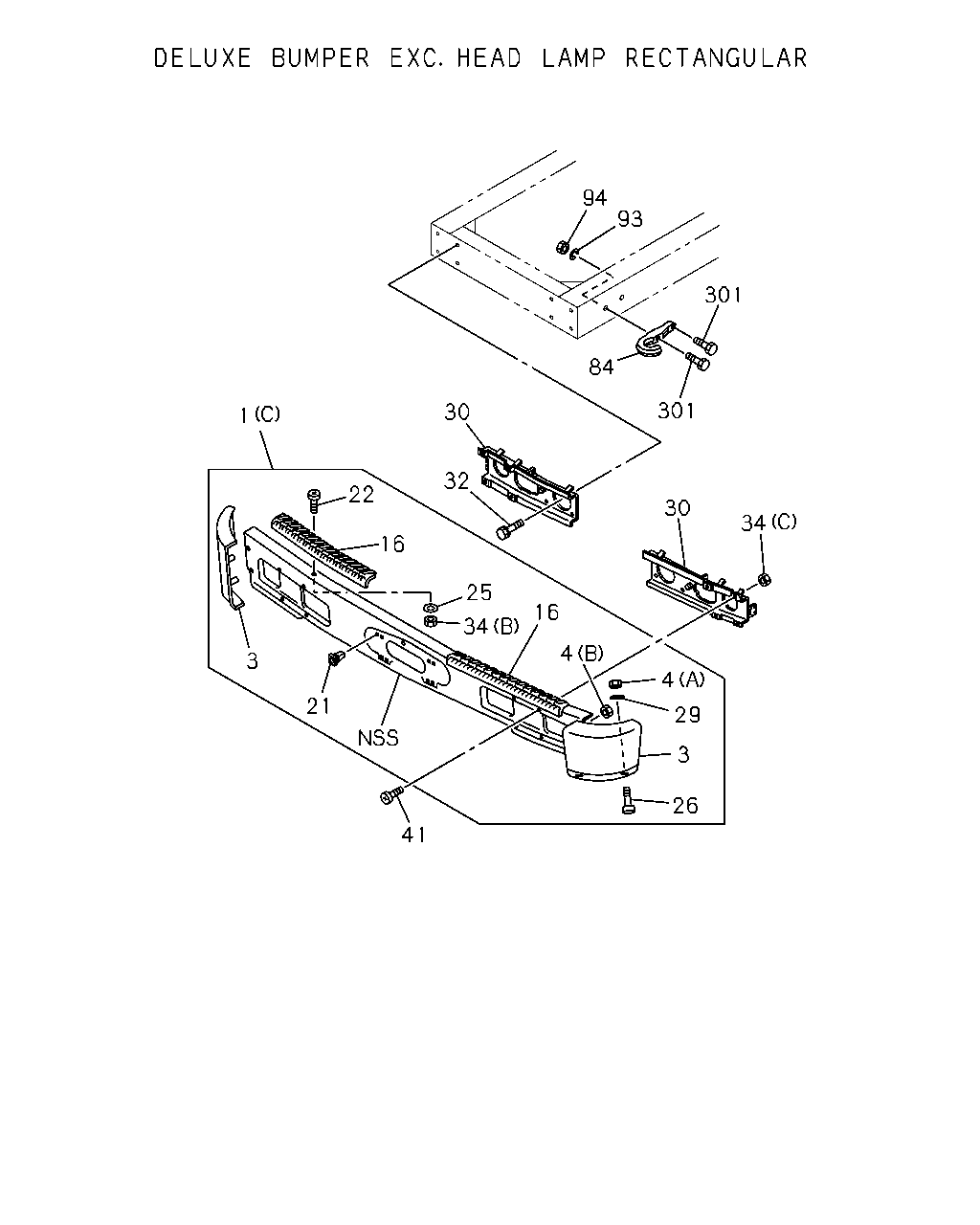

1 34 30 41 301 84 301 98 97 96 93 94 32 41 30 34 43 42 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-169-0	01	1	9004-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-150-1	01	1	9002-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-151-1	01	1	9002-		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9502	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	9002-9002	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	04	1	9002-9002	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	04	1	9002-	●	●
84	HOOK CAB UP 110MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 110MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 110MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60)	8-94300-894-0	01	1	9002-	●	●
97	SPRING; FRT HOOK CAB UP 110MM(W60)	9-53519-003-0	01	1	9002-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP 110MM(W60)	9-53519-006-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X60	0-20801-660-0	01	1	9307-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●

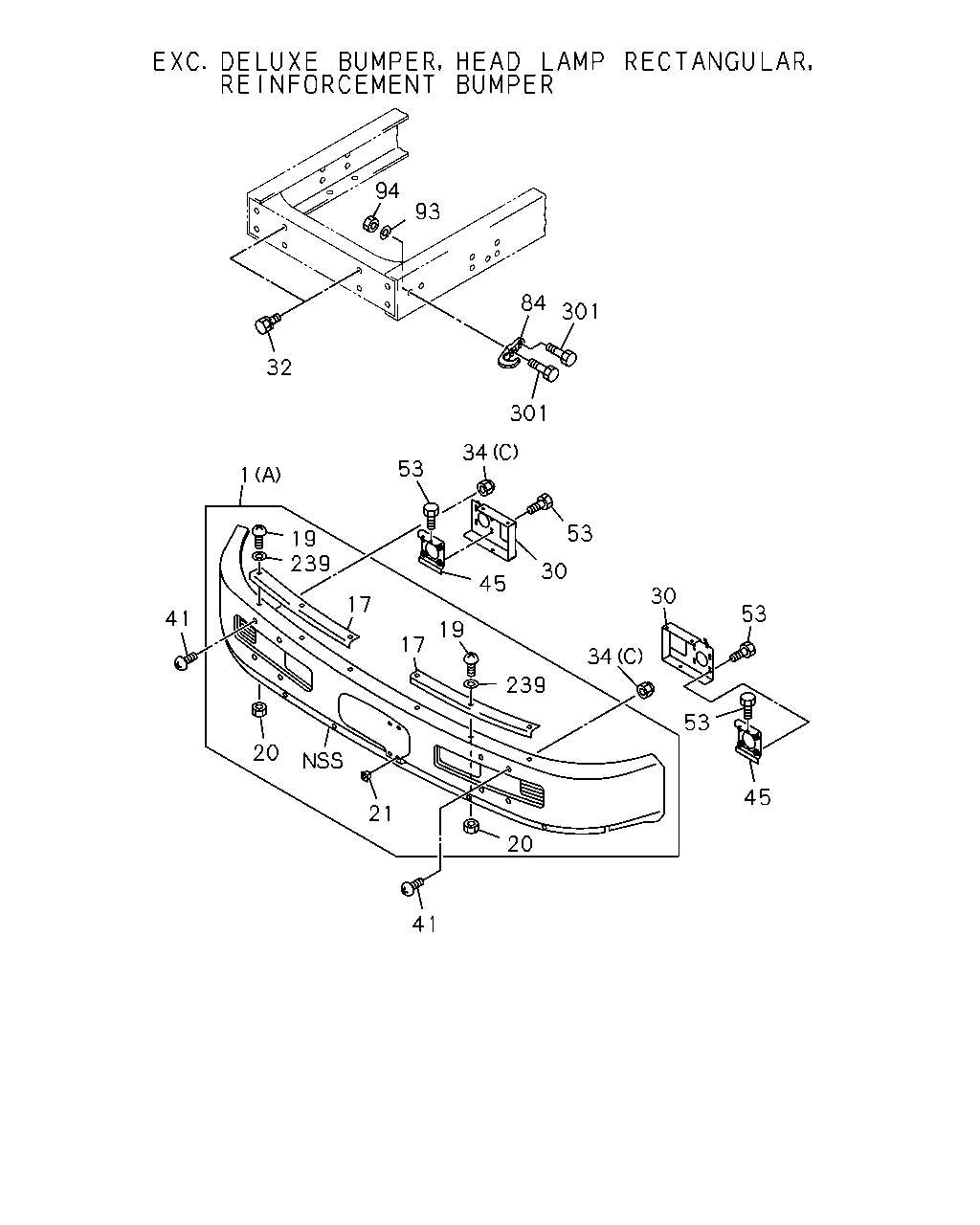

45 53 53 34 30 53 30 45 53 34 301 301 84 93 94 32 1 41 19 239 17 19 17 239 41 20 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	9002-	●	●
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	9002-	●	●
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	9002-9310	●	●
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	9-03486-410-0	06	1	9311-	●	●
20	NUT; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	9002-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-9502	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9503-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9503-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-169-0	01	1	9004-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-150-1	01	1	9002-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-151-1	01	1	9002-		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9502	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	9002-9002	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-	●	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 110MM(W60)	1-71210-538-1	02	1	9307-	●	●
45	BRACKET; BRKT TO BUMPER CAB UP 110MM(W60) EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9002-		●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP 110MM(W60)	1-71210-545-0	02	1	9002-		●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M10X25	9-01911-025-0	04	1	9002-9002	●	●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●	●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M12X40	9-01911-240-0	04	1	9002-9005	●	●
53	BOLT; BRKT TO FRAME CAB UP 110MM(W60) M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●	●
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 110MM(W60) M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-	●	●
84	HOOK CAB UP 110MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 110MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 110MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	9-09160-708-0	02	1	9307-	●	●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X60	0-20801-660-0	01	1	9307-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●

26 29 3 4 4 16 34 34 30 301 301 93 94 84 30 32 1 22 25 16 3 21 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-431-1	01	1	9002-	●	●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-430-1	01	1	9002-	●	●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	02	1	9002-	●	●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M10 FLANGE	5-09440-006-0	04	1	9002-	●	●
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9002-	●	●
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9002-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-9502	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9503-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9503-	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9502	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-09164-018-0	10	1	9503-	●	●
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9503-	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9502	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-53497-260-0	10	1	9503-	●	●
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9503-	●	●
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09060-008-0	02	1	9002-	●	●
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=12.5 OD=32	9-09160-712-0	02	1	9002-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB SUSPENSION RIGID(W71)	1-71230-169-0	01	1	9004-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-150-1	01	1	9002-		●
30	BRACKET; FRT BUMPER CAB SUSPENSION RIGID(W71)	1-71230-151-1	01	1	9002-		●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9502	●	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9503-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	04	1	9307-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	9002-9002	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-	●	●
84	HOOK CAB UP 110MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 110MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 110MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 110MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X60	0-20801-660-0	01	1	9307-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 110MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 110MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005		●
301	BOLT; HOOK TO FRAME CAB UP 110MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
