Sayfa 5-40 - Isuzu EPC

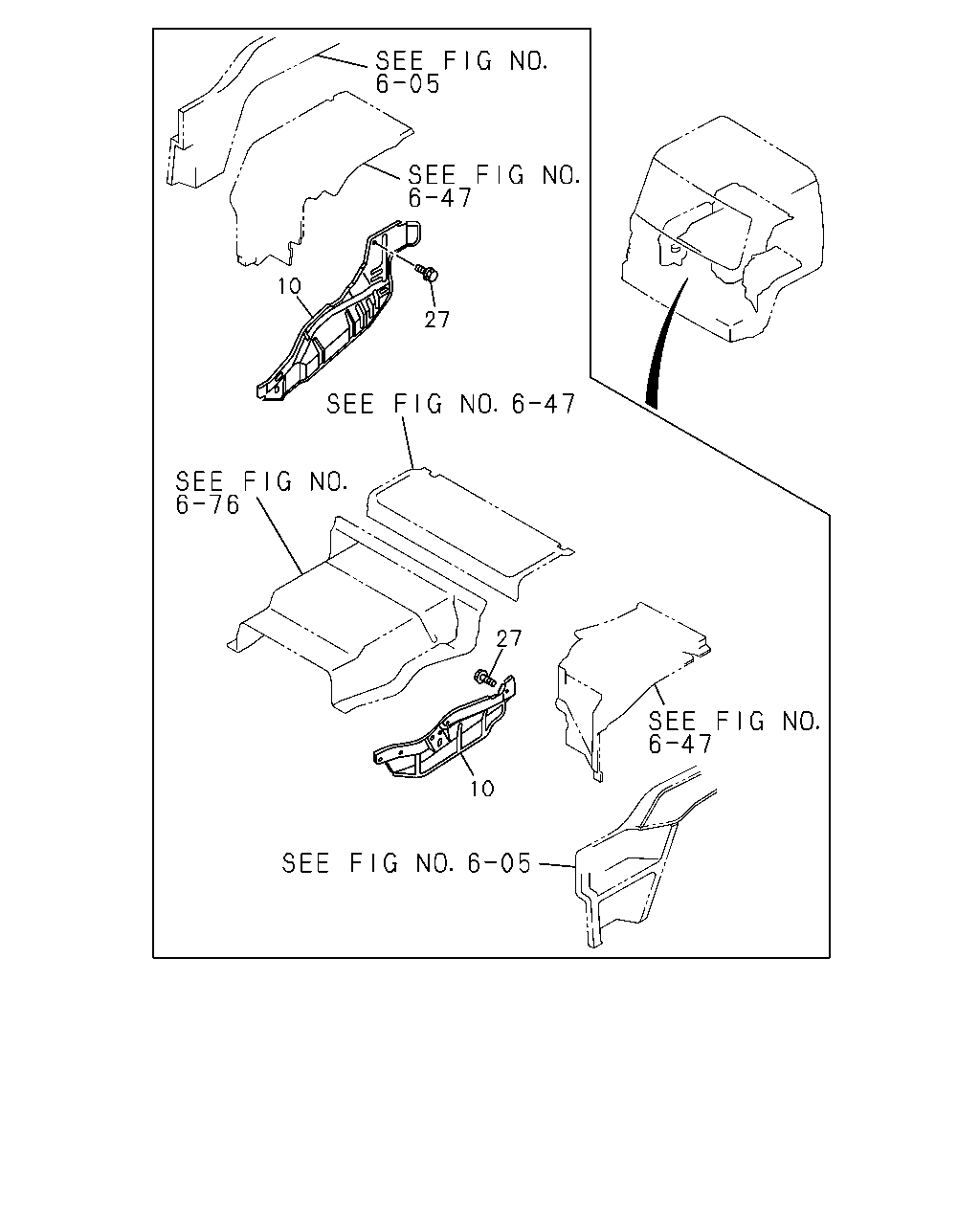

5-40 — ENGINE ROOM INSULATOR (#2871) — 6 parça

10 27 27 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	PANEL ASM; NOISE SHUTTER	1-79937-844-0	01	1	9002-9105	●	●
10	PANEL ASM; NOISE SHUTTER	1-79937-848-0	01	1	9106-	●	●
10	PANEL ASM; NOISE SHUTTER	1-79937-767-9	01	1	9002-	●	●
27	BOLT; NOISE SHUTTER PANEL FIX M6X20 W/LK&PL WASHER	1-09980-495-0	11	1	9002-9501	●	●
27	BOLT; NOISE SHUTTER PANEL FIX ANTI NOISE EQUIPMENT<SV9> M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	9502-	●	●
27	BOLT; NOISE SHUTTER PANEL FIX EXC. ANTI NOISE EQUIPMENT<SV9> M6X20 W/LK&PL WASHER	1-09980-495-0	11	1	9502-	●	●
