0-11 — CYLINDER HEAD (#28708) — 136 parça

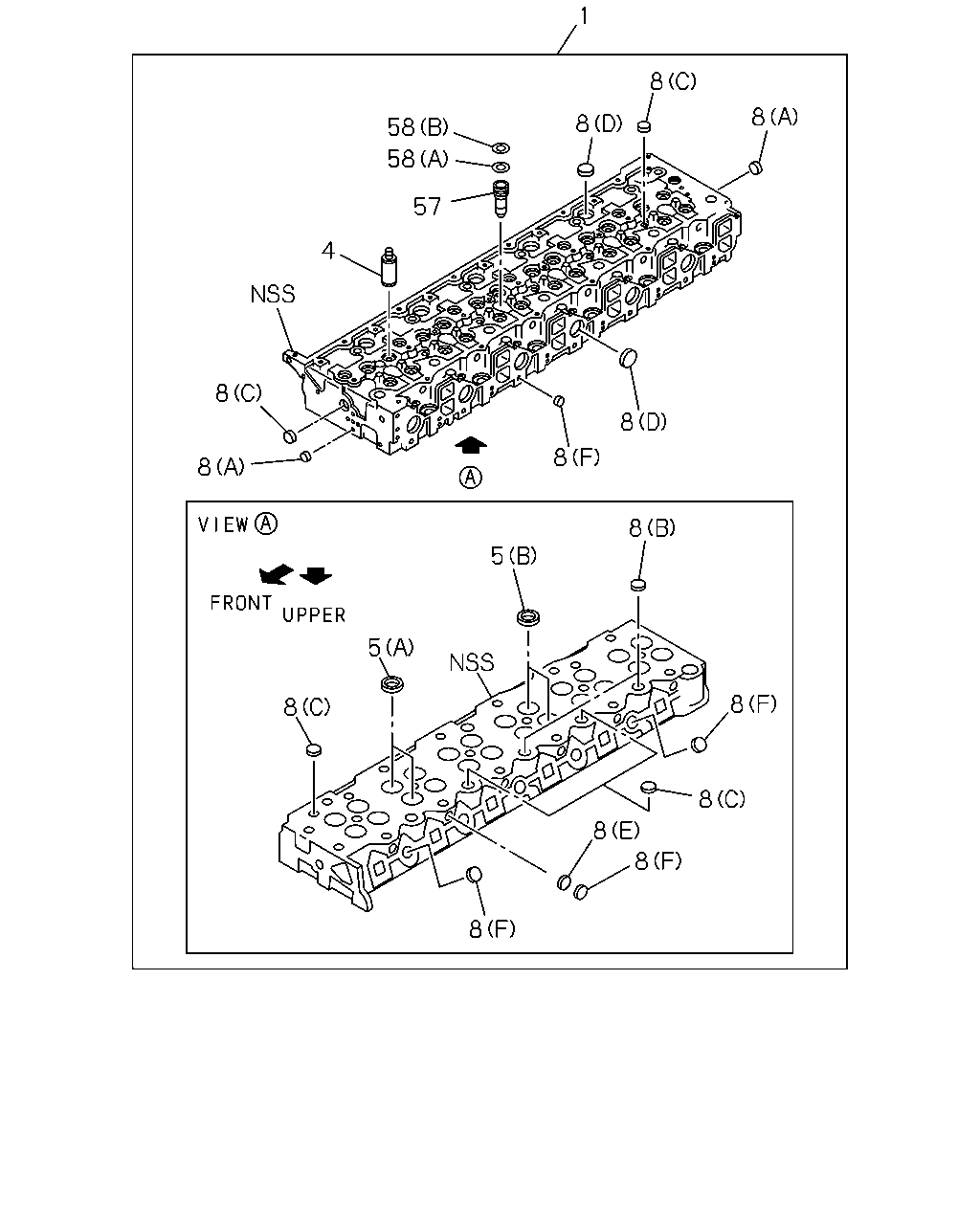

çizim 86547
1 8 8 8 58 58 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-939-6 01 1 1001- ●
1 HEAD ASM; CYL 1-11110-941-5 01 1 0512- ●
1 HEAD ASM; CYL 1-11110-927-4 01 1 0407-0511 ●
1 HEAD ASM; CYL 1-11110-939-4 01 1 0512-0910 ●
4 GUIDE; VLV 1-11721-012-0 24 1 0407-0511 ●
4 GUIDE; VLV 1-11721-012-0 24 1 0512-0910 ● ●
4 GUIDE; VLV 1-11721-012-0 24 1 0911-0912 ●
4 GUIDE; VLV 1-11721-012-1 24 1 1001- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-0 12 1 0407-0511 ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-0 12 1 0512-0910 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-1 12 1 0911-0912 ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-1 12 1 1001- ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-0 12 1 0407-0511 ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-0 12 1 0512-0910 ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-1 12 1 0911-0912 ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-1 12 1 1001- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-012-2 02 1 0407-0511 ●
8 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-012-2 02 1 0512-0910 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-012-2 02 1 0911-0912 ●
8 CUP; SEALING,WATER JACKET
(B) OD=32 		1-09600-012-2 02 1 1001- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 0407-0511 ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 0512-0910 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 0911-0912 ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 1001- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12.3 		5-09600-013-0 02 1 0407-0511 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12.3 		5-09600-013-0 02 1 0512-0910 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12.3 		5-09600-013-0 02 1 0911-0912 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12.3 		5-09600-013-0 02 1 1001- ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=16 		5-11129-006-0 06 1 0407-0511 ●
8 CUP; SEALING,WATER JACKET
(E) OD=16 		5-11129-006-0 06 1 0512-0910 ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=16 		5-11129-006-0 06 1 0911-0912 ●
8 CUP; SEALING,WATER JACKET
(E) OD=16 		5-11129-006-0 06 1 1001- ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=18 		5-11219-008-0 12 1 0407-0511 ●
8 CUP; SEALING,WATER JACKET
(F) OD=18 		5-11219-008-0 12 1 0512-0910 ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=18 		5-11219-008-0 12 1 0911-0912 ●
8 CUP; SEALING,WATER JACKET
(F) OD=18 		5-11219-008-0 12 1 1001- ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 18 1 0407-0511 ●
8 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 18 1 0512-0910 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 18 1 0911-0912 ●
8 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 18 1 1001- ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-066-0 06 1 0407-0511 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 0512-0910 ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 0911-0912 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 1001- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK 		8-97233-126-0 06 1 0407-0511 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK 		8-97233-126-0 06 1 0512-0910 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK 		8-97233-126-0 06 1 0911-0912 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK 		8-97233-126-0 06 1 1001- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED 		8-97233-127-0 06 1 0407-0511 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED 		8-97233-127-0 06 1 0512-0910 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED 		8-97233-127-0 06 1 0911-0912 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED 		8-97233-127-0 06 1 1001- ● ●

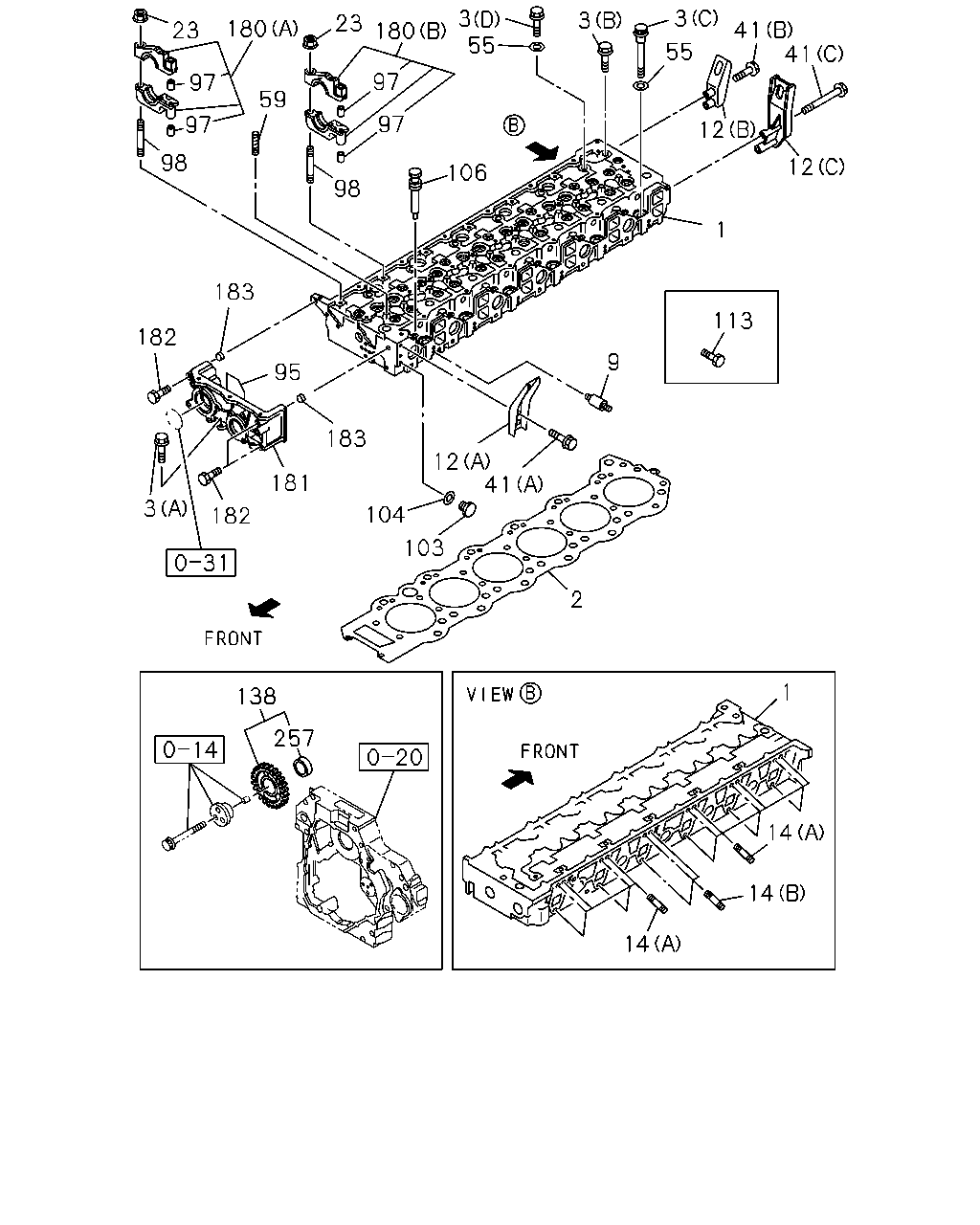

çizim 105266
138 257 1 14 14 14 103 2 104 41 12 183 95 183 182 3 182 181 98 106 97 97 180 23 180 23 97 97 98 59 3 55 3 3 55 41 12 41 12 1 113 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 1-11110-939-6 01 1 1001- ●
1 HEAD ASM; CYL 1-11110-941-5 01 1 0512- ●
1 HEAD ASM; CYL 1-11110-927-4 01 1 0407-0511 ●
1 HEAD ASM; CYL 1-11110-939-4 01 1 0512-0910 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-3 01 1 0407-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-4 01 1 0512- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 0407-0511 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28181-035-0 02 1 0512-0512 ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28151-035-0 02 1 0601- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 0407-0511 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28186-212-0 01 1 0512-0512 ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28156-212-0 01 1 0601- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0407-0511 ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0512-1308 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		8-98245-540-0 06 1 1309- ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0407-0511 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0512-1308 ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 FLANGE 		8-98245-541-0 20 1 1309- ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 0407-0511 ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 12 1 0512- ● ●
12 HANGER; ENG,RR
(A) 		1-11777-217-0 01 1 0407-0511 ●
12 HANGER; ENG,RR
(A) 		1-11777-217-1 01 1 0512- ● ●
12 HANGER; ENG,RR
(B) 		1-11777-239-1 01 1 0407-0511 ●
12 HANGER; ENG,RR
(C) 		1-11777-263-0 01 1 0407-0511 ●
14 STUD; EXH MANIF
(A) M10X77 L=92 		1-09302-176-0 13 1 0512- ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 04 1 0512- ●
14 STUD; EXH MANIF
(A) M10X77 L=92 		1-09302-176-0 14 1 0512- ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 15 1 0407-0511 ●
14 STUD; EXH MANIF
(A) M10X95 L=110 		1-09302-063-0 02 1 0512- ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 0407-0511 ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 03 1 0512- ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0407-0511 ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0512- ● ●
41 BOLT; ENG HANGER
(C) M12X120 FLANGE 		0-28186-212-0 01 1 0407-0511 ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28191-225-0 02 1 0407-0511 ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28191-225-0 02 1 0512-0512 ● ●
41 BOLT; ENG HANGER
(A) M12X25 FLANGE 		0-28161-225-0 02 1 0601- ● ●
41 BOLT; ENG HANGER
(B) M12X30 FLANGE 		0-28191-230-0 02 1 0407-0511 ●
41 BOLT; ENG HANGER
(C) M14X120 FLANGE 		0-28986-412-0 01 1 0407-0511 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 0407-0511 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 0512- ● ●
59 GUIDE; BRIDGE 1-11729-005-0 12 1 0407-0407 ●
59 GUIDE; BRIDGE 8-97378-021-0 12 1 0408-0511 ●
59 GUIDE; BRIDGE 8-97378-021-1 12 1 0512- ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0407-0511 ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0512-0910 ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0911-0912 ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 1001- ● ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0407-0511 ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0512-0907 ● ●
97 DOWEL; CAM BRKT SET
OD=16 		8-98143-037-0 28 1 0908- ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0407-0511 ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0512- ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 0407-0511 ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 0512- ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0407-0511 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0512- ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0407-0511 ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0512- ● ●
113 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512 ● ●
113 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
113 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0407-0407 ●
138 GEAR; IDLE 1-12523-371-1 01 1 0512- ● ●
138 GEAR; IDLE 1-12523-371-0 01 1 0407-0511 ●
180 BRACKET SET; CAM,CYL HD
(A) 		1-12516-148-1 01 1 0407-0504 ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-0 01 1 0505-0511 ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-3 01 1 0512- ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		1-12516-152-1 06 1 0407-0504 ●
180 BRACKET SET; CAM,CYL HD
(B) 		8-97608-791-0 06 1 0505-0511 ●
180 BRACKET SET; CAM,CYL HD
(B) 		8-97608-791-3 06 1 0512- ● ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0407-0511 ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0512-0910 ● ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0911-0912 ●
181 CASE; HEAD GEAR 1-11310-055-1 01 1 1001- ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0407-0511 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0512-0910 ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0911-0912 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 1001- ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0407-0511 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0512-0910 ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0911-0912 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 1001- ● ●
257 BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT. 		1-09330-108-0 01 1 0407-0705 ● ●
257 BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT. 		8-98081-168-0 01 1 0706- ● ●
