◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#28706) — 47 parça

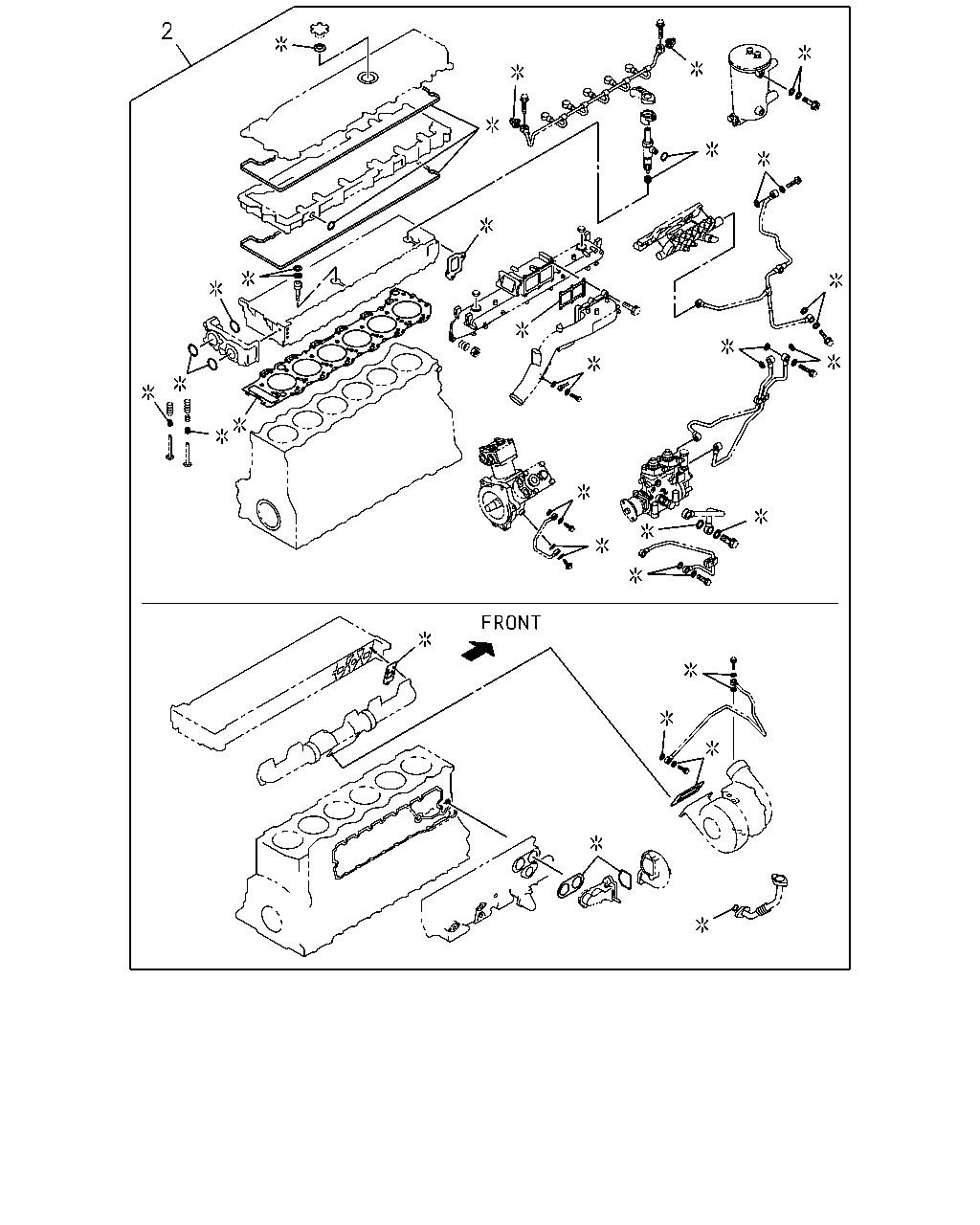

çizim 105258
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87812-419-2 01 1 0407-0511 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-927-1 01 1 0512-0702 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-4 01 1 0703-1111 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-812-0 01 1 1112-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-658-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-017-1 01 1 0512-0702 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-194-0 01 1 0703-0804 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-401-2 01 1 0805-1001 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-593-2 01 1 1002-1111 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-933-0 01 1 1112-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-660-0 01 1 1401- ●

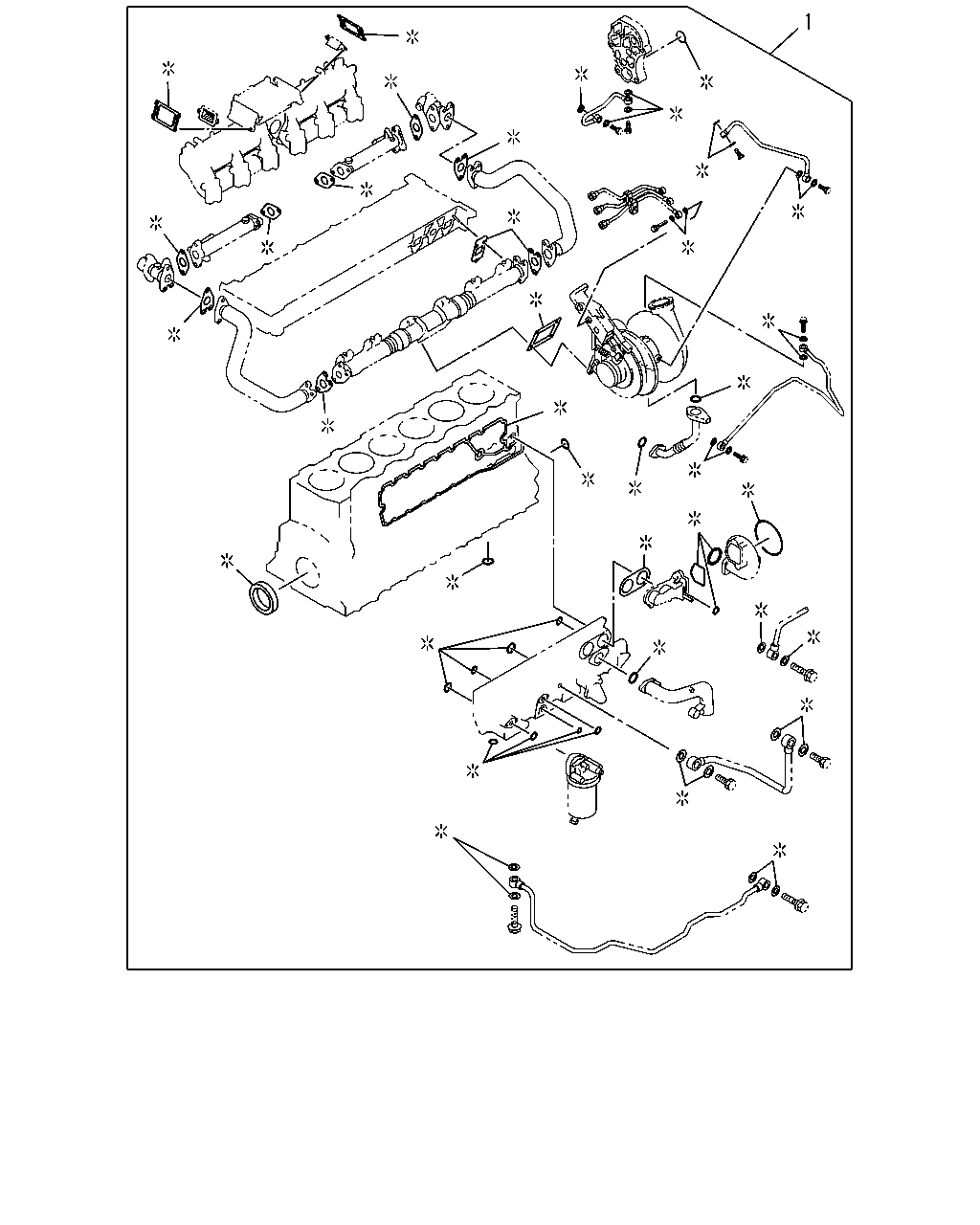

çizim 105260
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-406-5 01 1 0407-0511 ●
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0512-0608 ●
1 GASKET SET; ENG OVERHAUL 1-87813-139-0 01 1 0609-0702 ●
1 GASKET SET; ENG OVERHAUL 1-87813-191-1 01 1 0703-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-222-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0705-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ●
1 GASKET SET; ENG OVERHAUL 1-87813-012-0 01 1 0512-0608 ●
1 GASKET SET; ENG OVERHAUL 1-87813-140-0 01 1 0609-0702 ●
1 GASKET SET; ENG OVERHAUL 1-87813-193-1 01 1 0703-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-223-0 01 1 0704-0804 ●
1 GASKET SET; ENG OVERHAUL 1-87813-400-2 01 1 0805-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-592-3 01 1 1002-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-924-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-659-0 01 1 1401-1502 ●
1 GASKET SET; ENG OVERHAUL 1-87815-548-0 01 1 1503- ●

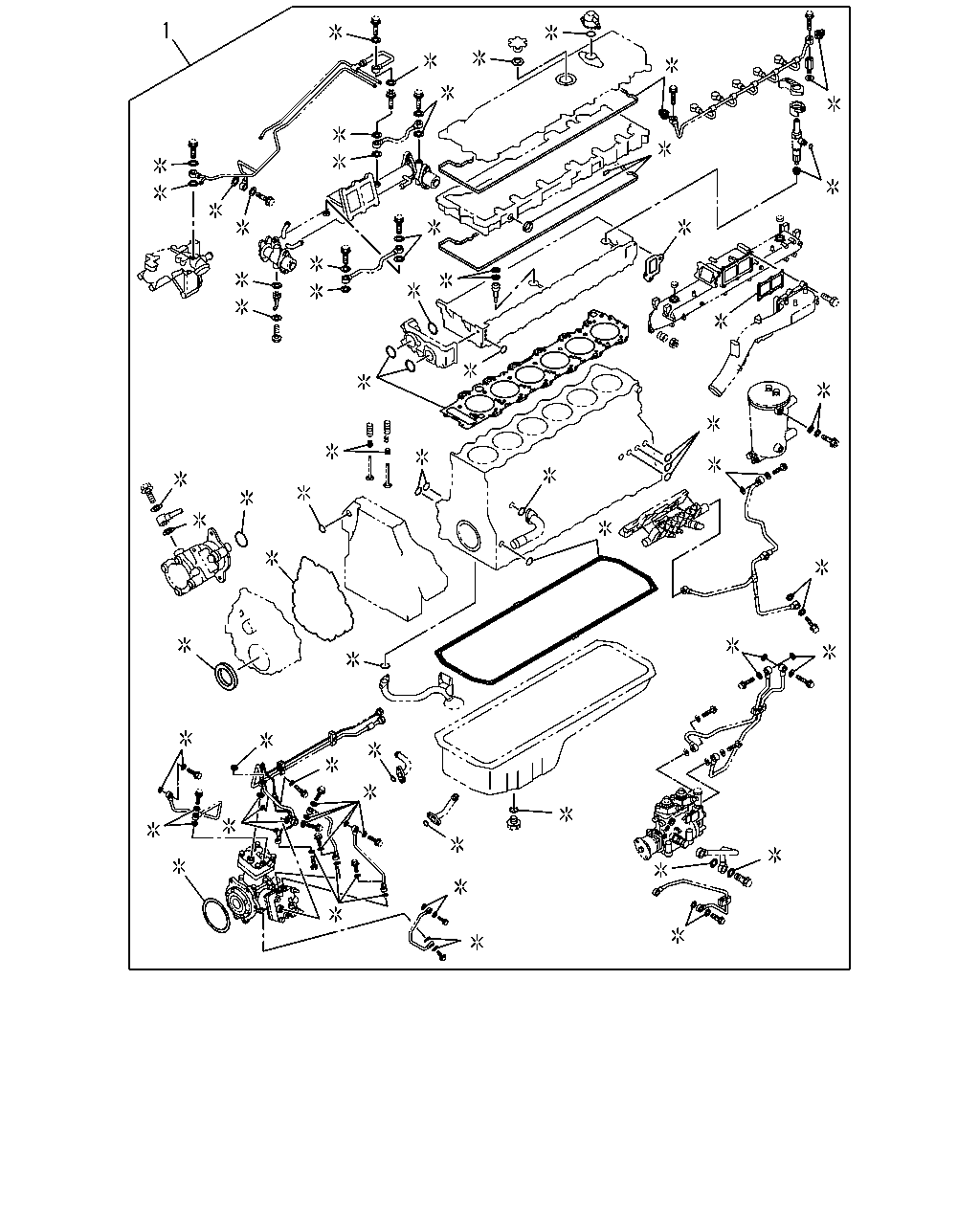

çizim 105264
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-406-5 01 1 0407-0511 ●
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0512-0608 ●
1 GASKET SET; ENG OVERHAUL 1-87813-139-0 01 1 0609-0702 ●
1 GASKET SET; ENG OVERHAUL 1-87813-191-1 01 1 0703-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-222-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0705-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ●
1 GASKET SET; ENG OVERHAUL 1-87813-012-0 01 1 0512-0608 ●
1 GASKET SET; ENG OVERHAUL 1-87813-140-0 01 1 0609-0702 ●
1 GASKET SET; ENG OVERHAUL 1-87813-193-1 01 1 0703-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-223-0 01 1 0704-0804 ●
1 GASKET SET; ENG OVERHAUL 1-87813-400-2 01 1 0805-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-592-3 01 1 1002-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-924-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-659-0 01 1 1401-1502 ●
1 GASKET SET; ENG OVERHAUL 1-87815-548-0 01 1 1503- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
