Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#28704) — 233 parça

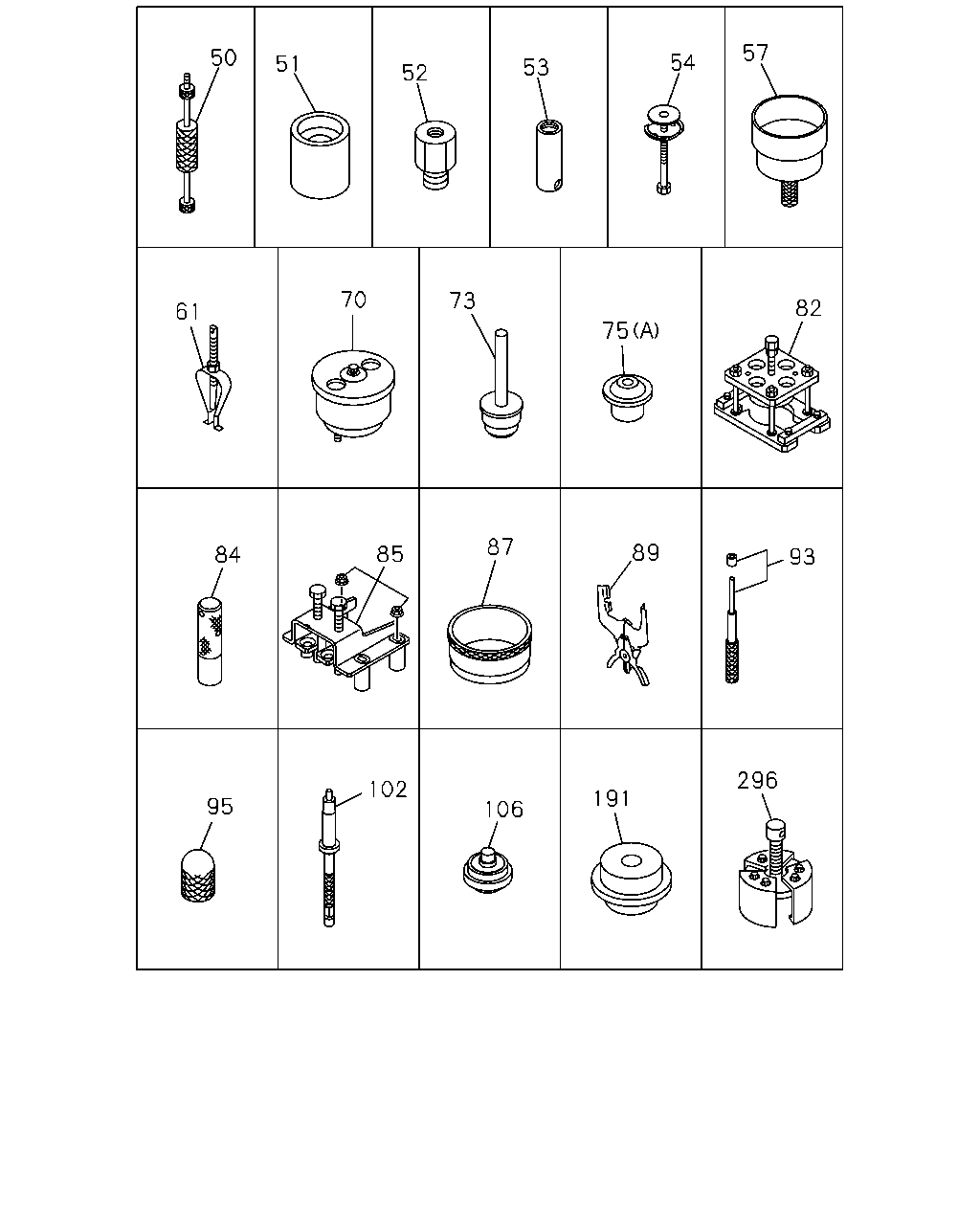

57 50 54 51 53 52 70 73 82 61 75 87 89 85 84 93 296 102 191 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	AR	1	0407-0511	●
51	PULLER ASM; WATER PUMP	1-85220-047-0	AR	1	0407-0511	●
52	REMOVER; WATER PUMP	1-85210-062-0	AR	1	0407-0511	●
53	PULLER; TAPER BUSHING	1-85210-063-0	AR	1	0407-0511	●
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	AR	1	0407-0511	●
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	AR	1	0407-0511	●
61	PULLER ASM; PILOT BRG	9-85210-157-0	AR	1	0407-0511	●
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	AR	1	0407-0511	●
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	AR	1	0407-0511	●
75	TOOL; SETTING,OIL SEAL (A)	1-85220-049-0	AR	1	0407-0511	●
75	TOOL; SETTING,OIL SEAL (B)	1-85221-096-0	01	1	0407-0511	●
75	TOOL; SETTING,OIL SEAL MJX16P M/T(Y3Z) (B)	1-85221-096-0	01	1	0512-		●
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	AR	1	0407-0511	●
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	AR	1	0407-0511	●
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	AR	1	0407-0511	●
85	REPLACER ASM; VALVE SPR	1-85235-013-0	AR	1	0407-0511	●
87	TOOL; PISTON	1-85220-059-0	AR	1	0407-0511	●
89	TOOL; PISTON RING	1-85221-025-0	AR	1	0407-0511	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	AR	1	0407-0511	●
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	AR	1	0407-0511	●
102	ADAPTER; COMP GAGE	1-85317-019-0	AR	1	0407-0511	●
106	TOOL; SETTING PILOT BRG	1-85221-057-0	AR	1	0407-0511	●
191	ADAPTER	1-85216-009-0	01	1	0407-0511	●
191	ADAPTER	1-85216-009-0	01	1	0512-		●
296	REPLACER; SLINGER	1-85210-027-0	AR	1	0407-0511	●

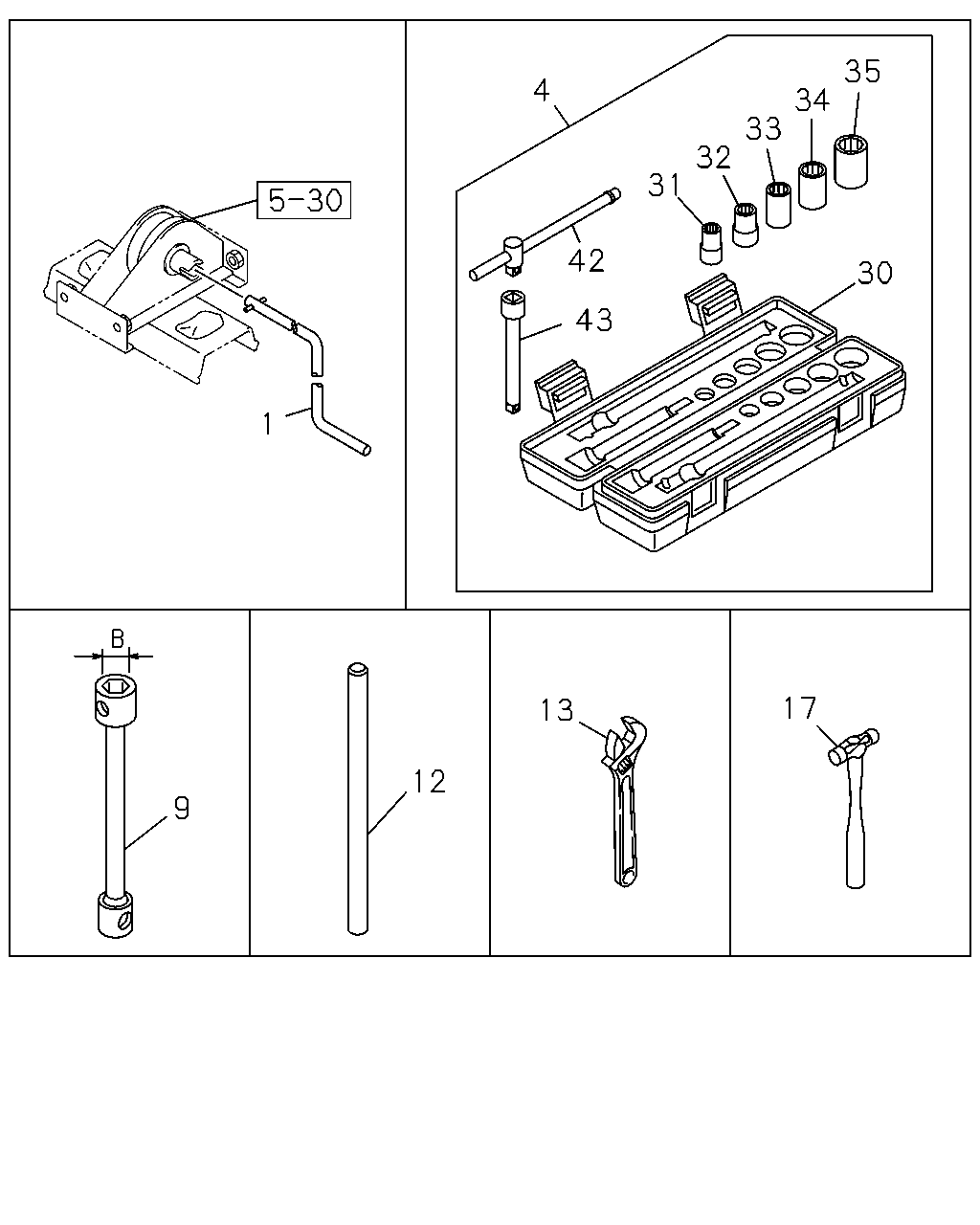

35 34 33 32 4 31 42 30 43 1 17 13 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0512-		●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0407-0511	●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0512-		●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0407-0511	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0512-		●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0512-1501		●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-		●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0407-0511	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0407-0511	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0512-0907		●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0908-1407		●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-		●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0407-0511	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0512-		●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0407-0511	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0512-		●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0407-0511	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0512-		●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0407-0511	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0512-		●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0407-0511	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0512-		●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0407-0511	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0512-		●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0407-0511	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0512-		●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0407-0511	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0512-		●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0407-0511	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0512-		●

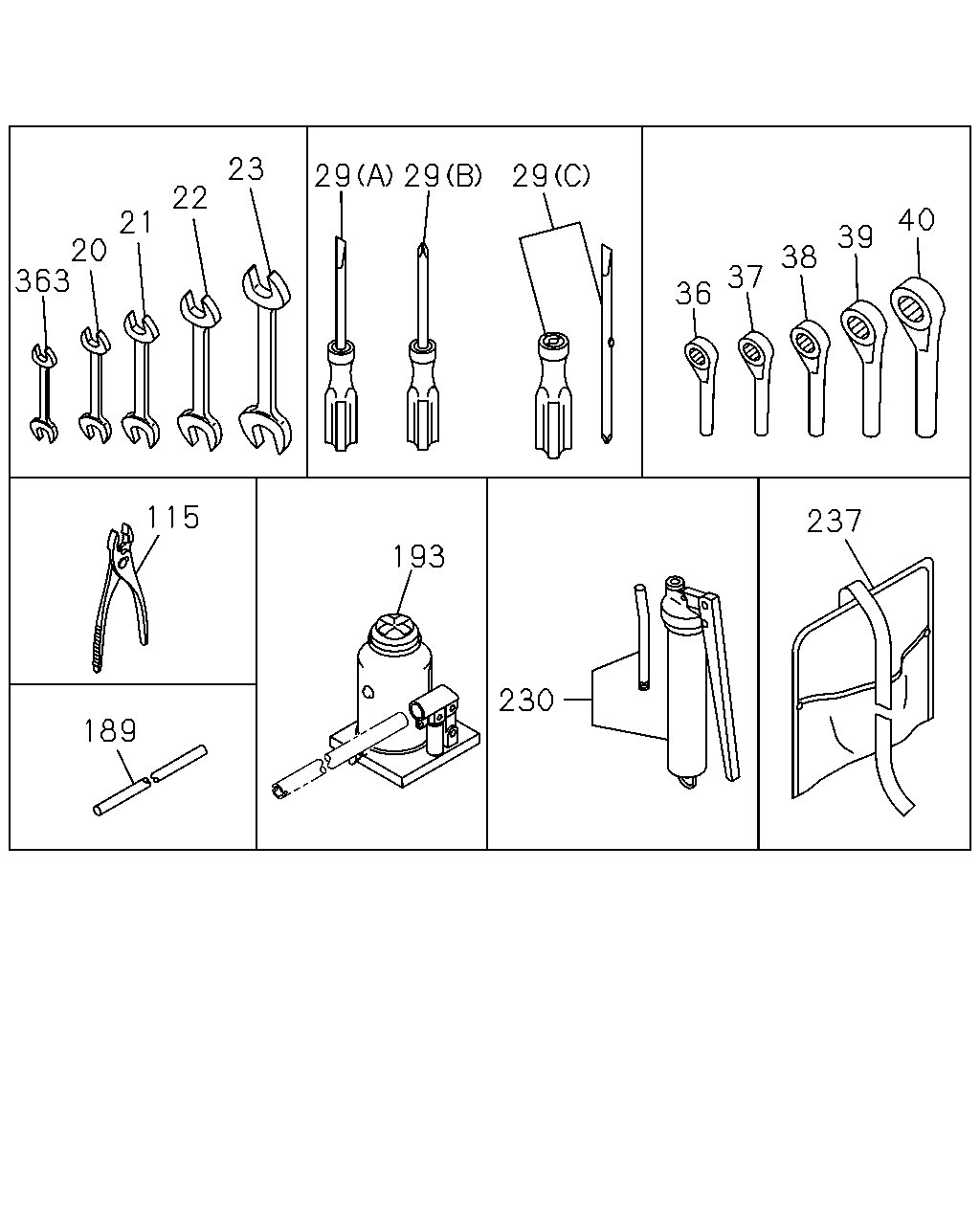

23 29 29 29 22 40 21 20 363 39 38 37 36 115 237 193 230 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0407-0511	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0512-0607		●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-		●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0407-0511	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0512-0607		●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-		●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0407-0511	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0512-0607		●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-		●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0407-0511	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0512-0607		●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-		●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0407-0511	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0512-		●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0407-0511	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0512-		●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0407-0511	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0512-		●
36	WRENCH; 24	9-85111-377-0	01	1	0407-0511	●
36	WRENCH; 24	9-85111-377-0	01	1	0512-		●
37	WRENCH; 27	9-85111-375-0	01	1	0407-0511	●
37	WRENCH; 27	9-85111-375-0	01	1	0512-		●
38	WRENCH; 32	9-85111-358-0	01	1	0407-0511	●
38	WRENCH; 32	9-85111-358-0	01	1	0512-		●
39	WRENCH; 36	9-85111-374-0	01	1	0407-0511	●
39	WRENCH; 36	9-85111-374-0	01	1	0512-		●
40	WRENCH; 41	9-85111-356-0	01	1	0407-0511	●
40	WRENCH; 41	9-85111-356-0	01	1	0512-		●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0407-0511	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0512-1410		●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-		●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0407-0511	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0512-		●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-1	01	1	0407-0511	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	0512-		●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-3	01	1	0407-0511	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0512-		●
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-0	01	1	0407-0511	●
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	0512-		●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0407-0511	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0512-0607		●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0608-		●

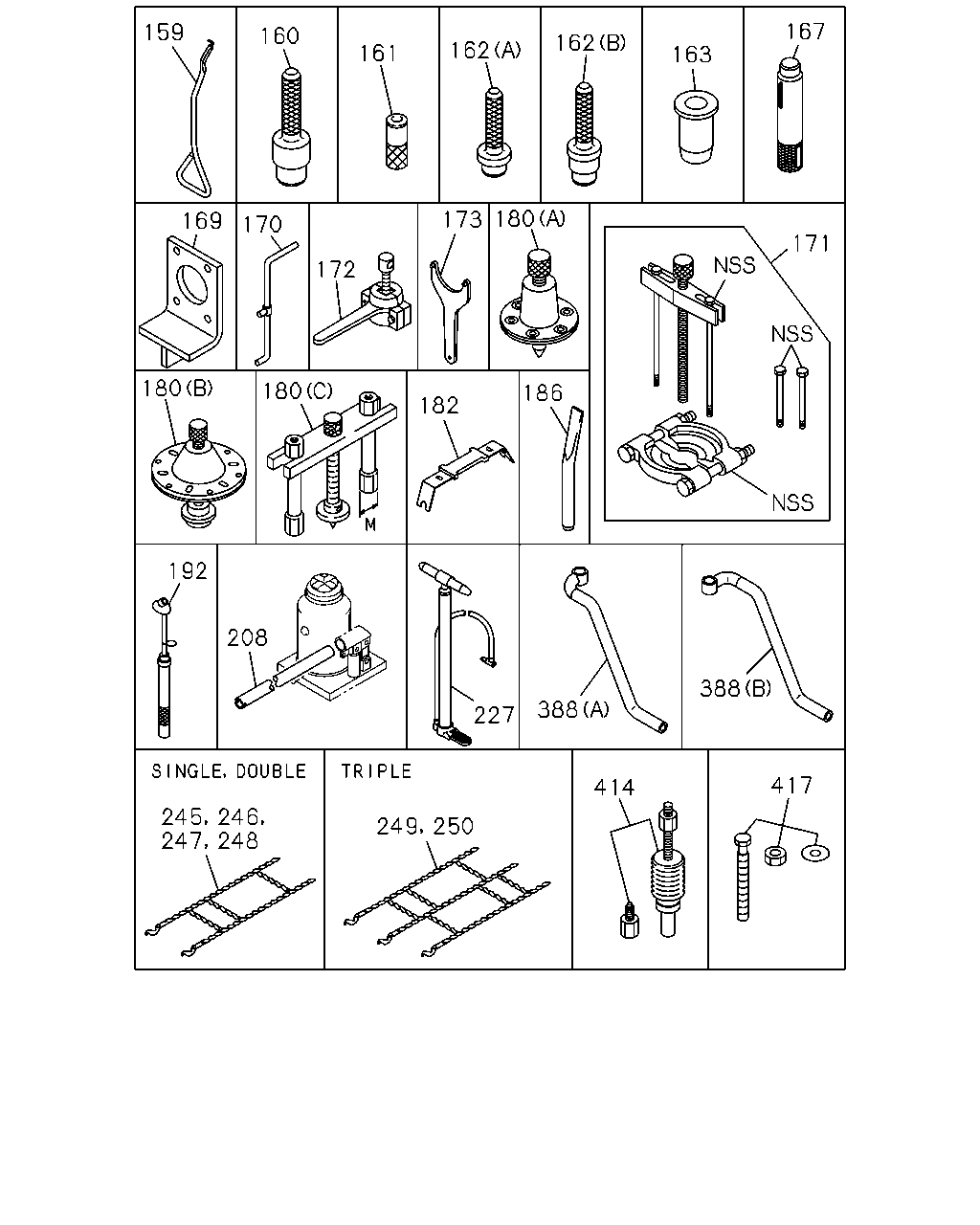

167 159 160 162 162 161 163 180 173 169 170 171 172 180 180 186 182 192 208 388 388 227 417 414 245 246 247 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	REMOVER; RETURN SPR	1-85237-023-0	01	1	0407-0511	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0407-0511	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0512-		●
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0407-0511	●
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0512-		●
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0407-0511	●
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0512-		●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0407-0511	●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0512-		●
163	TOOL; SETTING MJX16P M/T(Y3Z) L=195	1-85221-162-1	01	1	0512-		●
163	TOOL; SETTING L=195	1-85221-162-1	01	1	0407-0511	●
163	TOOL; SETTING L=150	9-85221-248-0	01	1	0407-0511	●
167	ALIGNER; CLU PILOT L=300 OD=52.5	1-85253-025-0	01	1	0407-0511	●
167	ALIGNER; CLU PILOT MJX16P M/T(Y3Z) L=300 OD=52.5	1-85253-025-0	01	1	0512-		●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0407-0511	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0512-		●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0407-0511	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0407-0511	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0512-		●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0407-0511	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0512-		●
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	0407-0511	●
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	0512-		●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0407-0511	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0512-		●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0407-0511	●
180	PULLER; FRT & RR HUB (C) M22	1-85210-049-0	01	1	0407-0511	●
182	REMOVER ASM	1-85239-008-0	01	1	0407-0511	●
182	REMOVER ASM	1-85239-008-0	01	1	0512-		●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0407-0511	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0512-		●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0407-0511	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0512-		●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0407-0511	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0512-1107		●
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-		●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0407-0511	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0512-		●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0407-0511	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0512-		●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0407-0511	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0512-		●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0407-0511	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0512-		●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0407-0511	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0512-		●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0407-0511	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0512-		●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0407-0511	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0512-		●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0407-0511	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0512-		●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0407-0511	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0512-		●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0407-0511	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0512-		●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0407-0511	●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0512-		●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0407-0511	●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0512-		●
414	PULLER; REV IDLE SHAFT	9-85210-095-0	01	1	0407-0511	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0407-0511	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0512-		●

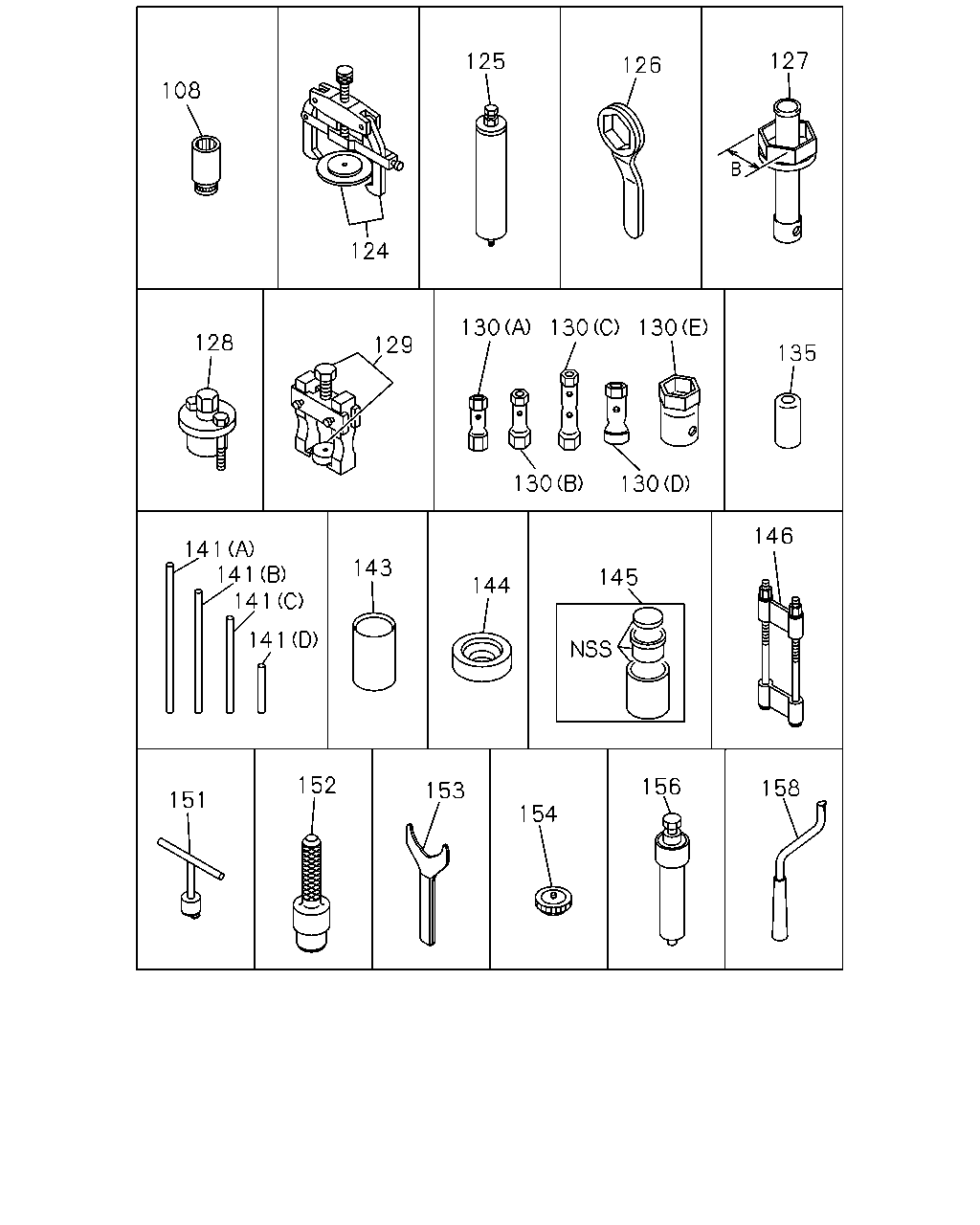

127 125 126 108 124 130 130 130 128 129 135 130 130 146 141 141 141 143 145 144 141 152 156 158 153 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
108	WRENCH; SOCKET	9-85113-132-0	01	1	0407-0511	●
108	WRENCH; SOCKET	9-85113-132-0	01	1	0512-		●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0407-0511	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0512-		●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0407-0511	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0512-		●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	0407-0511	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	0512-		●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0407-0511	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0512-0808		●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	0809-		●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0407-0511	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0512-		●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0407-0511	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0512-		●
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0407-0511	●
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0512-		●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0407-0511	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0407-0511	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0407-0511	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0407-0511	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0407-0511	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0512-		●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0407-0511	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0512-1501		●
141	HANDLE; WRENCH (A) OD=25 L=480	8-98257-407-0	01	1	1502-		●
141	HANDLE; WRENCH (D) OD=16 L=200	9-85111-934-0	01	1	0407-0511	●
141	HANDLE; WRENCH (D) OD=16 L=200	9-85111-934-0	01	1	0512-		●
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	0407-0511	●
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0407-0511	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0407-0511	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0512-		●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0407-0511	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0512-		●
145	REPLACER ASM; BUSHING	1-85230-008-0	02	1	0407-0511	●
145	REPLACER ASM; BUSHING	1-85230-008-0	02	1	0512-		●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0407-0511	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0512-		●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0407-0511	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0512-		●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0407-0511	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0512-		●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0407-0511	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0512-		●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0407-0511	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0512-		●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0407-0511	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0512-		●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0407-0511	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0512-		●

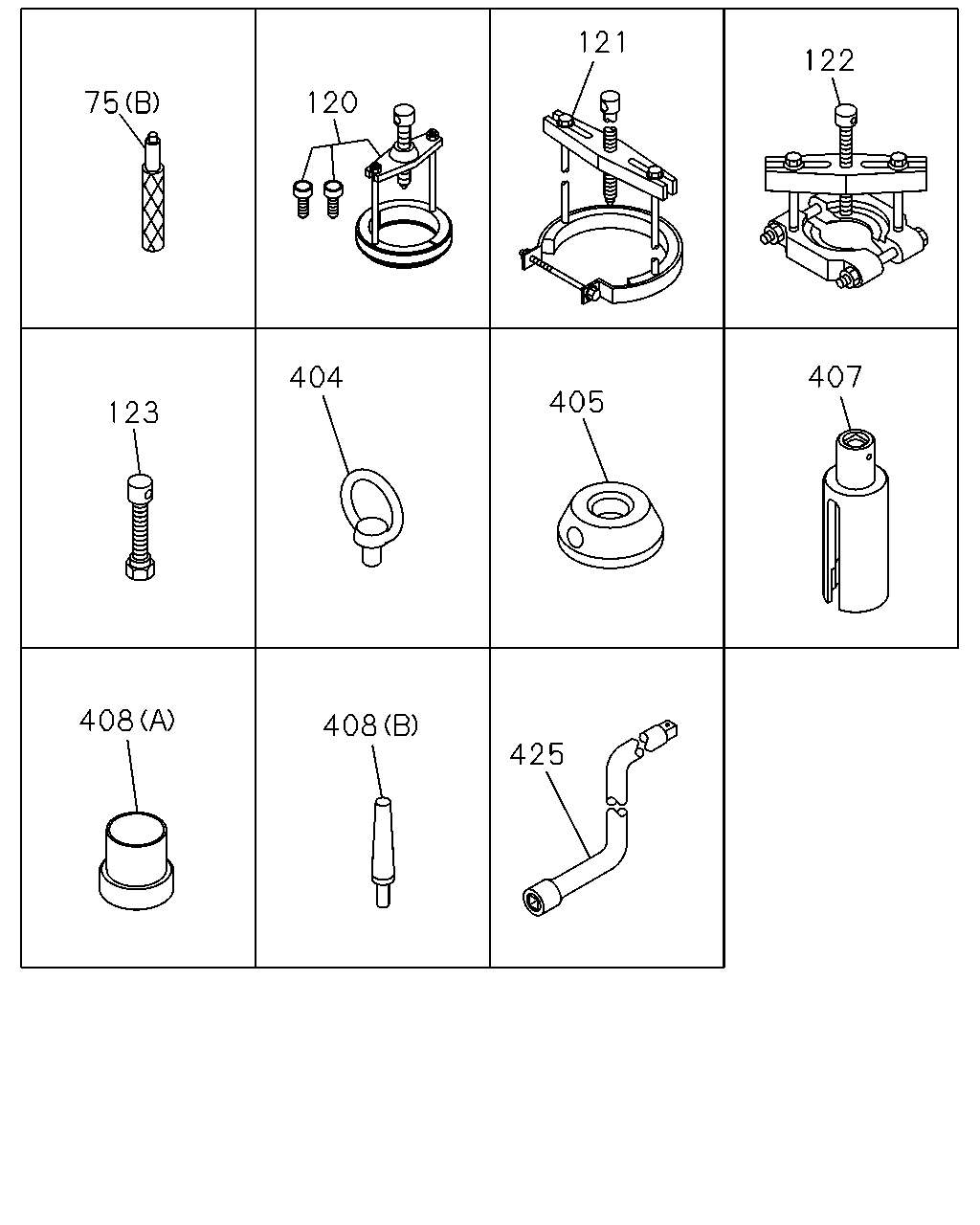

121 122 120 75 407 404 405 123 408 408 425

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	TOOL; SETTING,OIL SEAL (A)	1-85220-049-0	AR	1	0407-0511	●
75	TOOL; SETTING,OIL SEAL (B)	1-85221-096-0	01	1	0407-0511	●
75	TOOL; SETTING,OIL SEAL MJX16P M/T(Y3Z) (B)	1-85221-096-0	01	1	0512-		●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0407-0511	●
120	PULLER ASM; MAIN REAR BRG MJX16P M/T(Y3Z) L=285	9-85210-184-0	01	1	0512-		●
121	PULLER ASM; COUNTER REAR	1-85210-069-0	01	1	0407-0511	●
121	PULLER ASM; COUNTER REAR MJX16P M/T(Y3Z)	1-85210-069-0	01	1	0512-		●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	0407-0511	●
122	PULLER ASM; COUNTER FRT MJX16P M/T(Y3Z)	9-85210-195-0	01	1	0512-		●
123	PULLER; SPEEDOMETER BUSHING	9-85210-181-0	01	1	0407-0511	●
404	TOOL; SETTING,MAIN COUNTER	1-85221-262-0	02	1	0407-0511	●
404	TOOL; SETTING,MAIN COUNTER MJX16P M/T(Y3Z)	1-85221-262-0	02	1	0512-		●
405	GUIDE; COUNTER	1-85221-264-0	01	1	0407-0511	●
405	GUIDE; COUNTER MJX16P M/T(Y3Z)	1-85221-264-0	01	1	0512-		●
407	SOCKET; SW	1-85221-267-1	01	1	0407-0511	●
407	SOCKET; SW MJX16P M/T(Y3Z)	1-85221-267-1	01	1	0512-		●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0407-0511	●
408	TOOL; SETTING,SHIFT ASSISTER MJX16P M/T(Y3Z) (A)	1-85221-268-0	01	1	0512-		●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0407-0511	●
408	TOOL; SETTING,SHIFT ASSISTER MJX16P M/T(Y3Z) (B)	1-85221-269-0	01	1	0512-		●
425	EXTENSION; T/M MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=500	8-98300-004-0	01	1	1602-		●
425	EXTENSION; T/M MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550	1-85221-321-0	01	1	0512-1601		●
425	EXTENSION; T/M MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550	8-98300-006-0	01	1	1602-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
