◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#2870) — 104 parça
çizim 93696
1 10 14 20 19 1 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-162-1 02 1 9002-9011 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9012-9402 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-146-1 02 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-146-1 01 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9012- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9012- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006- ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002- ● ●
15 MEMBER; CROSS,SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-241-0 02 1 9002- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53631-201-0 02 1 9002- ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 W/LK WASHER 		9-01911-035-0 08 1 9002-9002 ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 W/LK WASHER 		0-50041-035-0 08 1 9003- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X28 		9-01911-028-0 08 1 9002-9002 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X28 W/LK WASHER 		0-50041-028-0 08 1 9003- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9002- ●

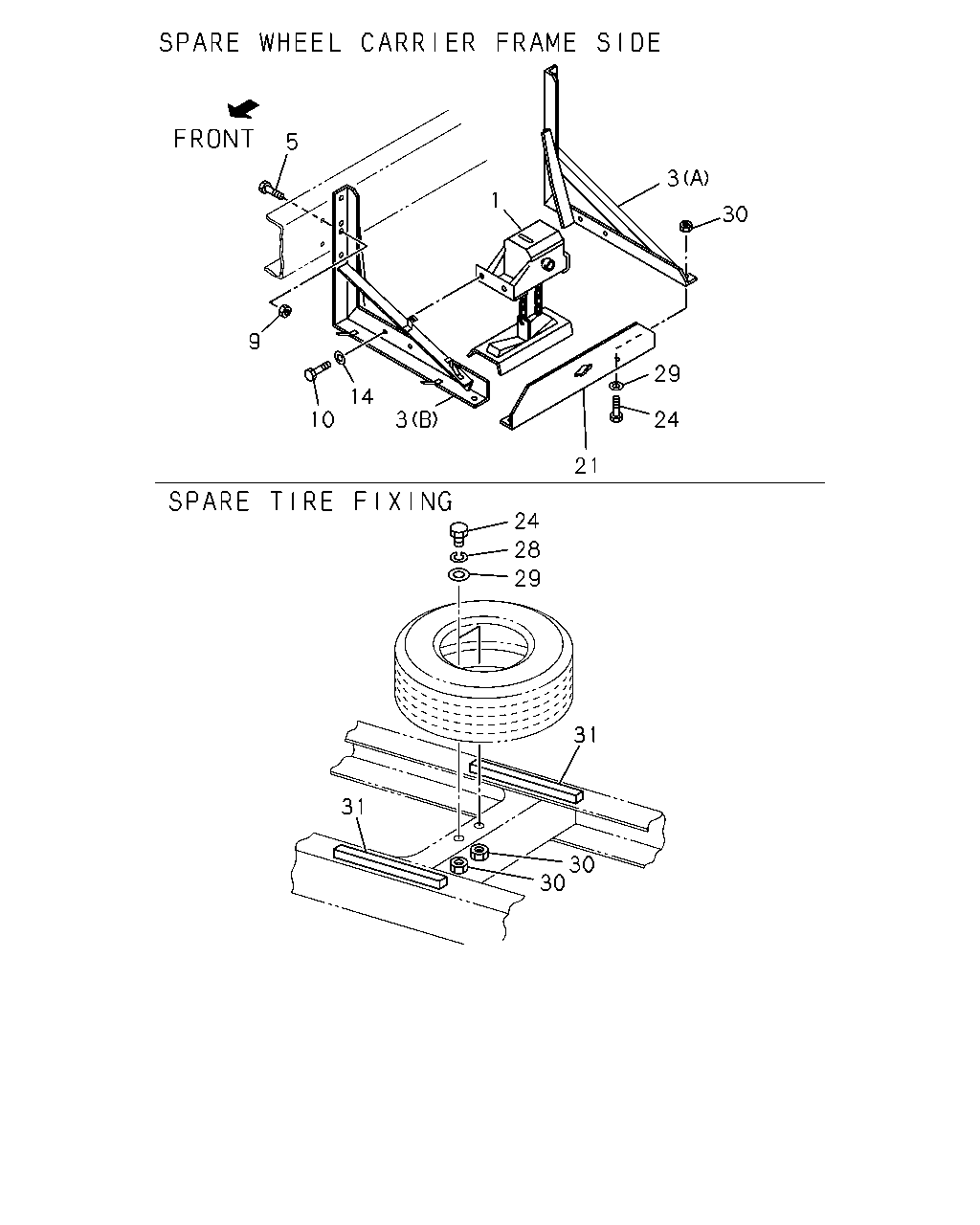

çizim 96108
30 30 31 31 29 28 24 21 24 29 1 30 3 3 14 10 9 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-162-1 02 1 9002-9011 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9012-9402 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-146-1 02 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-146-1 01 1 9403- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9012- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9012- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) 		1-53631-176-8 01 1 9307-9310 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-53631-207-0 01 1 9307- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-53631-207-0 01 1 9307- ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-207-0 01 1 9307- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> (A) 		1-53631-276-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> (B) 		1-53631-277-0 01 1 9002- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-53631-176-8 01 1 9002-9206 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-53631-176-8 01 1 9207-9306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-53631-176-8 01 1 9207-9306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) 		1-53631-207-0 01 1 9002-9206 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) 		1-53631-207-0 01 1 9207-9306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) 		1-53631-207-0 01 1 9207-9306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-53631-337-0 01 1 9307-9310 ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-337-0 01 1 9307-9310 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) 		1-53631-337-0 01 1 9311- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) 		1-53631-337-0 01 1 9311- ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-337-0 01 1 9311- ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 		9-01911-240-0 06 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9006-9206 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9207-9306 ●
5 BOLT; BRKT TO FRAME
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9207-9306 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X35 		9-01911-235-0 06 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X35 W/LK WASHER 		0-50041-235-0 06 1 9006-9306 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 		9-01911-240-0 04 1 9002-9005 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9006-9306 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9307-9307 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9307-9307 ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 W/LK WASHER 		0-50041-240-0 06 1 9307-9307 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 FLANGE 		0-28081-240-0 06 1 9308- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X40 FLANGE 		0-28081-240-0 06 1 9308- ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28081-240-0 06 1 9308- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9307-9307 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M12X40 FLANGE 		0-28081-240-0 04 1 9308- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-412-0 04 1 9002-9206 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-412-0 06 1 9207-9304 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-412-0 06 1 9207-9304 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-512-0 06 1 9305-9306 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-512-0 06 1 9305-9306 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M12 		9-99110-512-0 04 1 9307- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-412-0 06 1 9002-9206 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M12 		9-99110-412-0 04 1 9207-9304 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M12 		9-99110-512-0 04 1 9305-9306 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-512-0 06 1 9307- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12 		9-99110-512-0 06 1 9307- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9307- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006- ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53631-128-1 01 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53631-128-1 01 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9307- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53631-278-1 01 1 9002-9206 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> 		1-53631-278-1 01 1 9207- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53631-128-1 01 1 9002-9206 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53631-128-1 01 1 9207-9306 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53631-128-1 01 1 9207-9306 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9307-9307 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9307-9307 ●
24 BOLT; SPARE TIRE
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9307-9307 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 FLANGE 		0-28081-225-0 02 1 9308- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 FLANGE 		0-28081-225-0 02 1 9308- ●
24 BOLT; SPARE TIRE
WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 02 1 9308- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X25 W/LK WASHER 		9-01910-825-0 04 1 9002-9005 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9006-9302 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M8X25 FLANGE 		0-28080-825-0 04 1 9303-9306 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 		9-01911-225-0 02 1 9002-9005 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9006-9206 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9207-9306 ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9207-9306 ●
24 BOLT; SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE TIRE FIXING<RE3> M14X100 		9-92046-400-0 02 1 9002-9305 ● ●
24 BOLT; SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE TIRE FIXING<RE3> M14X100 		0-20801-400-0 02 1 9306- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X80 		9-92041-480-0 02 1 9002-9204 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X80 		0-20801-480-0 02 1 9205- ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9002- ● ●
29 WASHER; PL,BRKT,HANGER
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 08 1 9002- ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 OD=52 		9-09164-414-0 02 1 9002- ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> M8 		9-09110-408-0 04 1 9002- ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14 		9-99110-414-0 02 1 9002- ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 9002- ● ●
