1 |

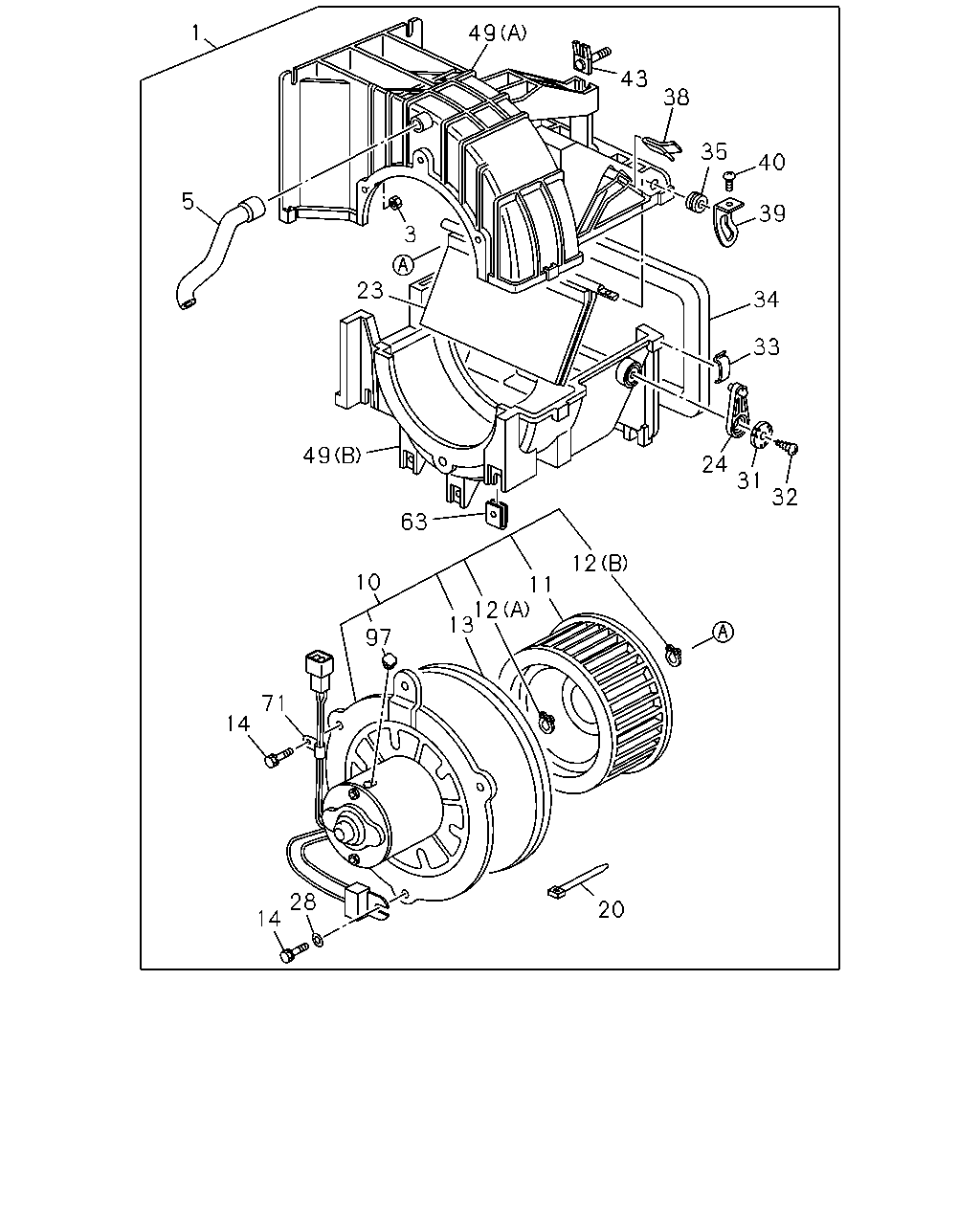

BLOWER ASM
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83561-048-3 |
01 |
1 |
9212- |
| |
3 |
NUT; CASE
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-94233-154-0 |
04 |
1 |
9212- |
| |
5 |
HOSE; AIR
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83563-109-0 |
01 |
1 |
9212- |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83561-060-1 |
01 |
1 |
9212- |
| |
11 |
IMPELLER; FAN MOTOR
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-082-0 |
01 |
1 |
9212- |
| |
12 |
RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
5-83569-088-0 |
01 |
1 |
9212- |
| |
12 |
RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
8-94243-962-0 |
01 |
1 |
9212- |
| |
13 |
LINING; BLOWER UNIT
AIR CON MANUAL CONTROL(C60)
|
8-94243-963-0 |
01 |
1 |
9212- |
| |
13 |
LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
8-94233-165-0 |
01 |
1 |
9212- |
| |
14 |
SCREW; COVER TO CASE
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X25
|
5-15729-279-0 |
04 |
1 |
9212- |
| |
20 |
BAND; CLIP,BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-263-0 |
01 |
1 |
9212- |
| |
23 |
SHUTTER; BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-192-1 |
01 |
1 |
9212- |
| |
24 |
LEVER; CASE
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83564-189-0 |
01 |
1 |
9212- |
| |
28 |
WASHER; PL,FAN MOTOR
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
ID=5.3 OD=12
|
9-09160-605-0 |
01 |
1 |
9212- |
| |
31 |
WASHER; LEVER
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-095-0 |
01 |
1 |
9212- |
| |
32 |
SCREW; LEVER
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X16
|
8-94248-820-0 |
01 |
1 |
9212- |
| |
33 |
CLIP; BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-148-0 |
06 |
1 |
9212- |
| |
34 |
LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-286-0 |
01 |
1 |
9212- |
| |
35 |
BUSHING; LEVER
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83576-028-0 |
01 |
1 |
9212- |
| |
38 |
CLIP; BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-149-0 |
01 |
1 |
9212- |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83564-190-0 |
01 |
1 |
9212- |
| |
40 |
SCREW; LEVER,BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
5-83571-160-0 |
01 |
1 |
9212- |
| |
43 |
BOLT; CASE
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-175-0 |
03 |
1 |
9212- |
| |
49 |
CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83563-107-0 |
01 |
1 |
9212- |
| |
49 |
CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83563-108-0 |
01 |
1 |
9212- |
| |
63 |
NUT; CLIP,CASE
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M6 FLANGE
|
1-09466-001-0 |
03 |
1 |
9212- |
| |
71 |
CLIP; HARNESS
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-080-0 |
01 |
1 |
9212- |
| |
97 |
PLUG; FAN MOTOR
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-248-0 |
01 |
1 |
9212- |
