1 |

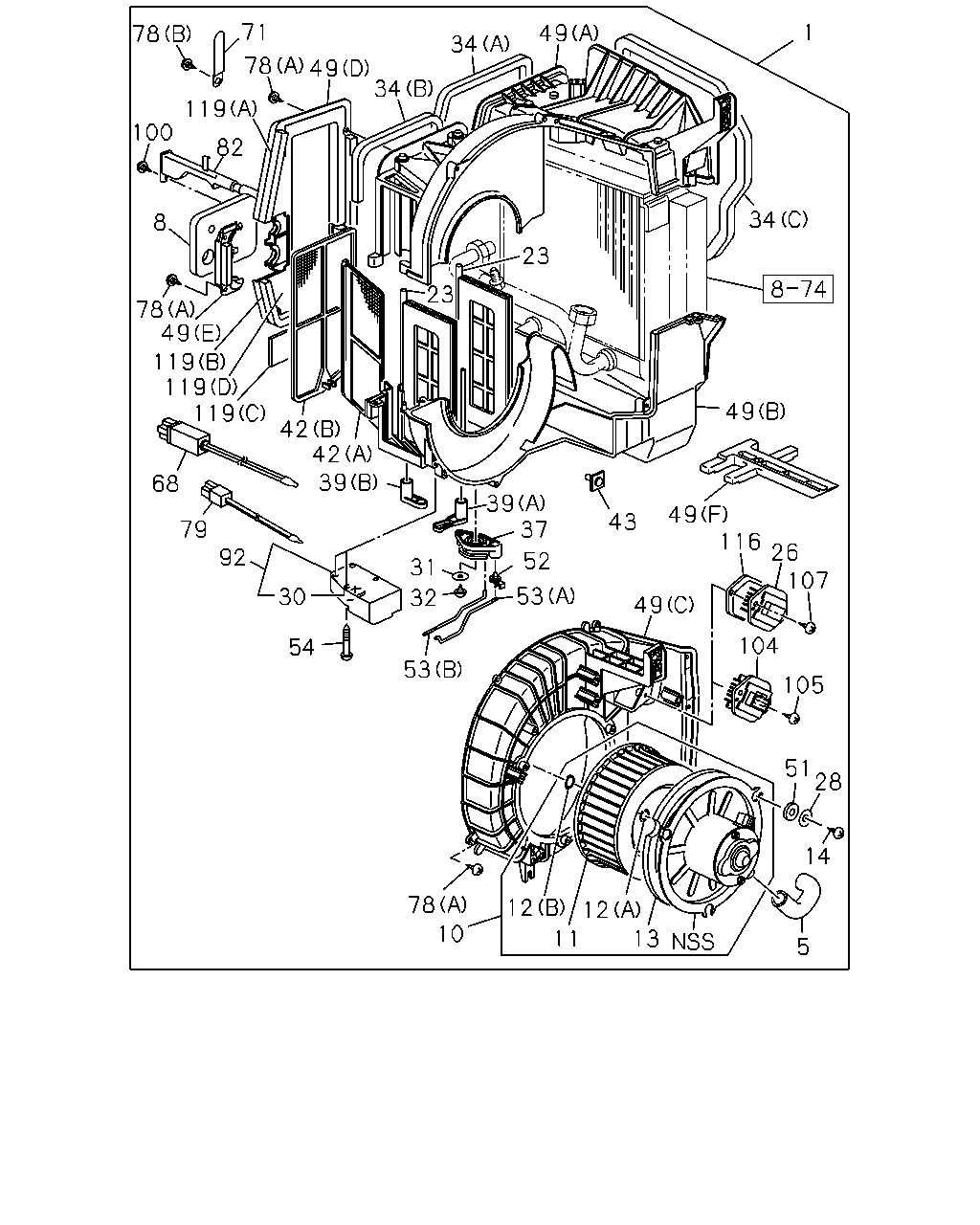

BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-182-0 |
01 |
1 |
0407-0511 |
● |
|
| |
1 |
BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83561-154-3 |
01 |
1 |
0407-0511 |
● |
|
| |
1 |
BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83561-154-5 |
01 |
1 |
0512- |
|
● |
| |
5 |
HOSE; AIR
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83563-140-0 |
01 |
1 |
0407-0511 |
● |
|
| |
5 |
HOSE; AIR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83563-140-0 |
01 |
1 |
0512- |
|
● |
| |
8 |
SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83539-261-1 |
01 |
1 |
0407-0511 |
● |
|
| |
8 |
SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83539-261-1 |
01 |
1 |
0512- |
|
● |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83561-161-0 |
01 |
1 |
0407-0511 |
● |
|
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83561-161-0 |
01 |
1 |
0512- |
|
● |
| |
11 |
IMPELLER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-635-0 |
01 |
1 |
0407-0511 |
● |
|
| |
11 |
IMPELLER; FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-635-0 |
01 |
1 |
0512- |
|
● |
| |
12 |
RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
5-83569-088-0 |
01 |
1 |
0407-0511 |
● |
|
| |
12 |
RING; SNAP,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
5-83569-088-0 |
01 |
1 |
0512- |
|
● |
| |
12 |
RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
8-94243-962-0 |
01 |
1 |
0407-0511 |
● |
|
| |
12 |
RING; SNAP,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
8-94243-962-0 |
01 |
1 |
0512- |
|
● |
| |
13 |
LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-636-0 |
01 |
1 |
0407-0511 |
● |
|
| |
13 |
LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-636-0 |
01 |
1 |
0512- |
|
● |
| |
14 |
SCREW; COVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M5X20
|
9-09829-324-1 |
03 |
1 |
0512- |
|
● |
| |
14 |
SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60)
M5X20
|
9-09829-324-1 |
03 |
1 |
0407-0511 |
● |
|
| |
14 |
SCREW; COVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
8-97130-601-0 |
03 |
1 |
0407-0511 |
● |
|
| |
23 |
SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-797-0 |
02 |
1 |
0407-0511 |
● |
|
| |
23 |
SHUTTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-637-0 |
02 |
1 |
0407-0511 |
● |
|
| |
23 |
SHUTTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-637-0 |
02 |
1 |
0512- |
|
● |
| |
26 |
TRANSISTOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-654-0 |
01 |
1 |
0407-0511 |
● |
|
| |
26 |
TRANSISTOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-654-0 |
01 |
1 |
0512- |
|
● |
| |
28 |
WASHER; PL,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-170-0 |
03 |
1 |
0407-0511 |
● |
|
| |
28 |
WASHER; PL,FAN MOTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-170-0 |
03 |
1 |
0512- |
|
● |
| |
30 |
LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83564-345-1 |
01 |
1 |
0407-0511 |
● |
|
| |
30 |
LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83564-345-1 |
01 |
1 |
0512- |
|
● |
| |
31 |
WASHER; LEVER
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-095-0 |
01 |
1 |
0407-0511 |
● |
|
| |
31 |
WASHER; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-095-0 |
01 |
1 |
0512- |
|
● |
| |
32 |
SCREW; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M5X20
|
9-09829-324-1 |
01 |
1 |
0512- |
|
● |
| |
32 |
SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60)
M5X20
|
9-09829-324-1 |
01 |
1 |
0407-0511 |
● |
|
| |
32 |
SCREW; LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
8-97130-601-0 |
01 |
1 |
0407-0511 |
● |
|
| |
34 |
LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
1-83579-633-2 |
01 |
1 |
0407-0511 |
● |
|
| |
34 |
LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83579-633-2 |
01 |
1 |
0512- |
|
● |
| |
34 |
LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
1-83579-634-2 |
01 |
1 |
0407-0511 |
● |
|
| |
34 |
LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83579-634-2 |
01 |
1 |
0512- |
|
● |
| |
34 |
LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(C)
|
1-83579-644-0 |
01 |
1 |
0407-0511 |
● |
|
| |
34 |
LINING; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(C)
|
1-83579-644-0 |
01 |
1 |
0512- |
|
● |
| |
37 |
LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83564-344-0 |
01 |
1 |
0407-0511 |
● |
|
| |
37 |
LEVER; MODE LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83564-344-0 |
01 |
1 |
0512- |
|
● |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
1-83564-342-0 |
01 |
1 |
0407-0511 |
● |
|
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83564-342-0 |
01 |
1 |
0512- |
|
● |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
1-83564-343-0 |
01 |
1 |
0407-0511 |
● |
|
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83564-343-0 |
01 |
1 |
0512- |
|
● |
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
1-83579-643-2 |
01 |
1 |
0407-0511 |
● |
|
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83579-643-3 |
01 |
1 |
0512- |
|
● |
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
1-83579-993-0 |
02 |
1 |
0407-0511 |
● |
|
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83579-993-0 |
02 |
1 |
0512- |
|
● |
| |
43 |
BOLT; CASE
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-657-2 |
04 |
1 |
0407-0511 |
● |
|
| |
43 |
BOLT; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-657-2 |
04 |
1 |
0512- |
|
● |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83564-336-6 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(C)
|
1-83564-337-4 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(C)
|
1-83564-337-4 |
01 |
1 |
0512- |
|
● |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(E)
|
1-83564-339-1 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(E)
|
1-83564-339-1 |
01 |
1 |
0512- |
|
● |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(F)
|
1-83564-340-1 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(F)
|
1-83564-340-1 |
01 |
1 |
0512- |
|
● |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
1-83564-351-1 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83564-351-1 |
01 |
1 |
0512- |
|
● |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(D)
|
1-83564-353-1 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(D)
|
1-83564-353-1 |
01 |
1 |
0512- |
|
● |
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
1-83564-406-1 |
01 |
1 |
0407-0511 |
● |
|
| |
49 |
CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83564-406-1 |
01 |
1 |
0512- |
|
● |
| |
51 |
ISOLATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-496-0 |
03 |
1 |
0407-0511 |
● |
|
| |
51 |
ISOLATOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-496-0 |
03 |
1 |
0512- |
|
● |
| |
52 |
CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
8-94248-794-0 |
02 |
1 |
0407-0511 |
● |
|
| |
52 |
CLIP; LEVER TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-94248-794-0 |
02 |
1 |
0512- |
|
● |
| |
53 |
ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
1-83579-638-0 |
01 |
1 |
0407-0511 |
● |
|
| |
53 |
ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83579-638-0 |
01 |
1 |
0512- |
|
● |
| |
53 |
ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
1-83579-639-0 |
01 |
1 |
0407-0511 |
● |
|
| |
53 |
ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83579-639-0 |
01 |
1 |
0512- |
|
● |
| |
54 |
SCREW; ACTUATOR TO CASE
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
8-94348-809-0 |
02 |
1 |
0407-0511 |
● |
|
| |
54 |
SCREW; ACTUATOR TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
8-94348-809-0 |
02 |
1 |
0512- |
|
● |
| |
68 |
THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83544-026-1 |
01 |
1 |
0407-0511 |
● |
|
| |
71 |
CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83574-080-0 |
01 |
1 |
0407-0511 |
● |
|
| |
71 |
CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83574-080-0 |
01 |
1 |
0512- |
|
● |
| |
78 |
SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
M4X16
|
8-94324-850-0 |
17 |
1 |
0407-0511 |
● |
|
| |
78 |
SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
M4X16
|
8-94324-850-0 |
17 |
1 |
0512- |
|
● |
| |
78 |
SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
M5X10 TAPPING W/PL WASHER
|
0-74300-510-0 |
01 |
1 |
0407-0511 |
● |
|
| |
78 |
SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
M5X10 TAPPING W/PL WASHER
|
0-74300-510-0 |
01 |
1 |
0512- |
|
● |
| |
79 |
SENSOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83544-037-0 |
01 |
1 |
0407-0511 |
● |
|
| |
79 |
SENSOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83544-037-0 |
01 |
1 |
0512- |
|
● |
| |
82 |
BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83571-871-1 |
01 |
1 |
0407-0511 |
● |
|
| |
82 |
BRACKET; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83571-871-1 |
01 |
1 |
0512- |
|
● |
| |
92 |
ACTUATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-640-1 |
01 |
1 |
0407-0511 |
● |
|
| |
92 |
ACTUATOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-640-1 |
01 |
1 |
0512- |
|
● |
| |
100 |
SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
M4X16
|
8-94324-850-0 |
01 |
1 |
0407-0511 |
● |
|
| |
100 |
SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M4X16
|
8-94324-850-0 |
01 |
1 |
0512- |
|
● |
| |
104 |
RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83519-093-0 |
01 |
1 |
0407-0511 |
● |
|
| |
105 |
SCREW; RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60)
M4X16
|
8-94324-850-0 |
02 |
1 |
0407-0511 |
● |
|
| |
107 |
SCREW; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
M4X16
|
8-94324-850-0 |
02 |
1 |
0407-0511 |
● |
|
| |
107 |
SCREW; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
M4X16
|
8-94324-850-0 |
02 |
1 |
0512- |
|
● |
| |
116 |
SEAL; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
|
1-83579-656-0 |
01 |
1 |
0407-0511 |
● |
|
| |
116 |
SEAL; TRANSISTOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
|
1-83579-656-0 |
01 |
1 |
0512- |
|
● |
| |
119 |
LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60)
(D)
|
1-83579-673-2 |
01 |
1 |
0407-0511 |
● |
|
| |
119 |
LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(A)
|
1-83579-670-1 |
01 |
1 |
0407-0511 |
● |
|
| |
119 |
LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(A)
|
1-83579-670-1 |
01 |
1 |
0512- |
|
● |
| |
119 |
LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60),AIR
CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(B)
|
1-83579-671-1 |
01 |
1 |
0407-0511 |
● |
|
| |
119 |
LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(B)
|
1-83579-671-1 |
01 |
1 |
0512- |
|
● |
| |
119 |
LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(D)
|
1-83578-032-0 |
01 |
1 |
0407-0511 |
● |
|
| |
119 |
LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(D)
|
1-83578-032-0 |
01 |
1 |
0512- |
|
● |
| |
119 |
LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)
(C)
|
1-83579-961-0 |
01 |
1 |
0407-0511 |
● |
|
| |
119 |
LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR
CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)
(C)
|
1-83579-961-0 |
01 |
1 |
0512- |
|
● |
