8-60 — HEATER UNIT; FRONT (#28697) — 191 parça

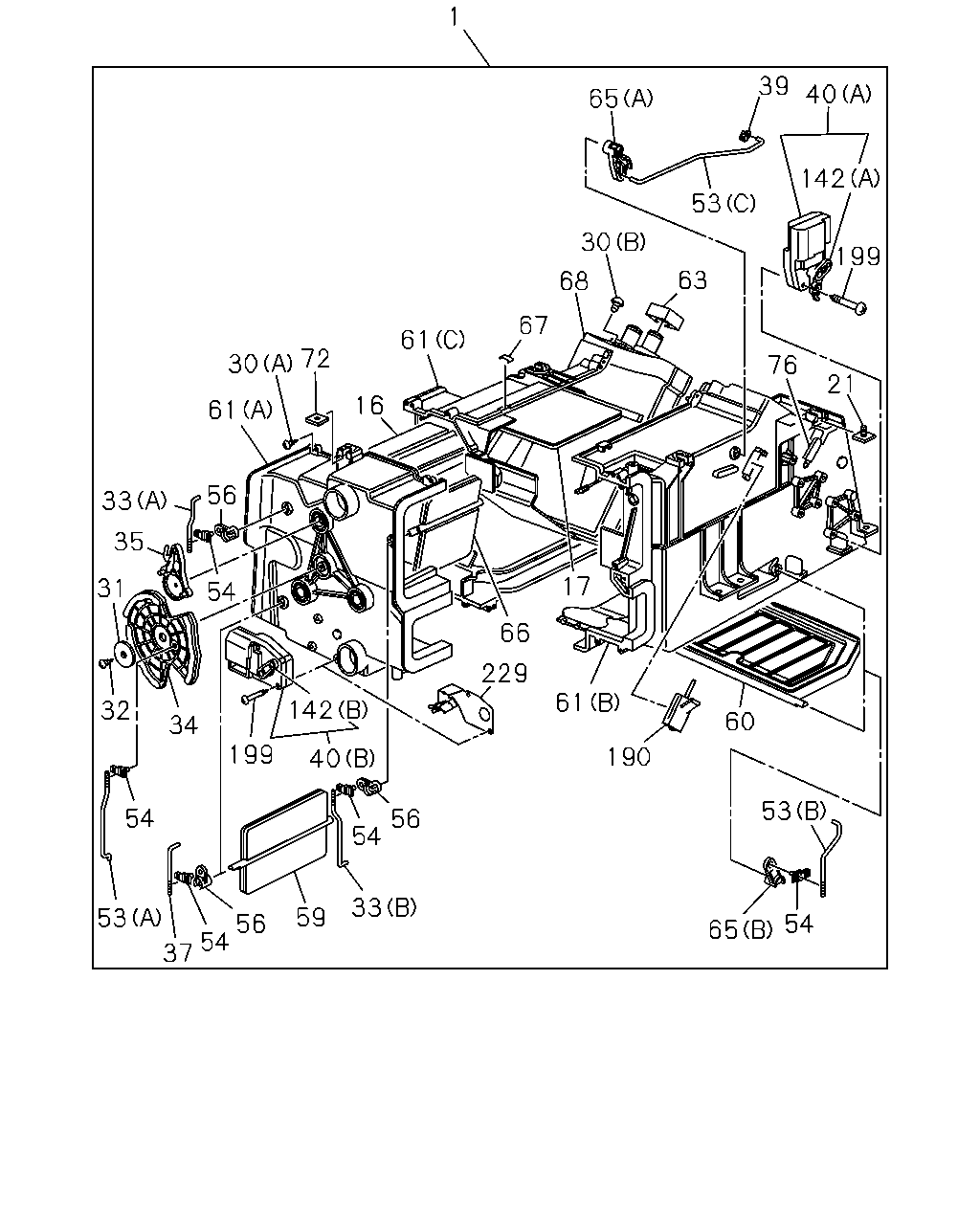

1 39 40 65 142 53 30 199 63 68 67 61 72 30 76 21 16 61 56 33 35 17 31 54 66 142 229 61 32 60 34 199 190 40 53 54 56 54 33 59 53 56 54 37 54 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0407-0511	●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83511-184-1	01	1	0512-1409		●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-482-0	01	1	1410-		●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	0407-0511	●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	0512-1409		●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98238-480-0	01	1	1410-		●
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-625-1	01	1	0407-0511	●
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	0512-		●
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-628-1	01	1	0407-0511	●
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	0512-		●
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-657-2	02	1	0407-0511	●
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	0512-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M4X16	8-94324-850-0	12	1	0407-0511	●
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	12	1	0512-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X20	9-09829-324-1	01	1	0407-0511	●
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20	9-09829-324-1	01	1	0512-1409		●
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X16	8-94248-820-0	01	1	1410-		●
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94129-950-0	01	1	0407-0511	●
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	0512-		●
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X20	9-09829-324-1	01	1	0407-0511	●
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0512-1409		●
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-		●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-619-0	01	1	0407-0511	●
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	0512-		●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-621-0	01	1	0407-0511	●
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	0512-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-326-0	01	1	0407-0511	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	0512-		●
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94389-502-1	03	1	0407-0511	●
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	0512-		●
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-620-1	01	1	0407-0511	●
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	0512-		●
39	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-136-0	01	1	0407-0511	●
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	0512-		●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	0407-0511	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	0512-		●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-650-1	01	1	0407-0511	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	0512-		●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	0407-0511	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	0512-		●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-622-0	01	1	0407-0511	●
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	0512-		●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-623-0	01	1	0407-0511	●
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	0512-		●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-624-0	01	1	0407-0511	●
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	0512-		●
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94248-794-0	05	1	0407-0511	●
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	0512-		●
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-325-0	03	1	0407-0511	●
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	0512-		●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-626-2	01	1	0407-0511	●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	0512-		●
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83578-084-0	01	1	0407-0511	●
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83564-346-3	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	0512-		●
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-557-0	02	1	0407-0511	●
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	0512-		●
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-327-0	01	1	0407-0511	●
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	0512-		●
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-328-1	01	1	0407-0511	●
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	0512-		●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	0407-0511	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-680-0	01	1	0407-0511	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	0512-		●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-148-0	01	1	0407-0511	●
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	0512-		●
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83562-078-1	01	1	0407-0511	●
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	0512-1409		●
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-		●
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-659-4	02	1	0407-0511	●
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	0512-		●
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-874-0	01	1	0407-0511	●
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	0512-		●
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	0407-0511	●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	0512-		●
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-414-0	01	1	0407-0511	●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	0512-		●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	0407-0511	●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	0512-		●
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-658-1	01	1	0407-0511	●
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	0512-		●
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94348-809-0	04	1	0407-0511	●
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	0512-		●
229	SWITCH ASM; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-688-2	01	1	0407-0511	●
229	SWITCH ASM; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-688-2	01	1	0512-1409		●

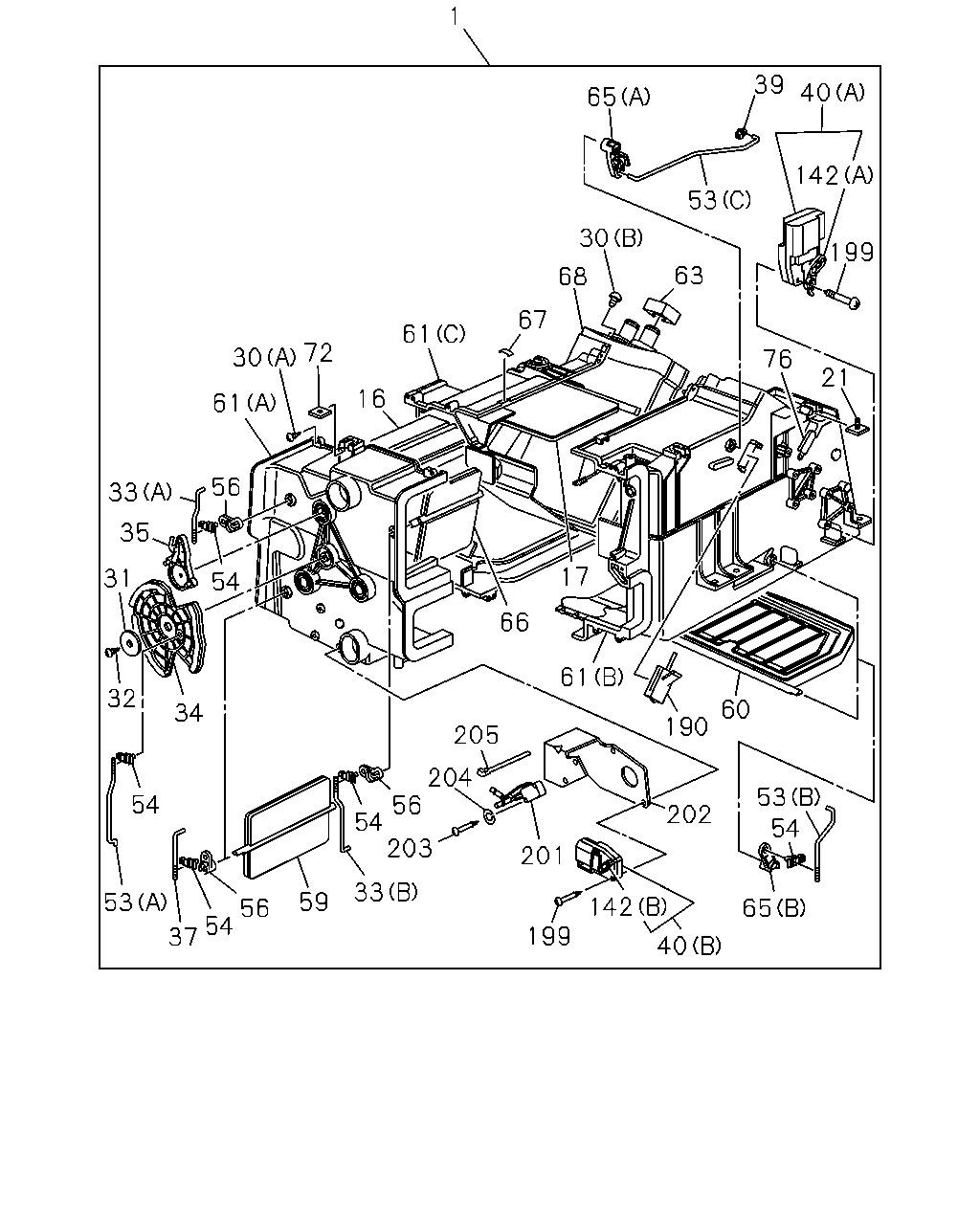

1 65 39 40 142 199 53 63 76 21 30 68 67 61 72 16 30 61 56 33 35 54 31 32 34 54 53 37 54 56 59 33 203 54 56 205 204 201 142 199 40 65 54 53 202 190 60 61 66 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0407-0511	●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83511-184-1	01	1	0512-1409		●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-482-0	01	1	1410-		●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	0407-0511	●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	0512-1409		●
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98238-480-0	01	1	1410-		●
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-625-1	01	1	0407-0511	●
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	0512-		●
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-628-1	01	1	0407-0511	●
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	0512-		●
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-657-2	02	1	0407-0511	●
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	0512-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M4X16	8-94324-850-0	12	1	0407-0511	●
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	12	1	0512-		●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X20	9-09829-324-1	01	1	0407-0511	●
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20	9-09829-324-1	01	1	0512-1409		●
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X16	8-94248-820-0	01	1	1410-		●
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94129-950-0	01	1	0407-0511	●
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	0512-		●
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X20	9-09829-324-1	01	1	0407-0511	●
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0512-1409		●
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-		●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-619-0	01	1	0407-0511	●
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	0512-		●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-621-0	01	1	0407-0511	●
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	0512-		●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-326-0	01	1	0407-0511	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	0512-		●
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94389-502-1	03	1	0407-0511	●
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	0512-		●
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-620-1	01	1	0407-0511	●
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	0512-		●
39	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-136-0	01	1	0407-0511	●
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	0512-		●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	0407-0511	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	0512-		●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-650-1	01	1	0407-0511	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	0512-		●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	0407-0511	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	0512-		●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-622-0	01	1	0407-0511	●
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	0512-		●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-623-0	01	1	0407-0511	●
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	0512-		●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-624-0	01	1	0407-0511	●
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	0512-		●
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94248-794-0	05	1	0407-0511	●
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	0512-		●
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-325-0	03	1	0407-0511	●
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	0512-		●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-626-2	01	1	0407-0511	●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	0512-		●
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83578-084-0	01	1	0407-0511	●
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83564-346-3	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	0512-		●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	0407-0511	●
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	0512-		●
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-557-0	02	1	0407-0511	●
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	0512-		●
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-327-0	01	1	0407-0511	●
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	0512-		●
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-328-1	01	1	0407-0511	●
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	0512-		●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	0407-0511	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-680-0	01	1	0407-0511	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	0512-		●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-148-0	01	1	0407-0511	●
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	0512-		●
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83562-078-1	01	1	0407-0511	●
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	0512-1409		●
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-		●
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-659-4	02	1	0407-0511	●
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	0512-		●
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-874-0	01	1	0407-0511	●
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	0512-		●
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	0407-0511	●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	0512-		●
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-414-0	01	1	0407-0511	●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	0512-		●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	0407-0511	●
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	0512-		●
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-658-1	01	1	0407-0511	●
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	0512-		●
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94348-809-0	04	1	0407-0511	●
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	0512-		●
201	SWITCH; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-679-1	01	1	1410-		●
202	BRACKET; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-907-1	01	1	1410-		●
203	SCREW; MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	5-83569-141-0	02	1	1410-		●
204	WASHER; LK,MICRO SWITCH AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1	9-09150-503-0	02	1	1410-		●
205	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92	1-83574-159-0	01	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
