Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#28693) — 177 parça

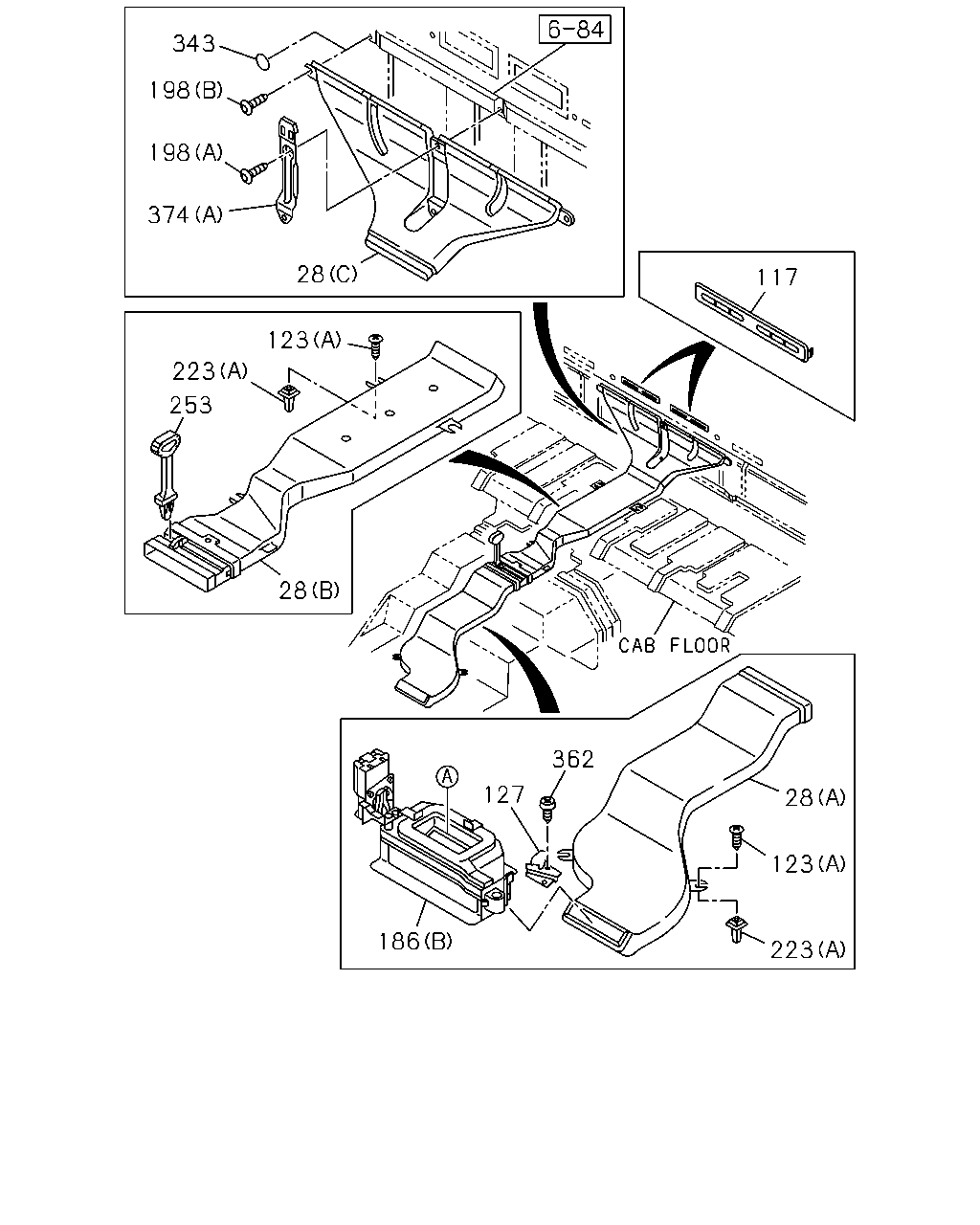

343 198 198 374 8 117 123 223 253 28 362 127 28 123 186 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0407-0511	●
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0512-		●
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-76377-180-2	01	1	0407-0511	●
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-76377-180-2	01	1	0512-		●
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-203-0	01	1	0407-0511	●
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-203-0	01	1	0512-		●
28	DUCT; AIR,VENTILATOR (C)	1-76377-186-1	01	1	0407-0511	●
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-76377-186-1	01	1	0512-		●
117	GRILLE; VENTILATOR	1-76377-187-5	01	1	0407-0511	●
117	GRILLE; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-187-5	01	1	0512-		●
117	GRILLE; VENTILATOR	1-76377-188-5	01	1	0407-0511	●
117	GRILLE; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-188-5	01	1	0512-		●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0407-0511	●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0512-0604		●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-		●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0407-0511	●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0512-		●
127	BRACKET; VENT DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76397-019-0	01	1	0407-0511	●
127	BRACKET; VENT DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76397-019-0	01	1	0512-		●
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0407-0511	●
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0512-		●
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0407-0511	●
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0512-0610		●
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-		●
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0407-0511	●
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0512-0710		●
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-		●
198	CLIP; DUCT (A) D6X23 BLACK	1-09987-114-0	02	1	0407-0511	●
198	CLIP; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 BLACK	1-09987-114-0	02	1	0512-1204		●
198	CLIP; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 LIGHT GRAY	1-73318-629-0	02	1	1205-		●
198	CLIP; DUCT (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0407-0511	●
198	CLIP; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0512-		●
223	GROMMET; SCREW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0407-0511	●
223	GROMMET; SCREW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0512-0709		●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0710-		●
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0407-0511	●
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0512-		●
253	KNOB; CONT LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-185-1	01	1	0407-0511	●
253	KNOB; CONT LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-185-1	01	1	0512-		●
343	SEAL; AIR DUCT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) OD=25 BLACK	1-76798-019-0	05	1	0512-0709		●
362	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14	8-94279-325-0	02	1	0407-0511	●
362	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14	8-94279-325-0	02	1	0512-		●
374	HOLDER; DUCT (A)	1-76377-189-3	01	1	0407-0511	●
374	HOLDER; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-189-3	01	1	0512-		●
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0407-0511	●
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0512-		●

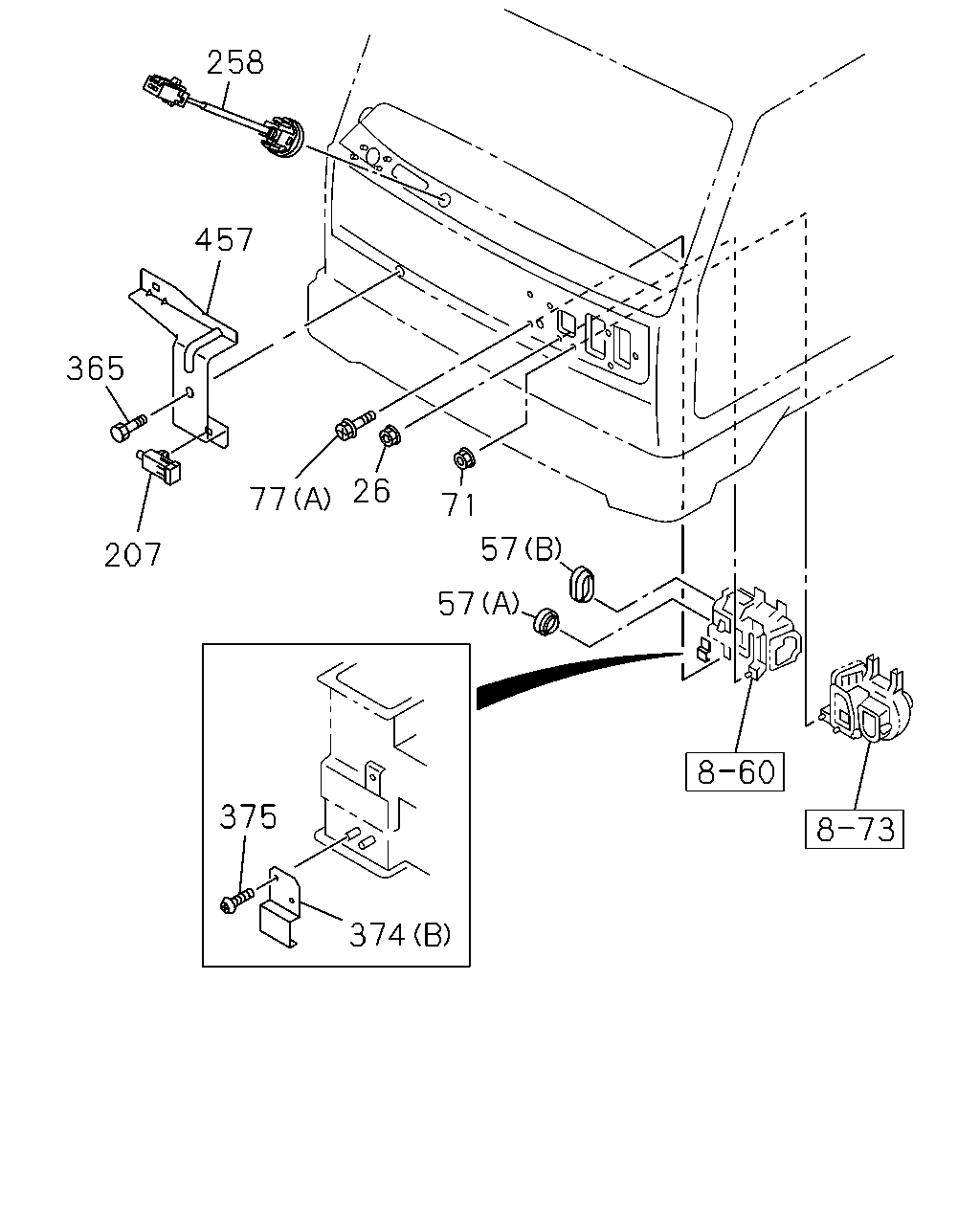

258 457 365 26 77 71 57 207 57 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0407-0511	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0512-		●
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (A)	1-83579-617-0	02	1	0512-		●
57	COVER; INL DUCT EXC. COOL & HOT BOX<TMU> (B)	1-83579-618-0	01	1	0512-		●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0407-0511	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0512-		●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0407-0511	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0512-		●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
207	SENSOR; AMBIENT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-97177-549-0	01	1	0407-0511	●
207	SENSOR; AMBIENT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97177-549-0	01	1	0512-1204		●
207	SENSOR; AMBIENT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98214-375-0	01	1	1205-		●
258	SENSOR; SUN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94472-043-2	01	1	0407-0511	●
258	SENSOR; SUN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94472-043-2	01	1	0512-		●
365	BOLT; SENSOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0407-0511	●
365	BOLT; SENSOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0512-		●
374	HOLDER; DUCT (A)	1-76377-189-3	01	1	0407-0511	●
374	HOLDER; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-189-3	01	1	0512-		●
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0407-0511	●
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0512-		●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0407-0511	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0512-		●
457	BRACKET; SENSOR	1-71907-603-1	01	1	0407-0511	●
457	BRACKET; SENSOR	1-71907-603-1	01	1	0512-		●

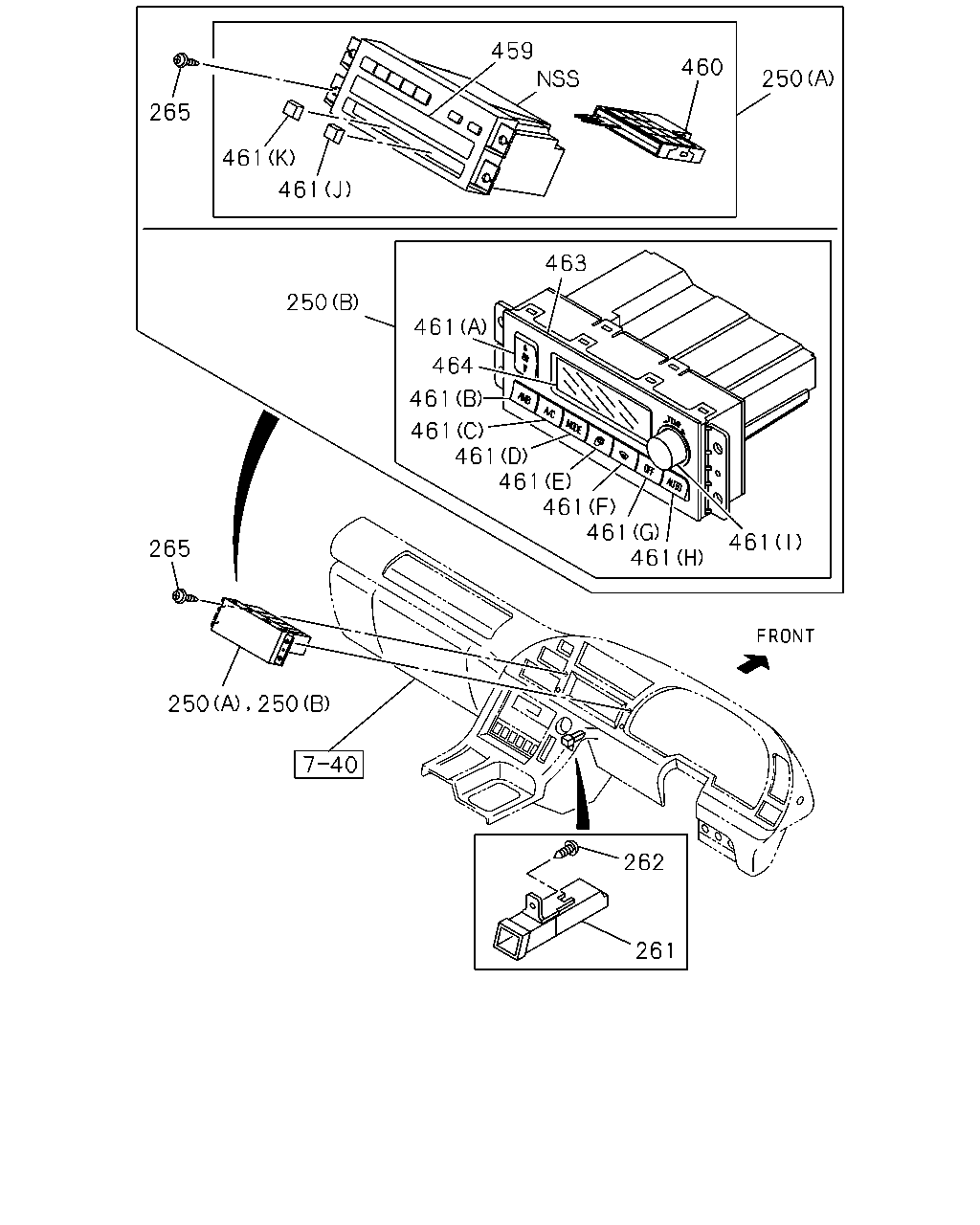

459 460 250 265 461 461 463 250 461 464 461 461 461 461 461 461 461 461 265 250 262 261 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
250	CONTROL ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	0407-0511	●
250	CONTROL ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83543-038-0	01	1	0407-0511	●
250	CONTROL ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83543-038-1	01	1	0512-		●
261	SENSOR; IN CAR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83544-023-1	01	1	0407-0511	●
261	SENSOR; IN CAR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83544-023-1	01	1	0512-		●
262	SCREW; IN CAR SENSOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14	8-94279-325-0	01	1	0407-0511	●
262	SCREW; IN CAR SENSOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14	8-94279-325-0	01	1	0512-		●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0407-0511	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0512-0604		●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-		●
459	PANEL; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0407-0511	●
460	SWITCH; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (J)	1-83549-015-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (K)	1-83549-016-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83549-018-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83549-018-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83549-019-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83549-019-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83549-020-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83549-020-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83549-021-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83549-021-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	1-83549-022-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83549-022-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F)	1-83549-023-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83549-023-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (G)	1-83549-024-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (G)	1-83549-024-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (H)	1-83549-025-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-83549-025-0	01	1	0512-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (I)	1-83549-026-0	01	1	0407-0511	●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I)	1-83549-026-0	01	1	0512-		●
463	BEZEL; CONTROL PANEL AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83549-027-0	01	1	0407-0511	●
463	BEZEL; CONTROL PANEL AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83549-027-0	01	1	0512-		●
464	PLATE; CONTROL PANEL AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83549-028-0	01	1	0407-0511	●
464	PLATE; CONTROL PANEL AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83549-028-0	01	1	0512-		●

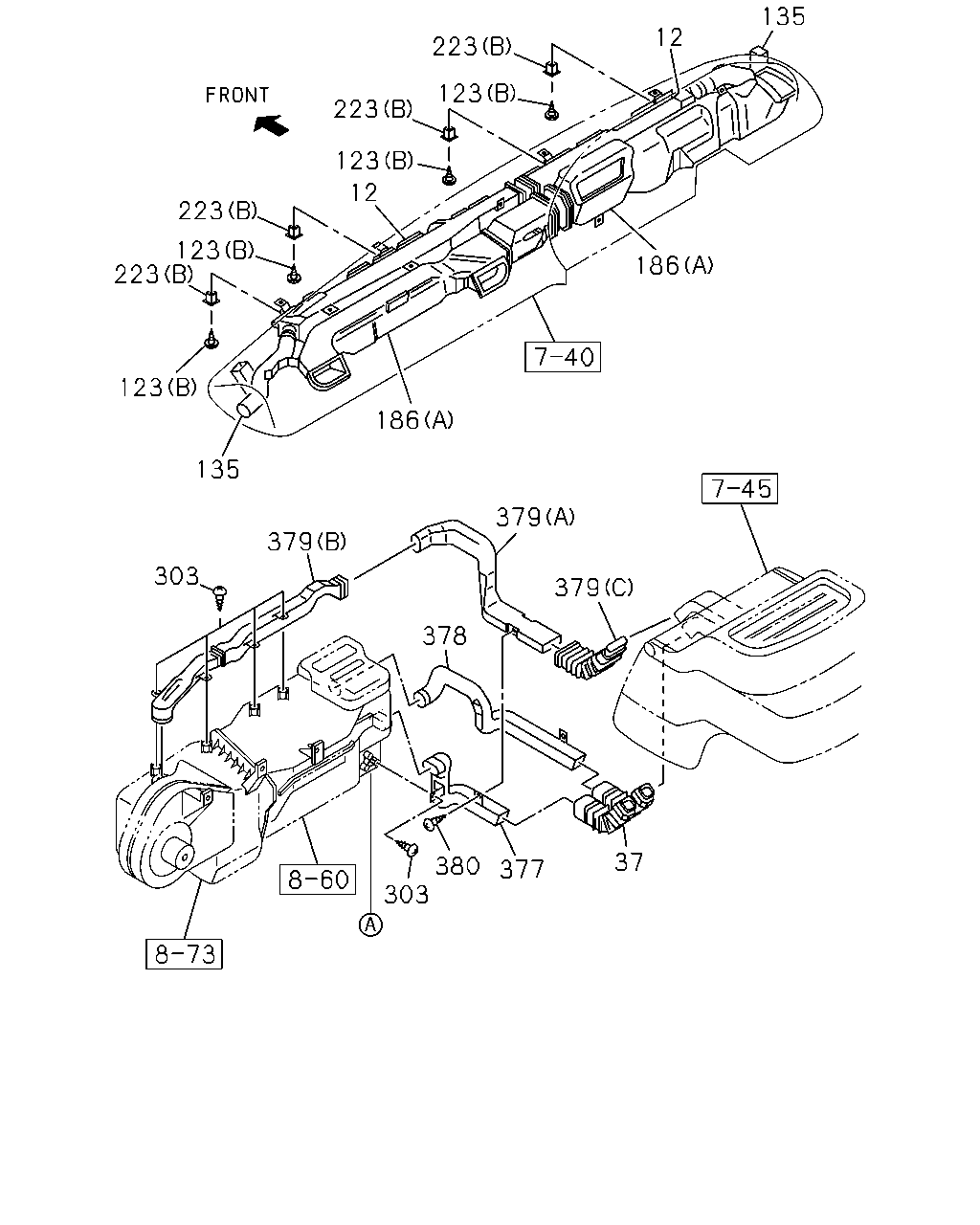

135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0407-0511	●
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0512-		●
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	0407-0511	●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0512-		●
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0407-0511	●
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0512-		●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0407-0511	●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0512-0604		●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-		●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0407-0511	●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0512-		●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0407-0511	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0512-		●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0407-0511	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0512-		●
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0407-0511	●
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0512-		●
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0407-0511	●
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0512-0610		●
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-		●
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0407-0511	●
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0512-0710		●
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-		●
223	GROMMET; SCREW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0407-0511	●
223	GROMMET; SCREW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0512-0709		●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0710-		●
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0407-0511	●
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0512-		●
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0407-0511	●
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0512-		●
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0407-0511	●
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0512-		●
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0407-0511	●
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0512-		●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0407-0511	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0512-		●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0407-0511	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0512-		●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0407-0511	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0512-		●
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0407-0511	●
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0512-		●

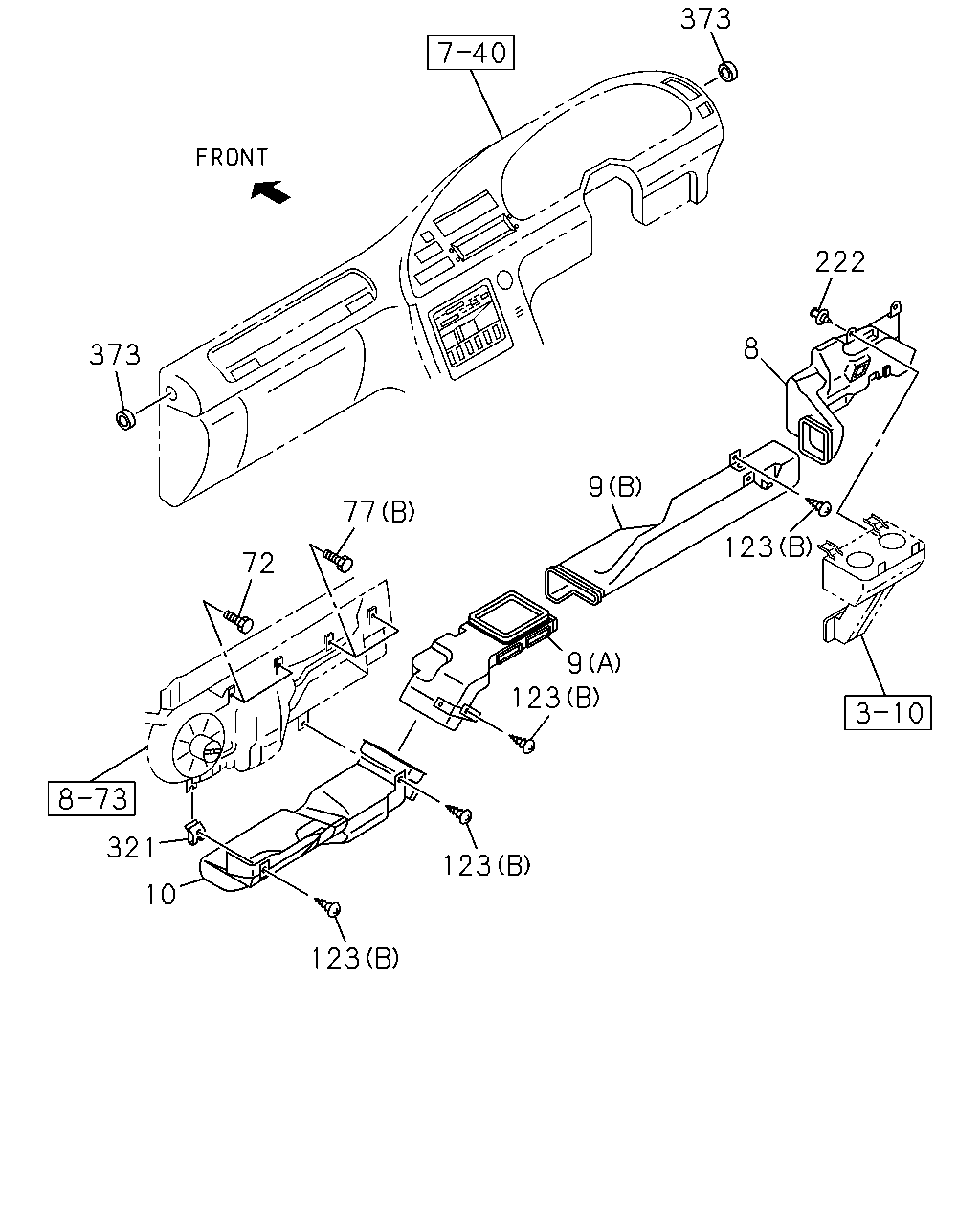

373 222 8 373 9 77 123 72 9 123 321 123 10 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0407-0511	●
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0512-		●
9	DUCT; HTR AIR,FOOT CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-227-2	01	1	0407-0511	●
9	DUCT; HTR AIR,FOOT CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-227-2	01	1	0512-		●
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	0407-0511	●
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	0512-		●
9	DUCT; HTR AIR,FOOT CENTER EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-226-2	01	1	0407-0511	●
9	DUCT; HTR AIR,FOOT CENTER EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-226-2	01	1	0512-		●
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	0407-0511	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	0512-		●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0407-0511	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0512-		●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0407-0511	●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0512-0604		●
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-		●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0407-0511	●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0512-		●
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	0407-0511	●
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	0512-		●
321	NUT; DUCT FIX M5	1-09984-150-0	01	1	0407-0409	●
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	0410-0511	●
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	0512-		●
373	RUBBER; JOINT	1-76378-291-0	02	1	0407-0511	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
