◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#28692) — 791 parça

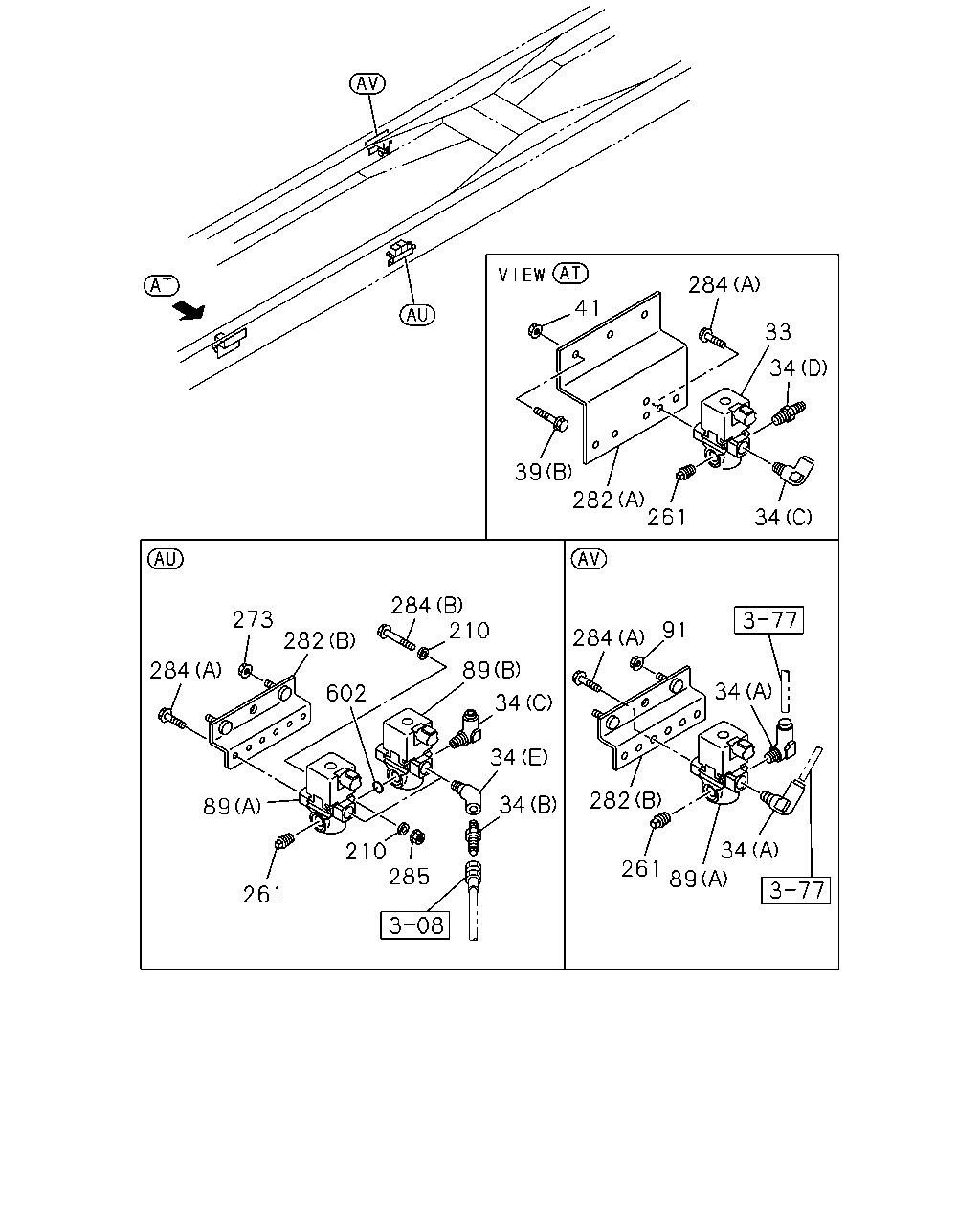

çizim 86736
284 41 33 34 39 282 261 34 284 210 273 91 284 282 89 284 34 602 34 34 282 34 89 34 210 285 261 89 261
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 0407-0511 ●
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0704 ●
34 CONNECTOR; MAG VLV,INL PORT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0705- ●
34 CONNECTOR; MAG VLV,INL PORT
(E) R1/4 & RC1/4 		1-09664-211-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0512- ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0704 ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0705- ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82564-094-2 01 1 0512-0704 ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82564-094-2 01 1 0705- ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-82564-095-1 02 1 0512-0704 ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-82564-095-1 02 1 0705- ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) 		1-82564-407-1 01 1 0512-0704 ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) 		1-82564-407-1 01 1 0705- ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 02 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82563-872-1 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0512- ●
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) 		1-82569-266-0 06 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82569-266-0 06 1 0705- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0705- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 03 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 02 1 0512- ●
273 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
282 BRACKET; MAG VLV
6WG1 TC-S(97L) (E) 		1-82569-298-0 01 1 0512-0704 ●
282 BRACKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-298-0 01 1 0705- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0407-0511 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0512- ●
282 BRACKET; MAG VLV
(D) 		1-82569-277-2 01 1 0407-0511 ●
282 BRACKET; MAG VLV
6WF1 TC-C(1B8) (D) 		1-82569-277-2 01 1 0512- ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0512- ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 02 1 0407-0511 ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0512- ●
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0705- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0601-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0705- ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91180-106-0 01 1 0603- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0705- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0705- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ●

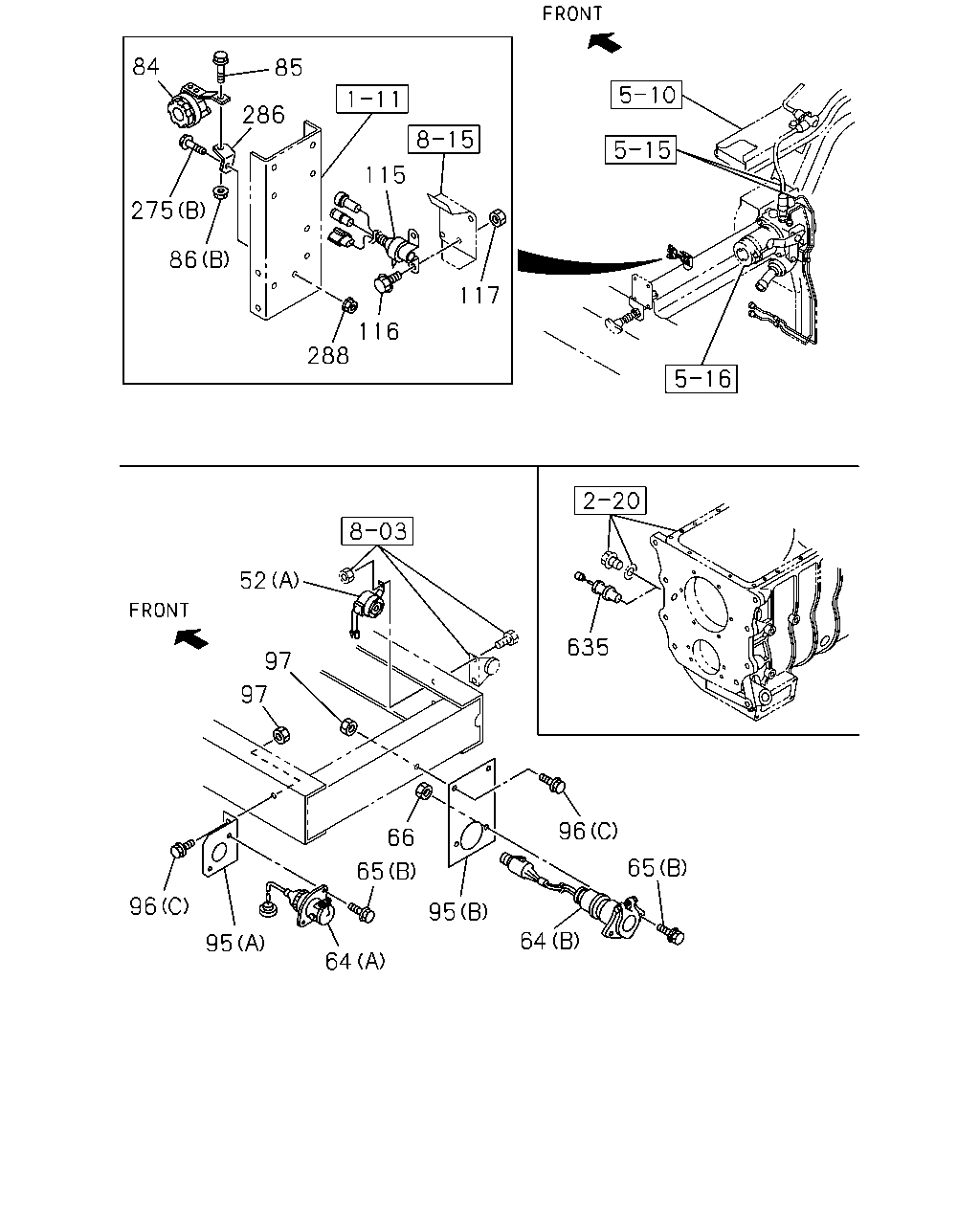

çizim 86757
84 85 286 115 275 86 117 116 288 52 635 97 97 96 66 65 65 96 95 64 95 64
BalonParca AdiParca NoAdetTipApplied Date A B
52 BUZZER; BACK
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) 		1-83460-040-0 01 1 0512- ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO DENSO 		1-83460-083-0 01 1 0407-0511 ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO DENSO 		1-83460-083-0 01 1 0512-0612 ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO DENSO 		8-98069-861-0 01 1 0701- ●
64 SOCKET; TRAILER
(B) 		1-82523-014-0 01 1 0407-0511 ●
64 SOCKET; TRAILER
FULL TRACTOR TRUCK<RD6> (B) 7P 		1-82523-014-0 01 1 0512- ●
64 SOCKET; TRAILER
(A) 		1-82698-297-0 01 1 0407-0511 ●
64 SOCKET; TRAILER
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (A) L=860 		1-82699-449-2 01 1 0512-1008 ●
64 SOCKET; TRAILER
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (A) L=860 		8-98172-008-0 01 1 1009- ●
65 BOLT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
65 BOLT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
65 BOLT; SOCKET FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
65 BOLT; SOCKET FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0407-0511 ●
65 BOLT; SOCKET FIX
FULL FLOATING CAB(W16) (A) M6X16 FLANGE 		0-28080-616-0 02 1 0512-0512 ●
65 BOLT; SOCKET FIX
FULL FLOATING CAB(W16) (A) M6X16 FLANGE 		0-28050-616-0 02 1 0601- ●
66 NUT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
66 NUT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
66 NUT; SOCKET FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
66 NUT; SOCKET FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0407-0511 ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0512-0612 ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0701- ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
95 BRACKET; SOCKET,TRAILER
(B) 		1-82699-387-0 01 1 0407-0511 ●
95 BRACKET; SOCKET,TRAILER
FULL TRACTOR TRUCK<RD6> (B) 		1-82699-387-0 01 1 0512- ●
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-979-0 01 1 0407-0511 ●
95 BRACKET; SOCKET,TRAILER
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (A) 		1-82699-979-0 01 1 0512-1008 ●
95 BRACKET; SOCKET,TRAILER
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (A) 		8-97985-137-0 01 1 1009- ●
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
96 BOLT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
96 BOLT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
97 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
97 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 09 1 0407-0511 ●
97 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
97 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0407-0511 ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0512- ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
275 BOLT; BRKT
6WG1 TC-S(97L) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
275 BOLT; BRKT
6WG1 TC-S(97L) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
275 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0407-0511 ●
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 0512- ●
286 BRACKET
6WG1 TC-S(97L) 		1-82699-199-0 01 1 0512-0704 ●
286 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82699-199-0 01 1 0705- ●
288 NUT; BRKT FIX
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
288 NUT; BRKT FIX
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-0704 ●
288 NUT; BRKT FIX
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0705- ●
635 SENSOR; PICK UP,INPUT SHAFT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-81510-736-1 01 1 0512- ●

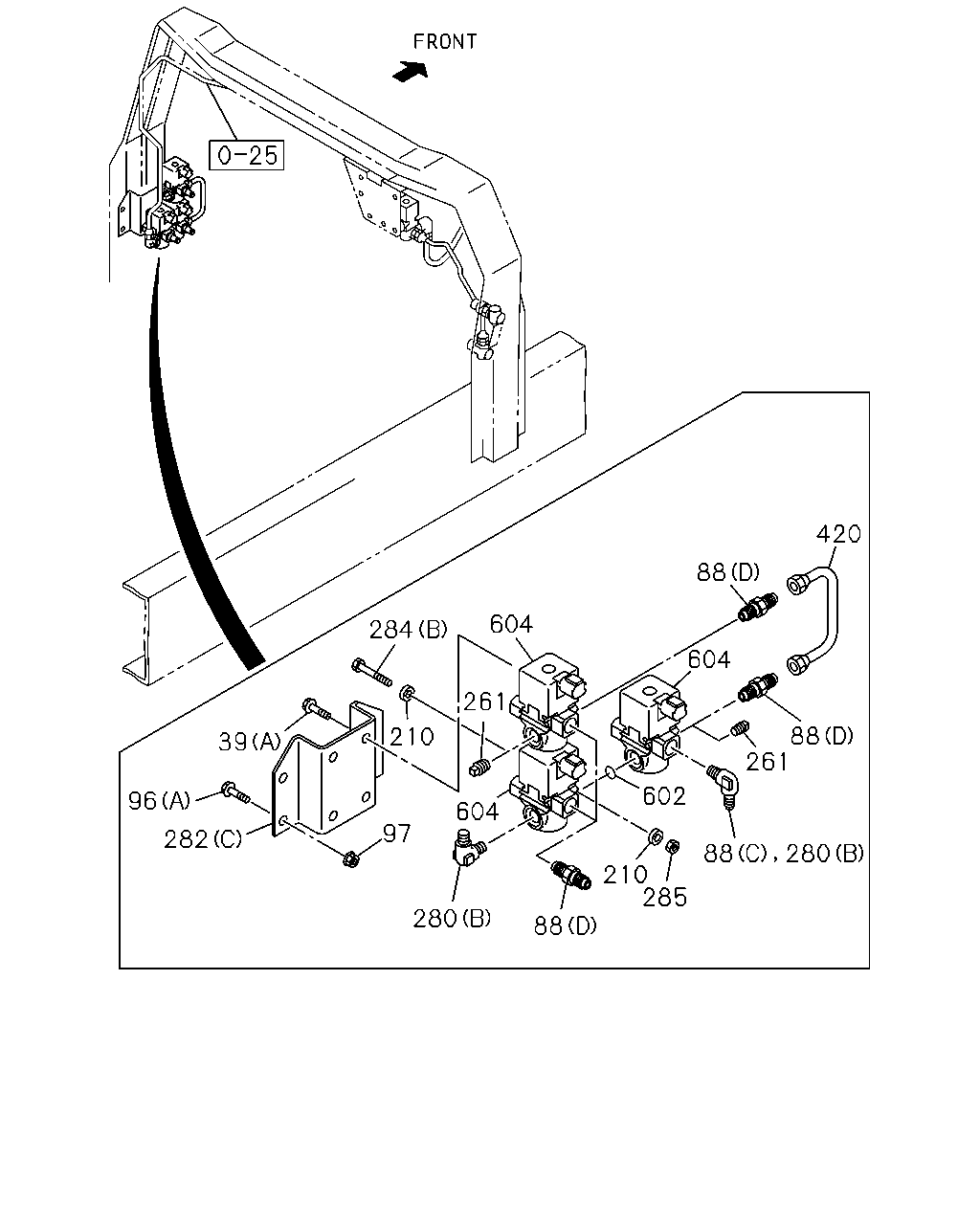

çizim 87000
420 88 604 284 604 261 88 261 210 39 602 96 604 97 282 210 285 280 88 88 280
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0704 ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0705- ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) 		1-09660-067-0 01 1 0512-0609 ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0610-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) 		1-09661-065-0 02 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) 		1-09661-065-0 02 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) PT3/8 3WAY 		1-09661-300-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) PT3/8 3WAY 		1-09661-300-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
96 BOLT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
96 BOLT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
97 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
97 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 09 1 0407-0511 ●
97 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
97 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) 		1-82569-266-0 06 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82569-266-0 06 1 0705- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0705- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 03 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 02 1 0512- ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512-0704 ●
280 CONNECTOR; IN,MAG VLV
6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512-0704 ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0705- ●
280 CONNECTOR; IN,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0705- ●
282 BRACKET; MAG VLV
6WG1 TC-S(97L) (E) 		1-82569-298-0 01 1 0512-0704 ●
282 BRACKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-298-0 01 1 0705- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0407-0511 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0512- ●
282 BRACKET; MAG VLV
(D) 		1-82569-277-2 01 1 0407-0511 ●
282 BRACKET; MAG VLV
6WF1 TC-C(1B8) (D) 		1-82569-277-2 01 1 0512- ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0512- ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 02 1 0407-0511 ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0512- ●
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0705- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0601-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0705- ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91180-106-0 01 1 0603- ●
420 PIPE; AIR,MAG VLV 1-49118-626-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0705- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0705- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ●
604 VALVE; MAG,ENG CONT
6WG1 TC-S(97L) 		1-82563-871-2 04 1 0512-0704 ●
604 VALVE; MAG,ENG CONT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82563-871-2 04 1 0705- ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0512- ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0407-0511 ●
604 VALVE; MAG,ENG CONT
6WF1 TC-C(1B8) 		1-82563-871-2 01 1 0512- ●

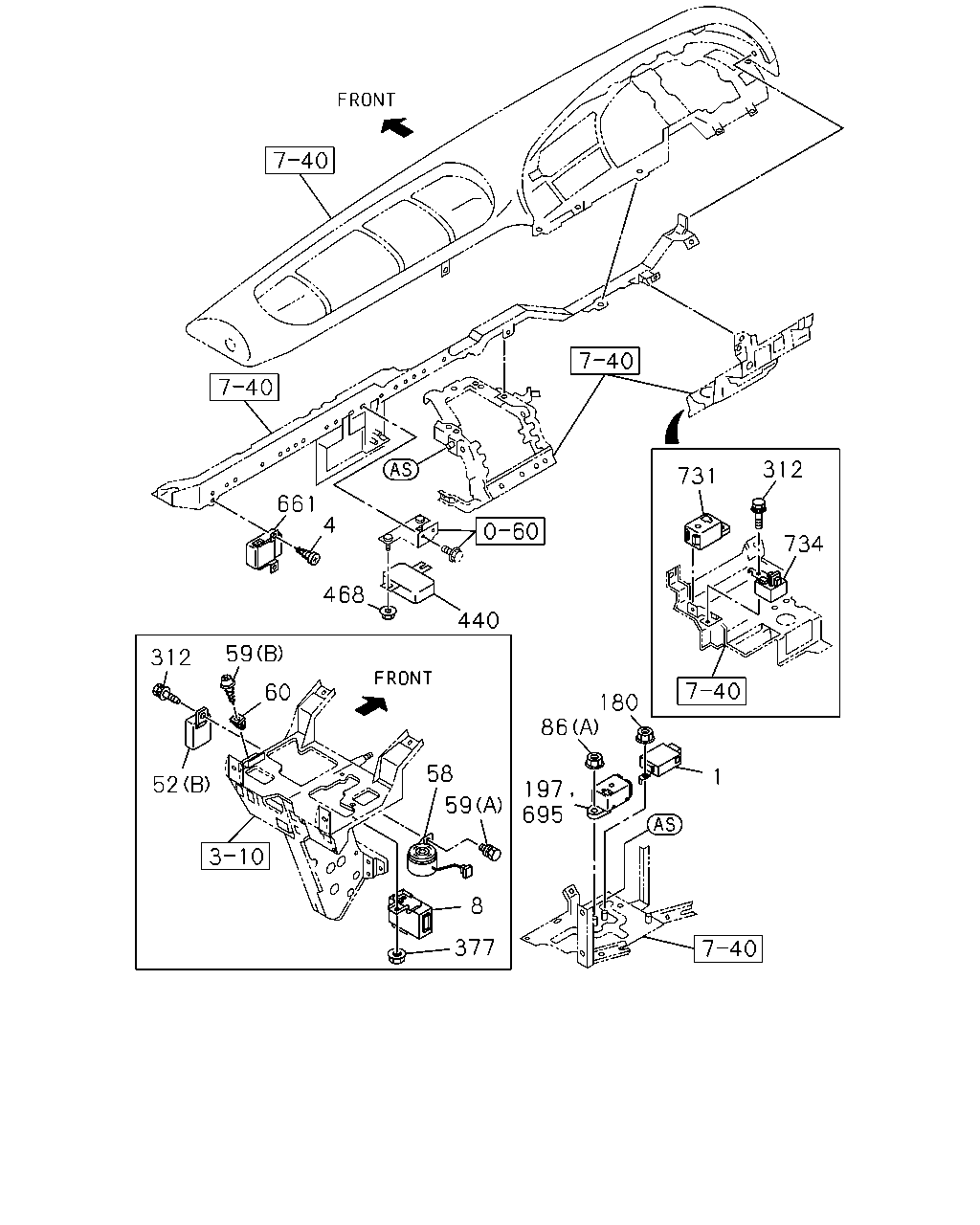

çizim 87030
312 731 661 4 734 468 440 59 312 60 180 86 58 1 52 197 695 59 8 377
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
EXC. FULL TRACTOR TRUCK<RD6> 		1-83470-068-1 01 1 0512- ●
1 UNIT; FLASHER 1-83470-062-0 01 1 0407-0511 ●
1 UNIT; FLASHER
FULL TRACTOR TRUCK<RD6> 		1-83470-062-1 01 1 0512- ●
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0407-0511 ●
4 SCREW; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> M5X14 		8-94279-325-0 01 1 0512- ●
8 RELAY; WIPER 1-83316-002-4 01 1 0407-0511 ●
8 RELAY; WIPER 1-83316-002-4 01 1 0512- ●
52 BUZZER; BACK
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) 		1-83460-040-0 01 1 0512- ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO DENSO 		1-83460-083-0 01 1 0407-0511 ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO DENSO 		1-83460-083-0 01 1 0512-0612 ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO DENSO 		8-98069-861-0 01 1 0701- ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0407-0511 ●
58 BUZZER; AIR PRESSURE WARNING
6WF1 TC-C(1B8) METRO DENSO 		1-83460-075-0 01 1 0512-0612 ●
58 BUZZER; AIR PRESSURE WARNING
6WF1 TC-C(1B8) METRO DENSO 		8-98069-859-0 01 1 0701- ●
59 SCREW; BUZZER
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512-0604 ●
59 SCREW; BUZZER
6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ●
59 SCREW; BUZZER
(A) M5X14 		8-94279-325-0 01 1 0407-0511 ●
59 SCREW; BUZZER
6WF1 TC-C(1B8) (A) M5X14 		8-94279-325-0 01 1 0512- ●
60 GROMMET; SCREW,BUZZER
6WF1 TC-C(1B8) SMOOTHER-G(C1W) D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0512- ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
197 BUZZER; WARNING,AIR HEAT OIL BRK
6WF1 TC-C(1B8) 		1-83460-051-1 01 1 0512- ●
312 BOLT; BUZZER
6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0512-0704 ●
312 BOLT; BUZZER
6WG1 TC-C(72L),6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0705- ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
377 NUT; RELAY
6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
377 NUT; RELAY
6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603-0704 ●
377 NUT; RELAY
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0705- ●
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0407-0511 ●
440 MODULE; INFORMATION,ABS
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> 		1-81510-701-0 01 1 0512-0609 ●
440 MODULE; INFORMATION,ABS
6WG1 TC-S(97L) FULL TRACTOR TRUCK<RD6> EXC. SMOOTHER-G(C1W) 		1-81510-701-0 01 1 0512-0609 ●
440 MODULE; INFORMATION,ABS
FULL TRACTOR TRUCK<RD6> 		1-81510-701-0 01 1 0610- ●
468 NUT; MODULE
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
468 NUT; MODULE
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
468 NUT; MODULE
6WG1 TC-S(97L) FULL TRACTOR TRUCK<RD6> EXC. SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
468 NUT; MODULE
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
468 NUT; MODULE
6WG1 TC-S(97L) FULL TRACTOR TRUCK<RD6> EXC. SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
468 NUT; MODULE
FULL TRACTOR TRUCK<RD6> M6 FLANGE 		0-91180-106-0 02 1 0610- ●
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0407-0511 ●
661 CONTROL UNIT; FLASHER
FULL TRACTOR TRUCK<RD6> 		1-83470-066-1 01 1 0512- ●
695 ALARM; OVER HEAT 1-83460-051-1 01 1 0407-0511 ●
731 ALARM; INFORMATION
6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83460-051-1 01 1 0512-0704 ●
731 ALARM; INFORMATION
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83460-051-1 01 1 0705- ●
734 ALARM; MULTI
6WG1 TC-S(97L) 		1-83460-106-0 01 1 0512-0704 ●
734 ALARM; MULTI
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83460-106-0 01 1 0705- ●

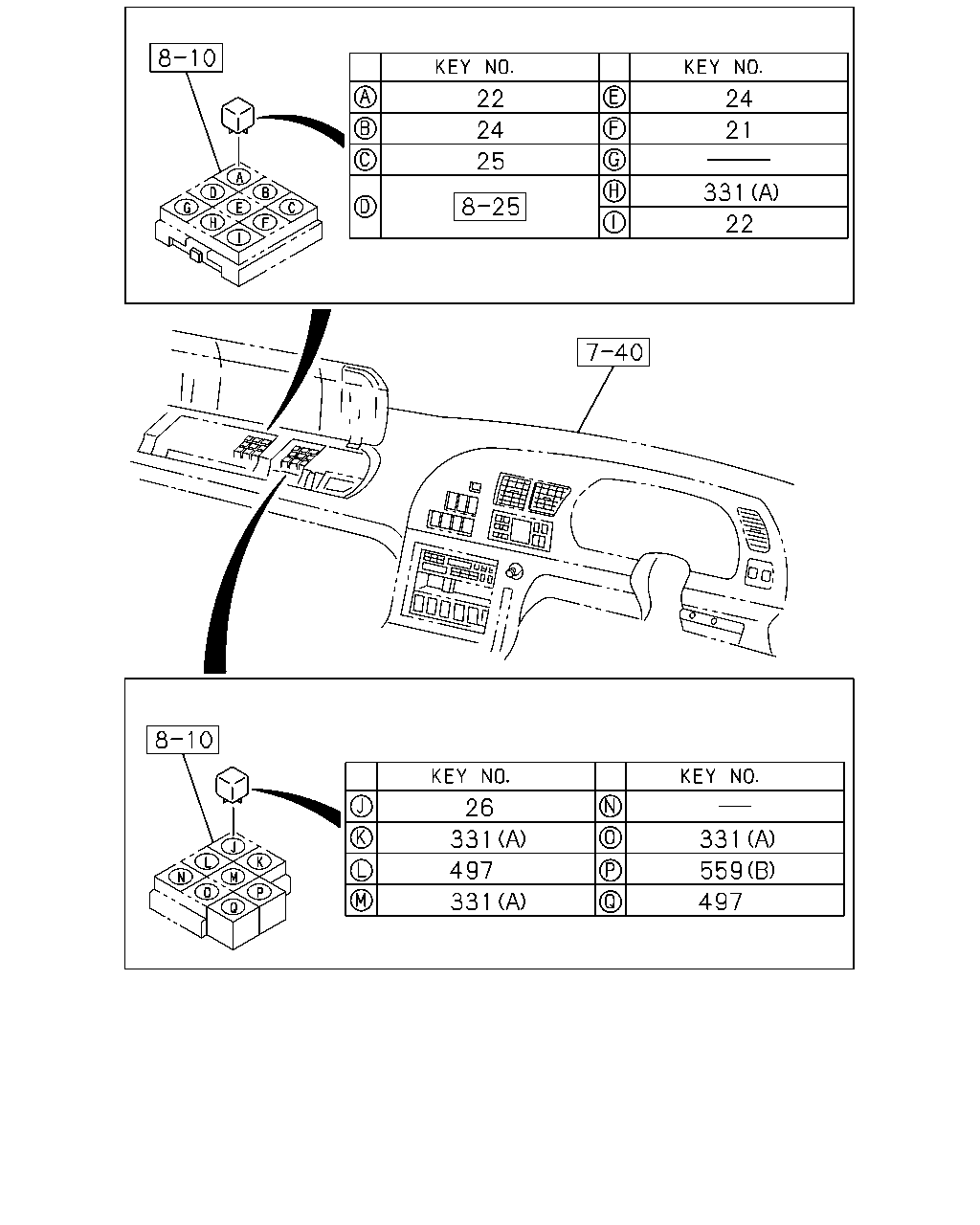

çizim 87291
22 24 24 21 25 331 22 26 331 331 497 559 331 497
BalonParca AdiParca NoAdetTipApplied Date A B
21 RELAY; TRAILER TAIL
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
22 RELAY; STOP LAMP
EXC. FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
22 RELAY; STOP LAMP
FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
331 RELAY; A/C
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
331 RELAY; A/C
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
497 RELAY; MIRROR WIPER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
497 RELAY; MIRROR WIPER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
559 RELAY; MAG VLV
MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
559 RELAY; MAG VLV
MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●

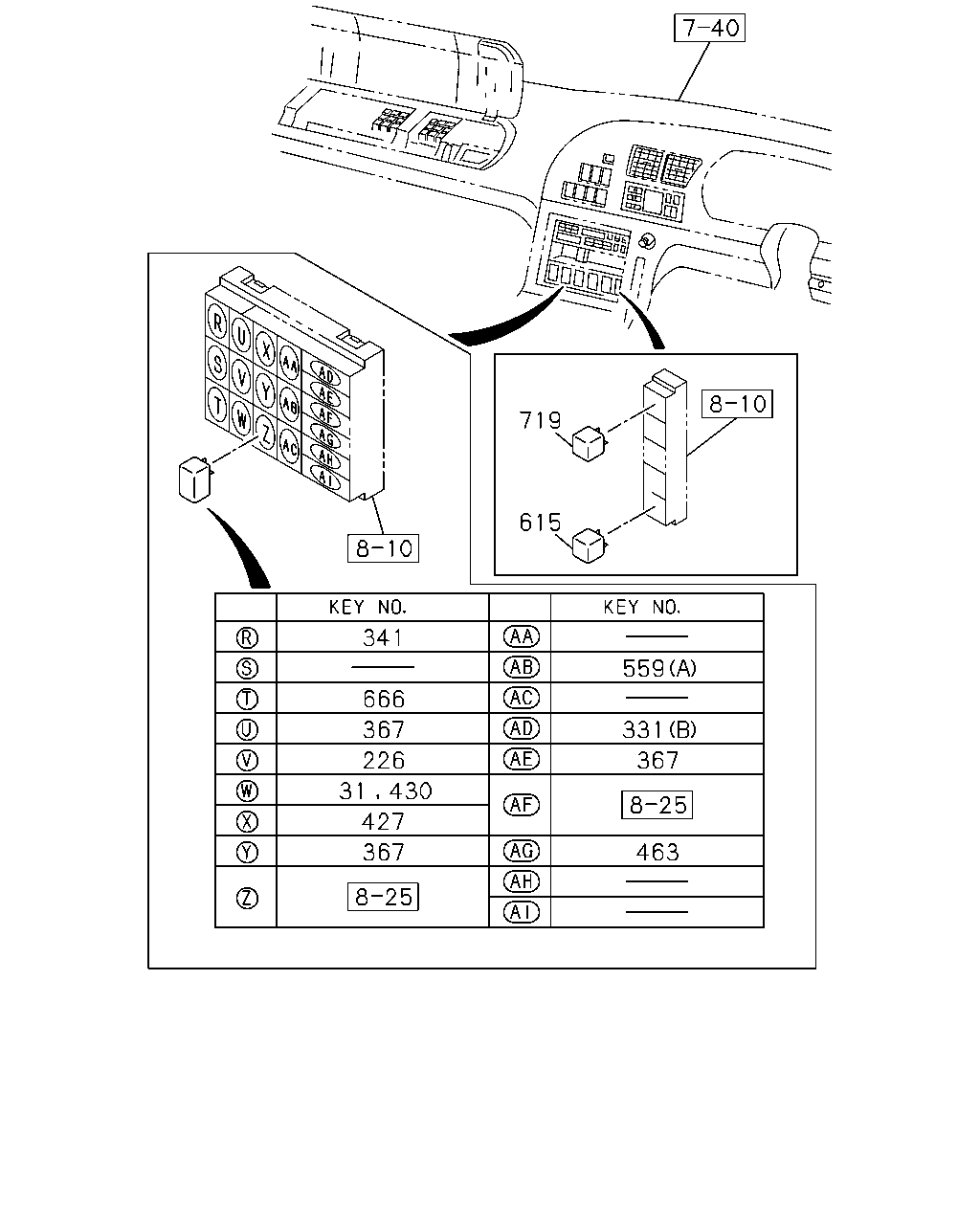

çizim 87293
719 615 341 559 666 367 331 226 367 31 430 427 367 463
BalonParca AdiParca NoAdetTipApplied Date A B
31 RELAY; PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
226 RELAY; EXH BRK
6WF1 TC-C(1B8) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ●
331 RELAY; A/C
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
331 RELAY; A/C
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
341 RELAY
FULL FLOATING CAB(W16) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
367 RELAY; NEUTRAL
MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
427 RELAY; RETARDER
6WF1 TC-C(1B8) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC 		8-97173-035-1 02 1 0512- ●
430 RELAY; RANGE
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
430 RELAY; RANGE
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
463 RELAY; ABS SIGNAL
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
463 RELAY; ABS SIGNAL
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
559 RELAY; MAG VLV
MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
559 RELAY; MAG VLV
MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
615 RELAY; TRAILER
6WG1 TC-S(97L) FULL TRACTOR TRUCK<RD6> 24V 10A PANASONIC 		8-97173-035-1 01 1 0512-0704 ●
615 RELAY; TRAILER
6WG1 TC-C(72L),6WG1 TC-S(97L) FULL TRACTOR TRUCK<RD6> 24V 10A PANASONIC 		8-97173-035-1 01 1 0705- ●
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
615 RELAY; TRAILER
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
666 RELAY; STARTER
MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
719 RELAY; EMERGENCY,GEAR SHIFT UNIT
6WF1 TC-C(1B8) SMOOTHER-G(C1W) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●

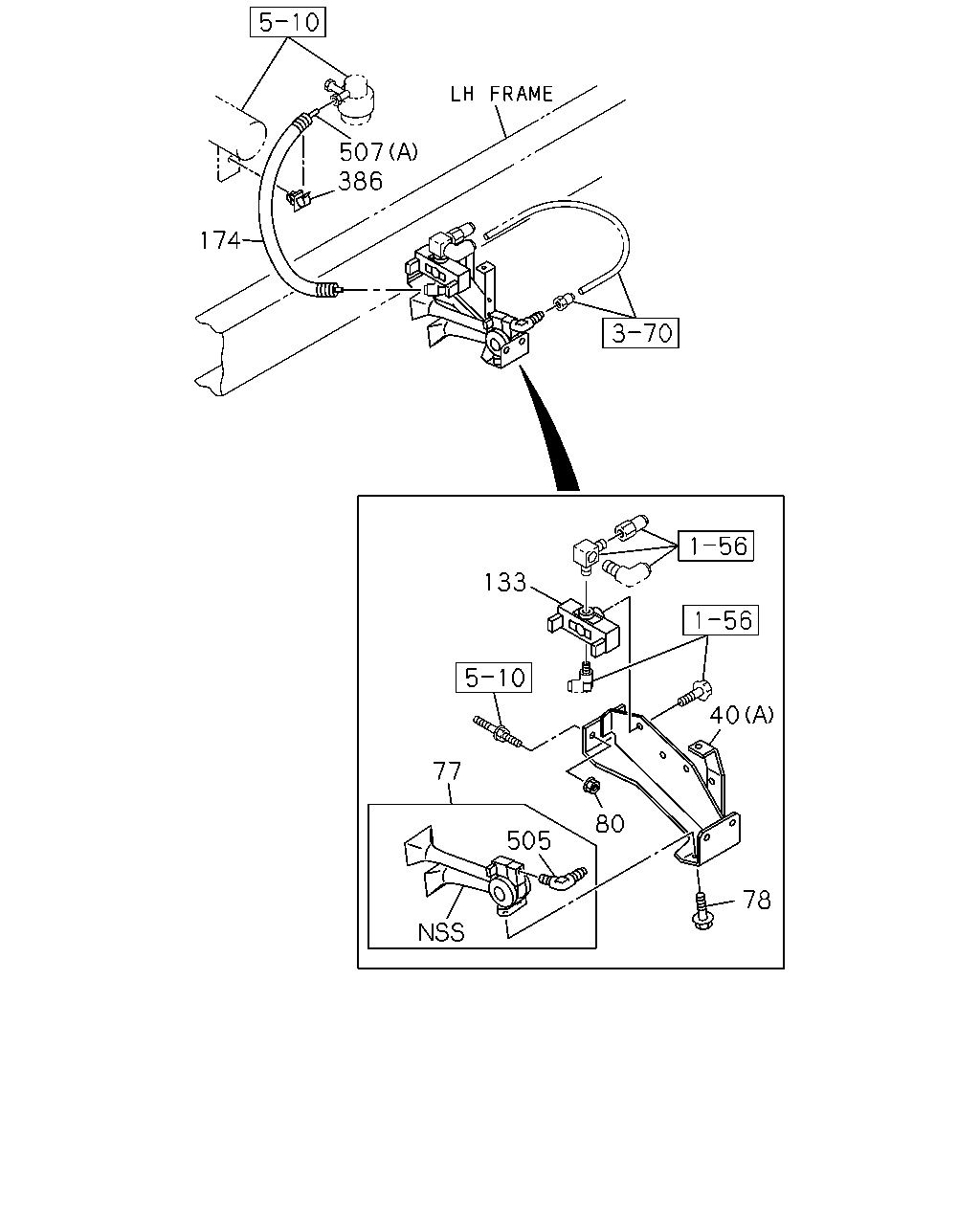

çizim 104454
507 386 174 133 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date A B
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-420-0 01 1 0512-0704 ●
40 BRACKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-420-0 01 1 0705- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
77 HORN ASM 1-83430-041-1 01 1 0407-0511 ●
77 HORN ASM 1-83430-041-2 01 1 0512- ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
80 NUT; MAG VLV
M12 FLANGE 		0-91150-212-0 02 1 0407-0511 ●
80 NUT; MAG VLV
FULL FLOATING CAB(W16) M12 FLANGE 		0-91150-212-0 02 1 0512-0602 ●
80 NUT; MAG VLV
FULL FLOATING CAB(W16) M12 FLANGE 		0-91180-212-0 02 1 0603- ●
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0407-0511 ●
133 VALVE; MAG,AIR HORN
FULL FLOATING CAB(W16) 		1-53458-378-2 01 1 0512- ●
174 COVER
CAB UP +110MM<TGG> L=700 SERVICED BY L=800 		1-83129-031-1 01 1 0407-0511 ●
174 COVER
FULL FLOATING CAB(W16) L=700 SERVICED BY L=800 		1-83129-031-1 01 1 0512- ●
386 CLIP; HARNESS
ID=9.5 		5-09709-020-0 01 1 0407-0511 ●
386 CLIP; HARNESS
FULL FLOATING CAB(W16) ID=9.5 		5-09709-020-0 01 1 0512- ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 0407-0511 ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 0512- ●
507 TUBE; NYLON
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0512-0704 ●
507 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0705- ●
507 TUBE; NYLON
CAB UP +110MM<TGG> (A) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0407-0511 ●
507 TUBE; NYLON
FULL FLOATING CAB(W16) (A) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●

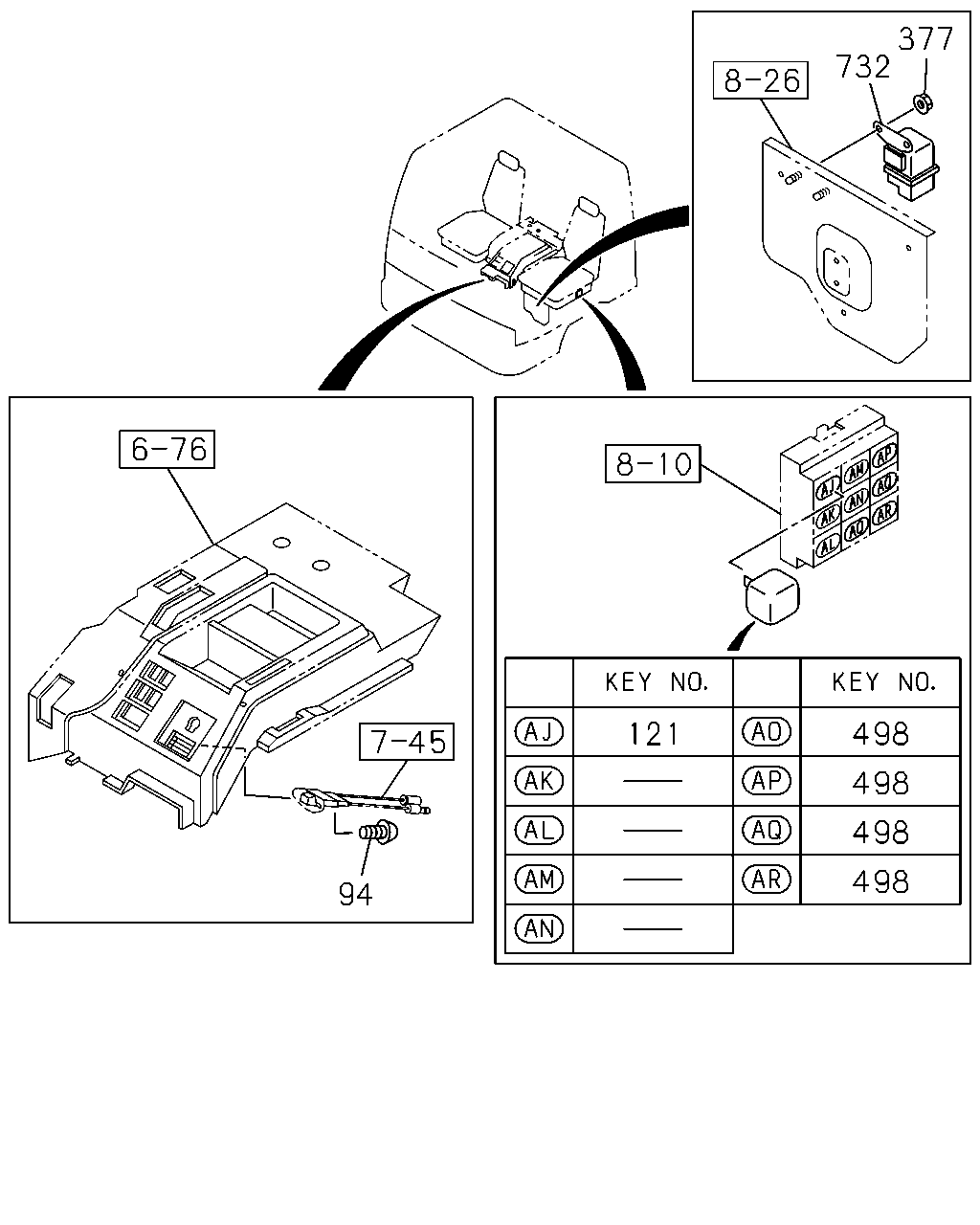

çizim 104556
377 732 121 498 498 498 498 94
BalonParca AdiParca NoAdetTipApplied Date A B
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0407-0511 ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0512-0604 ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605- ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
121 RELAY; PARKING BRK
6WF1 TC-C(1B8) AUTO ROUND CURTAIN<TAR> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512-0704 ●
121 RELAY; PARKING BRK
6WG1 TC-S(97L) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512-0704 ●
121 RELAY; PARKING BRK
6WF1 TC-C(1B8) AUTO ROUND CURTAIN<TAR> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0705- ●
121 RELAY; PARKING BRK
6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0705- ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
377 NUT; RELAY
6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
377 NUT; RELAY
6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603-0704 ●
377 NUT; RELAY
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0705- ●
498 RELAY; CURTAIN
AUTO ROUND CURTAIN<TAR> 24V 12.5A PANASONIC 		8-97262-933-0 04 1 0407-0511 ●
498 RELAY; CURTAIN
AUTO ROUND CURTAIN<TAR> 24V 12.5A PANASONIC 		8-97262-933-0 04 1 0512- ●
732 RELAY; EDS
6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-82550-337-1 01 1 0512-0704 ●
732 RELAY; EDS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-82550-337-1 01 1 0705- ●

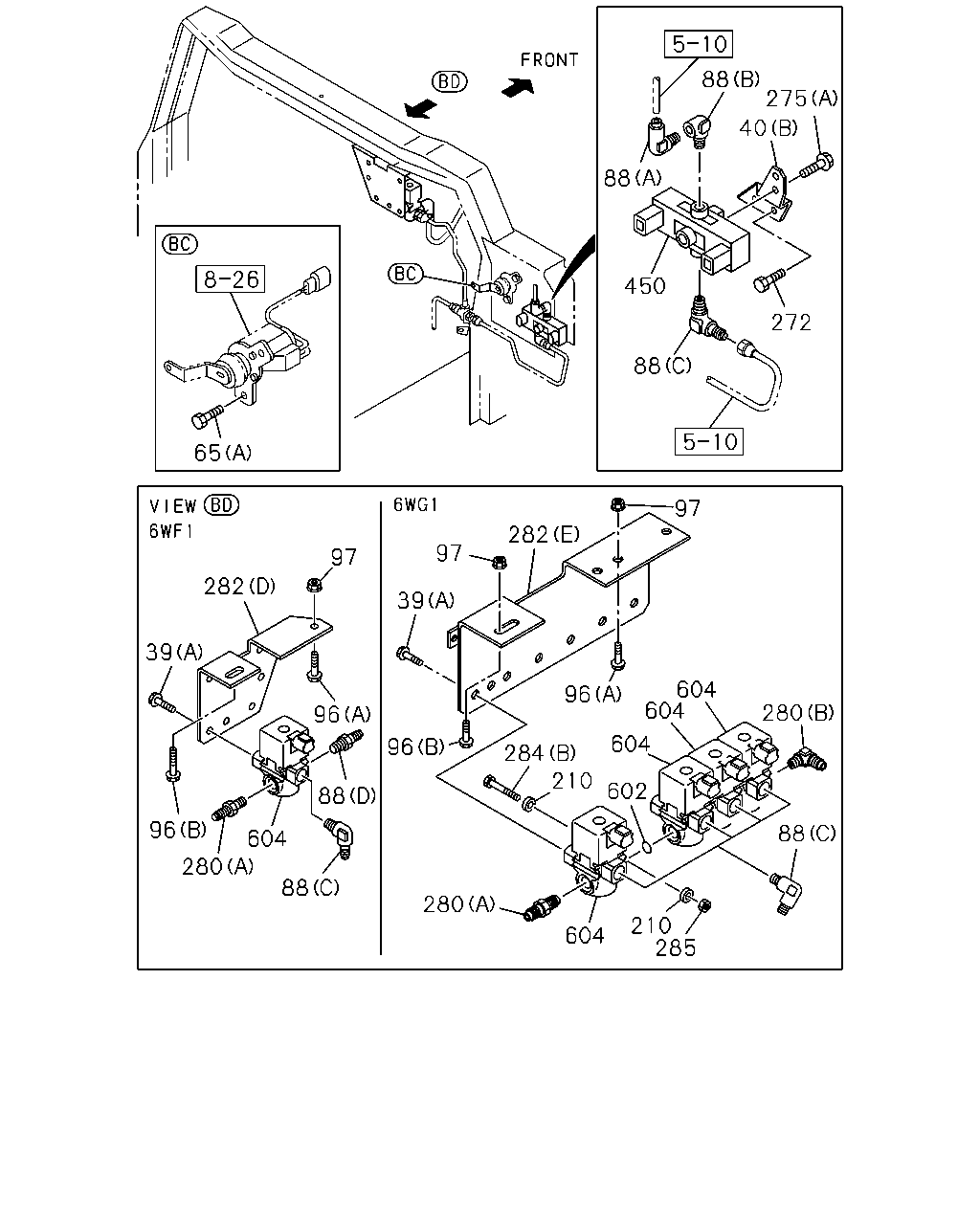

çizim 104562
88 275 40 88 450 272 88 65 97 282 97 97 282 39 39 604 604 96 280 96 604 96 284 210 602 88 96 88 604 280 88 280 210 285 604
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0704 ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0705- ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-420-0 01 1 0512-0704 ●
40 BRACKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-420-0 01 1 0705- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
65 BOLT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
65 BOLT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
65 BOLT; SOCKET FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
65 BOLT; SOCKET FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0407-0511 ●
65 BOLT; SOCKET FIX
FULL FLOATING CAB(W16) (A) M6X16 FLANGE 		0-28080-616-0 02 1 0512-0512 ●
65 BOLT; SOCKET FIX
FULL FLOATING CAB(W16) (A) M6X16 FLANGE 		0-28050-616-0 02 1 0601- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) 		1-09660-067-0 01 1 0512-0609 ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0610-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) 		1-09661-065-0 02 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) 		1-09661-065-0 02 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) PT3/8 3WAY 		1-09661-300-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) PT3/8 3WAY 		1-09661-300-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
96 BOLT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
96 BOLT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
97 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
97 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 09 1 0407-0511 ●
97 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
97 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91180-108-0 04 1 0603- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) 		1-82569-266-0 06 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82569-266-0 06 1 0705- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0705- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ●
272 BOLT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
272 BOLT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28681-020-0 02 1 0407-0511 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X20 FLANGE 		0-28681-020-0 02 1 0512-0512 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X20 FLANGE 		0-28651-020-0 02 1 0601-1208 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X25 FLANGE 		0-28651-025-0 02 1 1209- ●
275 BOLT; BRKT
6WG1 TC-S(97L) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
275 BOLT; BRKT
6WG1 TC-S(97L) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
275 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0407-0511 ●
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 0512- ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512-0704 ●
280 CONNECTOR; IN,MAG VLV
6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512-0704 ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0705- ●
280 CONNECTOR; IN,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0705- ●
282 BRACKET; MAG VLV
6WG1 TC-S(97L) (E) 		1-82569-298-0 01 1 0512-0704 ●
282 BRACKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-298-0 01 1 0705- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0407-0511 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0512- ●
282 BRACKET; MAG VLV
(D) 		1-82569-277-2 01 1 0407-0511 ●
282 BRACKET; MAG VLV
6WF1 TC-C(1B8) (D) 		1-82569-277-2 01 1 0512- ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0512- ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 02 1 0407-0511 ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0512- ●
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0705- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0601-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0705- ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91180-106-0 01 1 0603- ●
450 VALVE; MAG 1-53458-378-2 01 1 0407-0511 ●
450 VALVE; MAG
FULL FLOATING CAB(W16) 		1-53458-378-2 01 1 0512- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0705- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0705- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ●
604 VALVE; MAG,ENG CONT
6WG1 TC-S(97L) 		1-82563-871-2 04 1 0512-0704 ●
604 VALVE; MAG,ENG CONT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82563-871-2 04 1 0705- ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0512- ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0407-0511 ●
604 VALVE; MAG,ENG CONT
6WF1 TC-C(1B8) 		1-82563-871-2 01 1 0512- ●
çizim 104674
717 723 718 290 718 724 289 722 717 88 88 721 88 424 507 89 667 88 88 88 510 88 88 40 285 89 210 284 132 284 88 298 602 88 88 89 284 272 34 88 285 132 132 284 285 528 507 387 507 507 507
BalonParca AdiParca NoAdetTipApplied Date A B
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0704 ●
34 CONNECTOR; MAG VLV,INL PORT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0705- ●
34 CONNECTOR; MAG VLV,INL PORT
(E) R1/4 & RC1/4 		1-09664-211-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0512- ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-420-0 01 1 0512-0704 ●
40 BRACKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82569-420-0 01 1 0705- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) 		1-09660-067-0 01 1 0512-0609 ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0610-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) 		1-09661-065-0 02 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) 		1-09661-065-0 02 1 0705- ●
88 CONNECTOR; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) PT3/8 3WAY 		1-09661-300-0 01 1 0512-0704 ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) PT3/8 3WAY 		1-09661-300-0 01 1 0705- ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82564-094-2 01 1 0512-0704 ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		1-82564-094-2 01 1 0705- ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-82564-095-1 02 1 0512-0704 ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-82564-095-1 02 1 0705- ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) 		1-82564-407-1 01 1 0512-0704 ●
89 VALVE; MAG,DIFF LOCK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) 		1-82564-407-1 01 1 0705- ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 02 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82563-872-1 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0512- ●
132 CONNECTOR; OUTLET,MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512-0704 ●
132 CONNECTOR; OUTLET,MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0705- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) 		1-82569-266-0 06 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82569-266-0 06 1 0705- ●
210 WASHER; PL,BRKT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512-0704 ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0705- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ●
272 BOLT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
272 BOLT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28681-020-0 02 1 0407-0511 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X20 FLANGE 		0-28681-020-0 02 1 0512-0512 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X20 FLANGE 		0-28651-020-0 02 1 0601-1208 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X25 FLANGE 		0-28651-025-0 02 1 1209- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0705- ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0705- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-0704 ●
284 BOLT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) M6 FLANGE 		0-91180-106-0 03 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0603-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0705- ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0601-0704 ●
285 NUT; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 03 1 0705- ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		0-91180-106-0 01 1 0603- ●
289 BOLT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ●
289 BOLT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X35 FLANGE 		0-28650-835-0 02 1 0601-0704 ●
289 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X35 FLANGE 		0-28650-835-0 02 1 0705- ●
290 NUT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
290 NUT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
298 NUT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
298 NUT; MAG VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
387 CLIP; BAND
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=350 		1-09707-183-0 01 1 0512-0704 ●
387 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=350 		1-09707-183-0 01 1 0705- ●
424 ADAPTER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) PT3/8 		1-09664-210-0 01 1 0512-0704 ●
424 ADAPTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) PT3/8 		1-09664-210-0 01 1 0705- ●
507 TUBE; NYLON
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0512-0704 ●
507 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0705- ●
507 TUBE; NYLON
CAB UP +110MM<TGG> (A) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0407-0511 ●
507 TUBE; NYLON
FULL FLOATING CAB(W16) (A) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
510 VALVE; CHECK
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-48410-531-1 01 1 0512-0704 ●
510 VALVE; CHECK
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-48410-531-1 01 1 0705- ●
528 VALVE; PRESSURE REDUCING
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0512-0704 ●
528 VALVE; PRESSURE REDUCING
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0705- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8 		9-09565-117-0 03 1 0705- ●
602 GASKET; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512-0704 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0705- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ●
667 LUBRICATION
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0512-0703 ●
667 LUBRICATION
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98063-001-0 01 1 0704-0704 ●
667 LUBRICATION
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98063-001-0 01 1 0705- ●
717 FILTER; MAG VLV
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-032-0 01 1 0512-0704 ●
717 FILTER; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-032-0 01 1 0705-0708 ●
717 FILTER; MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98092-703-0 01 1 0709- ●
718 CONNECTOR; FILTER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0512-0704 ●
718 CONNECTOR; FILTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0705- ●
721 ELEMENT; LUBRICATION
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0512-0704 ●
721 ELEMENT; LUBRICATION
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0705- ●
722 ELEMENT; AIR FILTER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-040-0 01 1 0512-0704 ●
722 ELEMENT; AIR FILTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-040-0 01 1 0705- ●
723 BOLT; AIR FILTER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-025-0 04 1 0512-0704 ●
723 BOLT; AIR FILTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33779-025-0 04 1 0705-0708 ●
724 GASKET; AIR FILTER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		5-09623-075-0 01 1 0512-0704 ●
724 GASKET; AIR FILTER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		5-09623-075-0 01 1 0705- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
