◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#2869) — 46 parça

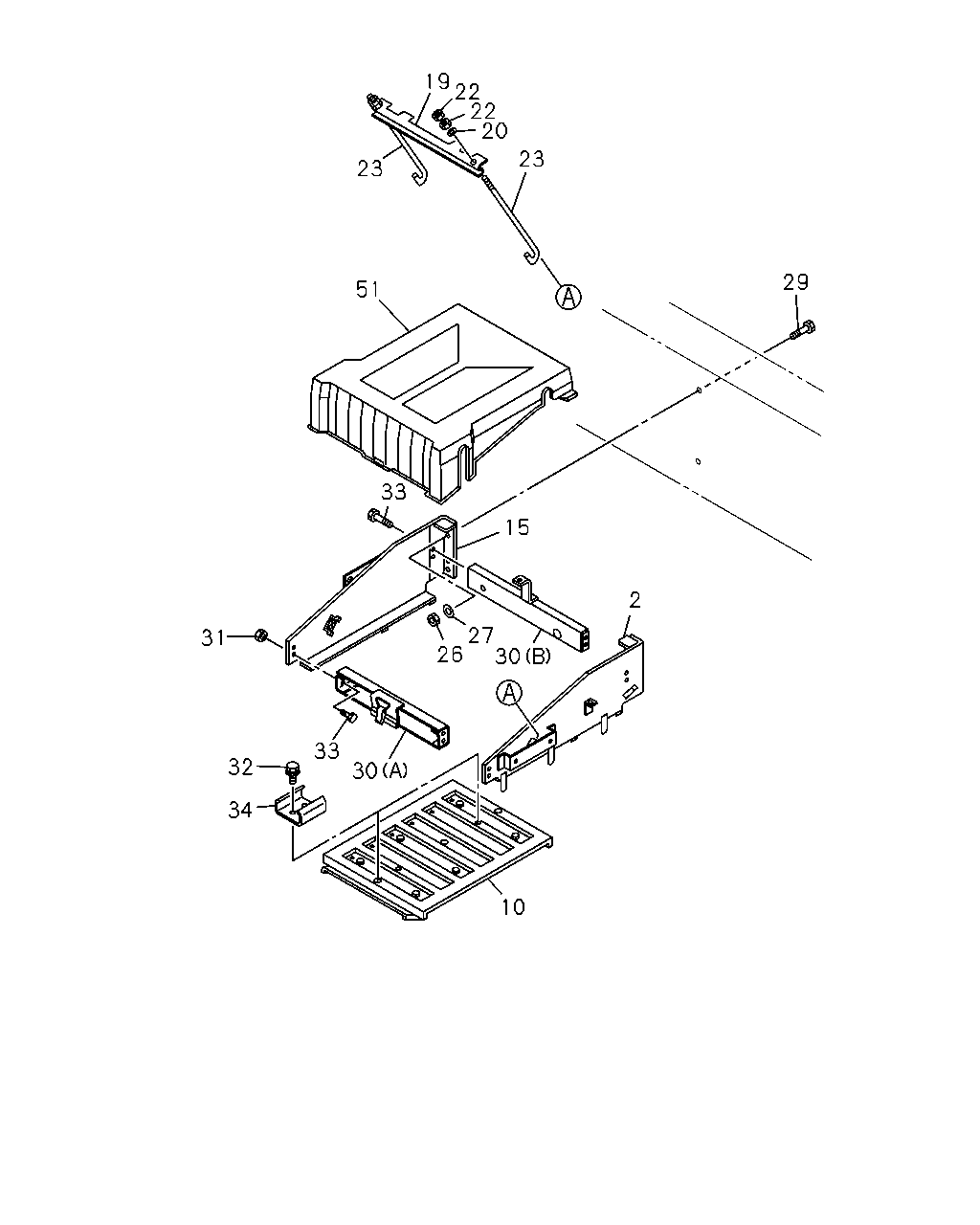

çizim 96258
10 2 30 27 26 15 29 23 20 22 22 19 23 51 33 31 33 30 32 34
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; BATTERY
10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53613-292-2 01 1 9002-9306 ●
2 BRACKET; BATTERY
10PD1 STD ENG(40L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53613-274-3 01 1 9002-9306 ●
2 BRACKET; BATTERY
6RB1 STD ENG(07L),6RB1TC ENG(30L) 		1-53613-274-3 01 1 9002-9306 ●
2 BRACKET; BATTERY 1-53613-274-3 01 1 9002-9306 ●
2 BRACKET; BATTERY 1-53613-379-2 01 1 9307- ● ●
10 COVER; BATTERY
TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-082-0 01 1 9307- ●
10 COVER; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> 		1-53619-082-0 01 1 9307- ●
10 COVER; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53612-036-0 01 1 9002-9106 ●
10 COVER; BATTERY
SILENCER SINGLE VERTICAL<N28> 		1-53612-036-0 01 1 9002-9106 ●
10 COVER; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53612-042-0 01 1 9107-9306 ●
10 COVER; BATTERY
SILENCER SINGLE VERTICAL<N28> 		1-53612-042-0 01 1 9107-9306 ●
10 COVER; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53612-042-0 01 1 9307- ●
10 COVER; BATTERY
TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> 		1-53612-042-0 01 1 9307- ●
10 COVER; BATTERY
10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-062-0 01 1 9002-9106 ●
10 COVER; BATTERY
6RB1 STD ENG(07L),10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-062-1 01 1 9107-9306 ●
10 COVER; BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> 		1-53619-062-1 01 1 9107-9306 ●
10 COVER; BATTERY
6RB1 STD ENG(07L) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-53619-063-0 01 1 9002-9106 ●
10 COVER; BATTERY
EXC. SILENCER SINGLE VERTICAL<N28> 		1-53619-063-0 01 1 9002-9106 ●
15 BRACKET; BATTERY 1-53613-268-4 01 1 9002-9306 ● ●
15 BRACKET; BATTERY 1-53613-347-1 01 1 9307- ● ●
19 STAY; BATTERY 1-53618-039-1 01 1 9002- ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		9-09164-708-0 02 1 9002- ● ●
22 NUT; STAY
M8 		9-09110-408-0 04 1 9002- ● ●
23 BOLT; STAY
L=250 L=260 		1-53616-109-0 02 1 9002- ● ●
26 NUT; BRKT
M14 		9-99110-414-0 04 1 9002- ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 9002- ● ●
29 BOLT; BRKT TO FRAME
M14X45 		9-92051-445-0 04 1 9002-9005 ● ●
29 BOLT; BRKT TO FRAME
M14X45 		0-20801-445-0 04 1 9006- ● ●
30 PLATE; BATTERY
(B) 		1-53619-058-0 01 1 9002-9306 ● ●
30 PLATE; BATTERY
(A) 		1-53619-060-0 01 1 9002-9106 ● ●
30 PLATE; BATTERY
(A) 		1-53619-085-0 01 1 9107- ● ●
31 NUT; PLATE
M8 		9-09110-408-0 04 1 9002- ● ●
32 BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ●
32 BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205-9302 ● ●
32 BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 FLANGE 		0-28080-816-0 04 1 9303- ● ●
33 BOLT; PLATE TO BRKT
M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204 ● ●
33 BOLT; PLATE TO BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302 ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
33 BOLT; PLATE TO BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9002-9204 ● ●
33 BOLT; PLATE TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-9302 ● ●
33 BOLT; PLATE TO BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 9303-9306 ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ● ●
34 SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> 		1-53619-061-0 02 1 9002-9106 ● ●
34 SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> 		1-53619-084-0 02 1 9107- ● ●
51 COVER; BATTERY 1-53612-033-0 01 1 9002-9106 ● ●
51 COVER; BATTERY 1-53612-040-1 01 1 9107- ● ●
