8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#28689) — 139 parça

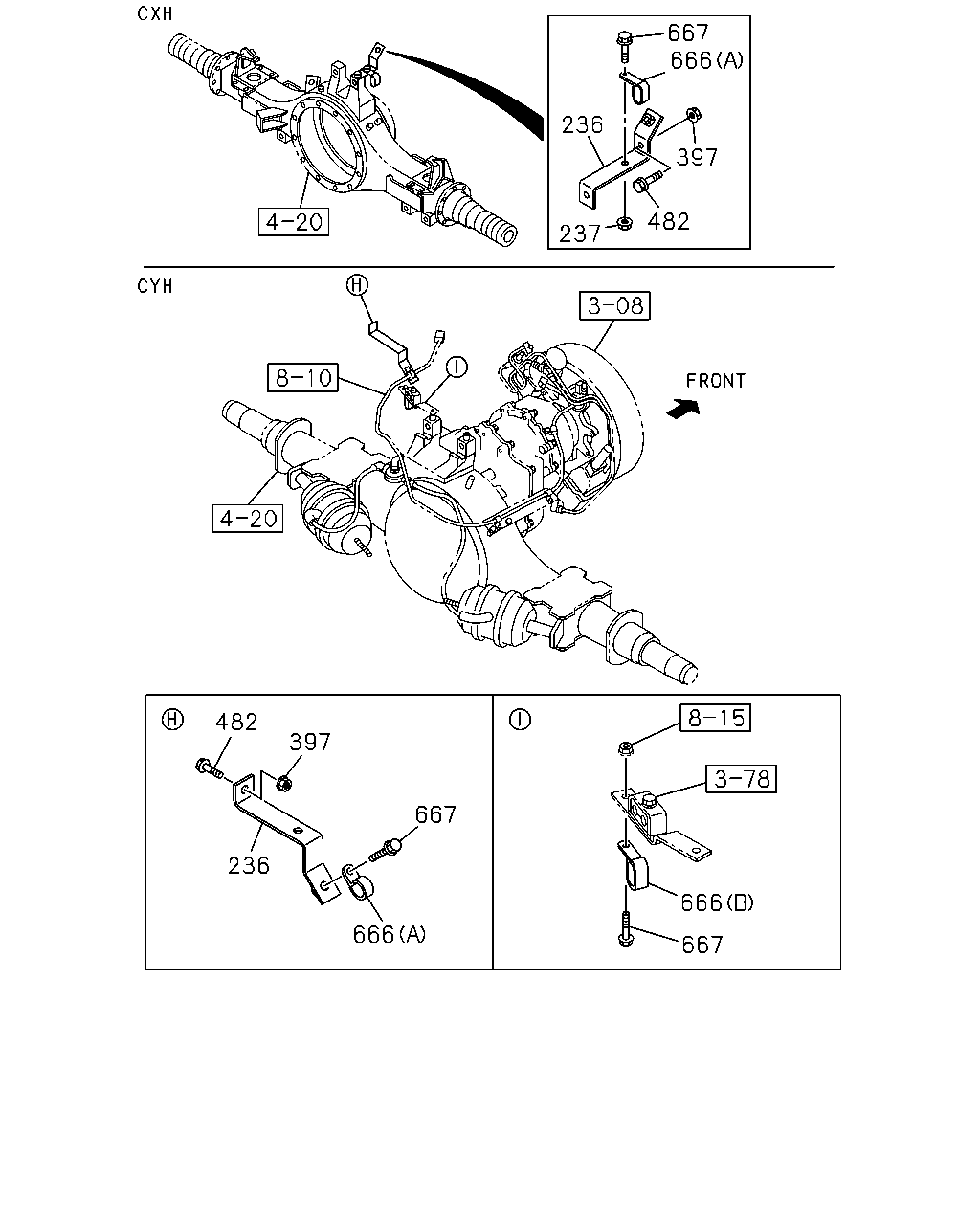

çizim 86548
667 666 236 397 482 237 482 397 667 236 666 666 667
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR 1-82699-996-1 01 1 0407-0511 ●
236 BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82699-996-1 01 1 0512- ●
237 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
237 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
237 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
397 NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
397 NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
482 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
482 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
482 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 04 1 0407-0511 ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11X2 L=20 		1-09700-871-0 04 1 0512- ●
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●

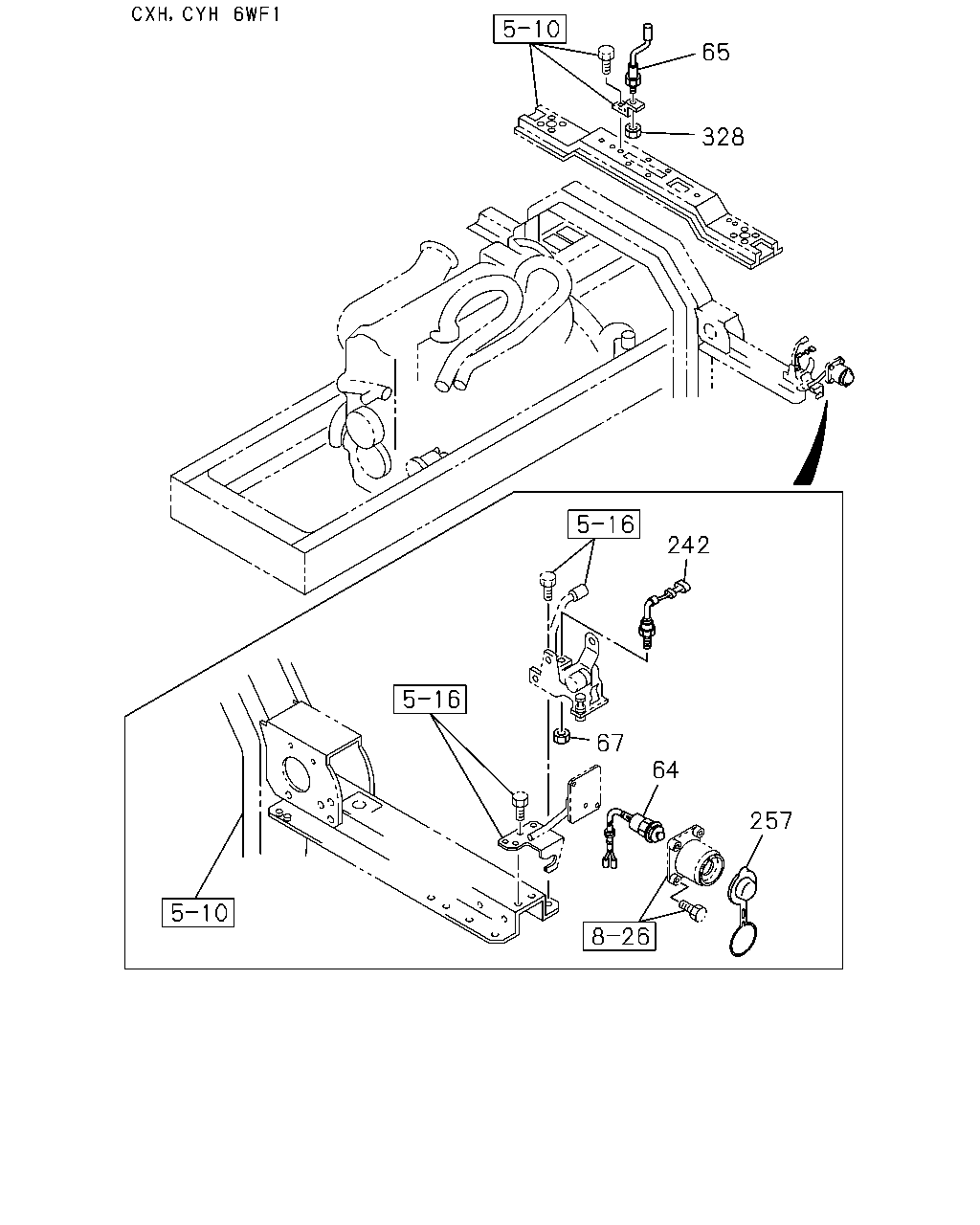

çizim 86741
65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN
6WG1 TC-S(97L) 		1-82380-173-2 01 1 0512-0704 ●
64 SWITCH; CAB TILT MAIN
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82380-173-2 01 1 0705- ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0407-0511 ●
64 SWITCH; CAB TILT MAIN
6WF1 TC-C(1B8) 		1-82380-108-0 01 1 0512- ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0407-0511 ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0512- ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0407-0511 ●
67 NUT; SW,CAB TILT
6WF1 TC-C(1B8) M16 H=18.5 		1-09409-013-0 01 1 0512- ●
242 SWITCH
6WG1 TC-S(97L) STAMP NO 		1-82380-172-1 01 1 0512-0704 ●
242 SWITCH
6WG1 TC-C(72L),6WG1 TC-S(97L) STAMP NO 		1-82380-172-1 01 1 0705- ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0407-0511 ●
242 SWITCH
6WF1 TC-C(1B8) STAMP NO 		1-82380-126-0 01 1 0512- ●
257 COVER; HOLE,SW 1-82389-008-0 01 1 0407-0511 ●
257 COVER; HOLE,SW
6WF1 TC-C(1B8) 		1-82389-008-0 01 1 0512- ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0407-0511 ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0512-0512 ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0601- ●

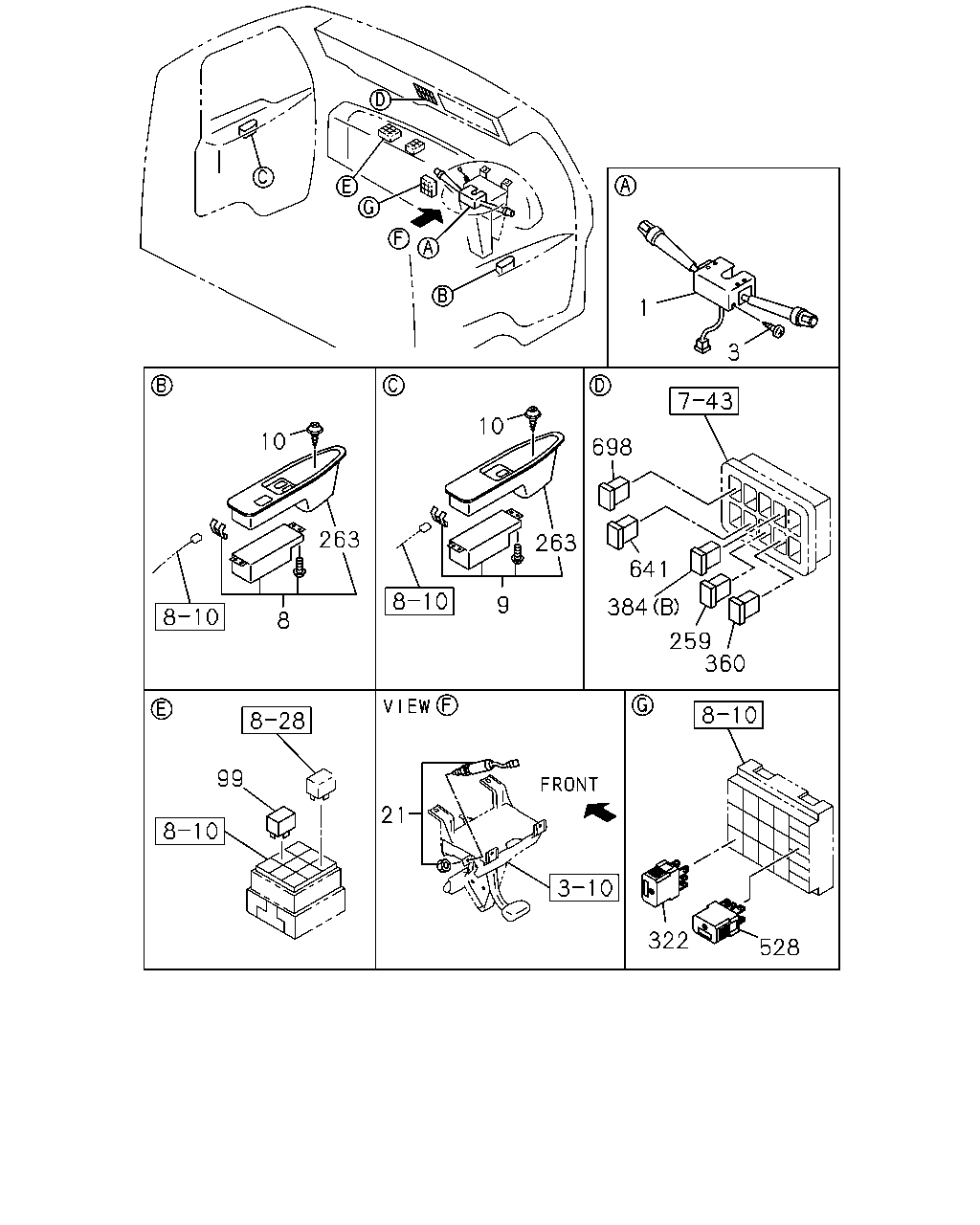

çizim 86837
1 3 10 10 698 263 263 641 9 384 8 259 360 99 21 322 528
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
TRANSMISSION CONTROL LINK TYPE(B2A) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-579-2 01 1 0512- ●
1 SWITCH; COMB
MJX M/T<Y9N> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82360-694-2 01 1 0512- ●
1 SWITCH; COMB
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-695-2 01 1 0512- ●
1 SWITCH; COMB 1-82360-580-1 01 1 0407-0511 ●
1 SWITCH; COMB
TRANSMISSION CONTROL LINK TYPE(B2A) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-580-2 01 1 0512- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0407-0511 ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0512-0604 ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-1 01 1 0407-0511 ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-2 01 1 0512- ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 0407-0511 ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 0512- ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0407-0511 ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0512-0604 ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ●
21 SWITCH; CLU 1-82380-114-2 01 1 0407-0511 ●
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 0512- ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
259 SWITCH; RETARDER
6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. SMOOTHER-G(C1W),FULL TRACTOR TRUCK<RD6> 		1-82340-407-1 01 1 0512-0704 ●
259 SWITCH; RETARDER
6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. SMOOTHER-G(C1W),FULL TRACTOR TRUCK<RD6> 		1-82340-407-1 01 1 0705- ●
263 COVER; SW 1-82385-005-2 01 1 0407-0511 ●
263 COVER; SW 1-82385-005-2 01 1 0512- ●
263 COVER; SW 1-82385-006-3 01 1 0407-0511 ●
263 COVER; SW 1-82385-006-3 01 1 0512- ●
322 RELAY; SPLITTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
322 RELAY; SPLITTER
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0407-0511 ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0512- ●
384 SWITCH; IDLING CONT,ELEC
6WG1 TC-S(97L) (C) 		1-82350-321-1 01 1 0512-0704 ●
384 SWITCH; IDLING CONT,ELEC
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82350-321-1 01 1 0705- ●
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 0407-0511 ●
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 0512- ●
384 SWITCH; IDLING CONT,ELEC
(B) 		1-82350-342-0 01 1 0407-0511 ●
384 SWITCH; IDLING CONT,ELEC
6WF1 TC-C(1B8) (B) 		1-82350-342-0 01 1 0512- ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
641 SWITCH; MAP
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82350-362-1 01 1 0512- ●
641 SWITCH; MAP
6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82350-372-0 01 1 0512-0704 ●
641 SWITCH; MAP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82350-372-0 01 1 0705- ●
698 SWITCH; EDS
SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82340-698-0 01 1 0512- ●

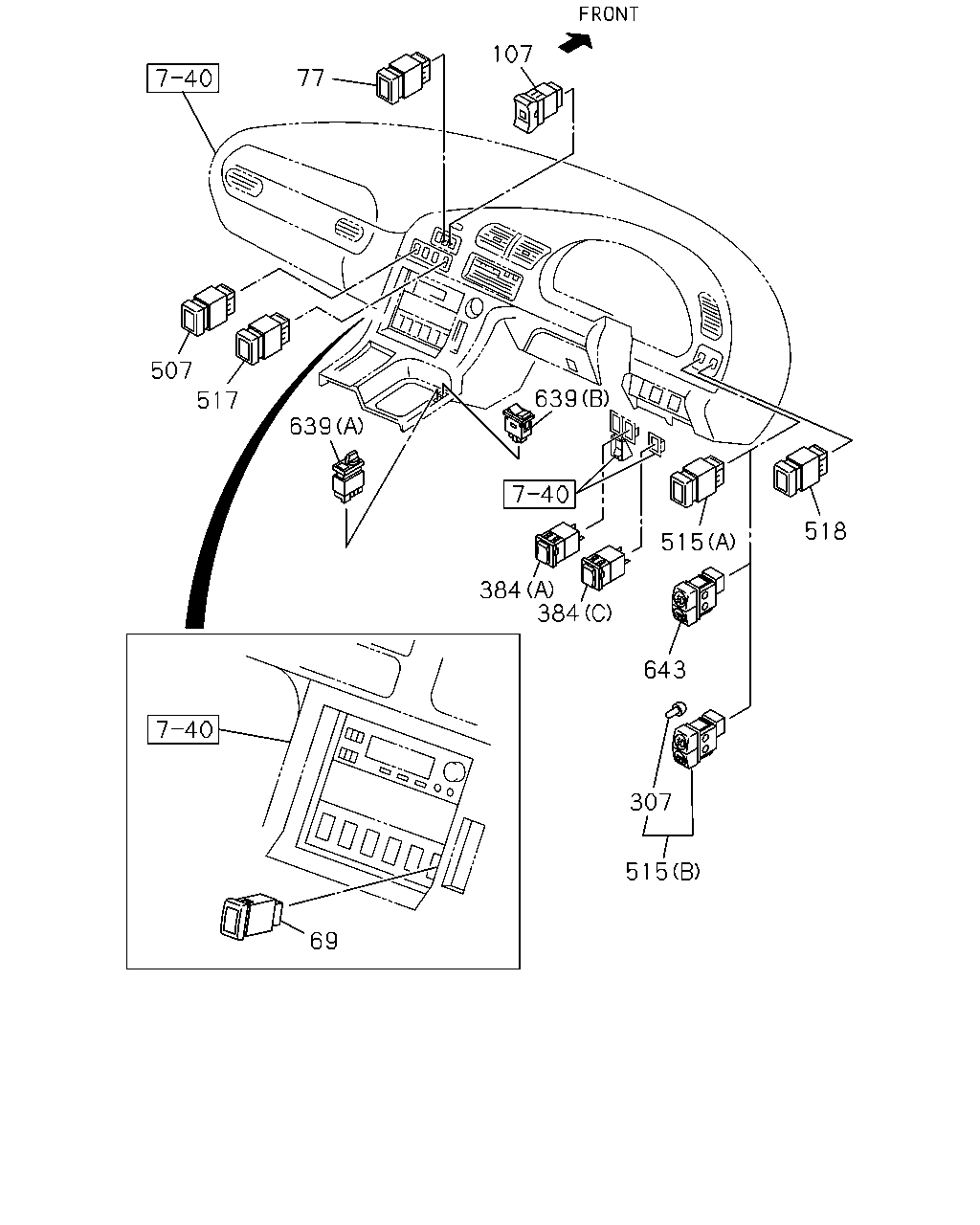

çizim 86866
107 77 507 639 517 639 518 515 384 384 643 307 515 69
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE 1-82340-682-0 01 1 0407-0511 ●
69 SWITCH; AUTO CRUISE 1-82340-682-0 01 1 0512- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82340-413-0 01 1 0407-0511 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82340-413-0 01 1 0512- ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 0407-0511 ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 0512- ●
307 BULB ASM; SW
6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA 		8-97116-331-0 01 1 0512-0704 ●
307 BULB ASM; SW
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA 		8-97116-331-0 01 1 0705- ●
384 SWITCH; IDLING CONT,ELEC
6WG1 TC-S(97L) (C) 		1-82350-321-1 01 1 0512-0704 ●
384 SWITCH; IDLING CONT,ELEC
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82350-321-1 01 1 0705- ●
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 0407-0511 ●
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 0512- ●
384 SWITCH; IDLING CONT,ELEC
(B) 		1-82350-342-0 01 1 0407-0511 ●
384 SWITCH; IDLING CONT,ELEC
6WF1 TC-C(1B8) (B) 		1-82350-342-0 01 1 0512- ●
507 SWITCH; MIRROR HEATER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82340-423-0 01 1 0407-0511 ●
507 SWITCH; MIRROR HEATER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82340-423-0 01 1 0512- ●
515 SWITCH; FLUORESCENT LAMP
6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97363-946-1 01 1 0512-0704 ●
515 SWITCH; FLUORESCENT LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97363-946-1 01 1 0705- ●
515 SWITCH; FLUORESCENT LAMP
(A) 		1-82350-230-0 01 1 0407-0511 ●
515 SWITCH; FLUORESCENT LAMP
6WF1 TC-C(1B8) (A) 		1-82350-230-0 01 1 0512- ●
517 SWITCH; MIRROR WIPER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82350-229-0 01 1 0407-0511 ●
517 SWITCH; MIRROR WIPER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82350-229-0 01 1 0512- ●
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0512- ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-82330-068-0 01 1 0512- ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-82350-363-0 01 1 0512- ●
643 SWITCH; SKIP SHIFT
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82340-689-0 01 1 0512- ●
643 SWITCH; SKIP SHIFT
6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97381-249-0 01 1 0512-0704 ●
643 SWITCH; SKIP SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97381-249-0 01 1 0705- ●

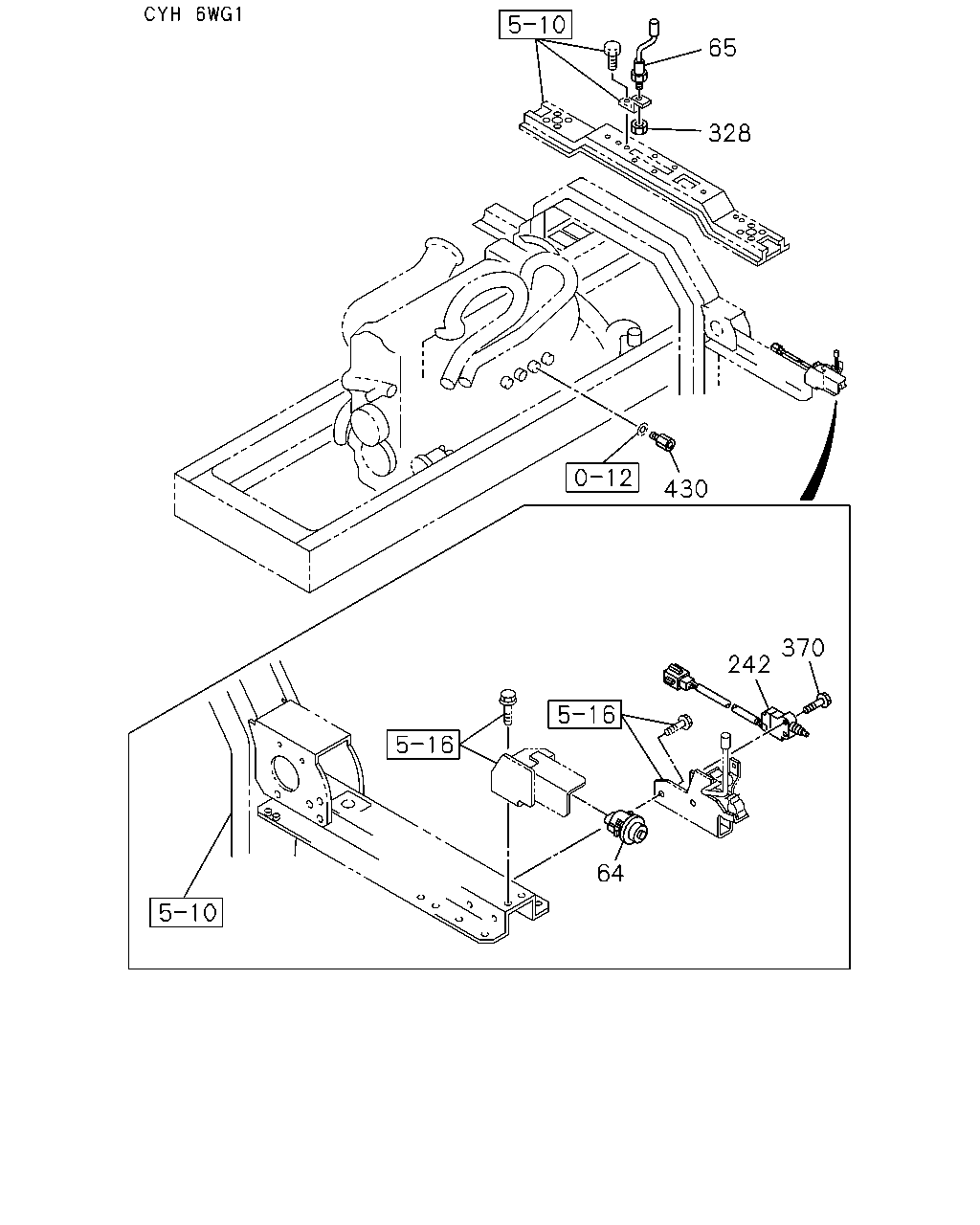

çizim 87147
65 328 430 370 242 64
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN
6WG1 TC-S(97L) 		1-82380-173-2 01 1 0512-0704 ●
64 SWITCH; CAB TILT MAIN
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82380-173-2 01 1 0705- ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0407-0511 ●
64 SWITCH; CAB TILT MAIN
6WF1 TC-C(1B8) 		1-82380-108-0 01 1 0512- ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0407-0511 ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0512- ●
242 SWITCH
6WG1 TC-S(97L) STAMP NO 		1-82380-172-1 01 1 0512-0704 ●
242 SWITCH
6WG1 TC-C(72L),6WG1 TC-S(97L) STAMP NO 		1-82380-172-1 01 1 0705- ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0407-0511 ●
242 SWITCH
6WF1 TC-C(1B8) STAMP NO 		1-82380-126-0 01 1 0512- ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0407-0511 ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0512-0512 ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0601- ●
370 BOLT; SW
6WG1 TC-S(97L) M6X30 FLANGE 		0-28680-630-0 02 1 0512-0512 ●
370 BOLT; SW
6WG1 TC-S(97L) M6X30 FLANGE 		0-28650-630-0 02 1 0601-0704 ●
370 BOLT; SW
6WG1 TC-C(72L),6WG1 TC-S(97L) M6X30 FLANGE 		0-28650-630-0 02 1 0705- ●
430 ADAPTER; SW
6WG1 TC-S(97L) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0512-0704 ●
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0705- ●

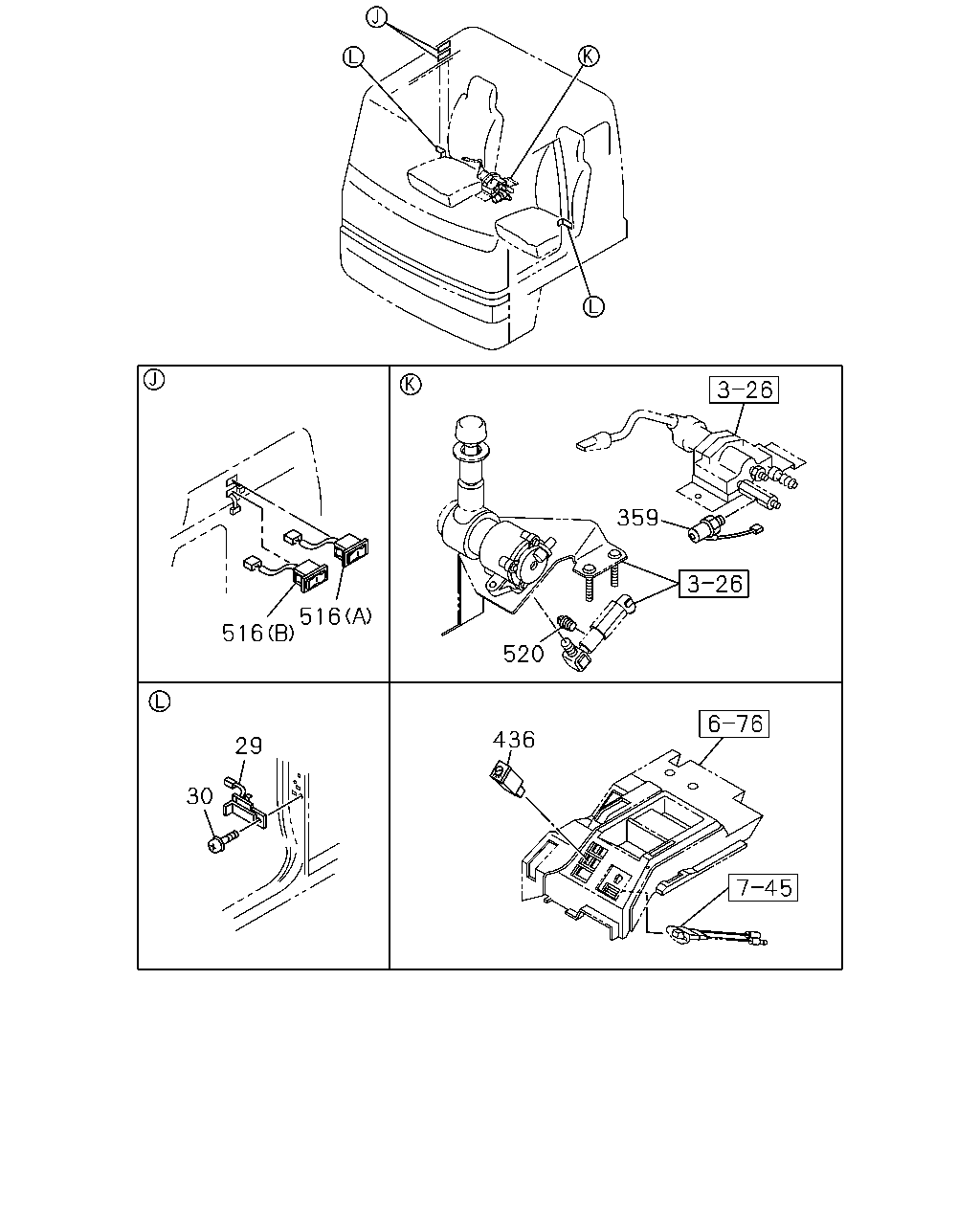

çizim 104460
359 516 516 520 436 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 02 1 0407-0511 ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0512- ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0407-0511 ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0512- ●
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-0 01 1 0407-0511 ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> GREEN 		1-82410-176-1 01 1 0512- ●
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 0407-0511 ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82330-043-0 01 1 0512- ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (A) 		1-82350-239-2 01 1 0407-0511 ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (A) 		1-82350-239-2 01 1 0512- ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (B) 		1-82350-240-2 01 1 0407-0511 ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (B) 		1-82350-240-2 01 1 0512- ●
520 PLUG; CONNECTOR
FULLER M/T<X9B> PT1/4 		9-99204-513-0 01 1 0512-0706 ●
520 PLUG; CONNECTOR
FULL TRACTOR TRUCK<RD6> FULLER M/T<X9B> PT1/4 		9-99204-513-0 01 1 0707-0712 ●
520 PLUG; CONNECTOR
FULLER M/T<X9B> PT1/4 		9-99204-513-0 01 1 0801- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
