◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#28687) — 34 parça

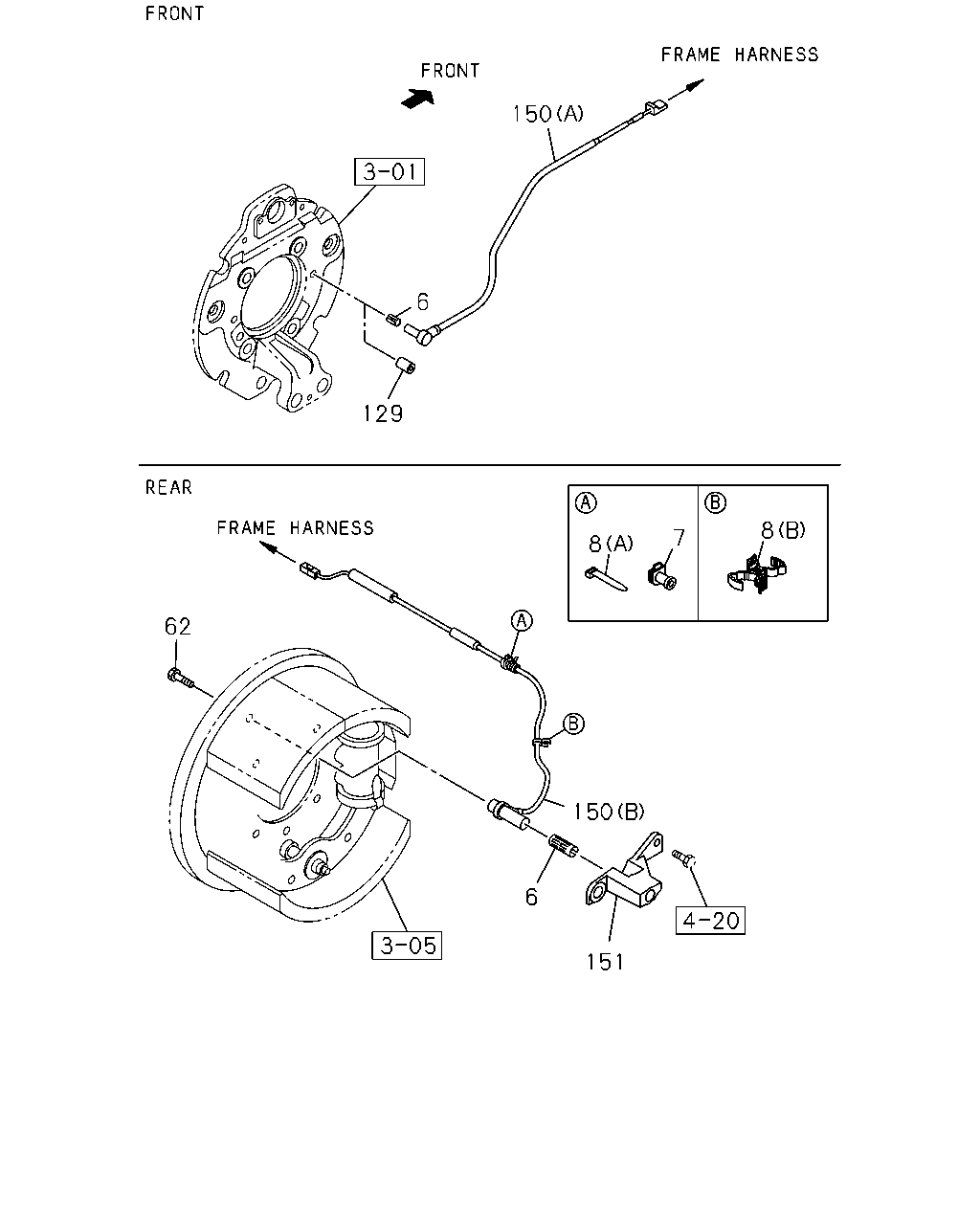

çizim 86738
150 6 129 8 7 8 62 150 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0407-0511 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0407-0511 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0512- ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0512- ●
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0407-0511 ●
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0512- ●
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0407-0511 ●
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0512- ●
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0407-0511 ●
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0512- ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0407-0511 ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0512-1506 ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507- ●
129 COLLAR 1-83129-471-0 02 1 0407-0511 ●
129 COLLAR 1-83129-471-0 02 1 0407-0511 ●
129 COLLAR 1-83129-471-0 02 1 0512- ●
129 COLLAR 1-83129-471-0 02 1 0512- ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-857-3 01 1 0407-0511 ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-857-3 01 1 0512- ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-932-2 01 1 0407-0511 ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-932-2 01 1 0512- ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0407-0511 ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0407-0511 ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0512- ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0512- ●
151 BRACKET; SPD SENSOR 1-83129-403-0 01 1 0407-0511 ●
151 BRACKET; SPD SENSOR 1-83129-405-0 01 1 0512-1504 ●
151 BRACKET; SPD SENSOR 8-98299-398-0 01 1 1505- ●
151 BRACKET; SPD SENSOR 1-83129-404-0 01 1 0407-0511 ●
151 BRACKET; SPD SENSOR 1-83129-406-0 01 1 0512-1504 ●
151 BRACKET; SPD SENSOR 8-98299-399-0 01 1 1505- ●

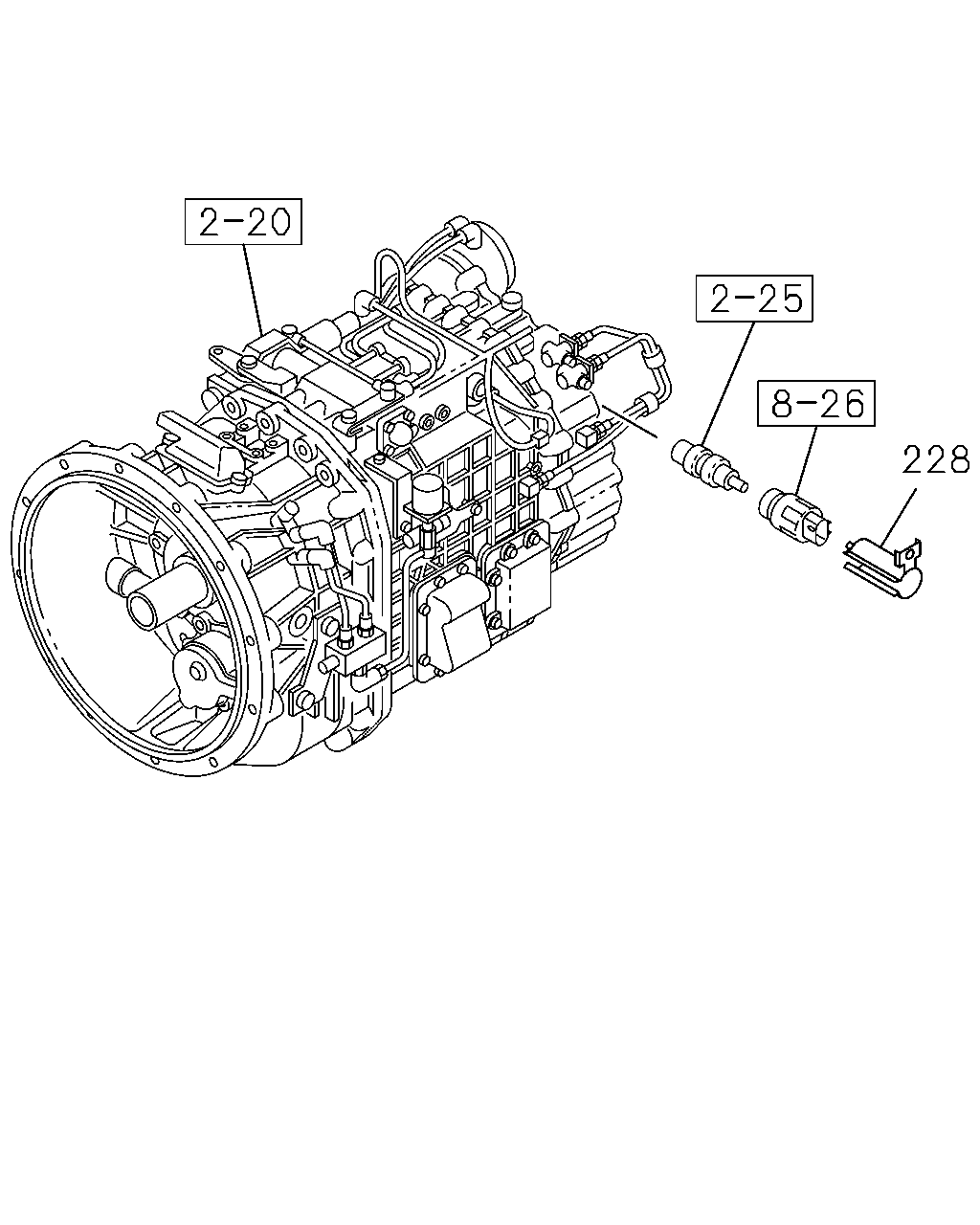

çizim 86899
228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0407-0511 ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0512-0808 ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
