◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#28686) — 1165 parça

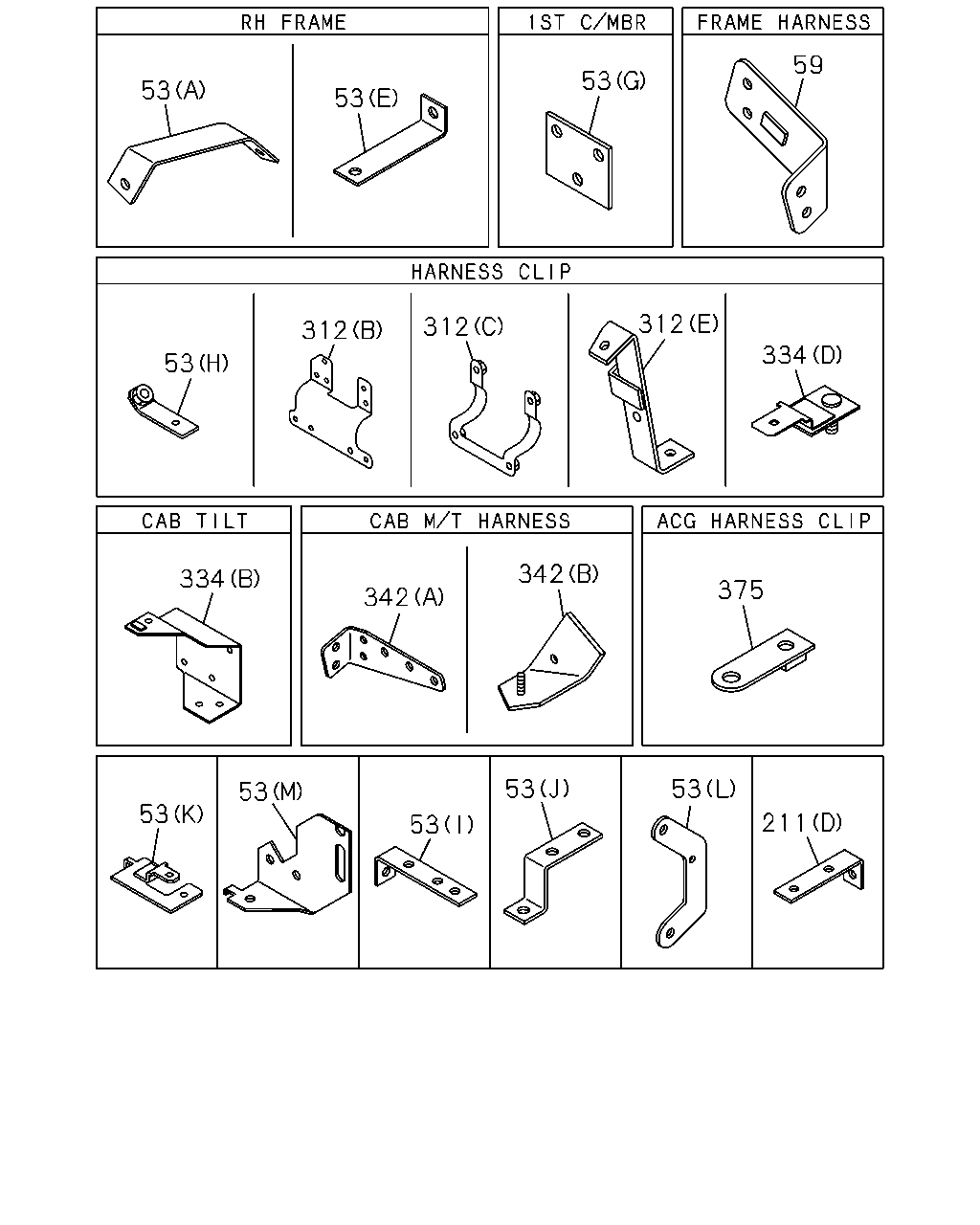

çizim 86892
59 53 53 53 312 312 312 334 53 342 334 375 342 53 53 53 53 211 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0512-0704 ●
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0705- ●
53 BRACKET; HARNESS
6WG1 TC-S(97L) (M) 		8-97610-991-0 01 1 0512-0704 ●
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) 		8-97610-991-0 01 1 0705- ●
53 BRACKET; HARNESS
(I) L=115 		1-82698-360-0 01 1 0512- ●
53 BRACKET; HARNESS
(J) 		1-82698-382-0 01 1 0512- ●
53 BRACKET; HARNESS
(H) 		1-81582-005-1 01 1 0407-0511 ●
53 BRACKET; HARNESS
6WG1 TC-S(97L) (L) 		1-83129-472-1 01 1 0512-0704 ●
53 BRACKET; HARNESS
(L) 		1-83129-472-1 01 1 0705- ●
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (G) 		1-82698-469-0 01 1 0407-0511 ●
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-469-0 02 1 0512- ●
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0407-0511 ●
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0512- ●
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 04 1 0407-0511 ●
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0512- ●
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0407-0511 ●
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0512-0603 ●
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0407-0511 ●
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 02 1 0512- ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0407-0511 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0512- ●
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0407-0511 ●
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0512- ●
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0407-0511 ●
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0512- ●
211 BRACKET; AXLE HARNESS
6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 01 1 0607-0704 ●
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 01 1 0705- ●
211 BRACKET; AXLE HARNESS
(B) 		1-82698-358-0 02 1 0407-0407 ●
211 BRACKET; AXLE HARNESS
(C) 		1-47479-430-0 02 1 0408-0511 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47479-430-0 02 1 0512- ●
211 BRACKET; AXLE HARNESS
(A) L=120 H=35 		1-82699-970-0 02 1 0407-0511 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 02 1 0512-0606 ●
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 02 1 0607- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) 		1-82698-570-0 01 1 0607-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) 		1-82698-570-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0512-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0512-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) 		1-82699-182-0 01 1 0512-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) 		1-82699-182-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (E) L=195.5 		1-82698-502-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(D) L=120 H=35 		1-82698-088-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=120 H=35 		1-82698-088-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0512- ●
334 BRACKET
SMOOTHER-G(C1W) (D) 		1-82698-543-0 01 1 0512- ●
334 BRACKET
6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0512-0704 ●
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0705- ●
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0407-0511 ●
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0512- ●
334 BRACKET
(B) 		1-53458-362-0 01 1 0407-0511 ●
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512- ●
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0407-0511 ●
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0512- ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-974-0 01 1 0407-0511 ●
342 BRACKET; HARNESS CAB MTG
EXC. FULLER M/T<X9B> (B) 		1-47479-974-0 01 1 0512- ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0407-0511 ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0512- ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0407-0511 ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0512- ●
çizim 86895
5 224 1 1 224 1 1 530 530 178 178 178 178 178 530 292 178 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(C) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0512- ●
1 SLEEVE; RUBBER
6WF1 TC-C(1B8) (C) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0512- ●
1 SLEEVE; RUBBER
6WG1 TC-S(97L) (C) ID=23 OD=27 L=40 		1-09337-015-0 02 1 0512-0704 ●
1 SLEEVE; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=23 OD=27 L=40 		1-09337-015-0 02 1 0705- ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0407-0511 ●
1 SLEEVE; RUBBER
(A) ID=38.1 L=50 		5-09360-835-0 01 1 0512-0603 ●
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 01 1 0604- ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0407-0511 ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0512- ●
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0407-0511 ●
5 GUIDE; HARNESS
6WF1 TC-C(1B8) L=360 		1-82699-476-1 01 1 0512- ●
178 GROMMET; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (E) 		1-82698-551-0 01 1 0512-0704 ●
178 GROMMET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (E) 		1-82698-551-0 01 1 0705- ●
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0512- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0407-0511 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0512- ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0407-0511 ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0512- ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0407-0511 ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0512- ●
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0407-0511 ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0512- ●
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0407-0511 ●
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0512- ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=6 L=30 		5-09360-352-0 01 1 0407-0511 ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=6 L=30 		5-09360-352-0 01 1 0512- ●
292 CAP; RUBBER 1-82690-667-0 02 1 0512- ●
292 CAP; RUBBER 1-82690-667-0 01 1 0407-0511 ●
292 CAP; RUBBER
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) 		1-82690-667-0 01 1 0512- ●
503 CONNECTOR 1-82690-666-0 01 1 0512- ●
530 SEAL; HARNESS
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (C) OD=25 BLACK 		1-76798-019-0 01 1 0512- ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 16 1 0407-0511 ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0512- ●
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 01 1 0407-0511 ●
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0512- ●
530 SEAL; HARNESS
(B) 		1-76770-009-2 01 1 0407-0511 ●
530 SEAL; HARNESS
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A) 100X40 		1-72498-022-1 02 1 0512- ●

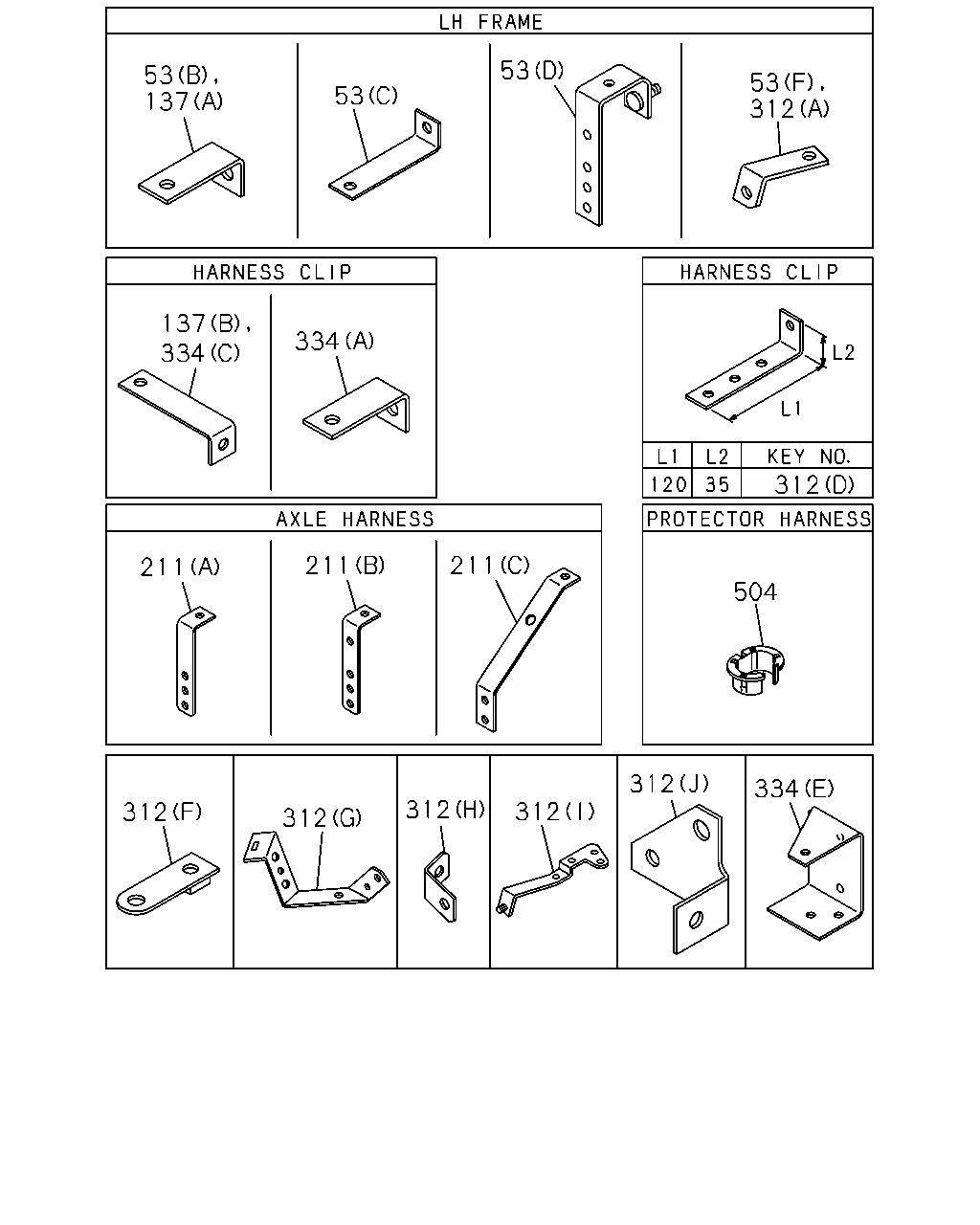

çizim 86898
53 53 137 53 312 53 137 334 334 312 211 211 211 504 312 334 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0512-0704 ●
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0705- ●
53 BRACKET; HARNESS
6WG1 TC-S(97L) (M) 		8-97610-991-0 01 1 0512-0704 ●
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (M) 		8-97610-991-0 01 1 0705- ●
53 BRACKET; HARNESS
(I) L=115 		1-82698-360-0 01 1 0512- ●
53 BRACKET; HARNESS
(J) 		1-82698-382-0 01 1 0512- ●
53 BRACKET; HARNESS
(H) 		1-81582-005-1 01 1 0407-0511 ●
53 BRACKET; HARNESS
6WG1 TC-S(97L) (L) 		1-83129-472-1 01 1 0512-0704 ●
53 BRACKET; HARNESS
(L) 		1-83129-472-1 01 1 0705- ●
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (G) 		1-82698-469-0 01 1 0407-0511 ●
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-469-0 02 1 0512- ●
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0407-0511 ●
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0512- ●
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 04 1 0407-0511 ●
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0512- ●
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0407-0511 ●
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0512-0603 ●
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0407-0511 ●
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 02 1 0512- ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0407-0511 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0512- ●
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0407-0511 ●
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0512- ●
137 BRACKET; HARNESS CLAMP
(A) L=50 		1-47475-663-1 01 1 0407-0511 ●
137 BRACKET; HARNESS CLAMP
(B) L=175 H=30 		1-47479-386-1 01 1 0407-0511 ●
137 BRACKET; HARNESS CLAMP
(B) L=175 H=30 		1-47479-386-1 01 1 0512- ●
211 BRACKET; AXLE HARNESS
6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 01 1 0607-0704 ●
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 01 1 0705- ●
211 BRACKET; AXLE HARNESS
(B) 		1-82698-358-0 02 1 0407-0407 ●
211 BRACKET; AXLE HARNESS
(C) 		1-47479-430-0 02 1 0408-0511 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47479-430-0 02 1 0512- ●
211 BRACKET; AXLE HARNESS
(A) L=120 H=35 		1-82699-970-0 02 1 0407-0511 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 02 1 0512-0606 ●
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-82698-588-0 02 1 0607- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) 		1-82698-570-0 01 1 0607-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) 		1-82698-570-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0512-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0512-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) 		1-82699-182-0 01 1 0512-0704 ●
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) 		1-82699-182-0 01 1 0705- ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (E) L=195.5 		1-82698-502-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(D) L=120 H=35 		1-82698-088-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=120 H=35 		1-82698-088-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0512- ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0407-0511 ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0512- ●
334 BRACKET
SMOOTHER-G(C1W) (D) 		1-82698-543-0 01 1 0512- ●
334 BRACKET
6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0512-0704 ●
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0705- ●
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0407-0511 ●
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0512- ●
334 BRACKET
(B) 		1-53458-362-0 01 1 0407-0511 ●
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512- ●
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0407-0511 ●
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0512- ●
504 PROTECTOR; HARNESS
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82698-391-0 02 1 0407-0511 ●
504 PROTECTOR; HARNESS
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-82698-391-0 02 1 0512- ●
çizim 86928
119 524 219 294 340 515 255 423
BalonParca AdiParca NoAdetTipApplied Date A B
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0407-0511 ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0512- ●
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
219 NUT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ●
219 NUT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0603-0704 ●
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 0705- ●
219 NUT
M8 FLANGE 		0-91150-108-0 15 1 0512-0602 ●
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 0603- ●
219 NUT
M8 FLANGE 		0-91150-108-0 19 1 0407-0511 ●
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
219 NUT
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
219 NUT
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0603-0704 ●
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0705- ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0705- ●
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0705- ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
219 NUT
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
219 NUT
EXC. FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
219 NUT
6WF1 TC-C(1B8),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
EXC. FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
6WF1 TC-C(1B8),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-0704 ●
219 NUT
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0607-0704 ●
219 NUT
6WF1 TC-C(1B8),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0607-0704 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0705- ●
219 NUT
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0705- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0705- ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0407-0511 ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0512-0604 ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605- ●
294 NUT
6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 05 1 0607-0704 ●
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 05 1 0705- ●
294 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
294 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0607-0704 ●
294 NUT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0607-0704 ●
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0705- ●
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0705- ●
294 NUT
M8 FLANGE 		0-91150-108-0 11 1 0512-0602 ●
294 NUT
M8 FLANGE 		0-91180-108-0 11 1 0603- ●
294 NUT
M8 FLANGE 		0-91150-108-0 16 1 0407-0407 ●
294 NUT
M8 FLANGE 		0-91150-108-0 18 1 0408-0511 ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 06 1 0512-0602 ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 06 1 0603-0606 ●
294 NUT
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 06 1 0607- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-0704 ●
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0705- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0512- ●
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 0512- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0407-0511 ●
423 WASHER; HARNESS,EARTH
6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 0512-0704 ●
423 WASHER; HARNESS,EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 0705- ●
515 NUT; BRKT
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ●
515 NUT; BRKT
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-0704 ●
515 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0705- ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0407-0511 ●
515 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
515 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ●

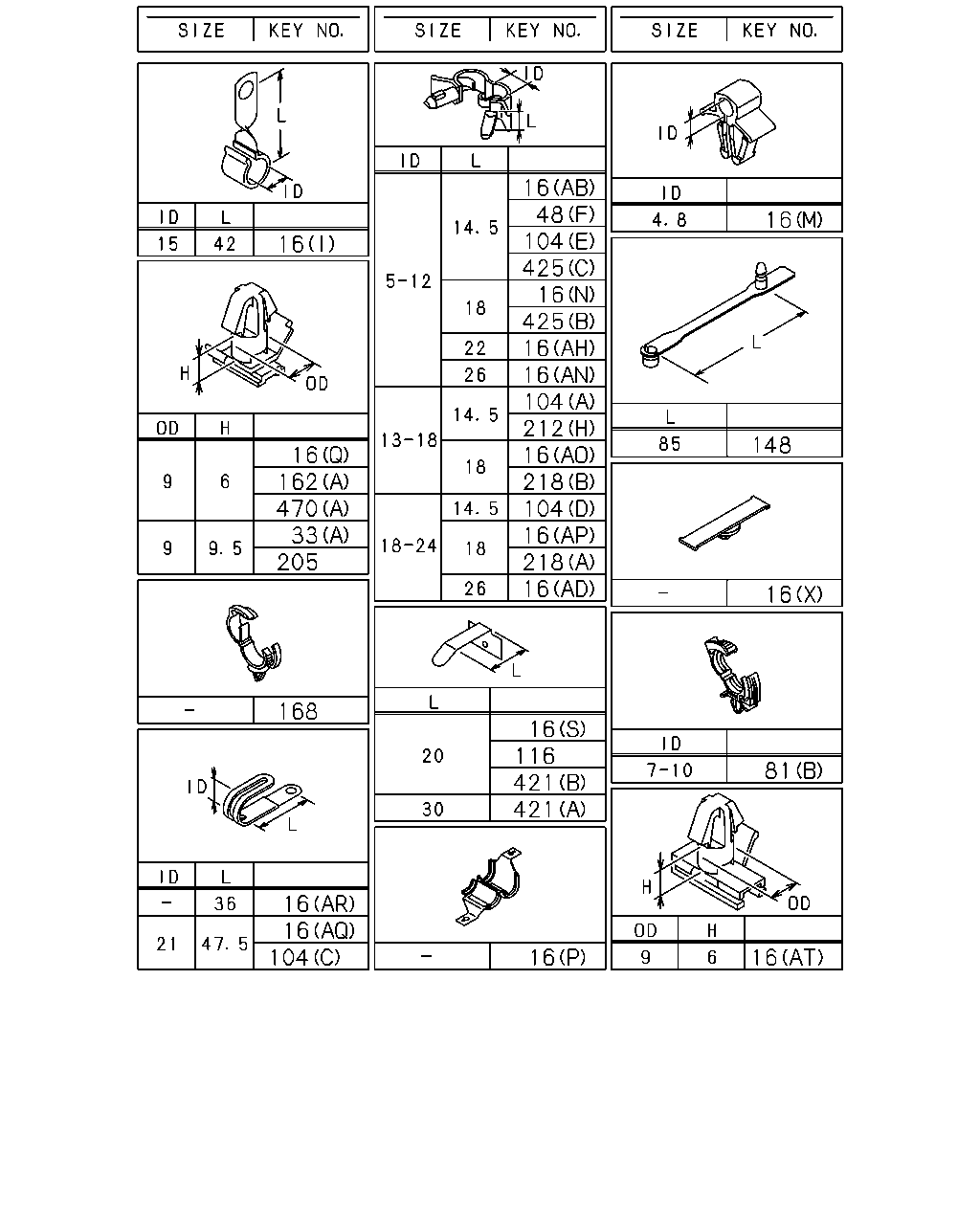

çizim 104349
16 48 104 425 16 425 16 16 104 212 16 218 104 16 218 16 16 16 148 16 162 470 33 205 16 168 16 116 421 421 81 16 16 104 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 01 1 1209- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 05 1 0610- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0610-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0705- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (AW) ID=15 & 15 		1-09709-282-1 01 1 0512- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0705- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0512- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512- ●
16 CLIP; HARNESS
(AU) ID=19 L=20 		9-09525-832-0 01 1 0512-0606 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AU) ID=19 L=20 		0-95235-832-0 01 1 0607- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0512-0606 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AV) ID=22 L=52 		9-09917-431-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AV) ID=22 L=52 		9-09917-431-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0705-1105 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0704 ●
16 CLIP; HARNESS
(AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AR) L=36 		8-94224-891-1 01 1 0512-0704 ●
16 CLIP; HARNESS
(AR) L=36 		8-94224-891-1 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 02 1 0512-0704 ●
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 02 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0705- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0512- ●
16 CLIP; HARNESS
(AN) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610 ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0611- ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0512- ●
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 01 1 0512- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0512- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AI) ID=31 L=35 		1-09700-329-1 01 1 0512- ●
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175 		8-97110-167-0 04 1 0512- ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0512- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0512- ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 04 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 02 1 0512- ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
16 CLIP; HARNESS
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512- ●
16 CLIP; HARNESS
(E) ID=28 L=40 		1-09701-261-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0407-0407 ●
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0408-0511 ●
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 03 1 0407-0511 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		9-09525-035-0 02 1 0512-0606 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 L=20 		0-95235-035-0 02 1 1209- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		0-95235-035-0 02 1 1209- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		9-09525-836-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(G) ID=19 L=20 		9-09525-836-0 01 1 0512-0606 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (G) ID=19 L=20 		0-95235-836-0 01 1 0607-0704 ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0705- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0407-0511 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AA) ID=20 L=50 		1-09700-679-1 01 1 0407-0511 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AA) ID=20 L=50 		1-09700-679-1 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0512- ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-0511 ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0512- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0705- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0705- ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0512- ●
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0512- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0512- ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0512- ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0512- ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0512- ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0512- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0407-0511 ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0512- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 05 1 0512- ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0407-0511 ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0512- ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 04 1 0512- ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AP) ID=18-24 L=18 		1-09709-294-0 01 1 0512- ●
16 CLIP; HARNESS
(AD) ID=18-24 L=26 		1-09709-296-0 06 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0512- ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 03 1 0407-0407 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0408-0511 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
16 CLIP; HARNESS
(AE) L=155 		1-82698-097-0 01 1 0407-0511 ●
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AE) L=155 		1-82698-097-0 01 1 0512- ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (V) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 02 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0705- ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 03 1 0407-0511 ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 03 1 0512- ●
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0407-0511 ●
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175 		8-97110-167-0 02 1 0512- ●
16 CLIP; HARNESS
(A) ID=11 L=16 		9-09525-025-0 02 1 0407-0511 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		9-09525-025-0 02 1 0512-0606 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		9-09525-535-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
16 CLIP; HARNESS
(AC) ID=11 L=40 		9-09525-075-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		9-09525-075-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		0-95235-075-0 01 1 0607- ●
16 CLIP; HARNESS
(AF) ID=16 L=20 		9-09525-535-0 01 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		9-09525-535-0 02 1 0512-0606 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0607- ●
16 CLIP; HARNESS
(AG) ID=16 L=40 		9-09525-576-0 01 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		9-09525-576-0 01 1 0512-0606 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0607- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		0-95235-576-0 01 1 0607- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 08 1 0512- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 12 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0705- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0705- ●
33 CLIP; HARNESS,VLV
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0407-0511 ●
33 CLIP; HARNESS,VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=180 		1-09707-162-1 01 1 0512- ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) ID=26 L=26 		1-09701-236-0 01 1 0512-0704 ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0705- ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0512- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 18 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0512- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		9-09525-075-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		9-09525-075-0 01 1 0512-0606 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		0-95235-075-0 01 1 0607- ●
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511 ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 10 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (F) L=250 		5-09707-030-1 02 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0407-0511 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0407-0511 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0512-1409 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410- ●
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0407-0511 ●
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0512-1409 ●
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410- ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0407-0511 ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0512- ●
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0512- ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0407-0511 ●
162 CLIP; SW HARNESS
6WG1 TC-S(97L) (A) OD=9 H=6 		1-09709-178-0 01 1 0512-0704 ●
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) OD=9 H=6 		1-09709-178-0 01 1 0705- ●
168 CLIP; DASH HARNESS
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> ID=6 & 10-13 		8-97069-515-0 05 1 0512- ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 0407-0511 ●
168 CLIP; DASH HARNESS
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> ID=6 & 10-13 		8-97069-515-0 06 1 0512- ●
205 CLIP; BACK LAMP HARNESS
OD=9 H=9.5 		1-09709-179-0 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=19 L=28 		9-09525-856-0 01 1 0512-0606 ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0607-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0705- ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0512- ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0512- ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0512- ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0407-0504 ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0505-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0512- ●
212 CLIP; HORN HARNESS
(D) ID=21 L=24 		8-94176-807-1 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0512- ●
218 CLIP; BAND,RR COMB
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0407-0511 ●
218 CLIP; BAND,RR COMB
(A) ID=18-24 L=18 		1-09709-294-0 04 1 0407-0511 ●
218 CLIP; BAND,RR COMB
(A) ID=18-24 L=18 		1-09709-294-0 04 1 0512- ●
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0512- ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0512- ●
425 CLIP; MODULATOR
(A) L=350 		1-09707-183-0 01 1 0407-0511 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 01 1 0512- ●
425 CLIP; MODULATOR
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0407-0511 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=18 		1-09709-287-0 01 1 0512- ●
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0407-0511 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0512- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0512- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0407-0511 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0512- ●

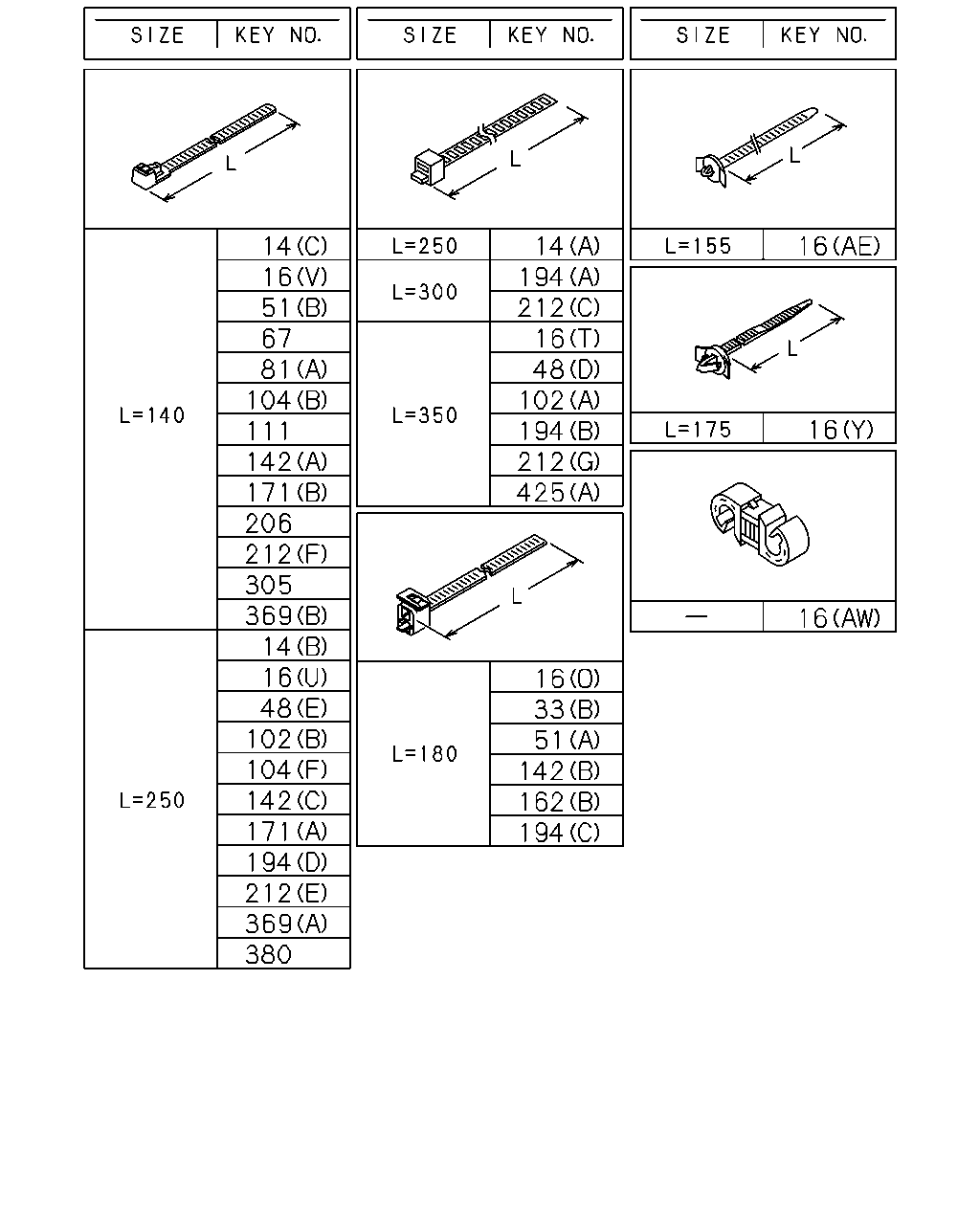

çizim 104455
14 16 51 67 81 104 111 142 171 206 212 305 369 14 16 48 102 104 142 171 194 212 369 380 16 14 194 212 16 48 102 194 212 425 16 16 16 33 51 142 162 194
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0407-0511 ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0407-0511 ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0512- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0512- ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0407-0511 ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0512- ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0407-0511 ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 01 1 1209- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 05 1 0610- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0610-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0705- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (AW) ID=15 & 15 		1-09709-282-1 01 1 0512- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0705- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0512- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512- ●
16 CLIP; HARNESS
(AU) ID=19 L=20 		9-09525-832-0 01 1 0512-0606 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AU) ID=19 L=20 		0-95235-832-0 01 1 0607- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0512-0606 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AV) ID=22 L=52 		9-09917-431-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AV) ID=22 L=52 		9-09917-431-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0705-1105 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0704 ●
16 CLIP; HARNESS
(AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AR) L=36 		8-94224-891-1 01 1 0512-0704 ●
16 CLIP; HARNESS
(AR) L=36 		8-94224-891-1 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 02 1 0512-0704 ●
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 02 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0705- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0512- ●
16 CLIP; HARNESS
(AN) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610 ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0611- ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0512- ●
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 01 1 0512- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0512- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AI) ID=31 L=35 		1-09700-329-1 01 1 0512- ●
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175 		8-97110-167-0 04 1 0512- ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0512- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0512- ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 04 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 02 1 0512- ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
16 CLIP; HARNESS
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512- ●
16 CLIP; HARNESS
(E) ID=28 L=40 		1-09701-261-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0407-0407 ●
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0408-0511 ●
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 03 1 0407-0511 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		9-09525-035-0 02 1 0512-0606 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 L=20 		0-95235-035-0 02 1 1209- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		0-95235-035-0 02 1 1209- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		9-09525-836-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(G) ID=19 L=20 		9-09525-836-0 01 1 0512-0606 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (G) ID=19 L=20 		0-95235-836-0 01 1 0607-0704 ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0705- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0407-0511 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AA) ID=20 L=50 		1-09700-679-1 01 1 0407-0511 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AA) ID=20 L=50 		1-09700-679-1 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0512- ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-0511 ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0512- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0705- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0705- ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0512- ●
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0512- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0512- ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0512- ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0512- ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0512- ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0512- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0407-0511 ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0512- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 05 1 0512- ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0407-0511 ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0512- ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 04 1 0512- ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AP) ID=18-24 L=18 		1-09709-294-0 01 1 0512- ●
16 CLIP; HARNESS
(AD) ID=18-24 L=26 		1-09709-296-0 06 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0512- ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 03 1 0407-0407 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0408-0511 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
16 CLIP; HARNESS
(AE) L=155 		1-82698-097-0 01 1 0407-0511 ●
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AE) L=155 		1-82698-097-0 01 1 0512- ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (V) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 02 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0705- ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 03 1 0407-0511 ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 03 1 0512- ●
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0407-0511 ●
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175 		8-97110-167-0 02 1 0512- ●
16 CLIP; HARNESS
(A) ID=11 L=16 		9-09525-025-0 02 1 0407-0511 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		9-09525-025-0 02 1 0512-0606 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		9-09525-535-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
16 CLIP; HARNESS
(AC) ID=11 L=40 		9-09525-075-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		9-09525-075-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		0-95235-075-0 01 1 0607- ●
16 CLIP; HARNESS
(AF) ID=16 L=20 		9-09525-535-0 01 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		9-09525-535-0 02 1 0512-0606 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0607- ●
16 CLIP; HARNESS
(AG) ID=16 L=40 		9-09525-576-0 01 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		9-09525-576-0 01 1 0512-0606 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0607- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		0-95235-576-0 01 1 0607- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 08 1 0512- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 12 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0705- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0705- ●
33 CLIP; HARNESS,VLV
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0407-0511 ●
33 CLIP; HARNESS,VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=180 		1-09707-162-1 01 1 0512- ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) ID=26 L=26 		1-09701-236-0 01 1 0512-0704 ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0705- ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0512- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 18 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0512- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0407-0511 ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 0512- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0407-0511 ●
67 CLIP; BAND,HARNESS,CLU SW
L=140 		5-09707-031-1 01 1 0407-0511 ●
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0512- ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		9-09525-075-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		9-09525-075-0 01 1 0512-0606 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		0-95235-075-0 01 1 0607- ●
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511 ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0407-0511 ●
102 CLIP; BAND
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 0512- ●
102 CLIP; BAND
6WG1 TC-S(97L) (A) L=350 		1-09707-183-0 02 1 0512-0704 ●
102 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350 		1-09707-183-0 02 1 0705- ●
102 CLIP; BAND
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 01 1 0512-0704 ●
102 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 01 1 0705- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 10 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (F) L=250 		5-09707-030-1 02 1 0512- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0407-0511 ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0407-0511 ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0512- ●
142 CLIP; HARNESS,ENG
(B) L=180 		1-09707-162-1 02 1 0407-0407 ●
142 CLIP; HARNESS,ENG
(B) L=180 		1-09707-162-1 01 1 0408-0511 ●
142 CLIP; HARNESS,ENG
(B) L=180 		1-09707-162-1 01 1 0512-1207 ●
142 CLIP; HARNESS,ENG
(B) L=180 		8-98216-427-0 01 1 1208- ●
142 CLIP; HARNESS,ENG
(C) L=250 		5-09707-030-1 01 1 0407-0511 ●
142 CLIP; HARNESS,ENG
(A) L=140 		5-09707-031-1 03 1 0407-0511 ●
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0512- ●
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0407-0511 ●
162 CLIP; SW HARNESS
6WG1 TC-S(97L) (A) OD=9 H=6 		1-09709-178-0 01 1 0512-0704 ●
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) OD=9 H=6 		1-09709-178-0 01 1 0705- ●
171 CLIP; STARTER HARNESS
6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 03 1 0512-0704 ●
171 CLIP; STARTER HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 03 1 0705- ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0407-0511 ●
171 CLIP; STARTER HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0512- ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0407-0511 ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 07 1 0512- ●
194 CLIP; BAND
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=250 		5-09707-030-1 05 1 0512-0704 ●
194 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=250 		5-09707-030-1 05 1 0705- ●
194 CLIP; BAND
6WF1 TC-C(1B8),6WG1 TC-S(97L) (A) L=300 		1-09707-001-1 01 1 0512-0704 ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0705- ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0407-0504 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0407-0511 ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0512- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 0407-0504 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 0505-0511 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 0512- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0407-0511 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0512- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=19 L=28 		9-09525-856-0 01 1 0512-0606 ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0607-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0705- ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0512- ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0512- ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0512- ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0407-0504 ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0505-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0512- ●
212 CLIP; HORN HARNESS
(D) ID=21 L=24 		8-94176-807-1 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0512- ●
305 CLIP; ENG HARNESS
6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0512-0704 ●
305 CLIP; ENG HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0705- ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0407-0511 ●
305 CLIP; ENG HARNESS
6WF1 TC-C(1B8) L=140 		5-09707-031-1 01 1 0512- ●
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 04 1 0512- ●
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 04 1 0407-0511 ●
369 CLIP; BAND EDS HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0512- ●
369 CLIP; BAND EDS HARNESS
(B) L=140 		5-09707-031-1 01 1 0408-0511 ●
369 CLIP; BAND EDS HARNESS
6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 01 1 0512-0704 ●
369 CLIP; BAND EDS HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 01 1 0705- ●
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0512- ●
425 CLIP; MODULATOR
(A) L=350 		1-09707-183-0 01 1 0407-0511 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 01 1 0512- ●
425 CLIP; MODULATOR
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0407-0511 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=18 		1-09709-287-0 01 1 0512- ●
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0407-0511 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0512- ●
çizim 104456
38 150 150 242 528 38 150 242 38 313 38 38 242 480 38 64 139 313 86 139 516 139 242 313 38 64 239 88 38 358 239 38 358 88 133
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0705- ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0512- ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(H) M6X8 		0-20800-608-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE 		0-28080-610-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0704 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0705- ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0705- ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0705- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0512-1105 ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0512-0704 ●
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0705- ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0407-0511 ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (E) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512 ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (E) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ●
64 SCREW; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
64 SCREW; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0711 ●
64 SCREW; CLIP
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
64 SCREW; CLIP
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512 ●
64 SCREW; CLIP
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28751-020-0 01 1 0601-0704 ●
64 SCREW; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28751-020-0 01 1 0705- ●
86 BOLT; CLIP BRKT
6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 03 1 0607-0704 ●
86 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 03 1 0705- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511 ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606 ●
86 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE 		0-28650-830-0 01 1 0607- ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0407-0511 ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0512-1007 ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407-0511 ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0512- ●
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28680-830-0 05 1 0512-0512 ●
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0601-0606 ●
139 BOLT; BRKT
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0607- ●
139 BOLT; BRKT
6WG1 TC-S(97L) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512 ●
139 BOLT; BRKT
6WG1 TC-S(97L) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-0704 ●
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0705- ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 08 1 0407-0407 ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 10 1 0408-0511 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28680-830-0 06 1 0512-0512 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0606 ●
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0607-0704 ●
139 BOLT; BRKT
6WG1 TC-S(97L) ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0607-0704 ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 0705- ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1209- ●
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28080-810-0 01 1 0407-0511 ●
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28080-810-0 01 1 0512-0512 ●
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28050-810-0 01 1 0601- ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0407-0407 ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0408-0511 ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0512-0512 ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 09 1 0407-0511 ●
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512 ●
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0601-1208 ●
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1209- ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407-0511 ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0512-1007 ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ●
242 BOLT; BRKT,HARNESS
6WG1 TC-S(97L) (D) M8X18 FLANGE 		0-28080-818-0 01 1 0512-0704 ●
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M8X18 FLANGE 		0-28080-818-0 01 1 0705- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0407-0511 ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512 ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511 ●
242 BOLT; BRKT,HARNESS
EXC. FULLER M/T<X9B> (C) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
242 BOLT; BRKT,HARNESS
EXC. FULLER M/T<X9B> (C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606 ●
313 BOLT; BRKT
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512 ●
313 BOLT; BRKT
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0704 ●
313 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0705- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0407-0511 ●
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512 ●
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 10 1 0407-0511 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 11 1 0512-0512 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0601- ●
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0407-0511 ●
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0512- ●
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407-0511 ●
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0512- ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
528 BOLT; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512 ●
528 BOLT; CONNECTOR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0704 ●
528 BOLT; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0705- ●
çizim 104459
128 16 16 16 212 16 212 48 16 16 16 16 235 212 16 16 223 16 212 16 16 212 470 16 223 16 48 212 263 16 16 223 16 48 16 81 16 235 16 81 16 128 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 01 1 1209- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 05 1 0610- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0610-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0705- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (AW) ID=15 & 15 		1-09709-282-1 01 1 0512- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0705- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0512- ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512- ●
16 CLIP; HARNESS
(AU) ID=19 L=20 		9-09525-832-0 01 1 0512-0606 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AU) ID=19 L=20 		0-95235-832-0 01 1 0607- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0512-0606 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (AV) ID=22 L=52 		9-09917-431-0 01 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AV) ID=22 L=52 		9-09917-431-0 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0705-1105 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0512-0704 ●
16 CLIP; HARNESS
(AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AR) L=36 		8-94224-891-1 01 1 0512-0704 ●
16 CLIP; HARNESS
(AR) L=36 		8-94224-891-1 01 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 02 1 0512-0704 ●
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 02 1 0705- ●
16 CLIP; HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0705- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0512- ●
16 CLIP; HARNESS
(AN) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610 ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0611- ●
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0512- ●
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 01 1 0512- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0512- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AI) ID=31 L=35 		1-09700-329-1 01 1 0512- ●
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175 		8-97110-167-0 04 1 0512- ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0512- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0512- ●
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0512- ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 04 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 02 1 0512- ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
16 CLIP; HARNESS
(B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512- ●
16 CLIP; HARNESS
(E) ID=28 L=40 		1-09701-261-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0407-0407 ●
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0408-0511 ●
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0512- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 03 1 0407-0511 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		9-09525-035-0 02 1 0512-0606 ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) ID=11 L=20 		0-95235-035-0 02 1 1209- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) ID=11 L=20 		0-95235-035-0 02 1 1209- ●
16 CLIP; HARNESS
(G) ID=19 L=20 		9-09525-836-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(G) ID=19 L=20 		9-09525-836-0 01 1 0512-0606 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (G) ID=19 L=20 		0-95235-836-0 01 1 0607-0704 ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0705- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0407-0511 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AA) ID=20 L=50 		1-09700-679-1 01 1 0407-0511 ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AA) ID=20 L=50 		1-09700-679-1 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0512- ●
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0512- ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-0511 ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0512- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-0704 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0705- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0705- ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0407-0511 ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0512- ●
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0512- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0512- ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0512- ●
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0512- ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0512- ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0512- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0407-0511 ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0512- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 05 1 0512- ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0407-0511 ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0512- ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0512- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 04 1 0512- ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AP) ID=18-24 L=18 		1-09709-294-0 01 1 0512- ●
16 CLIP; HARNESS
(AD) ID=18-24 L=26 		1-09709-296-0 06 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0512- ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 03 1 0407-0407 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0408-0511 ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
16 CLIP; HARNESS
(AE) L=155 		1-82698-097-0 01 1 0407-0511 ●
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AE) L=155 		1-82698-097-0 01 1 0512- ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 02 1 0407-0511 ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (V) L=140 		5-09707-031-1 01 1 0512- ●
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 02 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0705- ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 03 1 0407-0511 ●
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 03 1 0512- ●
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0407-0511 ●
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175 		8-97110-167-0 02 1 0512- ●
16 CLIP; HARNESS
(A) ID=11 L=16 		9-09525-025-0 02 1 0407-0511 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		9-09525-025-0 02 1 0512-0606 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		9-09525-535-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
16 CLIP; HARNESS
(AC) ID=11 L=40 		9-09525-075-0 01 1 0407-0511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		9-09525-075-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		0-95235-075-0 01 1 0607- ●
16 CLIP; HARNESS
(AF) ID=16 L=20 		9-09525-535-0 01 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		9-09525-535-0 02 1 0512-0606 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0607- ●
16 CLIP; HARNESS
(AG) ID=16 L=40 		9-09525-576-0 01 1 0407-0511 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0512-0606 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		9-09525-576-0 01 1 0512-0606 ●
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0607- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		0-95235-576-0 01 1 0607- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0407-0511 ●
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 08 1 0512- ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 12 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0705- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-0704 ●
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0705- ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8),6WG1 TC-S(97L) (C) ID=26 L=26 		1-09701-236-0 01 1 0512-0704 ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0705- ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0512- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 18 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0512- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0407-0511 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		9-09525-075-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		9-09525-075-0 01 1 0512-0606 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40 		0-95235-075-0 01 1 0607- ●
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511 ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0407-0511 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0407-0511 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0512-0606 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0407-0511 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0512- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=19 L=28 		9-09525-856-0 01 1 0512-0606 ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0607-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0705- ●
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0512-0704 ●
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28 		1-09700-860-0 03 1 0705- ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0512- ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0512- ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0512- ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0407-0504 ●
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0505-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512- ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0512- ●
212 CLIP; HORN HARNESS
(D) ID=21 L=24 		8-94176-807-1 01 1 0407-0511 ●
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0512- ●
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0407-0511 ●
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512- ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0407-0511 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0512-0707 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0708- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0407-0511 ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0512- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=11 L=24 		9-09525-045-0 01 1 0512-0606 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=11 L=24 		0-95235-045-0 01 1 0607-0704 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=11 L=24 		0-95235-045-0 01 1 0705-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=10 H=25 L=20 		1-09700-519-0 01 1 0407-0511 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) (B) ID=10 H=25 L=20 		1-09700-519-0 01 1 0512- ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0407-0511 ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0512- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-0511 ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0512- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0407-0511 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
