8-05 — INTERIOR LAMP (#28684) — 82 parça

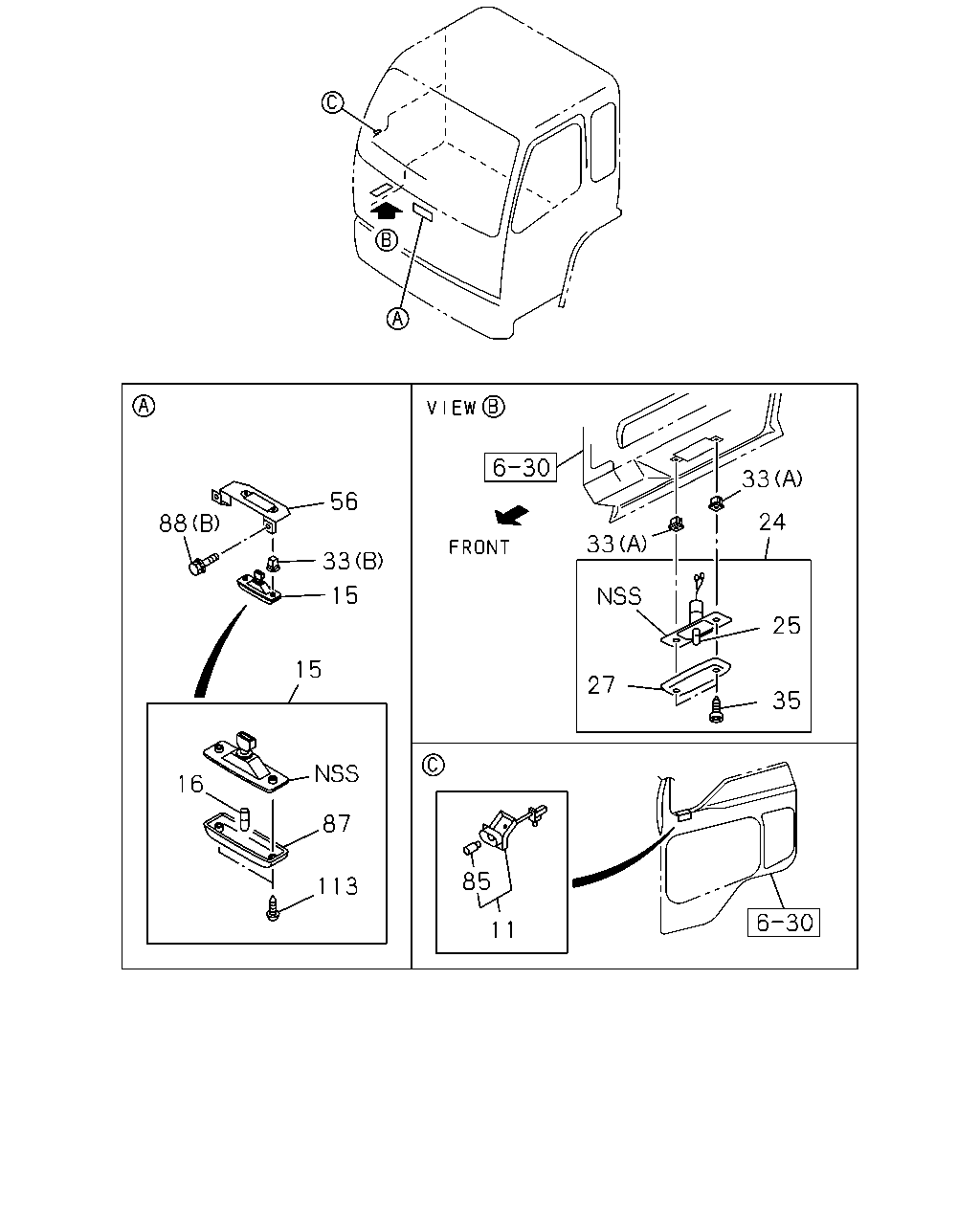

33 56 24 88 33 33 15 25 15 27 35 16 87 85 113 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	LAMP ASM; ASH TRAY	1-76458-076-1	01	1	0407-0511	●
11	LAMP ASM; ASH TRAY 6WG1 TC-S(97L)	1-76458-076-1	01	1	0512-0704		●
11	LAMP ASM; ASH TRAY 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-76458-076-1	01	1	0705-		●
15	LAMP; INSPECTION	1-82140-052-1	01	1	0407-0511	●
15	LAMP; INSPECTION	1-82140-052-1	01	1	0512-		●
16	BULB; INSPECTION LAMP 24V 5W	1-82194-042-0	01	1	0512-		●
16	BULB; INSPECTION LAMP 24V 5W	1-82194-042-0	01	1	0407-0511	●
24	LAMP; STEP	1-82140-052-1	01	1	0407-0511	●
24	LAMP; STEP	1-82140-052-1	01	1	0512-		●
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	0407-0511	●
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	0512-		●
27	LENS; STEP LAMP	1-82145-019-0	01	1	0407-0511	●
27	LENS; STEP LAMP	1-82145-019-0	01	1	0512-		●
33	GROMMET; SCREW,LAMP (B)	1-09983-182-0	02	1	0407-0511	●
33	GROMMET; SCREW,LAMP (B)	1-09983-182-0	02	1	0512-		●
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	0407-0511	●
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	0512-		●
35	SCREW; STEP LAMP M4X20	1-82149-006-0	02	1	0407-0511	●
35	SCREW; STEP LAMP M4X20	1-82149-006-0	02	1	0512-		●
56	BRACKET; LAMP	1-86830-302-1	01	1	0407-0511	●
56	BRACKET; LAMP	1-86830-302-1	01	1	0512-1103		●
56	BRACKET; LAMP	8-98121-191-0	01	1	1104-		●
85	BULB; ASH TRAY 24V 1.4W	1-76457-041-0	01	1	0407-0511	●
85	BULB; ASH TRAY 6WG1 TC-S(97L) 24V 1.4W	1-76457-041-0	01	1	0512-0704		●
85	BULB; ASH TRAY 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 1.4W	1-76457-041-0	01	1	0705-		●
87	LENS; INSPECTION LAMP	1-82145-019-0	01	1	0407-0511	●
87	LENS; INSPECTION LAMP	1-82145-019-0	01	1	0512-		●
88	BOLT; LAMP (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0407-0511	●
88	BOLT; LAMP (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0512-		●
88	BOLT; LAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0511	●
88	BOLT; LAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0512-		●
113	SCREW; LAMP M4X20	1-82149-006-0	02	1	0512-		●
113	SCREW; LAMP M4X20	1-82149-006-0	02	1	0407-0511	●

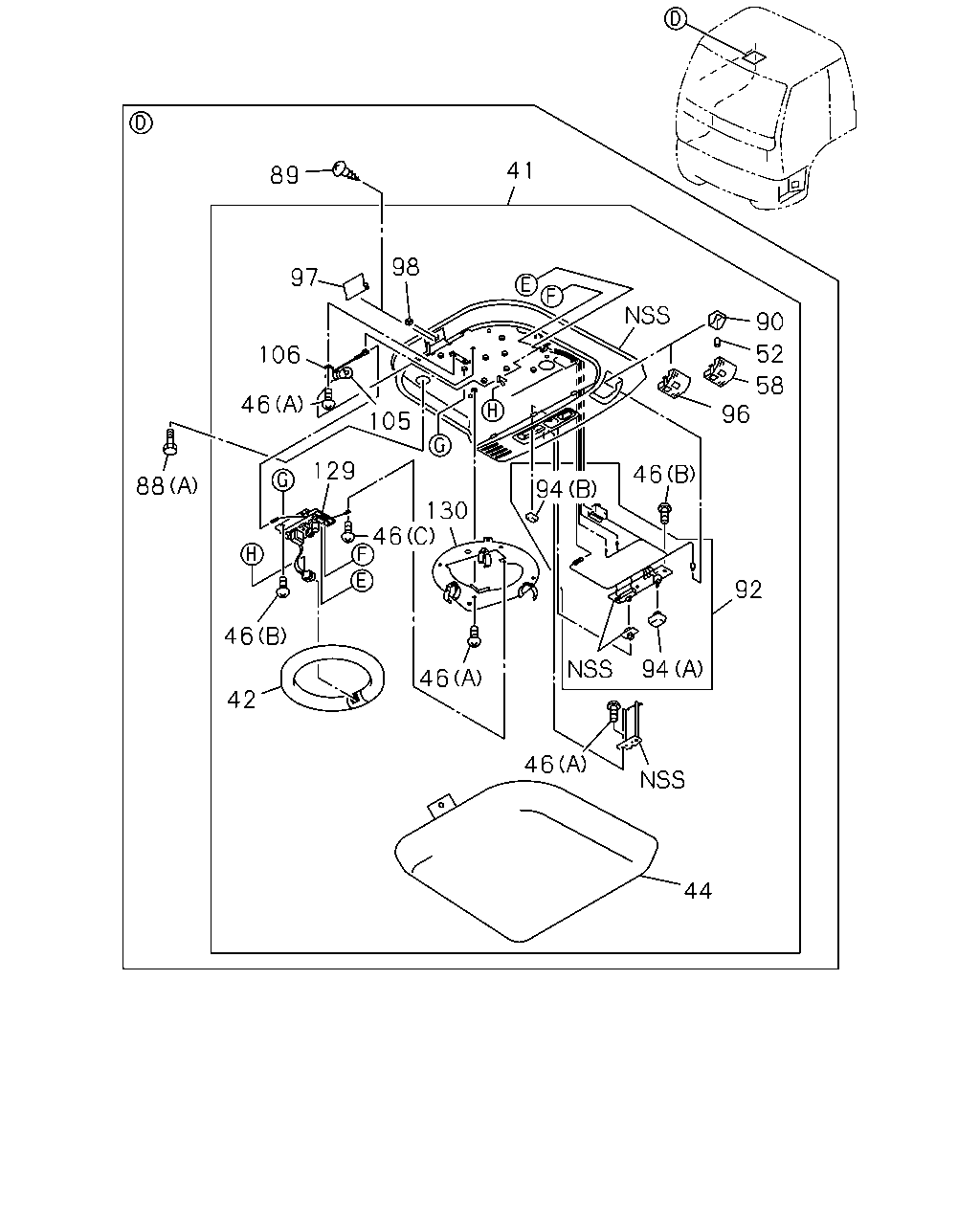

41 89 98 97 90 52 106 58 96 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	LAMP ASM; FLUORESCENT 6WG1 TC-S(97L)	1-86830-323-1	01	1	0512-0704		●
41	LAMP ASM; FLUORESCENT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-86830-323-1	01	1	0705-		●
41	LAMP ASM; FLUORESCENT	1-86830-309-2	01	1	0407-0511	●
41	LAMP ASM; FLUORESCENT 6WF1 TC-C(1B8)	1-86830-309-2	01	1	0512-		●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0407-0511	●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0512-		●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0407-0511	●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0512-		●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	08	1	0407-0511	●
46	SCREW; FLUORESCENT LAMP (A) M5X10 TAPPING	1-86830-095-0	08	1	0512-		●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	07	1	0407-0511	●
46	SCREW; FLUORESCENT LAMP (B) M4X12	1-86830-202-0	07	1	0512-		●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING	1-86830-336-0	01	1	0407-0511	●
46	SCREW; FLUORESCENT LAMP (C) M3X6 TAPPING	1-86830-336-0	01	1	0512-		●
52	BULB; SPOT LAMP 28V 6W	1-86830-090-0	01	1	0407-0511	●
52	BULB; SPOT LAMP 6WF1 TC-C(1B8) 28V 6W	1-86830-090-0	01	1	0512-		●
58	LENS; SPOT LAMP	1-86830-089-0	01	1	0407-0511	●
58	LENS; SPOT LAMP 6WF1 TC-C(1B8)	1-86830-089-0	01	1	0512-		●
88	BOLT; LAMP (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0407-0511	●
88	BOLT; LAMP (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0512-		●
88	BOLT; LAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0511	●
88	BOLT; LAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0512-		●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0407-0511	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0512-0603		●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	0-71240-510-0	01	1	0604-		●
90	BASE; LAMP	1-86830-091-0	01	1	0407-0511	●
90	BASE; LAMP 6WF1 TC-C(1B8)	1-86830-091-0	01	1	0512-		●
92	SWITCH ASM; FLUORESCENT 6WF1 TC-C(1B8)	1-86830-204-0	01	1	0512-		●
92	SWITCH ASM; FLUORESCENT	1-86830-341-0	01	1	0407-0511	●
92	SWITCH ASM; FLUORESCENT 6WG1 TC-S(97L)	1-86830-341-0	01	1	0512-0704		●
92	SWITCH ASM; FLUORESCENT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-86830-341-0	01	1	0705-		●
94	KNOB; ROOM LAMP SW (A)	1-86830-312-0	01	1	0407-0511	●
94	KNOB; ROOM LAMP SW (A)	1-86830-312-0	01	1	0512-		●
94	KNOB; ROOM LAMP SW (B)	1-86830-313-0	01	1	0407-0511	●
94	KNOB; ROOM LAMP SW (B)	1-86830-313-0	01	1	0512-		●
96	CAP; SPOT LAMP 6WG1 TC-S(97L)	1-86830-385-0	01	1	0512-0704		●
96	CAP; SPOT LAMP 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-86830-385-0	01	1	0705-		●
97	CAP; LENS FIX	1-86830-311-0	01	1	0407-0511	●
97	CAP; LENS FIX	1-86830-311-0	01	1	0512-		●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0407-0511	●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0512-		●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0407-0511	●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0512-		●
106	SOCKET; BULB	1-86830-201-0	01	1	0407-0511	●
106	SOCKET; BULB	1-86830-201-0	01	1	0512-		●
129	INVERTER ASM; FLUORESCENT LAMP	1-86830-338-0	01	1	0407-0511	●
129	INVERTER ASM; FLUORESCENT LAMP	1-86830-338-0	01	1	0512-		●
130	PLATE ASM; FLUORESCENT LAMP	1-86830-339-0	01	1	0407-0511	●
130	PLATE ASM; FLUORESCENT LAMP	1-86830-339-0	01	1	0512-		●
