◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#28682) — 346 parça

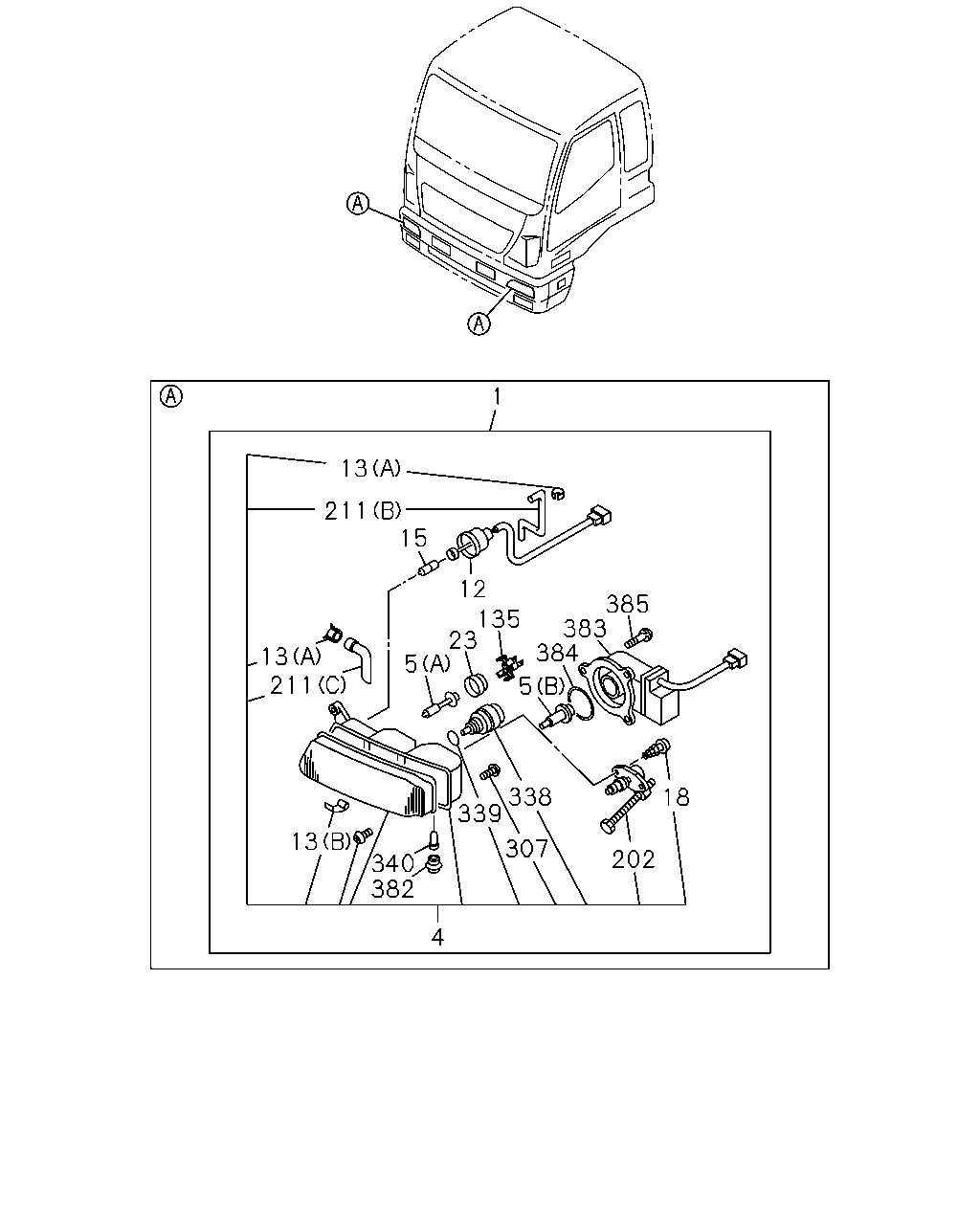

çizim 86607
1 13 211 15 12 385 383 384 135 23 13 211 5 5 338 339 18 13 307 202 340 382 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-435-0 01 1 0407-0509 ●
1 LAMP ASM; HEAD 8-98028-862-0 01 1 0510-0511 ●
1 LAMP ASM; HEAD 1-82110-461-1 01 1 0512-0711 ●
1 LAMP ASM; HEAD 8-98097-188-0 01 1 0712- ●
1 LAMP ASM; HEAD 1-82110-436-0 01 1 0407-0509 ●
1 LAMP ASM; HEAD 8-98028-863-0 01 1 0510-0511 ●
1 LAMP ASM; HEAD 1-82110-462-1 01 1 0512-0711 ●
1 LAMP ASM; HEAD 8-98097-189-0 01 1 0712- ●
4 HEADLAMP UNIT 1-82119-208-0 01 1 0407-0511 ●
4 HEADLAMP UNIT 1-82119-214-0 01 1 0512- ●
4 HEADLAMP UNIT 1-82119-209-0 01 1 0407-0511 ●
4 HEADLAMP UNIT 1-82119-215-0 01 1 0512- ●
5 BULB; HEADLAMP
(B) 85V 35W 		1-82194-092-0 02 1 0407-0511 ●
5 BULB; HEADLAMP
(C) 24V 75/70W 		1-82194-063-0 02 1 0512- ●
5 BULB; HEADLAMP
(A) 24V 70W 		8-94405-658-0 02 1 0407-0511 ●
12 HARNESS; HEADLAMP 1-82118-013-0 02 1 0407-0511 ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0512- ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0407-0509 ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0510-0511 ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0512- ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0407-0511 ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0512- ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0407-0511 ●
15 BULB; FOG LAMP
24V 55W 		1-82194-110-0 02 1 0512- ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0407-0511 ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0512- ●
23 COVER; BULB,HEADLAMP 1-82119-150-0 02 1 0407-0511 ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0512- ●
135 ADAPTER; HEADLAMP 1-82119-149-0 02 1 0407-0511 ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0407-0511 ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0512- ●
211 TUBE; HEADLAMP
(C) 		1-86830-414-0 01 1 0510-0511 ●
211 TUBE; HEADLAMP
(C) 		1-86830-413-0 01 1 0510-0511 ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0512-0906 ●
211 TUBE; HEADLAMP
(B) 		1-86830-328-0 01 1 0407-0511 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0512-0711 ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ●
211 TUBE; HEADLAMP
(B) 		1-86830-329-0 01 1 0407-0511 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0512-0711 ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0407-0511 ●
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0407-0511 ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 0512- ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0407-0511 ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0512- ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0407-0511 ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0512- ●
382 PLUG; SOCKET,HEADLAMP 1-82119-193-0 02 1 0407-0511 ●
383 STARTER ASM; DISCHARGE,HEADLAMP 1-82119-183-1 01 1 0407-0511 ●
383 STARTER ASM; DISCHARGE,HEADLAMP 1-82119-184-1 01 1 0407-0511 ●
384 GASKET; DISCHARGE,HEADLAMP 1-82119-152-0 02 1 0407-0511 ●
385 SCREW; DISCHARGE,HEADLAMP 1-82119-203-0 06 1 0407-0511 ●

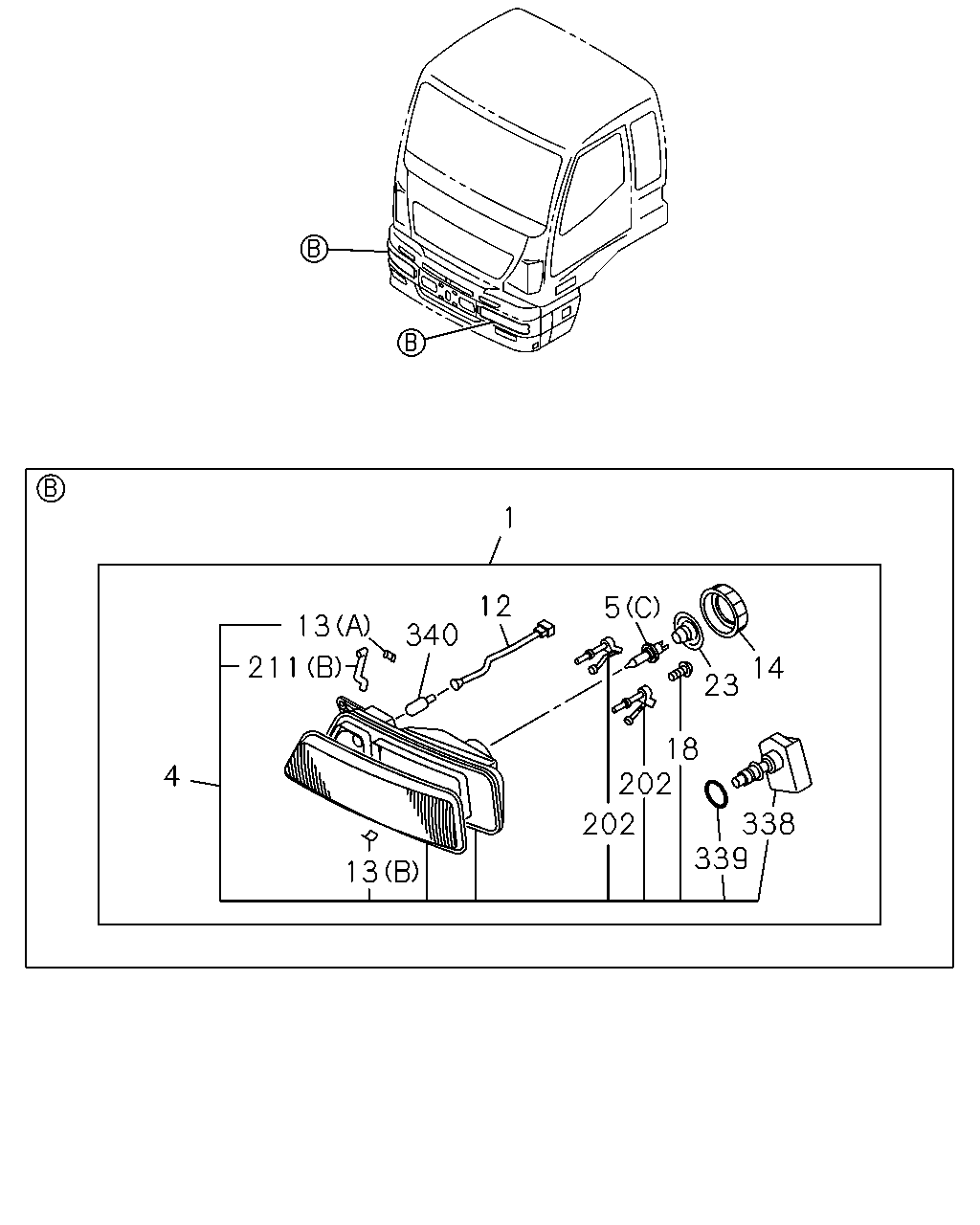

çizim 86608
1 12 5 13 340 211 14 23 18 202 4 338 339 202 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-435-0 01 1 0407-0509 ●
1 LAMP ASM; HEAD 8-98028-862-0 01 1 0510-0511 ●
1 LAMP ASM; HEAD 1-82110-461-1 01 1 0512-0711 ●
1 LAMP ASM; HEAD 8-98097-188-0 01 1 0712- ●
1 LAMP ASM; HEAD 1-82110-436-0 01 1 0407-0509 ●
1 LAMP ASM; HEAD 8-98028-863-0 01 1 0510-0511 ●
1 LAMP ASM; HEAD 1-82110-462-1 01 1 0512-0711 ●
1 LAMP ASM; HEAD 8-98097-189-0 01 1 0712- ●
4 HEADLAMP UNIT 1-82119-208-0 01 1 0407-0511 ●
4 HEADLAMP UNIT 1-82119-214-0 01 1 0512- ●
4 HEADLAMP UNIT 1-82119-209-0 01 1 0407-0511 ●
4 HEADLAMP UNIT 1-82119-215-0 01 1 0512- ●
5 BULB; HEADLAMP
(B) 85V 35W 		1-82194-092-0 02 1 0407-0511 ●
5 BULB; HEADLAMP
(C) 24V 75/70W 		1-82194-063-0 02 1 0512- ●
5 BULB; HEADLAMP
(A) 24V 70W 		8-94405-658-0 02 1 0407-0511 ●
12 HARNESS; HEADLAMP 1-82118-013-0 02 1 0407-0511 ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0512- ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0407-0509 ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0510-0511 ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0512- ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0407-0511 ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0512- ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0512- ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0407-0511 ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0512- ●
23 COVER; BULB,HEADLAMP 1-82119-150-0 02 1 0407-0511 ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0512- ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0407-0511 ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0512- ●
211 TUBE; HEADLAMP
(C) 		1-86830-414-0 01 1 0510-0511 ●
211 TUBE; HEADLAMP
(C) 		1-86830-413-0 01 1 0510-0511 ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0512-0906 ●
211 TUBE; HEADLAMP
(B) 		1-86830-328-0 01 1 0407-0511 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0512-0711 ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ●
211 TUBE; HEADLAMP
(B) 		1-86830-329-0 01 1 0407-0511 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0512-0711 ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ●
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0407-0511 ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 0512- ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0407-0511 ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0512- ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0407-0511 ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0512- ●

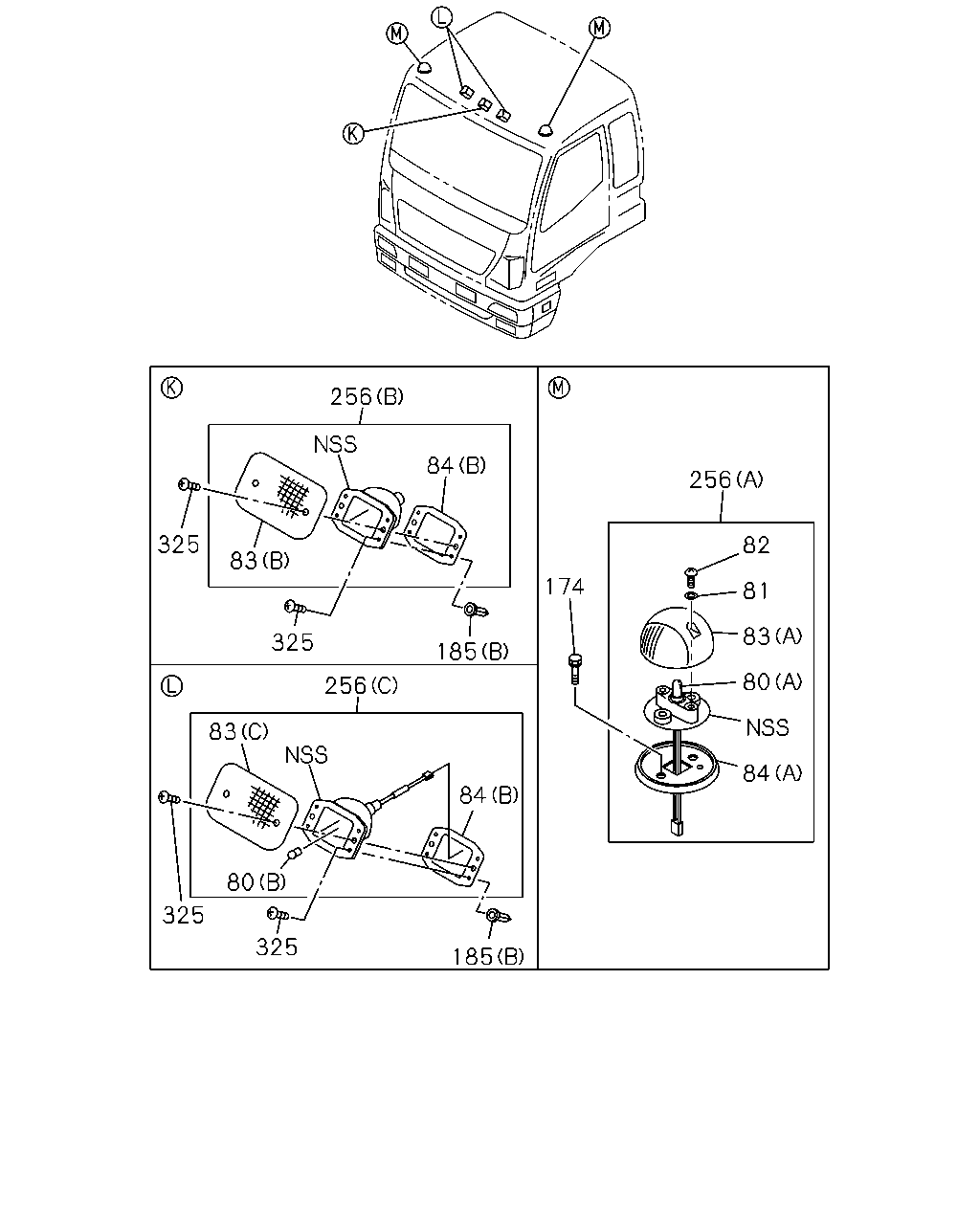

çizim 86758
256 84 256 325 82 83 174 81 83 325 185 80 256 83 84 84 80 325 325 185
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 0407-0511 ●
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 0512- ●
80 BULB; MARKER LAMP
(B) 24V 12W 		9-82691-302-0 02 1 0407-0511 ●
80 BULB; MARKER LAMP
(B) 24V 12W 		9-82691-302-0 02 1 0512- ●
81 SEAT; SCREW 1-82219-012-0 04 1 0407-0511 ●
81 SEAT; SCREW 1-82219-012-0 04 1 0512- ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0407-0511 ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0512- ●
83 LENS; MARKER LAMP
HIGH ROOF<S2F> (C) 		1-86830-320-0 02 1 0407-0511 ●
83 LENS; MARKER LAMP
HIGH ROOF<S2F> (C) 		1-86830-320-0 02 1 0512- ●
83 LENS; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-321-0 01 1 0407-0511 ●
83 LENS; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-321-0 01 1 0512- ●
83 LENS; MARKER LAMP
(A) 		1-82215-048-0 02 1 0407-0511 ●
83 LENS; MARKER LAMP
(A) 		1-82215-048-0 02 1 0512- ●
83 LENS; MARKER LAMP
EXC. HIGH ROOF<S2F> (C) 		1-82215-068-0 02 1 0407-0511 ●
83 LENS; MARKER LAMP
EXC. HIGH ROOF<S2F> (C) 		1-82215-068-0 02 1 0512- ●
83 LENS; MARKER LAMP
EXC. HIGH ROOF<S2F> (B) 		1-82215-069-0 01 1 0407-0511 ●
83 LENS; MARKER LAMP
EXC. HIGH ROOF<S2F> (B) 		1-82215-069-0 01 1 0512- ●
84 GASKET; MARKER LAMP
(B) 		1-86830-153-0 03 1 0407-0511 ●
84 GASKET; MARKER LAMP
(B) 		1-86830-153-0 03 1 0512- ●
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 02 1 0407-0511 ●
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 02 1 0512- ●
174 BOLT
M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0512-0512 ●
174 BOLT
M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601 ●
174 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 0602- ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0407-0511 ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0512- ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0407-0511 ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0407-0511 ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0512- ●
256 LAMP; MARKER
HIGH ROOF<S2F> (C) 		1-82210-229-0 02 1 0407-0511 ●
256 LAMP; MARKER
HIGH ROOF<S2F> (C) 		1-82210-229-0 02 1 0512- ●
256 LAMP; MARKER
HIGH ROOF<S2F> (B) 		1-82210-230-0 01 1 0407-0511 ●
256 LAMP; MARKER
HIGH ROOF<S2F> (B) 		1-82210-230-0 01 1 0512- ●
256 LAMP; MARKER
(A) 		1-86830-129-0 02 1 0407-0511 ●
256 LAMP; MARKER
(A) 		1-86830-129-1 02 1 0512- ●
256 LAMP; MARKER
EXC. HIGH ROOF<S2F> (B) 		1-86830-131-0 01 1 0407-0511 ●
256 LAMP; MARKER
EXC. HIGH ROOF<S2F> (B) 		1-86830-131-0 01 1 0512- ●
256 LAMP; MARKER
EXC. HIGH ROOF<S2F> (C) 		1-86830-170-0 02 1 0407-0511 ●
256 LAMP; MARKER
EXC. HIGH ROOF<S2F> (C) 		1-86830-170-0 02 1 0512- ●
325 SCREW; SPD INDICATOR LAMP
M5X20 TAPPING 		0-71090-520-0 18 1 0407-0511 ●
325 SCREW; SPD INDICATOR LAMP
M5X20 TAPPING 		0-71090-520-0 18 1 0512- ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0407-0511 ●
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		9-07066-514-0 12 1 0512-0603 ●
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		0-71040-514-0 12 1 0604- ●

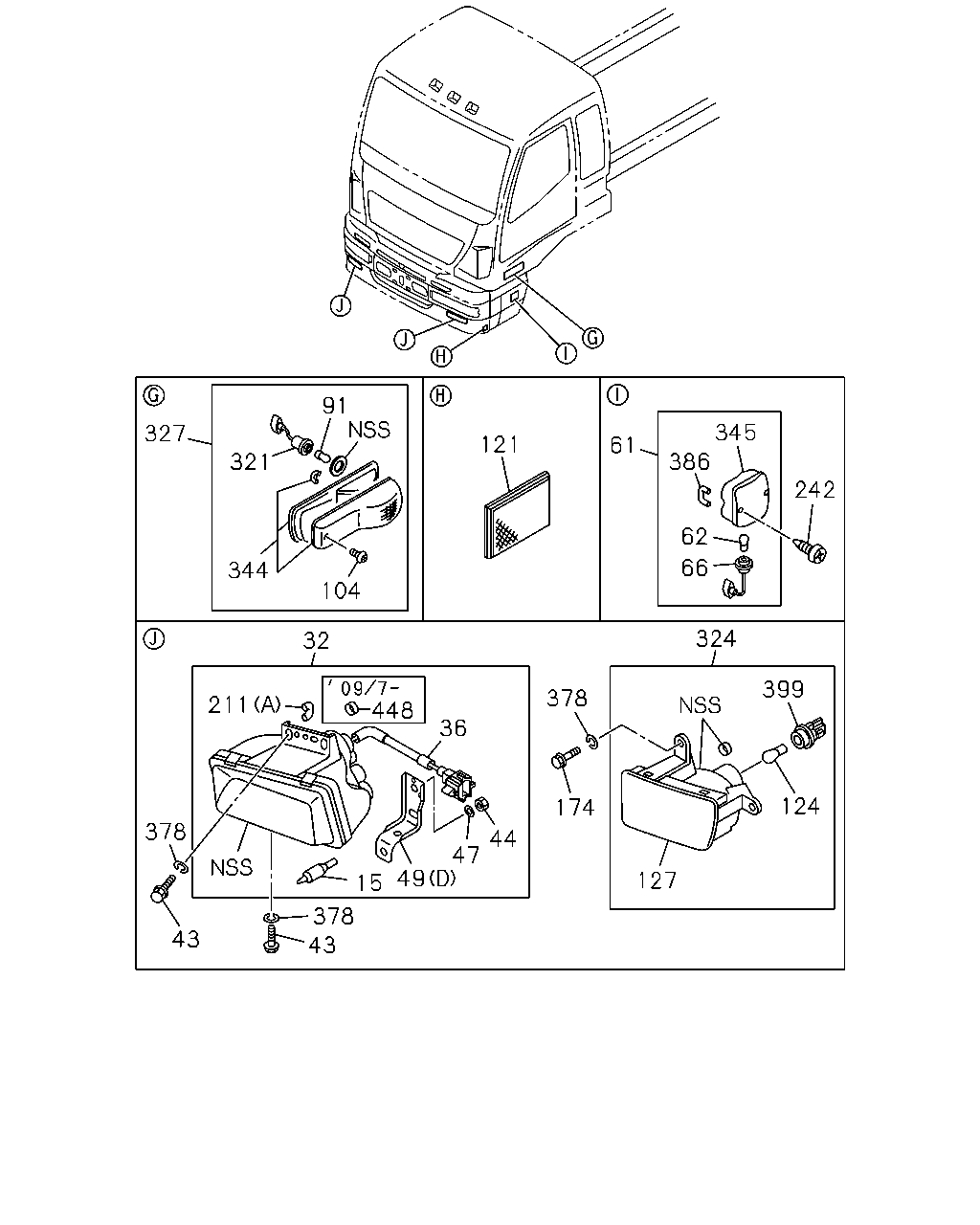

çizim 86929
327 91 321 344 104 211 32 36 44 47 49 15 378 43 43 378 448 121 61 345 242 386 62 66 324 378 174 399 124 127
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0407-0511 ●
15 BULB; FOG LAMP
24V 55W 		1-82194-110-0 02 1 0512- ●
32 LAMP ASM; FOG 1-82110-451-0 01 1 0512-0906 ●
32 LAMP ASM; FOG 8-98149-141-1 01 1 0907-1301 ●
32 LAMP ASM; FOG 8-98232-112-1 01 1 1302- ●
32 LAMP ASM; FOG 1-82110-452-0 01 1 0512-0906 ●
32 LAMP ASM; FOG 8-98149-142-1 01 1 0907-1301 ●
32 LAMP ASM; FOG 8-98232-057-1 01 1 1302- ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 0512- ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 0512- ●
43 BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0512-0512 ●
43 BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-0601 ●
43 BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 FLANGE 		0-28650-820-0 02 1 0602- ●
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0512-0512 ●
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601 ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0602- ●
43 BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0512-0512 ●
43 BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 W/LK&PL WASHER 		0-50640-620-0 02 1 0601-0601 ●
43 BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 FLANGE 		0-28650-620-0 02 1 0602- ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205- ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205- ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0512- ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0512- ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0512- ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0512- ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0407-0511 ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0512- ●
49 BRACKET; LAMP
(B) 		1-82117-101-0 01 1 0407-0511 ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0512- ●
49 BRACKET; LAMP
(B) 		1-82117-102-0 01 1 0407-0511 ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0512- ●
61 LAMP ASM; CORNERING
24V 30W 		1-86830-187-2 01 1 0407-0511 ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-388-1 01 1 0512- ●
61 LAMP ASM; CORNERING
24V 30W 		1-86830-188-2 01 1 0407-0511 ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-389-1 01 1 0512- ●
62 BULB; CORNERING LAMP
24V 30W 		8-97010-179-0 02 1 0407-0511 ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 02 1 0512- ●
66 HARNESS; CORNERING LAMP 1-86830-146-0 02 1 0407-0511 ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 02 1 0512- ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0407-0511 ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0512- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0407-0511 ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0512- ●
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0512- ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0407-0511 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0512- ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0407-0511 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0512- ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0407-0511 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0512- ●
174 BOLT
M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0512-0512 ●
174 BOLT
M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601 ●
174 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 0602- ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0407-0511 ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0512- ●
211 TUBE; HEADLAMP
(C) 		1-86830-414-0 01 1 0510-0511 ●
211 TUBE; HEADLAMP
(C) 		1-86830-413-0 01 1 0510-0511 ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0512-0906 ●
211 TUBE; HEADLAMP
(B) 		1-86830-328-0 01 1 0407-0511 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0512-0711 ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ●
211 TUBE; HEADLAMP
(B) 		1-86830-329-0 01 1 0407-0511 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0512-0711 ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ●
242 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0407-0511 ●
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0512- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0407-0511 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0512- ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0407-0511 ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0512- ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0407-0511 ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0512- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0407-0511 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-264-2 01 1 0512- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0407-0511 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-265-2 01 1 0512- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0407-0511 ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-266-2 01 1 0512- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0407-0511 ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-267-1 01 1 0512- ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-041-0 01 1 0512- ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-042-0 01 1 0512- ●
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 08 1 0602-0605 ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 08 1 0606- ●
378 WASHER; PL
EXC. FRONT SPOILER<VP1> ID=6.4 OD=14 		9-09160-606-0 02 1 0602-0605 ●
378 WASHER; PL
EXC. FRONT SPOILER<VP1> ID=6.4 		0-91610-606-0 02 1 0606- ●
386 TUBE; CORNERING LAMP
CORNERING LAMP<TDS> 		8-94451-175-0 02 1 0512- ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0407-0511 ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0512- ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907- ●
çizim 86952
327 61 91 321 242 62 66 344 104 185 324 127 129 399 124 125 326
BalonParca AdiParca NoAdetTipApplied Date A B
61 LAMP ASM; CORNERING
24V 30W 		1-86830-187-2 01 1 0407-0511 ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-388-1 01 1 0512- ●
61 LAMP ASM; CORNERING
24V 30W 		1-86830-188-2 01 1 0407-0511 ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-389-1 01 1 0512- ●
62 BULB; CORNERING LAMP
24V 30W 		8-97010-179-0 02 1 0407-0511 ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 02 1 0512- ●
66 HARNESS; CORNERING LAMP 1-86830-146-0 02 1 0407-0511 ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 02 1 0512- ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0407-0511 ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0512- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0407-0511 ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0512- ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0407-0511 ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0512- ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0407-0511 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0407-0511 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0512- ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0407-0511 ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0512- ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0407-0511 ●
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0407-0511 ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0407-0511 ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0512- ●
242 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0407-0511 ●
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0512- ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0407-0511 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0512- ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0407-0511 ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0512- ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0407-0511 ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0512- ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0407-0511 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0407-0511 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-264-2 01 1 0512- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0407-0511 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-265-2 01 1 0512- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0407-0511 ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-266-2 01 1 0512- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0407-0511 ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-267-1 01 1 0512- ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0407-0511 ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0512- ●

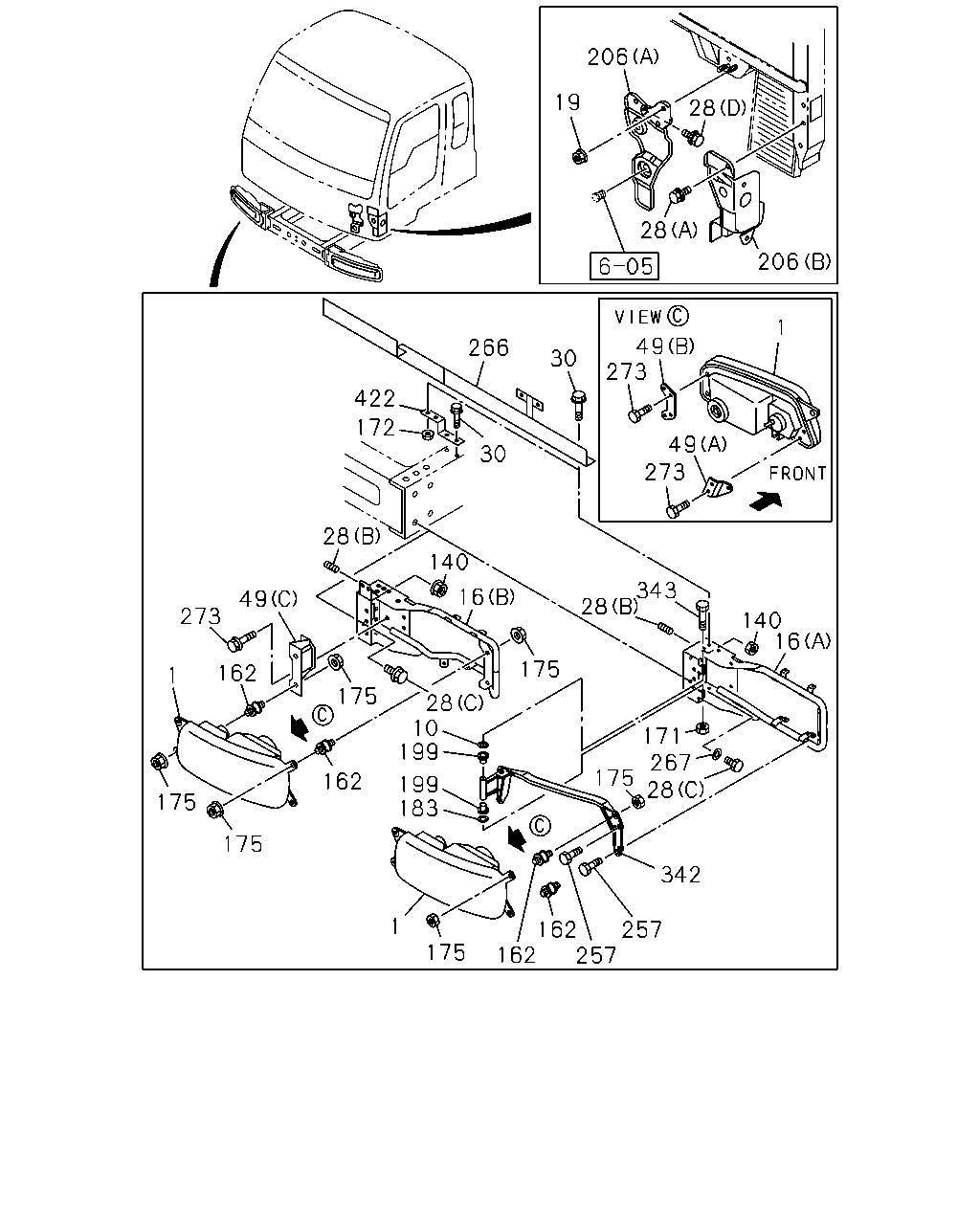

çizim 104453
206 19 28 28 206 1 49 273 266 30 422 172 49 273 30 28 140 343 28 16 49 273 140 16 175 162 1 28 10 199 175 171 267 28 175 162 199 183 175 175 342 1 162 257 162 257 175
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-435-0 01 1 0407-0509 ●
1 LAMP ASM; HEAD 8-98028-862-0 01 1 0510-0511 ●
1 LAMP ASM; HEAD 1-82110-461-1 01 1 0512-0711 ●
1 LAMP ASM; HEAD 8-98097-188-0 01 1 0712- ●
1 LAMP ASM; HEAD 1-82110-436-0 01 1 0407-0509 ●
1 LAMP ASM; HEAD 8-98028-863-0 01 1 0510-0511 ●
1 LAMP ASM; HEAD 1-82110-462-1 01 1 0512-0711 ●
1 LAMP ASM; HEAD 8-98097-189-0 01 1 0712- ●
10 WASHER; PL,HEADLAMP RIM
ID=8.4 		9-09160-508-0 02 1 0407-0511 ●
16 BRACKET; HEADLAMP
(B) 		8-97608-506-2 01 1 0512- ●
16 BRACKET; HEADLAMP
(A) 		1-82117-155-2 02 1 0407-0511 ●
16 BRACKET; HEADLAMP
(B) 		8-97608-505-1 01 1 0512- ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0407-0511 ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0512- ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28681-030-0 06 1 0407-0511 ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28681-030-0 06 1 0512-0512 ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0407-0511 ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0512- ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0407-0511 ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0512- ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0407-0511 ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0512- ●
30 BOLT; STAY
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
30 BOLT; STAY
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28681-025-0 04 1 0407-0511 ●
30 BOLT; STAY
6WF1 TC-C(1B8) M10X25 FLANGE 		0-28681-025-0 04 1 0512-0512 ●
30 BOLT; STAY
6WF1 TC-C(1B8) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0512- ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0512- ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0512- ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0512- ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0407-0511 ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0512- ●
49 BRACKET; LAMP
(B) 		1-82117-101-0 01 1 0407-0511 ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0512- ●
49 BRACKET; LAMP
(B) 		1-82117-102-0 01 1 0407-0511 ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0512- ●
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0407-0511 ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0512- ●
171 NUT
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
172 NUT; STAY
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
172 NUT; STAY
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0407-0511 ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0512-0602 ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0603- ●
183 WASHER; HEADLAMP
ID=8.5 		9-09855-333-0 02 1 0407-0511 ●
199 BUSHING 5-15549-001-1 04 1 0407-0511 ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0407-0511 ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0512- ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0407-0511 ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0512- ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0407-0511 ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0512- ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0407-0511 ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0512- ●
257 BOLT; BRKT HD LAMP
M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-154-2 01 1 0407-0510 ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-182-0 01 1 0511-0511 ●
266 STAY; BRKT,HEADLAMP
6WF1 TC-C(1B8) 		1-82117-182-0 01 1 0512- ●
267 WASHER; PL,STAY
CAB UP +110MM<TGG> ID=10.5 OD=22 		9-09164-610-0 04 1 0407-0511 ●
273 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512 ●
273 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 04 1 0601- ●
273 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 08 1 0407-0511 ●
273 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 08 1 0512-0512 ●
273 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 0601- ●
342 HINGE; LAMP 1-82117-087-2 01 1 0407-0511 ●
342 HINGE; LAMP 1-82117-088-2 01 1 0407-0511 ●
343 SHAFT; HINGE 1-82119-096-1 02 1 0407-0511 ●
422 BRACKET; HEADLAMP STAY
6WF1 TC-C(1B8) 		1-82698-605-0 02 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
