7-70 — SEPARATER AND BED (#28681) — 113 parça

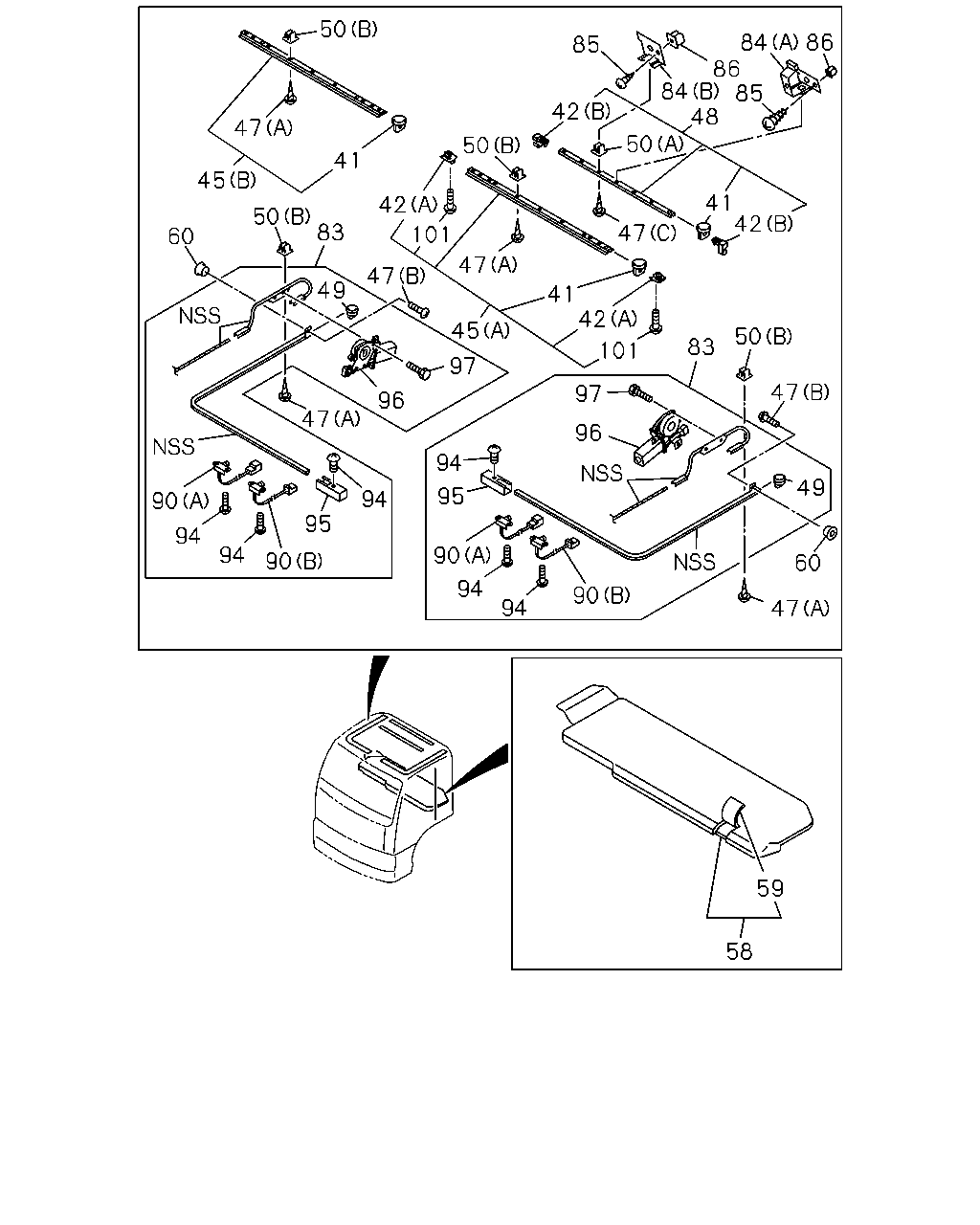

çizim 104344
50 84 86 48 86 85 42 47 50 50 41 45 41 42 42 50 83 47 101 60 47 47 49 41 42 45 50 83 101 97 47 97 96 47 96 94 49 95 94 90 95 94 94 90 90 60 94 90 94 47 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 22 1 0407-0511 ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 14 1 0512- ●
41 HOOK; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 08 1 0512- ●
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 02 1 0512- ●
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512- ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-657-0 02 1 0407-0511 ●
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0512- ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 02 1 0407-0511 ●
42 STOPPER; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512- ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512- ●
45 RAIL; CURTAIN,FRT
(A) 		1-73907-592-1 01 1 0407-0511 ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512- ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0407-0511 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0512- ●
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0407-0511 ●
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0512- ●
47 SCREW; CURTAIN RAIL
(B) M5X16 		9-93490-516-0 04 1 0407-0511 ●
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 0512- ●
48 RAIL; CURTAIN,BACK
EXC. AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512- ●
48 RAIL; CURTAIN,BACK 1-73996-386-0 01 1 0407-0511 ●
48 RAIL; CURTAIN,BACK
AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512- ●
49 HOOK; CURTAIN
H=14.5 DARK GRAY 		1-73996-105-0 32 1 0407-0511 ●
49 HOOK; CURTAIN
AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY 		1-73996-105-0 32 1 0512- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0407-0511 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0512- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0407-0511 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0512- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-181-0 01 1 0407-0511 ●
58 BED; MAT 1-75127-181-1 01 1 0512-1011 ●
58 BED; MAT 8-98168-337-1 01 1 1012- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-182-0 01 1 0407-0511 ●
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0512-1011 ●
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012- ●
60 HOLDER 1-79198-011-0 04 1 0407-0511 ●
60 HOLDER
AUTO ROUND CURTAIN<TAR> 		1-79198-011-0 04 1 0512- ●
83 RAIL; CURTAIN,AUTOMATIC 1-73907-288-5 01 1 0407-0511 ●
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-288-6 01 1 0512- ●
83 RAIL; CURTAIN,AUTOMATIC 1-73907-289-5 01 1 0407-0511 ●
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-289-6 01 1 0512- ●
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0512- ●
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73998-986-2 02 1 0512- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73907-661-0 01 1 0407-0511 ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-661-0 01 1 0512- ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 06 1 0407-0511 ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512- ●
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512- ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0407-0511 ●
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512- ●
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512- ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0407-0511 ●
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512- ●
90 SWITCH; CURTAIN RAIL
(A) 		1-73996-224-2 02 1 0407-0511 ●
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (A) 		1-73996-224-2 02 1 0512- ●
90 SWITCH; CURTAIN RAIL
(B) 		1-73996-225-2 02 1 0407-0511 ●
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-225-2 02 1 0512- ●
94 FIXING PARTS; CURTAIN RAIL 1-73996-256-0 10 1 0407-0511 ●
94 FIXING PARTS; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-256-0 10 1 0512- ●
95 COVER; SWITCH,CURTAIN RAIL 1-73996-254-0 02 1 0407-0511 ●
95 COVER; SWITCH,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-254-0 02 1 0512- ●
96 MOTOR ASM; CURTAIN RAIL 1-73996-255-0 02 1 0407-0511 ●
96 MOTOR ASM; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-255-0 02 1 0512- ●
97 SCREW; MOTOR,CURTAIN RAIL
M6X25 W/LK WASHER 		9-03910-625-0 04 1 0407-0511 ●
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		9-03910-625-0 04 1 0512-0604 ●
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605- ●
101 SCREW; STOPPER 1-73907-400-0 02 1 0407-0511 ●
101 SCREW; STOPPER
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-400-0 02 1 0512- ●

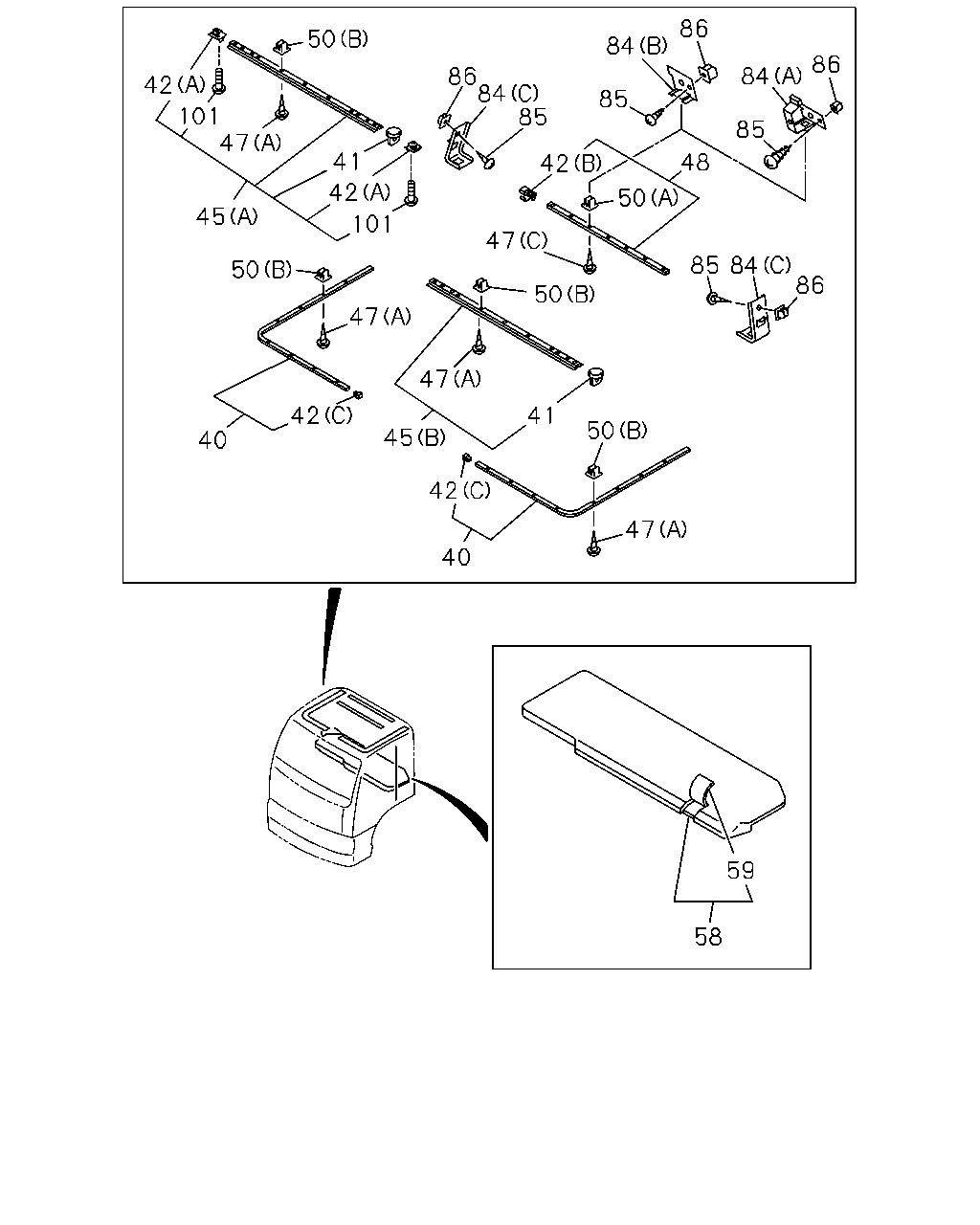

çizim 104792
86 50 84 86 84 86 84 85 42 85 101 47 85 41 48 42 42 50 45 101 47 85 84 86 50 50 47 47 42 41 50 45 40 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-535-1 01 1 0512- ●
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-536-1 01 1 0512- ●
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 22 1 0407-0511 ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 14 1 0512- ●
41 HOOK; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 08 1 0512- ●
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 02 1 0512- ●
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512- ●
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-657-0 02 1 0407-0511 ●
42 STOPPER; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0512- ●
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 02 1 0407-0511 ●
42 STOPPER; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512- ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512- ●
45 RAIL; CURTAIN,FRT
(A) 		1-73907-592-1 01 1 0407-0511 ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512- ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0407-0511 ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0512- ●
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0407-0511 ●
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0512- ●
47 SCREW; CURTAIN RAIL
(B) M5X16 		9-93490-516-0 04 1 0407-0511 ●
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 0512- ●
48 RAIL; CURTAIN,BACK
EXC. AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512- ●
48 RAIL; CURTAIN,BACK 1-73996-386-0 01 1 0407-0511 ●
48 RAIL; CURTAIN,BACK
AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512- ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0407-0511 ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0512- ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0407-0511 ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0512- ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-181-0 01 1 0407-0511 ●
58 BED; MAT 1-75127-181-1 01 1 0512-1011 ●
58 BED; MAT 8-98168-337-1 01 1 1012- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-182-0 01 1 0407-0511 ●
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0512-1011 ●
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012- ●
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0512- ●
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73998-986-2 02 1 0512- ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73907-661-0 01 1 0407-0511 ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-661-0 01 1 0512- ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 06 1 0407-0511 ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512- ●
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512- ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0407-0511 ●
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512- ●
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512- ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0407-0511 ●
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512- ●
101 SCREW; STOPPER 1-73907-400-0 02 1 0407-0511 ●
101 SCREW; STOPPER
CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-400-0 02 1 0512- ●
