◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-17 - CYLINDER; CAB TILT ▶
5-17 — CYLINDER; CAB TILT (#2868) — 33 parça

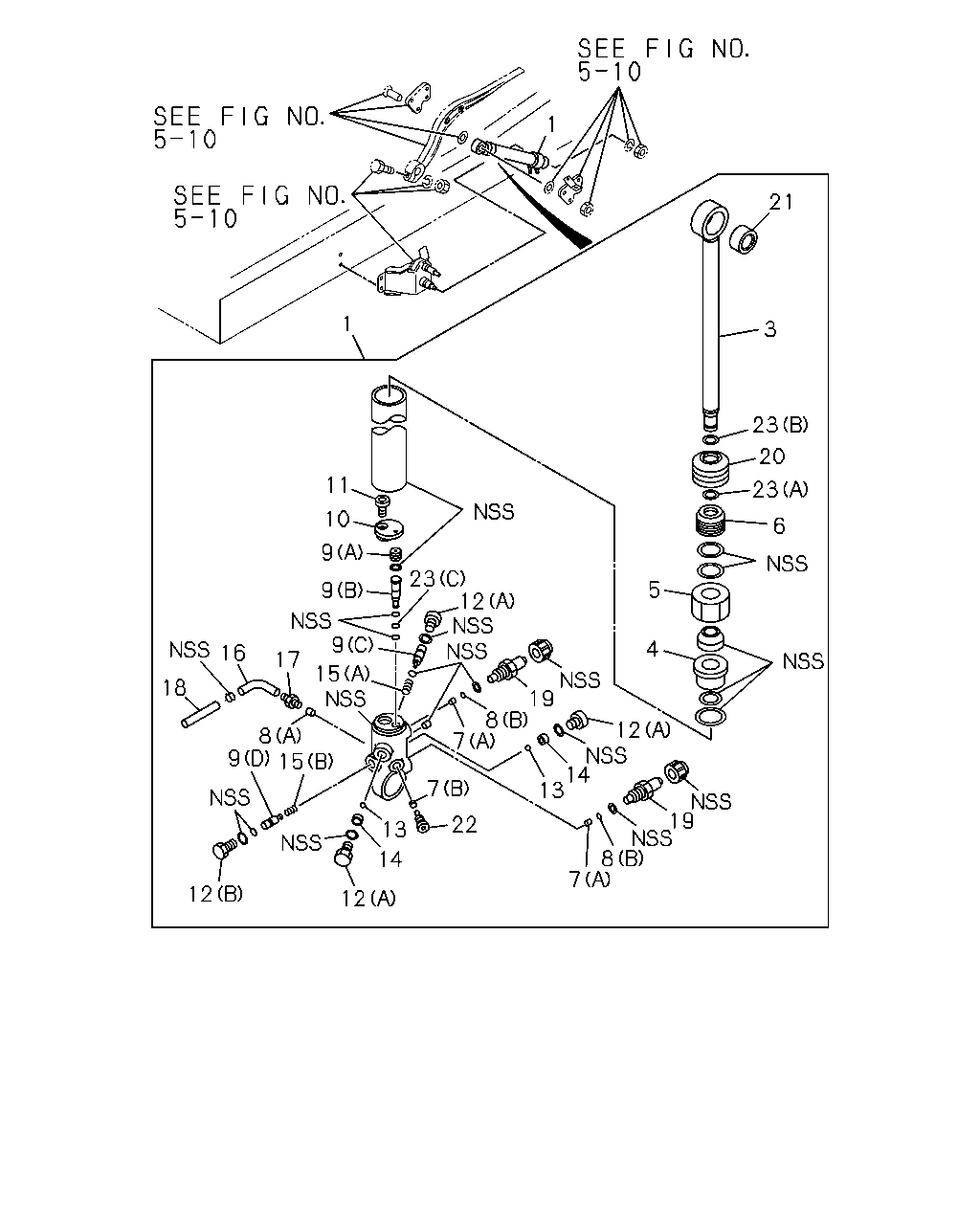

çizim 28950
1 1 21 3 23 20 6 23 5 4 19 8 7 13 14 12 19 8 7 7 22 13 14 12 12 15 9 8 18 15 17 16 9 9 9 10 11 23 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-806-1 01 1 9002- ● ●
3 ROD; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-115-0 01 1 9002- ● ●
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-114-0 01 1 9002- ● ●
5 COVER; ROD
AUTO CAB TILT<WV2> 		1-53458-111-0 01 1 9002- ● ●
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-108-0 01 1 9002- ● ●
7 ORIFICE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-103-0 01 1 9002- ● ●
7 ORIFICE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53458-104-0 01 1 9002- ● ●
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-079-0 01 1 9002- ● ●
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53458-102-0 02 1 9002- ● ●
9 PISTON; PILOT
AUTO CAB TILT<WV2> (D) 		1-53458-084-0 01 1 9002- ● ●
9 PISTON; PILOT
AUTO CAB TILT<WV2> (C) 		1-53458-089-0 01 1 9002- ● ●
9 PISTON; PILOT
AUTO CAB TILT<WV2> (B) 		1-53458-099-0 01 1 9002- ● ●
9 PISTON; PILOT
AUTO CAB TILT<WV2> (A) 		1-53458-101-0 01 1 9002- ● ●
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-095-0 01 1 9002- ● ●
11 BOLT; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-094-0 01 1 9002- ● ●
12 PLUG; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53458-086-0 01 1 9002- ● ●
12 PLUG; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-093-0 03 1 9002- ● ●
13 BALL; STEEL
AUTO CAB TILT<WV2> 		1-53458-091-0 02 1 9002- ● ●
14 SPRING; STEEL BALL
AUTO CAB TILT<WV2> 		1-53458-090-0 02 1 9002- ● ●
15 SPRING; PILOT PISTON
AUTO CAB TILT<WV2> (B) 		1-53458-082-0 01 1 9002- ● ●
15 SPRING; PILOT PISTON
AUTO CAB TILT<WV2> (A) 		1-53458-087-0 01 1 9002- ● ●
16 PIPE; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-078-0 01 1 9002- ● ●
17 NUT; PIPE
AUTO CAB TILT<WV2> 		1-53458-077-0 01 1 9002- ● ●
18 HOSE; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-076-0 01 1 9002- ● ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-074-0 02 1 9002- ● ●
20 BOOT; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-071-0 01 1 9002- ● ●
21 BEARING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-070-0 02 1 9002- ● ●
22 PLUG; FLOATING LINK ARM
AUTO CAB TILT<WV2> 		1-53458-081-0 01 1 9002- ● ●
23 RING; SNAP
AUTO CAB TILT<WV2> (C) 		1-53458-097-0 01 1 9002- ● ●
23 RING; SNAP
AUTO CAB TILT<WV2> (A) 		1-53458-105-0 01 1 9002- ● ●
23 RING; SNAP
AUTO CAB TILT<WV2> (B) 		1-53458-109-0 01 1 9002- ● ●
çizim 93884
20 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> 		1-85579-016-1 01 1 9002- ● ●
20 BOOT; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-071-0 01 1 9002- ● ●
