◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#28679) — 264 parça

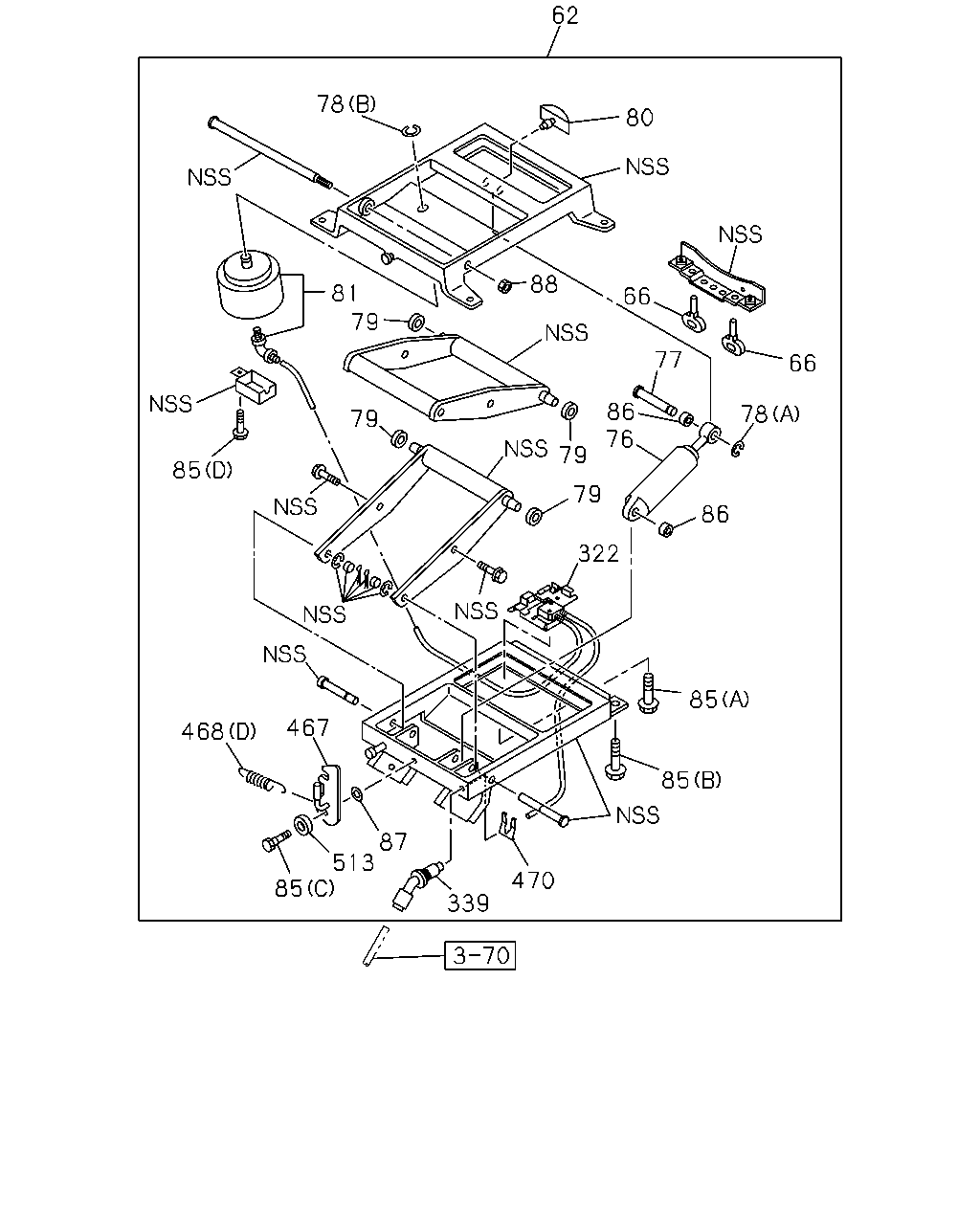

çizim 86633
62 80 78 88 66 77 66 78 86 86 76 79 79 322 85 85 470 339 87 513 85 467 468 85 79 79 81
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP 1-75537-262-6 01 1 0407-0511 ●
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0512-1403 ●
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404- ●
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 0407-0511 ●
66 RUBBER; LWR STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0512- ●
76 DAMPER; AIR SUSP 1-75537-230-2 01 1 0407-0511 ●
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0512- ●
77 PIN; DAMPER 1-75538-138-2 01 1 0407-0511 ●
77 PIN; DAMPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0512- ●
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 0407-0511 ●
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0512- ●
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 0407-0511 ●
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0512- ●
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 0407-0511 ●
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0512-1403 ●
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404- ●
80 RUBBER; STOPPER 1-09987-123-0 01 1 0407-0511 ●
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 0512- ●
81 SPRING; AIR 1-75538-151-2 01 1 0407-0511 ●
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0512-1312 ●
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401- ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
(C) 		1-09980-577-0 01 1 0407-0511 ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0512- ●
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-0 02 1 0407-0511 ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0512- ●
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0407-0511 ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0512-1312 ●
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0407-0511 ●
86 BUSHING; GUIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0512- ●
87 WASHER; AIR SUSP
ID=8.2 		9-09150-508-0 01 1 0407-0511 ●
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0512-0710 ●
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711- ●
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 0407-0511 ●
88 NUT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0512- ●
322 VALVE; AIR SPRING 1-75538-186-2 01 1 0407-0511 ●
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 0512- ●
339 UNION; DRIVER SEAT 1-75538-131-2 01 1 0407-0511 ●
339 UNION; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0512- ●
467 LEVER; LOCK 1-75538-134-0 01 1 0407-0511 ●
467 LEVER; LOCK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0512- ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0407-0511 ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0512- ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0407-0511 ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0512- ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0407-0511 ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0512- ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0407-0511 ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0512- ●
470 CLIP; HOSE 1-75538-137-0 01 1 0407-0511 ●
470 CLIP; HOSE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0512- ●
513 SPACER; LEVER 1-75538-133-0 01 1 0407-0511 ●
513 SPACER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0512- ●

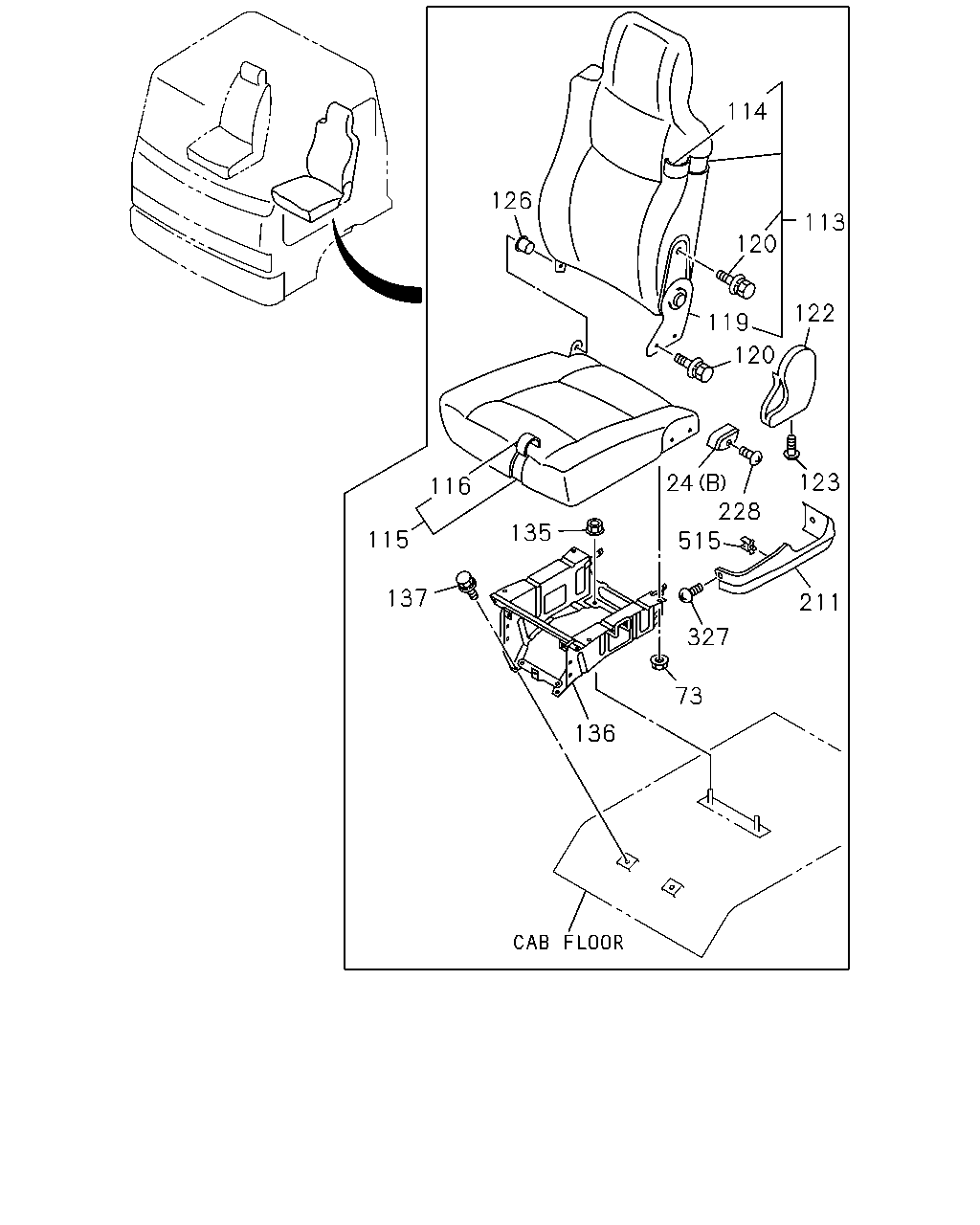

çizim 87014
114 126 113 120 122 119 120 123 24 228 116 135 115 515 137 211 327 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) DARK GRAY 		8-97859-019-0 01 1 0512-1011 ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) 		1-75418-067-0 01 1 1012- ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0407-0511 ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0512-0710 ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711- ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0407-0511 ●
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M8 FLANGE 		1-75538-207-0 04 1 0512- ●
73 NUT; ADJ,HEIGHT CONT
CUSTOM CAB(SR5) M8 FLANGE 		1-75538-207-0 04 1 0512- ●
113 BACK ASM; SEAT
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75207-598-1 01 1 0512- ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75207-651-3 01 1 0512-1011 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-274-0 01 1 1012- ●
113 BACK ASM; SEAT 1-75207-597-1 01 1 0407-0511 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75207-597-2 01 1 0512-1011 ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-273-0 01 1 1012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75127-153-1 01 1 0512- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75127-170-2 01 1 0512-1011 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-290-0 01 1 1012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-152-1 01 1 0407-0511 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75127-152-2 01 1 0512-1011 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-286-0 01 1 1012- ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75207-737-1 01 1 0512-1011 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-128-0 01 1 1012- ●
115 CUSHION ASM; PASSENGER SEAT
CUSTOM CAB(SR5) 		1-75207-594-1 01 1 0407-0511 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75207-594-2 01 1 0512-1011 ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-125-0 01 1 1012- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. CUSTOM CAB(SR5) 		1-75207-596-1 01 1 0407-0511 ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75207-213-2 01 1 0512- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75127-184-1 01 1 0512-1011 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98168-141-0 01 1 1012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CUSTOM CAB(SR5) 		1-75127-149-1 01 1 0407-0511 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		1-75127-149-2 01 1 0512-1011 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) CUSTOM CAB(SR5) 		8-98168-135-0 01 1 1012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. CUSTOM CAB(SR5) 		1-75127-151-1 01 1 0407-0511 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) CUSTOM CAB(SR5) 		1-75127-029-1 01 1 0512- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE 1-75417-597-0 01 1 0407-0511 ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
CUSTOM CAB(SR5) 		1-75417-597-0 01 1 0512- ●
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M8X20 		8-97255-906-0 02 1 0512- ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 04 1 0407-0511 ●
120 BOLT; RECLINING ADJ
CUSTOM CAB(SR5) M8X20 		8-97255-906-0 04 1 0512- ●
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) DARK GRAY 		8-97859-018-0 01 1 0512- ●
122 COVER; ADJ,RECLINING 1-75417-598-0 01 1 0407-0511 ●
122 COVER; ADJ,RECLINING
CUSTOM CAB(SR5) 		1-75417-598-0 01 1 0512- ●
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512- ●
123 SCREW; COVER,RECLINING
M6X12 		9-03490-612-0 01 1 0407-0511 ●
123 SCREW; COVER,RECLINING
CUSTOM CAB(SR5) M6X12 		9-03490-612-0 01 1 0512- ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0407-0511 ●
126 BUSHING; HINGE,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-97854-087-0 01 1 0512- ●
126 BUSHING; HINGE,RECLINING
CUSTOM CAB(SR5) 		8-97854-087-0 01 1 0512- ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0407-0511 ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0512-0703 ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ●
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		1-75558-631-0 01 1 0407-0511 ●
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		1-75558-522-8 01 1 0512-1305 ●
136 STAND; PASSENGER SEAT
CUSTOM CAB(SR5) 		8-98242-290-0 01 1 1306- ●
136 STAND; PASSENGER SEAT
EXC. CUSTOM CAB(SR5) 		1-75557-479-2 01 1 0407-0511 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		1-75558-601-3 01 1 0512-1305 ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) 		8-98242-298-0 01 1 1306- ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0407-0511 ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0512-0703 ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ●
211 COVER; FRT SEAT
EXC. CUSTOM CAB(SR5) 		1-72538-274-0 01 1 0407-0511 ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M4 		8-98062-662-0 01 1 1012- ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1012- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0407-0511 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M4X6 		8-97042-273-0 01 1 0512-0710 ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0512-0710 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011 ●
327 CLIP; COVER 1-09987-273-0 02 1 0407-0511 ●
327 CLIP; COVER
EXC. CUSTOM CAB(SR5) 		1-09987-273-0 02 1 0407-0511 ●
327 CLIP; COVER 1-09987-273-0 02 1 0512- ●
515 CLIP; PIPE
EXC. CUSTOM CAB(SR5) BLACK 		8-94227-248-1 01 1 0407-0511 ●

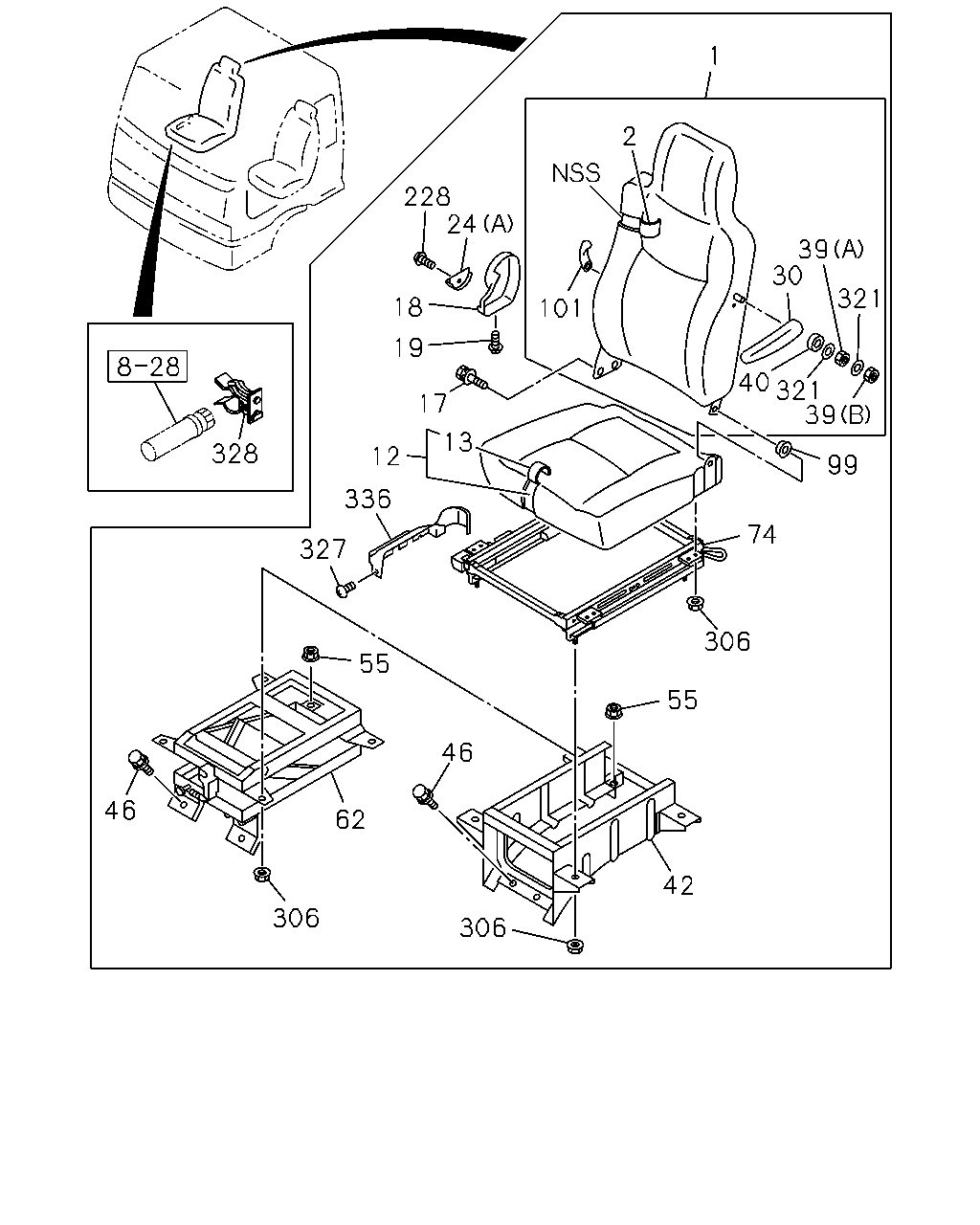

çizim 87097
1 2 228 24 39 30 321 18 101 19 40 321 39 17 13 328 12 99 336 74 327 306 55 55 46 46 62 42 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-587-3 01 1 0512-0901 ●
1 BACK ASM; SEAT
VINYL SEAT(A83) 		8-98135-630-0 01 1 0902- ●
1 BACK ASM; SEAT 1-75207-586-2 01 1 0407-0511 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-586-3 01 1 0512-0901 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-629-0 01 1 0902-1011 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-067-0 01 1 1012- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) 		1-75127-146-2 01 1 0512- ●
2 COVER; TRIM,FRT SEAT,BACK 1-75127-145-1 01 1 0407-0511 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-145-2 01 1 0512-1011 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-082-0 01 1 1012- ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-603-2 01 1 0512- ●
12 CUSHION; SEAT,FRT 1-75207-584-3 01 1 0407-0511 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-584-4 01 1 0512-1011 ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-042-0 01 1 1012- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-102-1 01 1 0512- ●
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-143-2 01 1 0407-0511 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-143-3 01 1 0512-1011 ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-074-0 01 1 1012- ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0407-0511 ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0512- ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0407-0511 ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0512- ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0407-0511 ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512- ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) DARK GRAY 		8-97859-019-0 01 1 0512-1011 ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) (B) 		1-75418-067-0 01 1 1012- ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0407-0511 ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0512-0710 ●
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711- ●
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) 		1-75127-015-1 01 1 0512- ●
30 REST ASM; ARM,FRT SEAT 1-75127-148-0 01 1 0407-0511 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0512- ●
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 0407-0511 ●
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 0512- ●
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 0407-0511 ●
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 0512- ●
40 SPACER; ARM REST 8-94285-921-0 02 1 0407-0511 ●
40 SPACER; ARM REST 8-94285-921-0 02 1 0512- ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83) 		1-75558-604-2 01 1 0512- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0407-0511 ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0512-0703 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0407-0511 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0512-0703 ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ●
62 DAMPER ASM; SEAT SUSP 1-75537-262-6 01 1 0407-0511 ●
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0512-1403 ●
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-1 01 1 0407-0511 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0512-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503- ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0407-0511 ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0512- ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0407-0511 ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0512- ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M4 		8-98062-662-0 01 1 1012- ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1012- ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0407-0511 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) M4X6 		8-97042-273-0 01 1 0512-0710 ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0512-0710 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. CUSTOM CAB(SR5) PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011 ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0407-0511 ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0512- ●
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 0407-0511 ●
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 0512- ●
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 0407-0511 ●
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 0512- ●
327 CLIP; COVER 1-09987-273-0 02 1 0407-0511 ●
327 CLIP; COVER
EXC. CUSTOM CAB(SR5) 		1-09987-273-0 02 1 0407-0511 ●
327 CLIP; COVER 1-09987-273-0 02 1 0512- ●
328 CLIP; HANDY WARNING 1-72537-239-0 01 1 0407-0511 ●
328 CLIP; HANDY WARNING 1-72537-239-0 01 1 0512- ●
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 0407-0511 ●
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 0512- ●

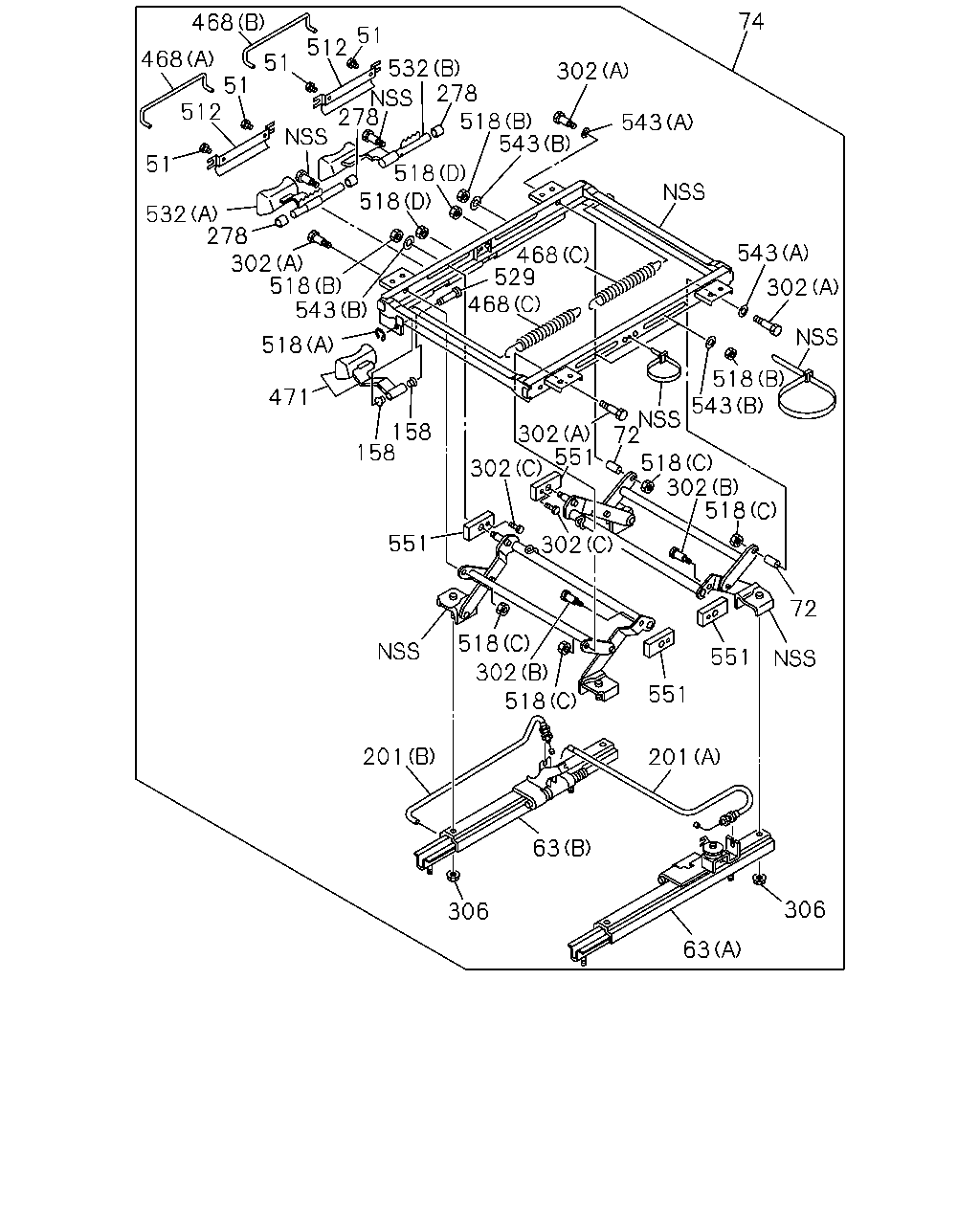

çizim 104457
74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 518 543 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 518 72
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER 1-75518-325-1 04 1 0407-0511 ●
51 SCREW; COVER 1-75518-325-1 04 1 0512- ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0407-0511 ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0512- ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0407-0511 ●
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0512- ●
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0407-0511 ●
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0512-1502 ●
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-1 01 1 0407-0511 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0512-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503- ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0407-0511 ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0512- ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0407-0511 ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0512- ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0407-0511 ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0512- ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0407-0511 ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0512- ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0407-0511 ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0512- ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0407-0511 ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0512-1502 ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503- ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0407-0511 ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0512- ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0407-0511 ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0512- ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0407-0511 ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0512- ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0407-0511 ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0512- ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0407-0511 ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0512- ●
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 0407-0511 ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0512- ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0407-0511 ●
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0512-0710 ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711- ●
512 COVER; LEVER 1-75518-243-1 02 1 0407-0511 ●
512 COVER; LEVER 1-75518-243-1 02 1 0512- ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0407-0511 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0512- ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0407-0511 ●
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0512- ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0407-0511 ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0512- ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0407-0511 ●
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0512- ●
529 PIN; LINK 1-75518-262-0 01 1 0407-0511 ●
529 PIN; LINK 1-75518-262-0 01 1 0512- ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0407-0511 ●
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0512- ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0407-0511 ●
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0512- ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 0512- ●
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0407-0511 ●
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0512-1502 ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=6.4 		9-09160-506-0 04 1 0407-0511 ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0407-0511 ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
