◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#28678) — 101 parça

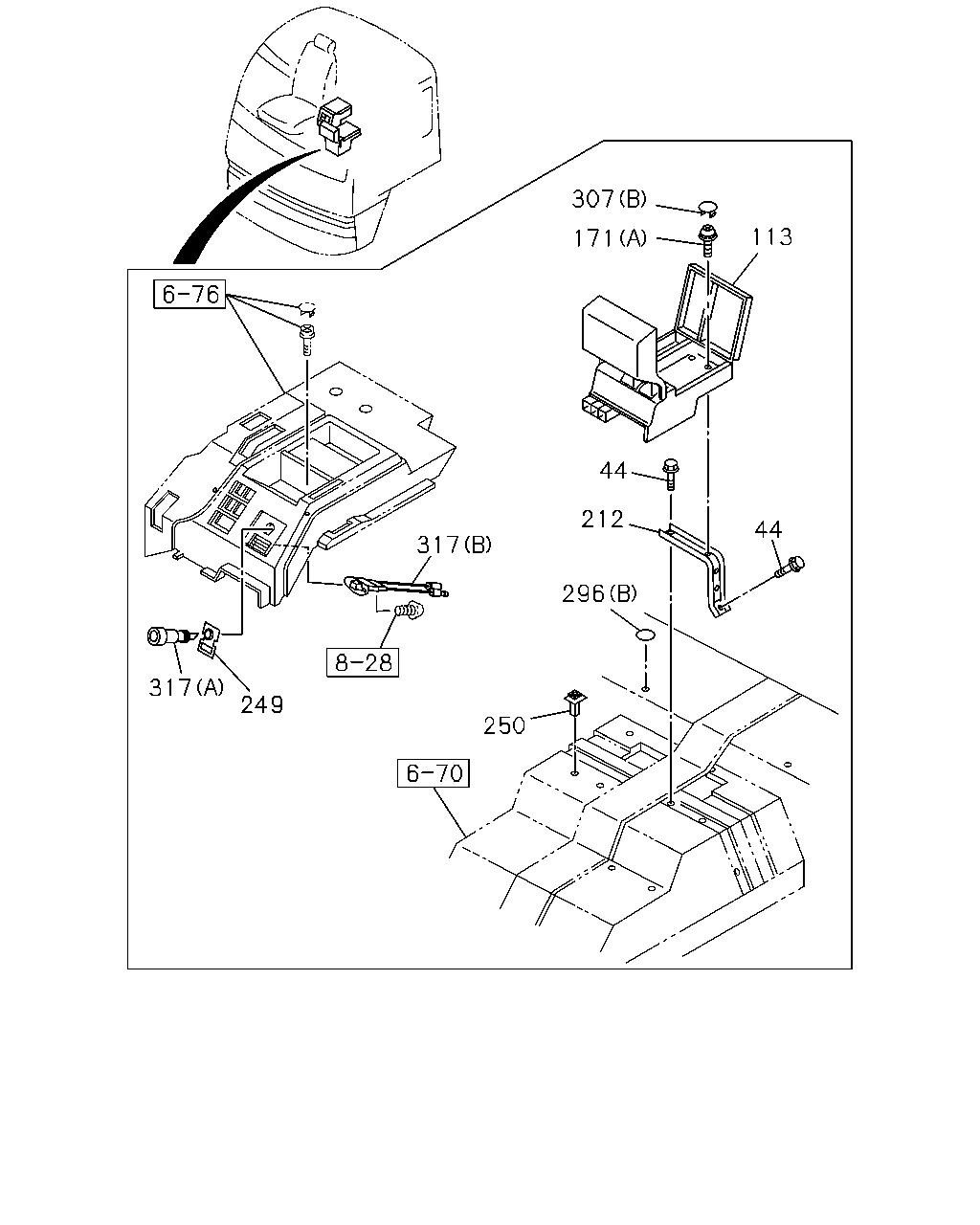

çizim 87013
307 113 171 44 212 44 317 296 317 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ●
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
113 BOX; CONSOLE 1-72537-240-3 01 1 0407-0507 ●
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-0511 ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0512-0609 ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610- ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0407-0511 ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0512- ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0407-0511 ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0512- ●
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0407-0511 ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0512- ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0407-0511 ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0512- ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0407-0511 ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0512- ●
296 SEAL
(A) 		1-72537-094-1 01 1 0407-0511 ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0512- ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0512- ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0512- ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-76337-461-0 04 1 0512- ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0407-0511 ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0512- ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0407-0511 ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0512- ●

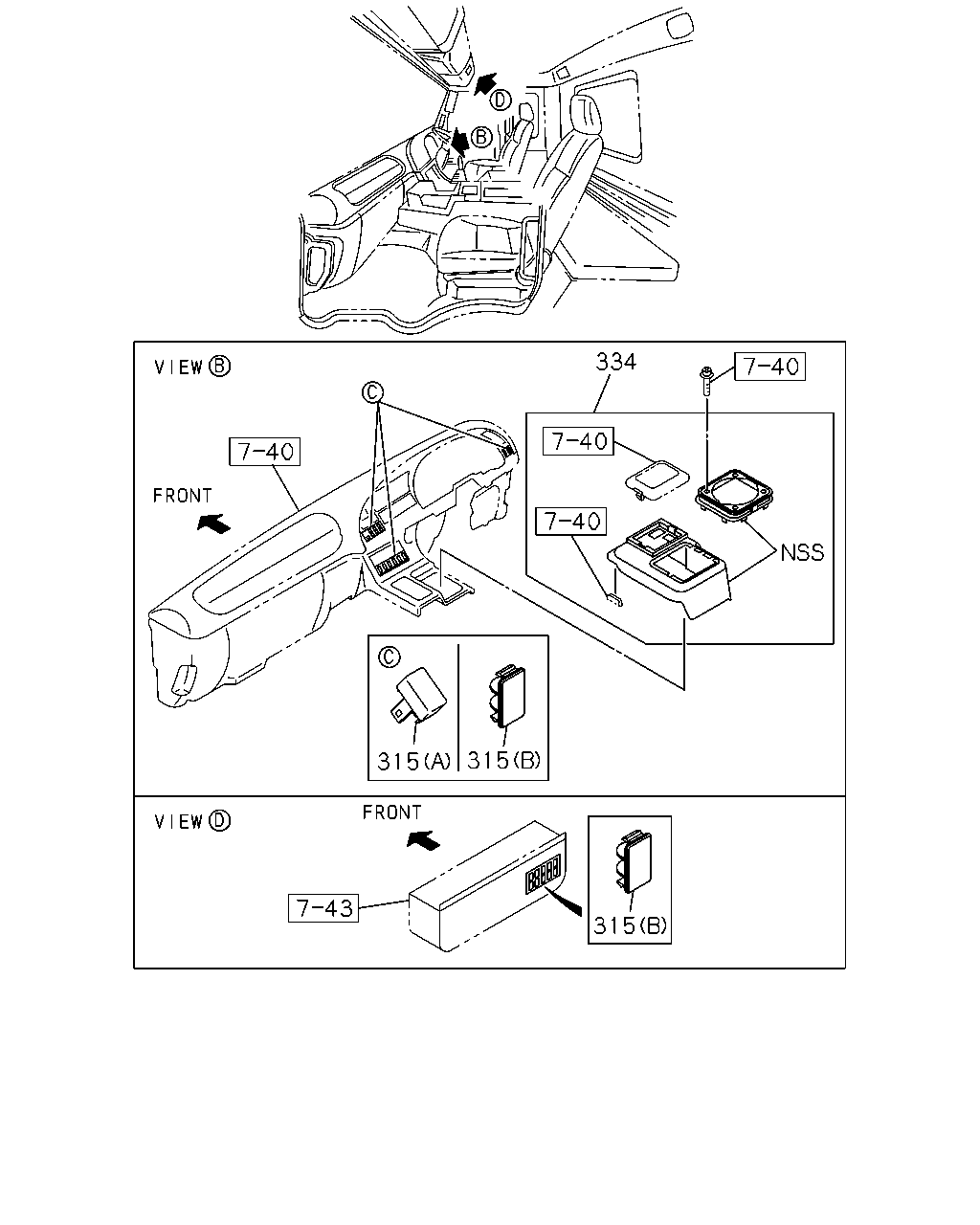

çizim 104258
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0407-0511 ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0512- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0407-0511 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0512- ●
334 COVER; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0512- ●

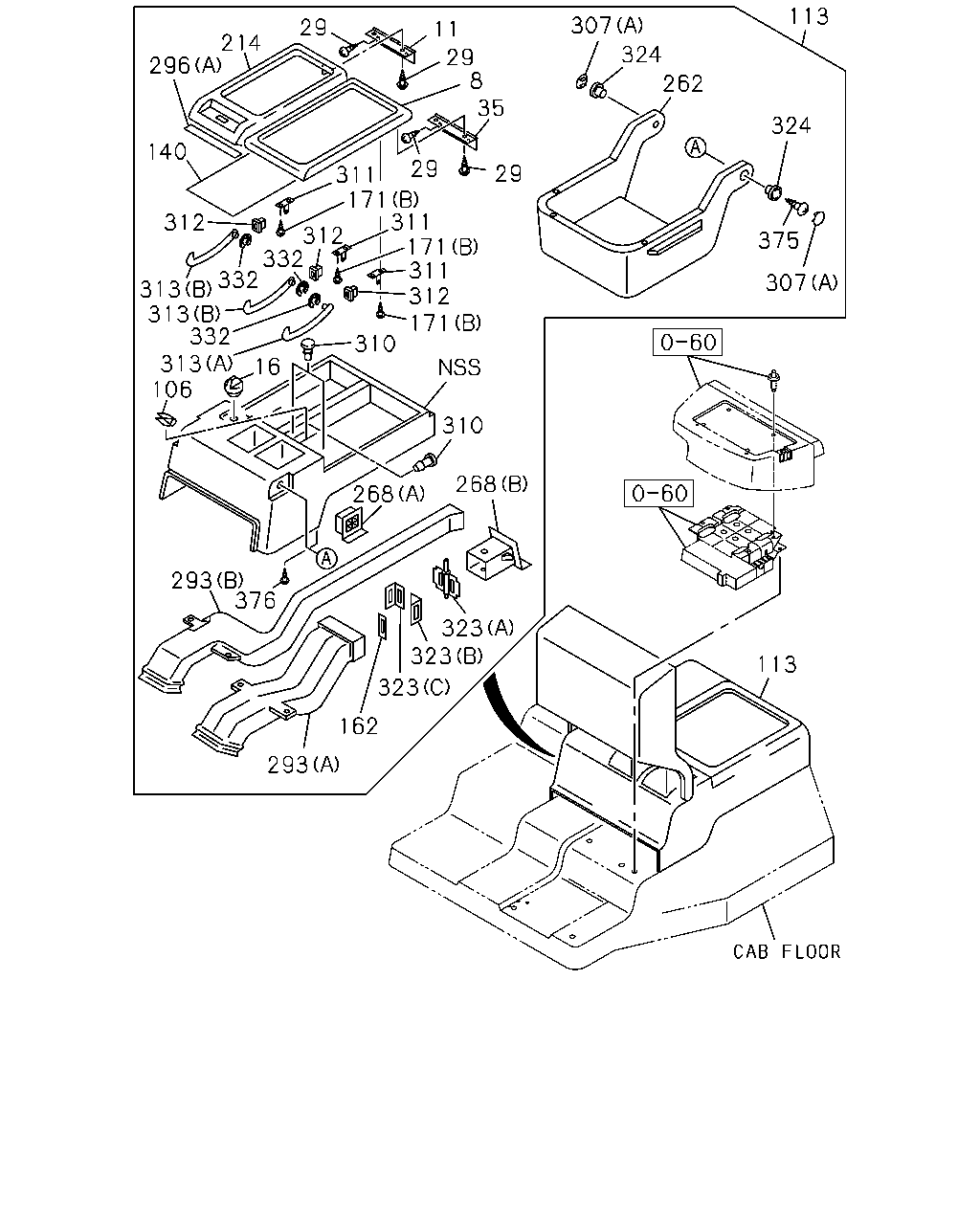

çizim 104348
113 307 29 11 214 324 29 8 35 296 262 324 140 29 29 311 171 311 171 311 312 171 312 312 332 332 313 313 332 313 106 375 307 310 16 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE 1-72537-185-0 01 1 0407-0511 ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0512-0705 ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0706- ●
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0407-0511 ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0512- ●
16 KNOB ASM 1-72537-189-0 01 1 0407-0511 ●
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0512- ●
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0407-0511 ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0512- ●
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0407-0511 ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0512- ●
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0407-0511 ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0512- ●
113 BOX; CONSOLE 1-72537-240-3 01 1 0407-0507 ●
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-0511 ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0512-0609 ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610- ●
140 SHEET 1-72537-093-1 01 1 0407-0511 ●
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0407-0511 ●
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0512- ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0407-0511 ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0512- ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0407-0511 ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0512- ●
214 LID; CONSOLE 1-72537-186-0 01 1 0407-0511 ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0512-0705 ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0706- ●
262 TABLE ASM 1-72537-187-1 01 1 0407-0511 ●
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0512- ●
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0407-0511 ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0512- ●
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0407-0511 ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0512- ●
293 DUCT
(A) 		1-72537-081-3 01 1 0407-0511 ●
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0512- ●
293 DUCT
(B) 		1-72537-083-2 01 1 0407-0511 ●
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0512- ●
296 SEAL
(A) 		1-72537-094-1 01 1 0407-0511 ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0512- ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0512- ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0512- ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-76337-461-0 04 1 0512- ●
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0407-0511 ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0512- ●
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0407-0511 ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0512- ●
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0407-0511 ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0512- ●
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0407-0511 ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0512- ●
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0407-0511 ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0512- ●
323 SHUTTER
(A) 		1-72537-084-1 01 1 0407-0511 ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0512- ●
323 SHUTTER
(B) 		1-72537-126-0 01 1 0407-0511 ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0512- ●
323 SHUTTER
(C) 		1-72537-127-0 01 1 0407-0511 ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0512- ●
324 BUSHING 1-72537-116-0 02 1 0407-0511 ●
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0512- ●
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0407-0511 ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0512- ●
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 0610- ●
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0610- ●
