Isuzu WW
▶
TRUCKS
▶
CXH
▶
10953 - CXH/CYH NEW ZEALAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

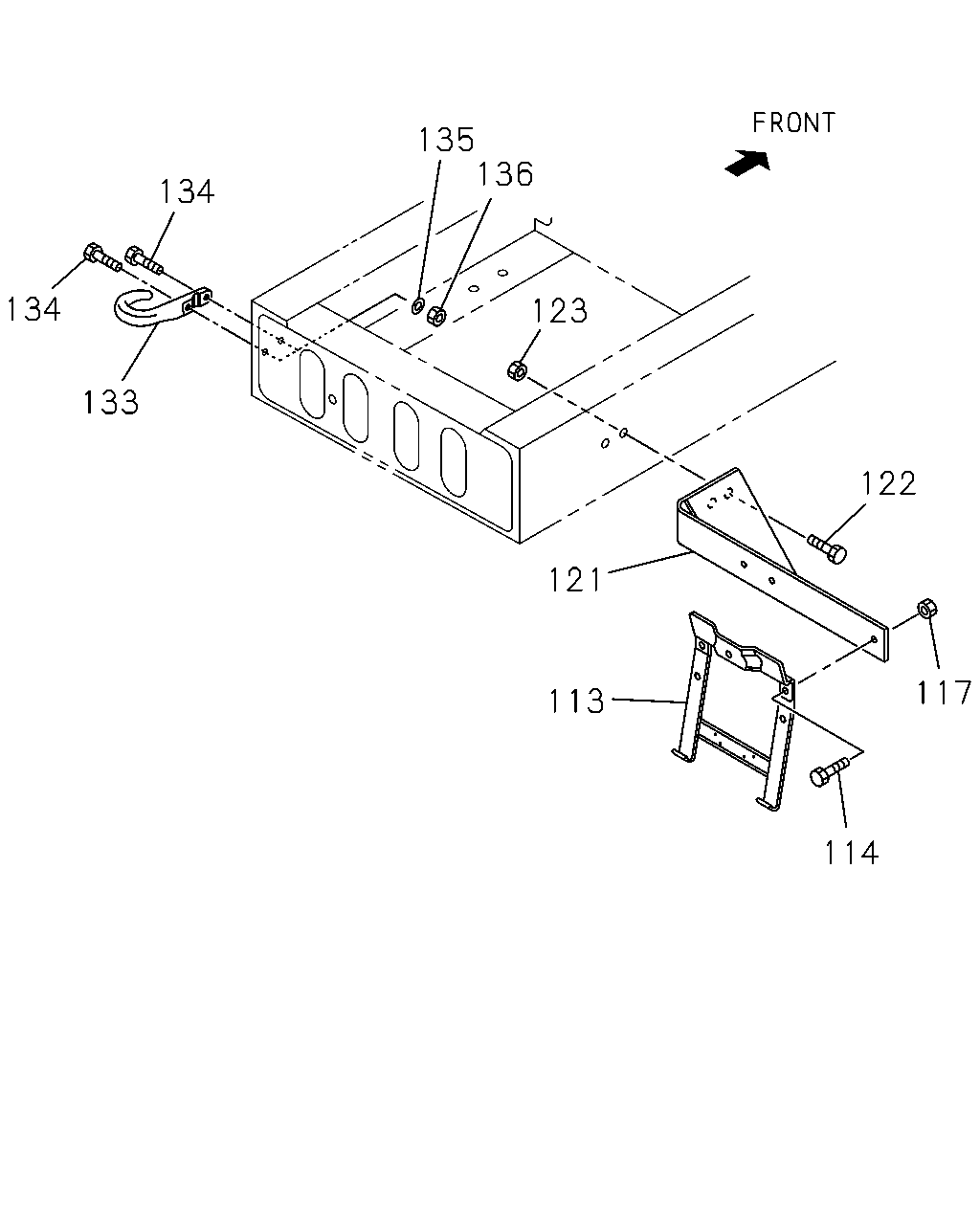

6-90 — REAR BUMPER
(#28671) — 32 parça
Tümü
A - CXH5MF
B - CYH5MF
135
136
134
134
123
133
122
121
117
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
1-53485-049-2
01
1
0407-0511
●
113
BRACKET; LICENSE PLATE
1-53485-049-2
01
1
0512-0907
●
113
BRACKET; LICENSE PLATE
8-98052-734-1
01
1
0908-
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
0407-0511
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
0512-0512
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0407-0511
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0512-0602
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
121
STAY; RR LICENSE PLATE BRKT
1-53485-002-1
01
1
0407-0511
●
121
STAY; RR LICENSE PLATE BRKT
1-53485-002-1
01
1
0512-1111
●
121
STAY; RR LICENSE PLATE BRKT
8-98179-582-0
01
1
1112-
●
122
BOLT; STAY TO FRAME
M12X40 FLANGE
0-28681-240-0
02
1
0407-0511
●
122
BOLT; STAY TO FRAME
M12X40 FLANGE
0-28681-240-0
02
1
0512-0512
●
122
BOLT; STAY TO FRAME
M12X40 FLANGE
0-28651-240-0
02
1
0601-
●
123
NUT; STAY
M12 FLANGE
0-91150-212-0
02
1
0407-0511
●
123
NUT; STAY
M12 FLANGE
0-91150-212-0
02
1
0512-0602
●
123
NUT; STAY
M12 FLANGE
0-91180-212-0
02
1
0603-
●
133
HOOK
1-57181-027-1
01
1
0407-0511
●
133
HOOK
1-57181-027-1
01
1
0512-
●
134
BOLT; HOOK
M16X60
0-10811-660-0
01
1
0407-0511
●
134
BOLT; HOOK
M16X60
0-10811-660-0
01
1
0512-0512
●
134
BOLT; HOOK
M16X60
0-10861-660-0
01
1
0601-
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
0407-0511
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
0512-0512
●
134
BOLT; HOOK
M16X50
0-20851-650-0
01
1
0601-
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0407-0511
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0512-0603
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0407-0511
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0512-0512
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
