◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#2867) — 81 parça

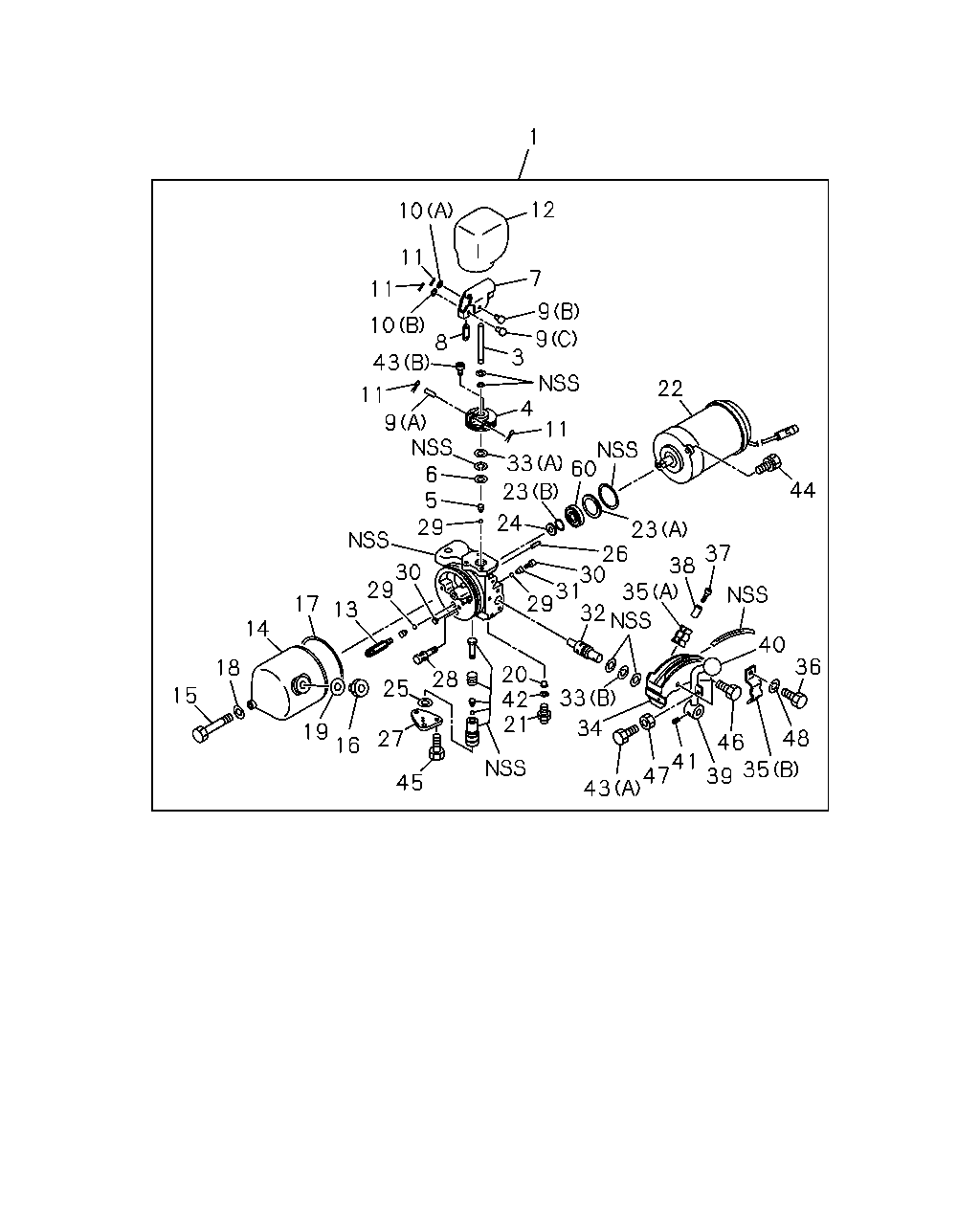

çizim 27873
36 37 44 22 38 35 32 23 26 30 31 29 24 23 23 60 11 4 3 9 9 7 12 1 10 11 11 10 11 43 8 9 5 29 6 30 29 13 17 14 18 15 19 16 45 27 21 28 25 20 42 33 34 43 47 39 41 35 48 40 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-4 01 1 9002- ● ●
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-068-0 01 1 9002- ● ●
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-067-0 01 1 9002- ● ●
5 SPRING; SUCTION
AUTO CAB TILT<WV2> 		1-53458-066-0 01 1 9002- ● ●
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-065-0 01 1 9002- ● ●
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-063-0 01 1 9002- ● ●
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-062-0 01 1 9002- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-057-0 01 1 9002- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-060-0 01 1 9002- ● ●
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-061-0 01 1 9002- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 9002- ● ●
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-059-0 01 1 9002- ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 9002- ● ●
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 9002- ● ●
13 VALVE; RELIEF,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-055-0 01 1 9002- ● ●
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-053-0 01 1 9002- ● ●
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-052-0 01 1 9002- ● ●
16 CAP
AUTO CAB TILT<WV2> 		1-53458-049-0 01 1 9002- ● ●
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 9002- ● ●
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 9002- ● ●
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 9002- ● ●
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 9002- ● ●
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> M14 		1-53458-047-0 02 1 9002- ● ●
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-046-0 01 1 9002-9010 ● ●
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-233-0 01 1 9011-9512 ● ●
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-731-0 01 1 9601- ● ●
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 9002- ● ●
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 01 1 9002- ● ●
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 9002- ● ●
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 9002- ● ●
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 02 1 9002- ● ●
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-037-0 01 1 9002- ● ●
28 PIPE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-036-0 01 1 9002- ● ●
29 BALL; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-035-0 03 1 9002- ● ●
30 PLUG; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-033-0 02 1 9002- ● ●
31 SPRING; DELIVERY
AUTO CAB TILT<WV2> 		1-53458-032-0 01 1 9002- ● ●
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-031-0 01 1 9002- ● ●
33 RING; BACK UP
AUTO CAB TILT<WV2> (A) 		1-53458-014-0 01 1 9002- ● ●
33 RING; BACK UP
AUTO CAB TILT<WV2> (B) 		1-53458-028-0 01 1 9002- ● ●
34 HOLDER; LEVER
AUTO CAB TILT<WV2> 		1-53458-027-0 01 1 9002- ● ●
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-023-0 02 1 9002- ● ●
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-026-0 01 1 9002- ● ●
36 BOLT; STOPPER
AUTO CAB TILT<WV2> 		1-53458-025-0 01 1 9002- ● ●
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X8 		1-53458-005-0 01 1 9002- ● ●
37 SCREW; STOPPER
AUTO CAB TILT<WV2> 		1-53458-011-0 01 1 9002-9312 ● ●
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X20 		1-53458-523-0 01 1 9401- ● ●
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-022-0 01 1 9002-9312 ● ●
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-524-0 02 1 9401- ● ●
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-021-0 01 1 9002- ● ●
40 BALL; OIL PUMP LEVER
AUTO CAB TILT<WV2> 		1-53458-020-0 01 1 9002- ● ●
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 9002- ● ●
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 9002- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-008-0 01 1 9002- ● ●
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-012-0 03 1 9002- ● ●
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 9002- ● ●
45 BOLT; COVER
AUTO CAB TILT<WV2> 		1-53458-006-0 03 1 9002- ● ●
46 BOLT; LEVER HOLDER
AUTO CAB TILT<WV2> M6X8 		1-53458-004-0 02 1 9002- ● ●
47 NUT; LEVER
AUTO CAB TILT<WV2> 		1-53458-003-0 01 1 9002- ● ●
48 WASHER; STOPPER
AUTO CAB TILT<WV2> 		1-53458-002-0 01 1 9002- ● ●
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-043-0 01 1 9307- ● ●

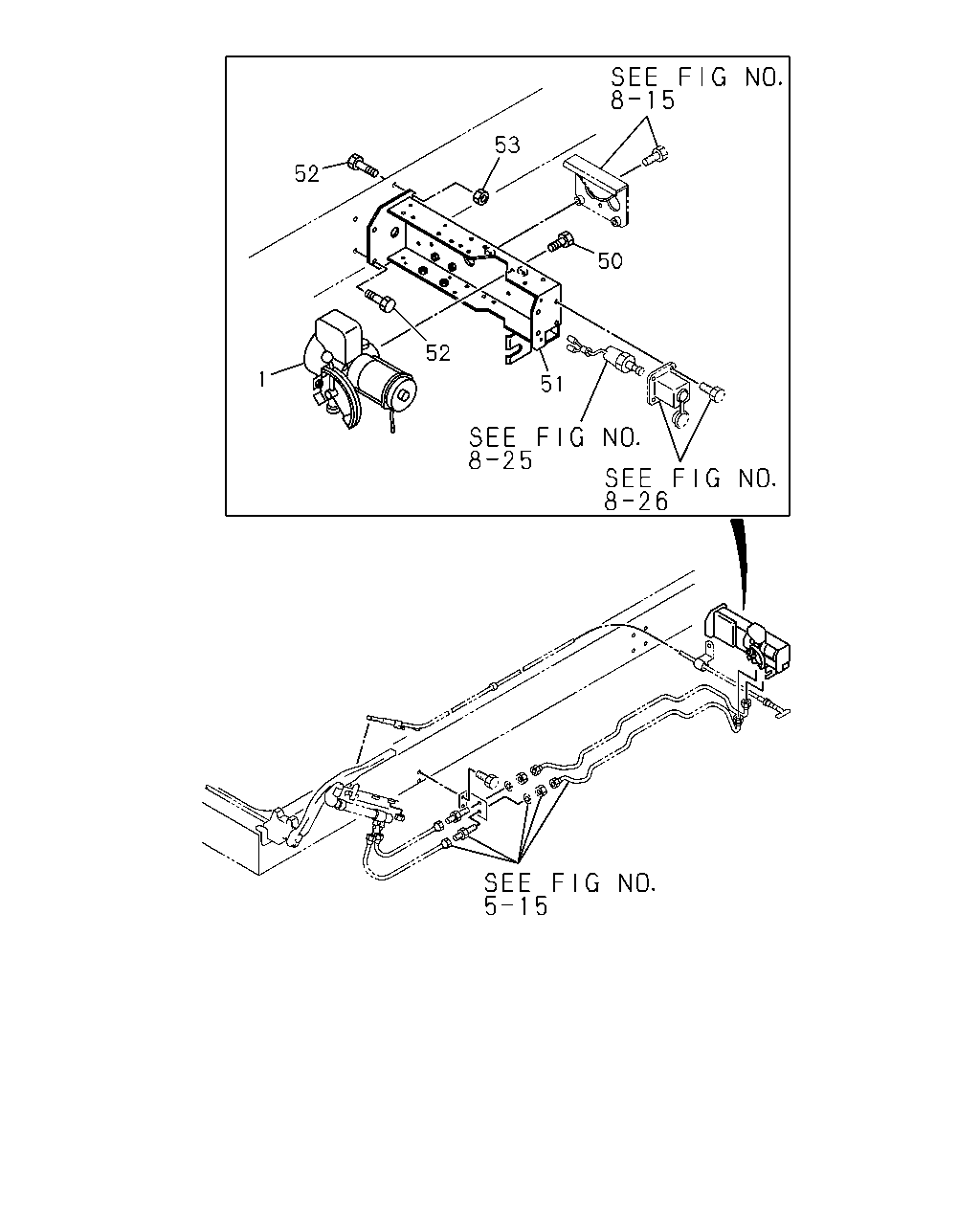

çizim 28838
51 52 1 52 53 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-4 01 1 9002- ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002 ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9307 ● ●
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 FLANGE 		0-28081-020-0 03 1 9308- ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-868-9 01 1 9002-9207 ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-870-9 01 1 9208-9306 ● ●
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-476-1 01 1 9307- ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 W/LK WASHER 		9-01911-035-0 04 1 9002-9002 ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9003-9307 ● ●
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 FLANGE 		0-28081-035-0 04 1 9308- ● ●
53 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 04 1 9002-9306 ● ●
53 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9307- ● ●
çizim 96384
41 42 19 25 18 17 11 11 11 2 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-018-0 01 1 9002- ● ●
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 9002- ● ●
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 9002- ● ●
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 9002- ● ●
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 9002- ● ●
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 9002- ● ●
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 9002- ● ●
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 9002- ● ●
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 9002- ● ●
