◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#28665) — 68 parça

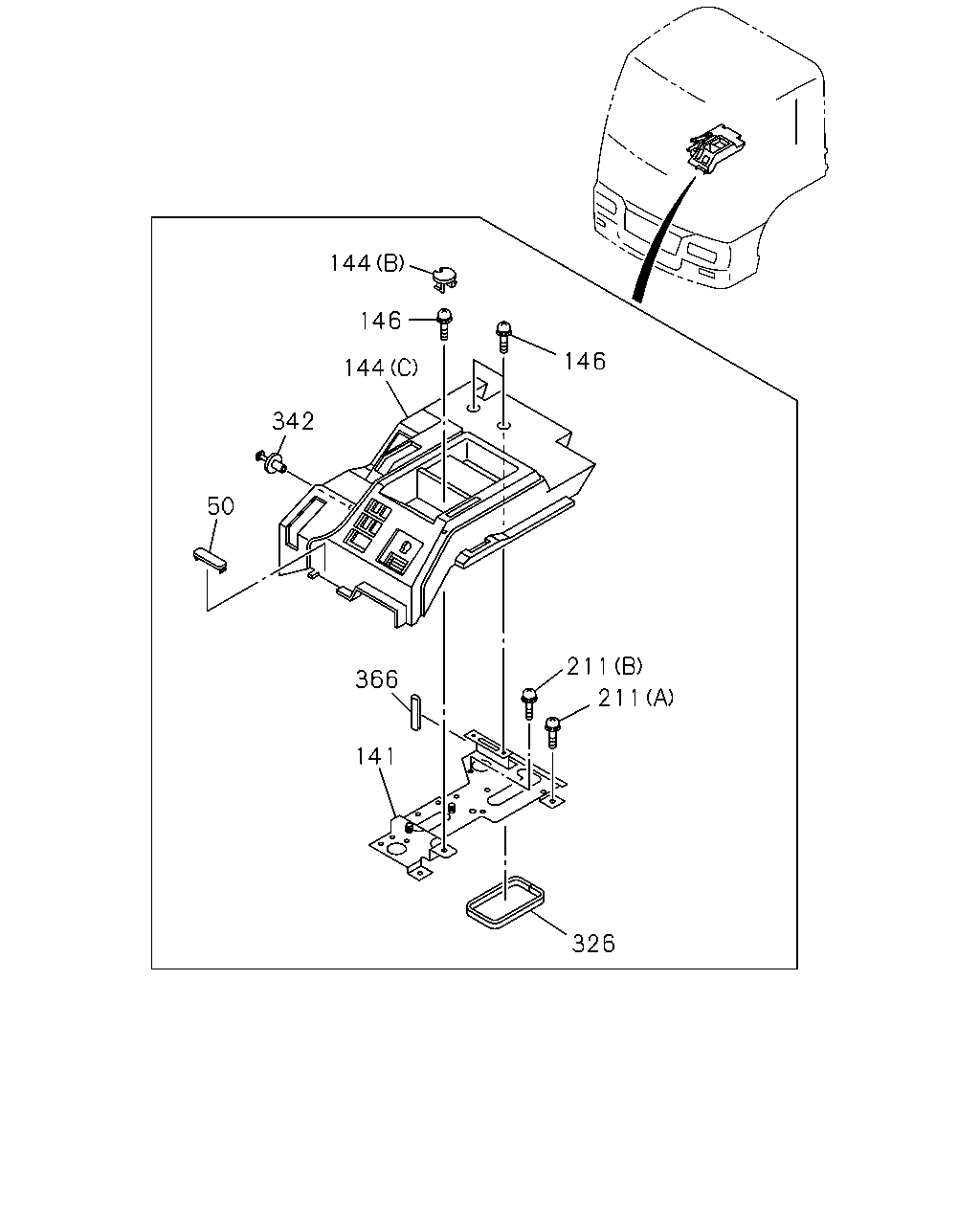

çizim 86700
144 146 146 144 342 50 211 366 211 141 326
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE
ELEC OUTLET 12V<TAW> FULLER M/T<X9B> 		1-72537-124-0 01 1 0805- ●
141 HOLDER 1-79907-076-2 01 1 0407-0511 ●
141 HOLDER 1-79907-076-2 01 1 0512- ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> (A) 		1-72417-378-1 01 1 0407-0511 ●
144 COVER; HAND BRK VLV
MJX M/T<Y9N> ELEC OUTLET 12V<TAW> (A) 		1-72417-378-1 01 1 0512- ●
144 COVER; HAND BRK VLV
EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-338-1 01 1 0407-0511 ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> FULLER M/T<X9B> (C) 		1-72417-380-1 01 1 0512- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0407-0511 ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0512- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0407-0511 ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0512- ●
211 BOLT; COVER
EXC. FULL TRACTOR TRUCK<RD6> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0712- ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0407-0511 ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0512-0711 ●
211 BOLT; COVER
FULL TRACTOR TRUCK<RD6> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0712- ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0407-0511 ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0512- ●
326 SEAL; COVER 1-79997-978-1 01 1 0407-0511 ●
326 SEAL; COVER 1-79997-978-1 01 1 0512- ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0407-0511 ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0512- ●
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0407-0511 ●
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0512- ●

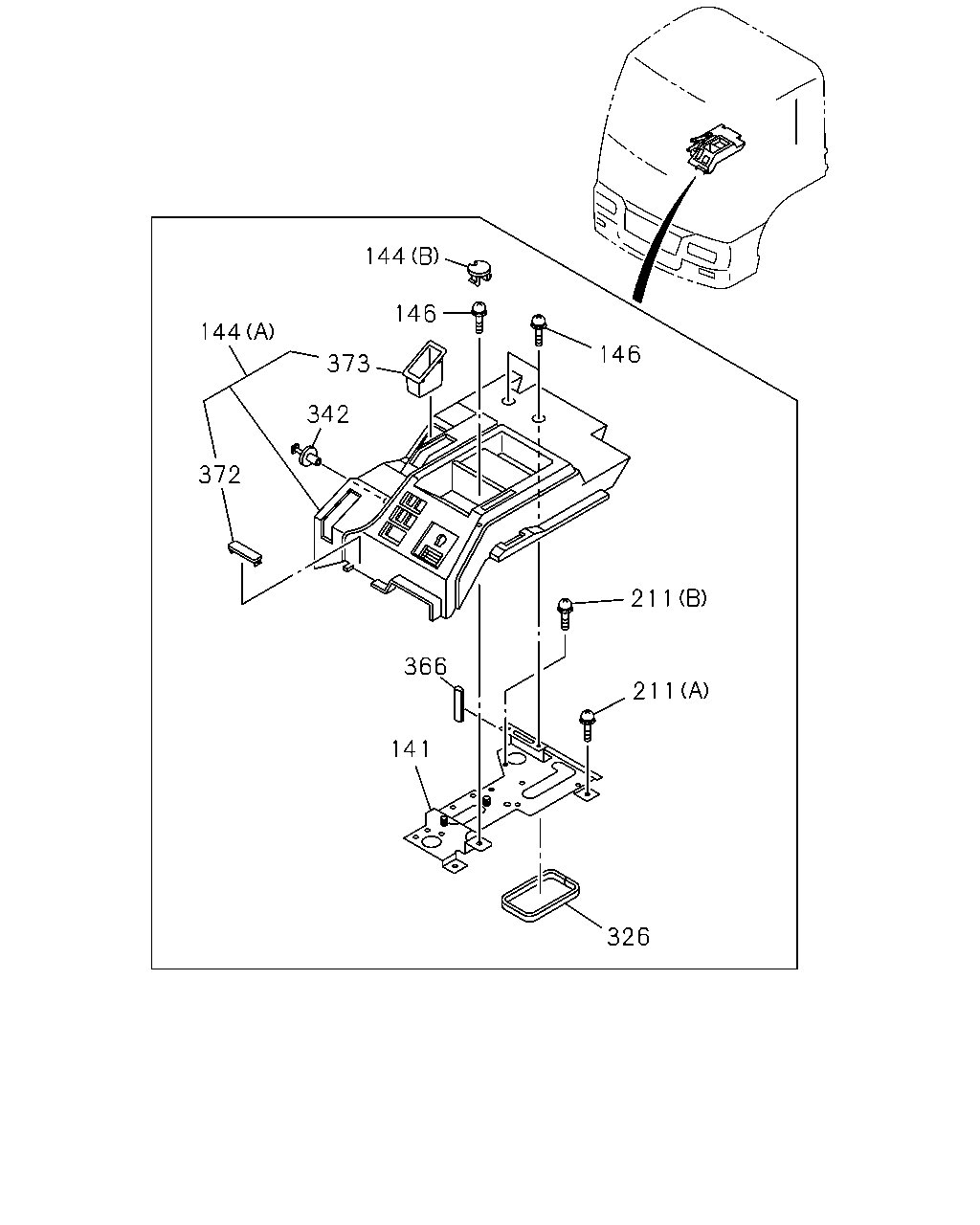

çizim 86862
144 146 144 146 373 342 372 211 366 211 141 326
BalonParca AdiParca NoAdetTipApplied Date A B
141 HOLDER 1-79907-076-2 01 1 0407-0511 ●
141 HOLDER 1-79907-076-2 01 1 0512- ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> (A) 		1-72417-378-1 01 1 0407-0511 ●
144 COVER; HAND BRK VLV
MJX M/T<Y9N> ELEC OUTLET 12V<TAW> (A) 		1-72417-378-1 01 1 0512- ●
144 COVER; HAND BRK VLV
EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-338-1 01 1 0407-0511 ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> FULLER M/T<X9B> (C) 		1-72417-380-1 01 1 0512- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0407-0511 ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 0512- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0407-0511 ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0512- ●
211 BOLT; COVER
EXC. FULL TRACTOR TRUCK<RD6> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0712- ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0407-0511 ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0512-0711 ●
211 BOLT; COVER
FULL TRACTOR TRUCK<RD6> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0712- ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0407-0511 ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0512- ●
326 SEAL; COVER 1-79997-978-1 01 1 0407-0511 ●
326 SEAL; COVER 1-79997-978-1 01 1 0512- ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0407-0511 ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 0512- ●
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0407-0511 ●
366 FINISHER; COVER
L=50 		8-94270-377-1 01 1 0512- ●
372 COVER; CONSOLE 1-72537-124-0 01 1 0407-0511 ●
372 COVER; CONSOLE
MJX M/T<Y9N> ELEC OUTLET 12V<TAW> 		1-72537-124-0 01 1 0512- ●
373 COVER; HOLE 1-72537-194-0 01 1 0407-0511 ●
373 COVER; HOLE
MJX M/T<Y9N> ELEC OUTLET 12V<TAW> 		1-72537-194-0 01 1 0512- ●

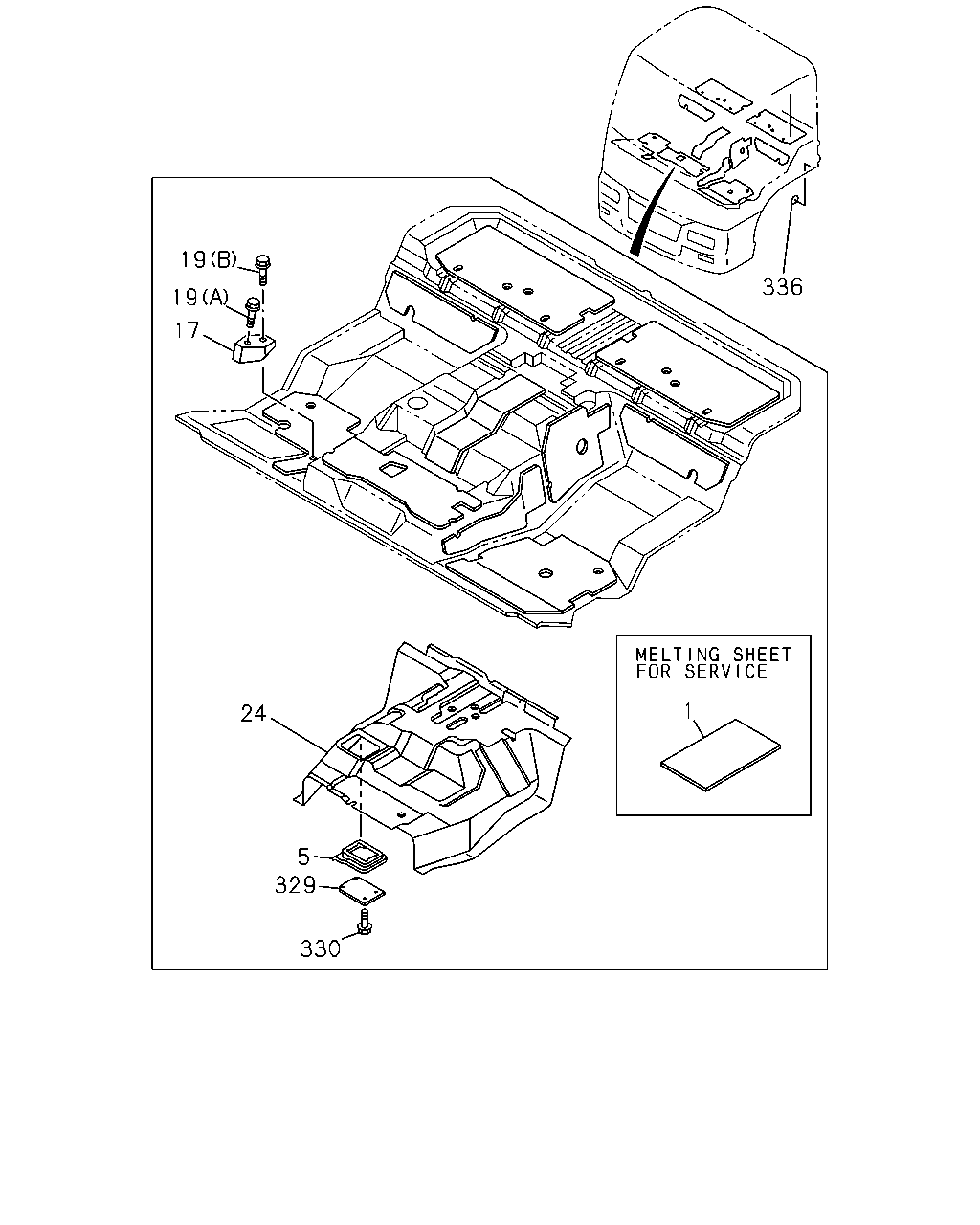

çizim 104253
19 336 19 17 1 24 5 329 330
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0407-0511 ●
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0512- ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0407-0511 ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0512- ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0407-0511 ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0512- ●
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0407-0511 ●
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0512- ●
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0407-0511 ●
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0512- ●
24 INSULATOR; HEAT,FRT
EXC. FULL TRACTOR TRUCK<RD6> 		1-71907-575-5 01 1 0512- ●
24 INSULATOR; HEAT,FRT 1-71907-552-2 01 1 0407-0511 ●
24 INSULATOR; HEAT,FRT
FULL TRACTOR TRUCK<RD6> 		1-71907-676-3 01 1 0512- ●
329 BRACKET; PANEL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-465-0 01 1 0512- ●
330 BOLT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28080-812-0 04 1 0512-0512 ●
330 BOLT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
336 SEAL; FLOOR SIDE
EXC. FULL TRACTOR TRUCK<RD6> OD=25 BLACK 		1-76798-019-0 01 1 0512- ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0407-0511 ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0512- ●
