◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#28664) — 29 parça

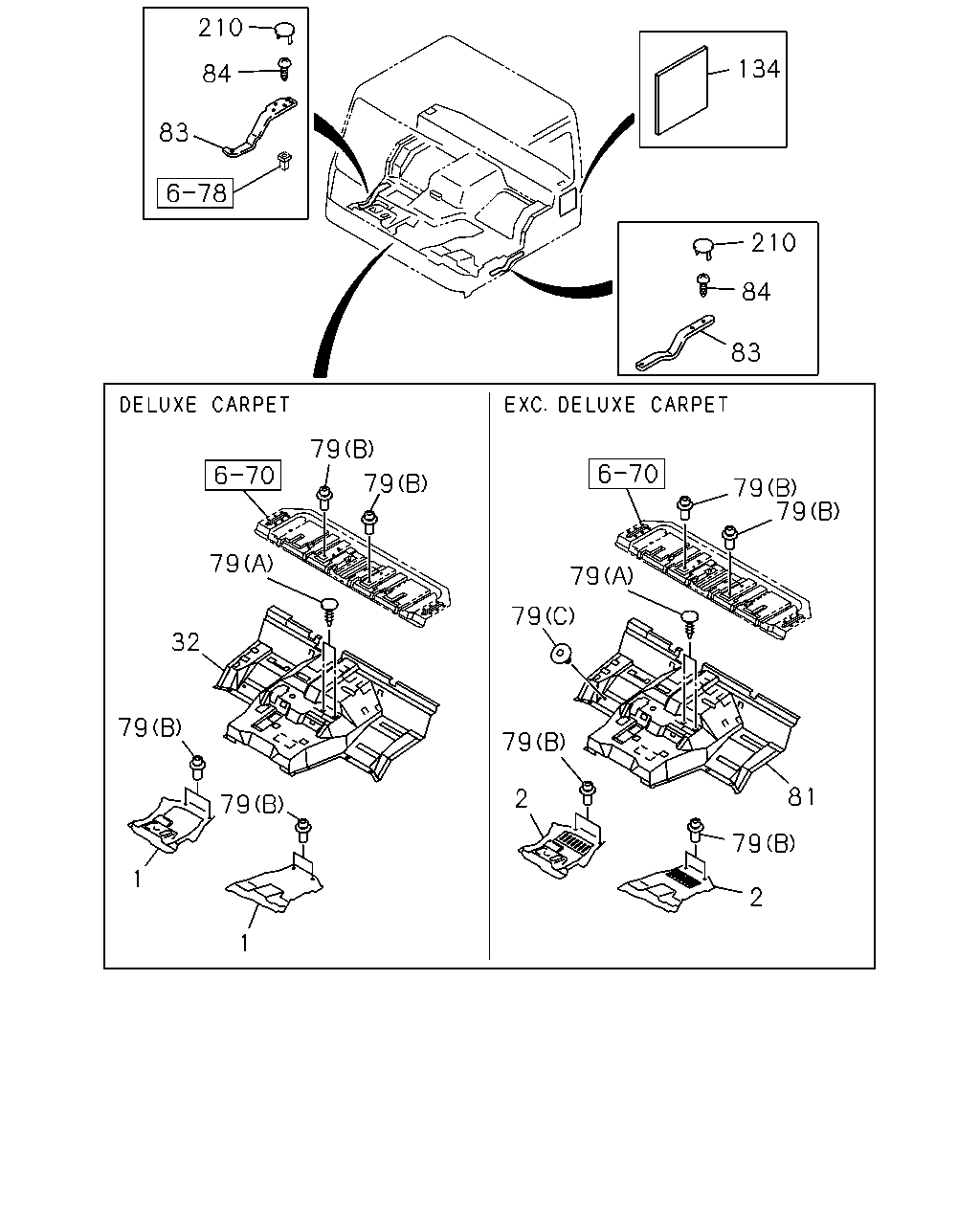

çizim 86829
210 134 84 83 210 84 83 79 79 79 79 79 79 79 32 79 79 81 2 79 79 1 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-1 01 1 0407-0511 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 0512- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-1 01 1 0407-0511 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 0512- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0512- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0512- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-884-3 01 1 0512- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-845-2 01 1 0407-0407 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-901-0 01 1 0408-0408 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-904-2 01 1 0409-0511 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-882-3 01 1 0512- ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0712- ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0407-0511 ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0512- ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0407-0511 ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0512- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-892-2 01 1 0512- ●
81 MAT; FLOOR,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) EXC. DELUXE CARPET<BF2> 		1-73237-899-2 01 1 0408-0511 ●
81 MAT; FLOOR,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) EXC. DELUXE CARPET<BF2> 		1-73237-889-2 01 1 0512- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0407-0511 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0512- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0407-0511 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0512- ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0407-0511 ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0512- ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 0407-0511 ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 0512- ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0407-0511 ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0512- ●
