◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#28663) — 45 parça

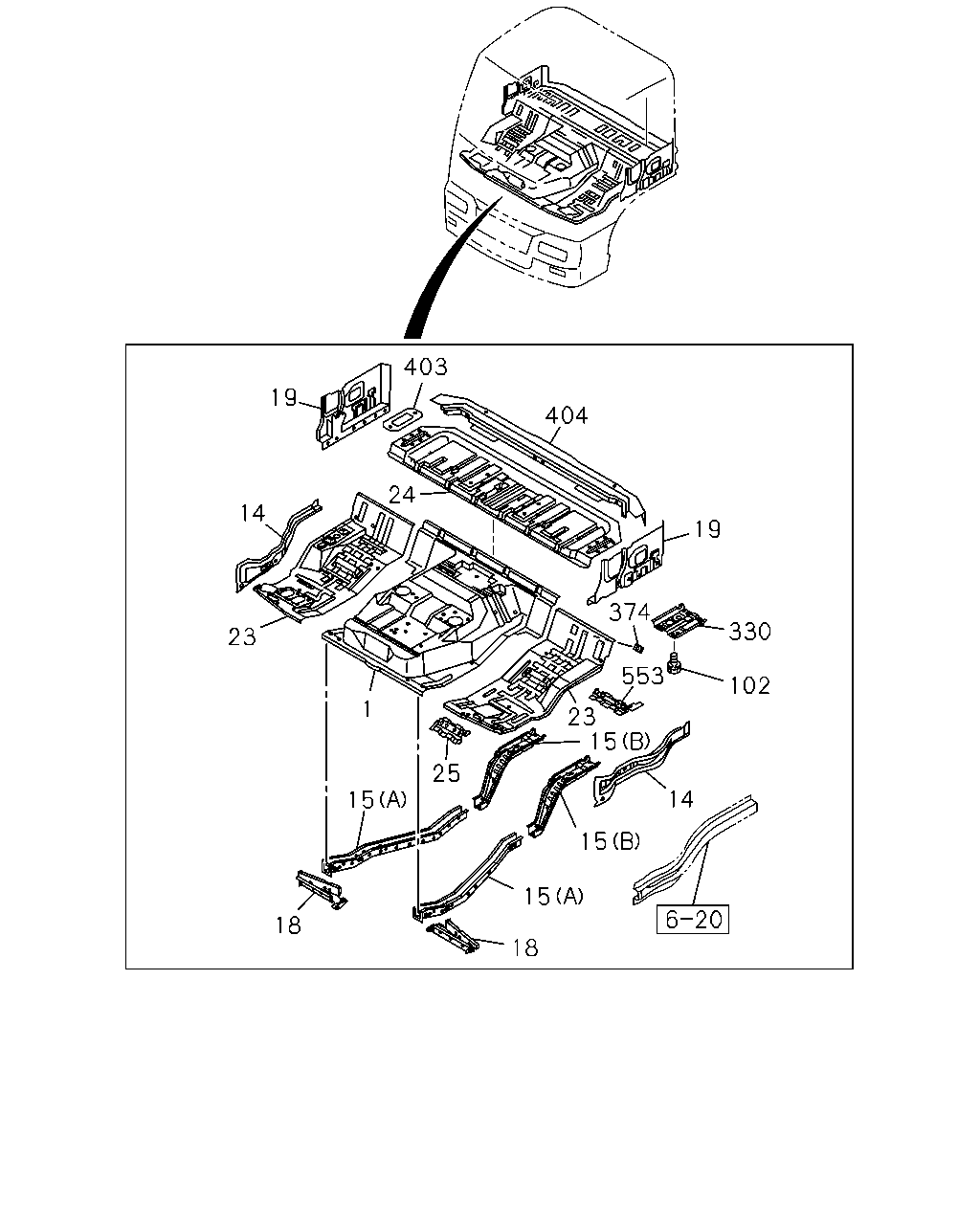

çizim 86924
23 14 24 19 403 404 19 374 330 102 553 23 15 14 15 15 18 18 15 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-62172-885-0 01 1 0512-0805 ●
1 PANEL; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98097-806-0 01 1 0806- ●
1 PANEL; FLOOR 1-62172-880-2 01 1 0407-0511 ●
1 PANEL; FLOOR
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-62172-892-0 01 1 0512-0703 ●
1 PANEL; FLOOR
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-62172-892-0 01 1 0512-0703 ●
1 PANEL; FLOOR
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-62172-892-1 01 1 0704- ●
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62172-892-1 01 1 0704- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0407-0511 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0512- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0407-0511 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0512- ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0407-0511 ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0512- ●
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0407-0511 ●
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0512- ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0407-0511 ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0512- ●
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0407-0511 ●
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0512- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0407-0511 ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0512- ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0407-0511 ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0512- ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0407-0511 ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0512- ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0407-0511 ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0512- ●
23 PANEL; FLOOR,SIDE 1-62172-866-0 01 1 0512- ●
23 PANEL; FLOOR,SIDE 1-62172-564-7 01 1 0407-0511 ●
23 PANEL; FLOOR,SIDE 1-62172-564-7 01 1 0512- ●
23 PANEL; FLOOR,SIDE 1-62172-865-0 01 1 0407-0511 ●
24 PANEL; BED PAN 1-62172-540-9 01 1 0407-0511 ●
24 PANEL; BED PAN 1-62172-540-9 01 1 0512- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0512- ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0407-0511 ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0512-0904 ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0407-0511 ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0512- ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0512- ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0407-0511 ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0512- ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0407-0511 ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0512- ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
